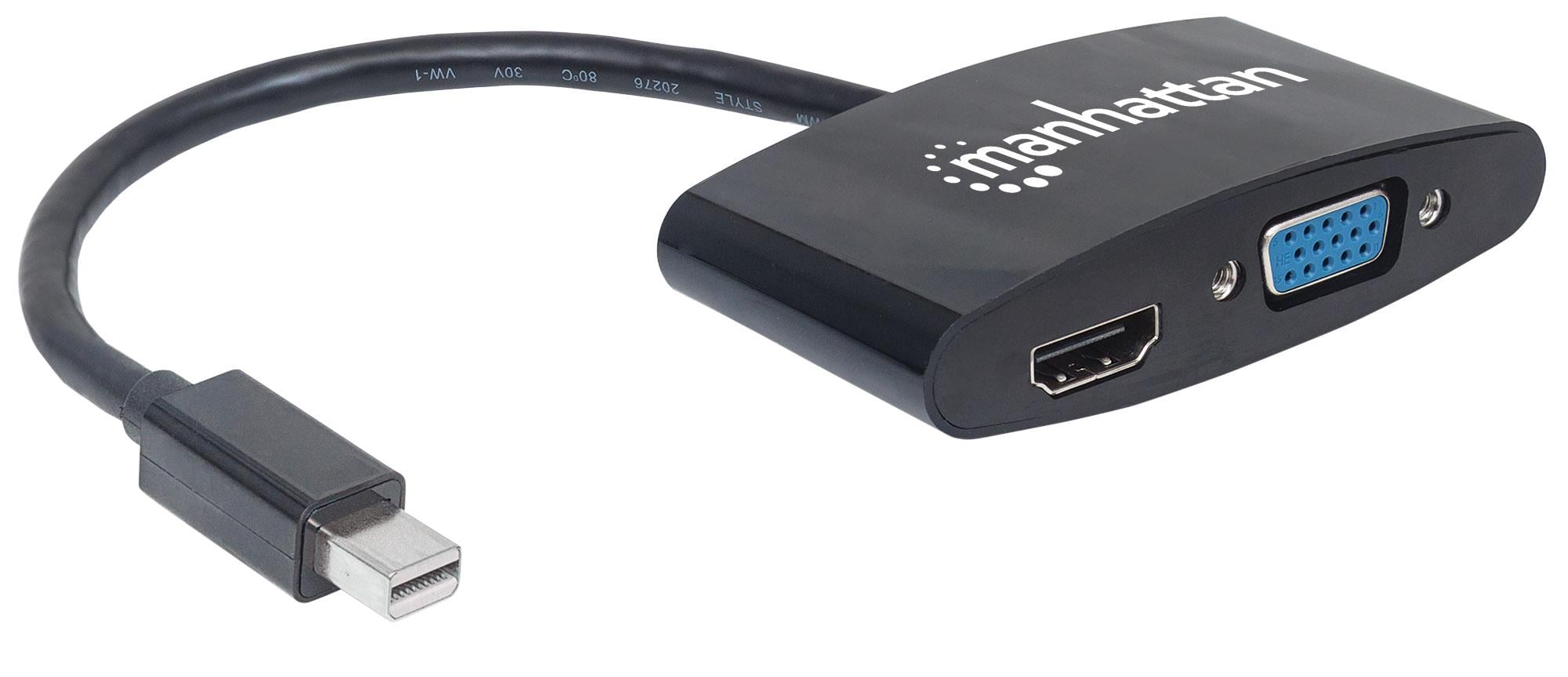

- 2-in-1 adapter converts DisplayPort signal to HDMI 4K or VGA 1080p signal
- Provides high quality digital video signal - ideal for use with a Mini DP source with an HDMI or VGA screen
- Supports Deep Color, applications with high bandwidth of 3 Gbps and resolutions of 1080p (1920 x 1200p) for VGA or 4K (3840 x 2160p) for HDMI
- Allows monitors, TVs or screens to be configured in Extended or Mirrored mode
- The HDMI configuration supports ultra-high definition video resolutions up to 4K@30Hz (3840 x 2160p) and uncompressed 5.1 digital audio
- The VGA configuration supports high definition video resolution (1920 x 1200p); VGA does not support audio
- Integrated design to simplify connection and eliminate cable clutter

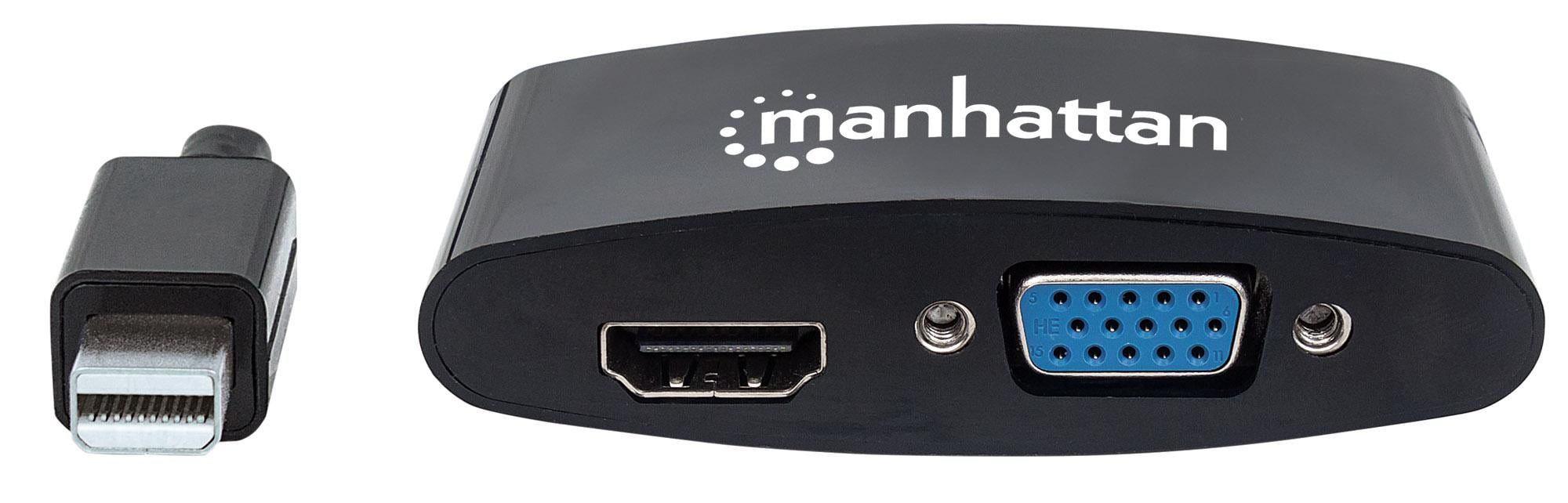

Connections- Mini-DisplayPort 20-pin male
- HDMI 19-pin female
- VGA/HD15 15-pin female
- Contacts covered in nickel
- Housing in die-cast ABS and PVC
General- Supports 8-bit and 10-bit Deep Color
- Bandwidth 3 Gbps
- Maximum single link resolution:
3840 x 2160 (4K@30Hz) for HDMI
1920 x 1200 (1080p) for VGA
- Supports one line, one direction, supports four-line connection
- Passive
Video Resolutions- VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200
- DTV/HDTV/UHDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
Environmental features- Operating temperature: 0 - 40°C
- Storage temperature: -20° - 60°C
- Humidity (without condensation): 0 - 80%
System requirements- Windows XP/Vista/7/8.1/10, Linux or Mac 9.x/10.x or higher
Standards and certifications- UL 20276
- DisplayPort v1.2
- FCC
- CE
Physical characteristics- Cable length: 25 cm
- Housing: 7.5 x 4 x 1.8 cm
- Weight: 48 g
- Housing: plastic
Package contents- Adapter Mini DisplayPort 2-in-1 4K
- User manual
