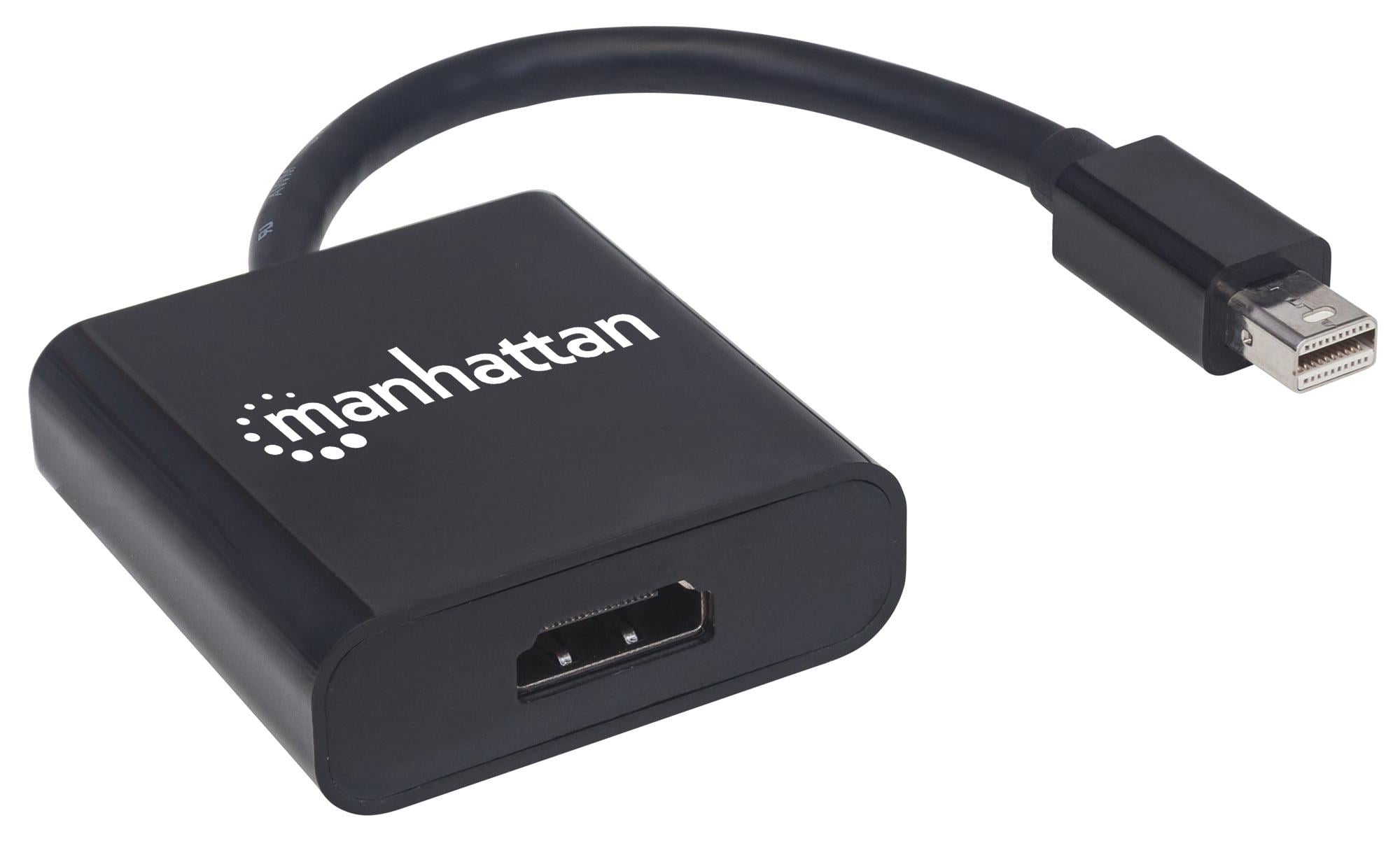

Active Mini-DisplayPort to HDMI 4K@60Hz Adapter - Manhattan IADAP MDP-HDMIF12A

€26.14
Tax included €21.40 excl. VAT

Active Mini-DisplayPort to HDMI adapter, supports resolution up to 3840x2160 (4K @ 60Hz) and 7.1 surround sound. Compatible with DisplayPort v1.2a and HDCP 2.2, fully shielded. Certifications FCC, CE, RoHS2, UL 20276.



Return policy



Delivery policy



Direct contact for info



Secure Payment

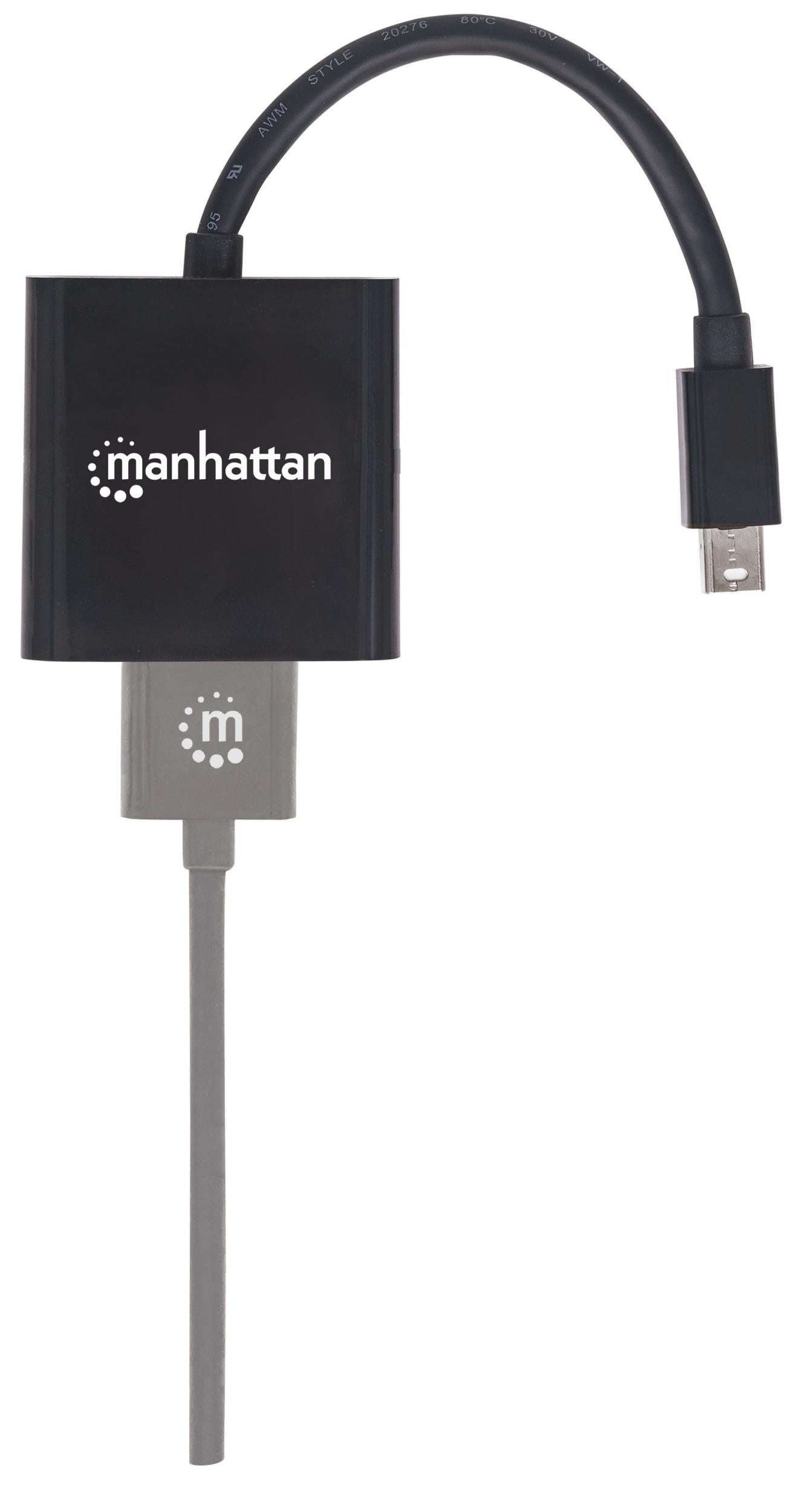

  • Allows connecting a mini-DisplayPort source to an HDMI display cable

  • Provides a single, di alta qualità and active signal to an HDMI display, ideal for multiple applications and Single Large Surface (SLS)

  • The active adapter (signal regeneration) overcomes the limitations of non-DP++ (dual mode) video/graphics cards and ensures the best connection to HD monitors, projectors and more.

  • Ideal for gaming, graphic applications, commercial activities and other applications; Supports AMD Eyefinity, Nvidia and other multi-display systems

  • Supports: resolution up to 3840x2160 (4K @ 60Hz); DisplayPort 1.62 and 2.7Gbps on one, two, and four lanes; Uncompressed digital surround sound 7.1

  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference

  • Injection-molded PVC connector covers



Standards and certifications

  • FCC

  • CE

  • RoHS2

  • UL 20276

  • DisplayPort v1.2a

  • HDCP 2.2



General

  • Active mini DP conversion

  • Maximum single-link range: resolution 3840x2160 at 60Hz (4K @ 60Hz)

  • 32AWG

  • Withstand voltage: 300 V DC

  • Insulation resistance: 5 MOhms

  • Conductive resistance: 10 Ohm



Connections

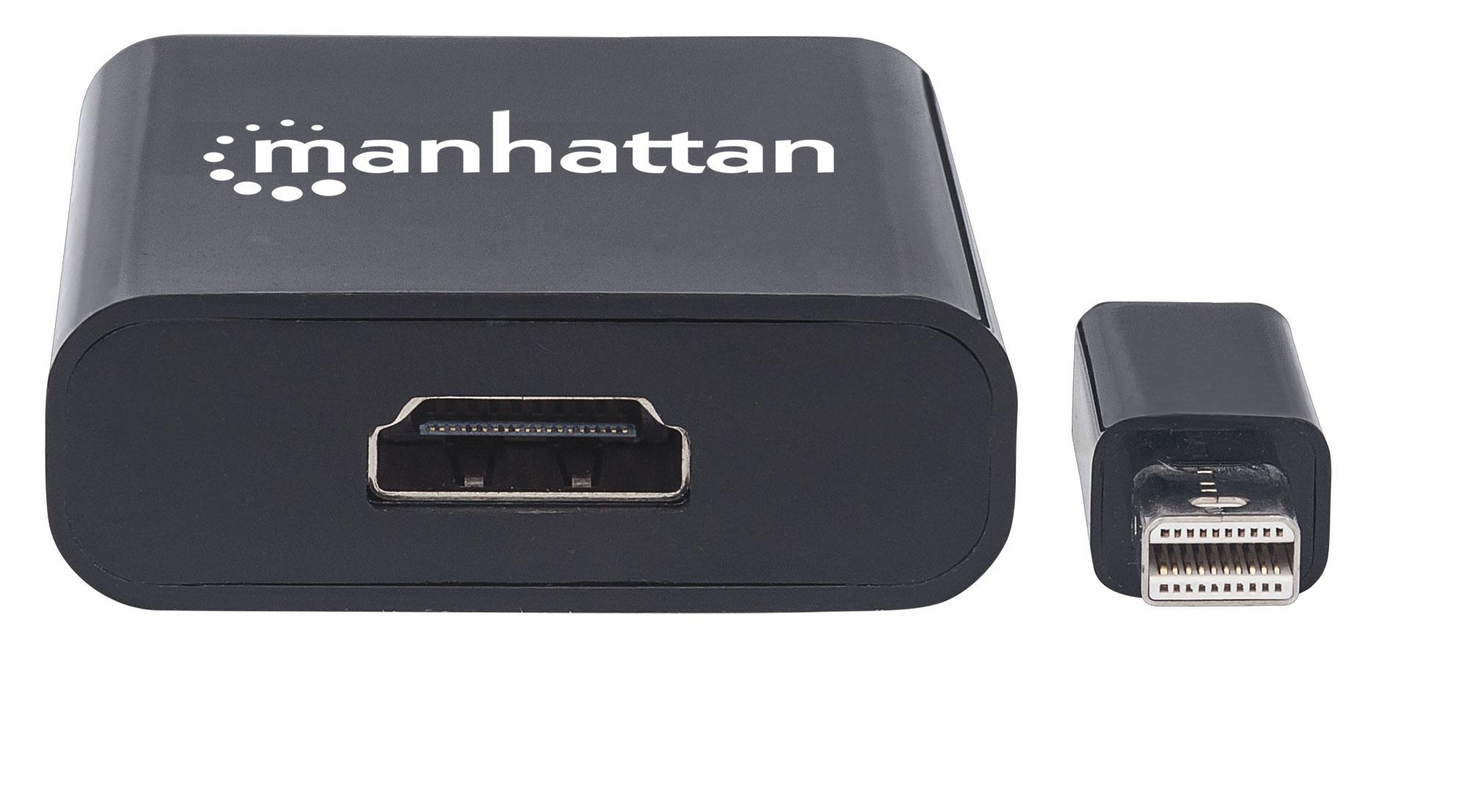

  • One Mini-DisplayPort 20-pin male

  • One HDMI 19-pin female

  • Nickel plated

  • Press-molded PVC connector covers

  • Shielded



Physical information

  • Adapter dimensions: 45 x 45 x 15 mm

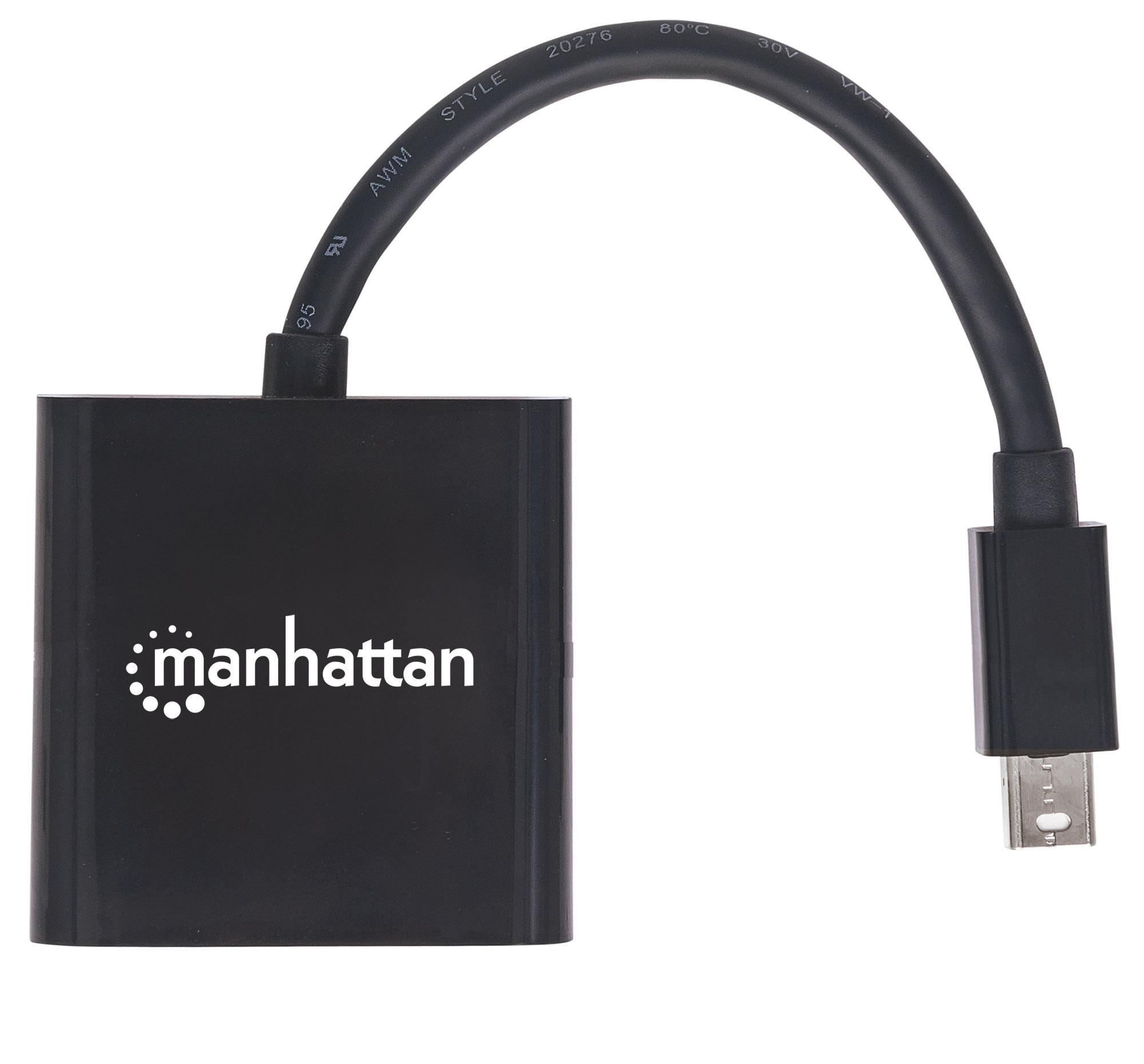

  • Cable length: 180 mm

  • Weight: 23 g

  • Housing: plastic



Environmental information

  • Operating temperature: from 0 to 40°C

  • Storage temperature: from -20 to 60°C

  • Humidity (non-condensing): 0 - 96%



System requirements

  • Windows XP / Vista / 7 / 8.1 / 10 or Mac OS 9 or higher or Linux



Package contents

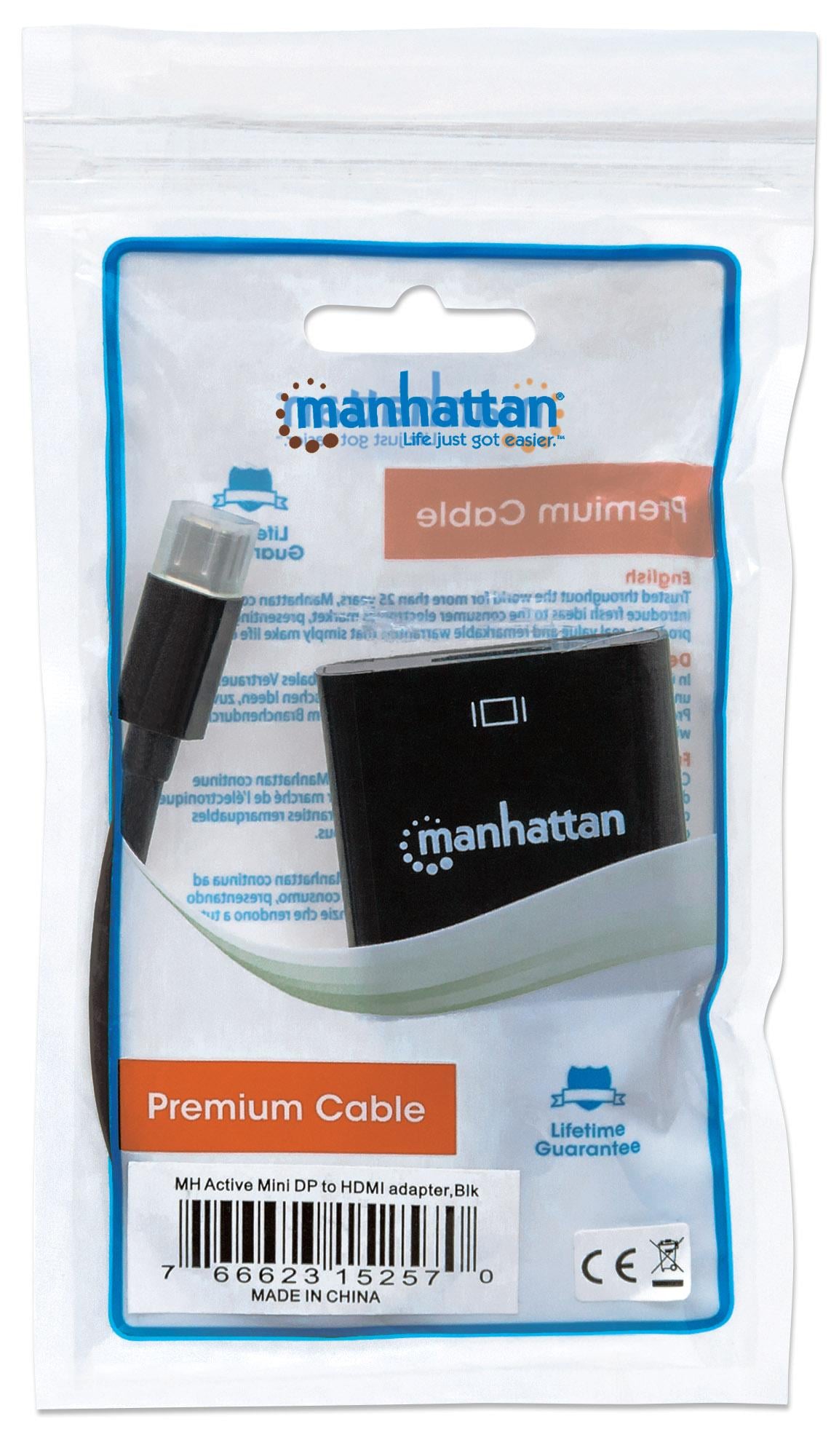

  • Active Mini-DisplayPort to HDMI Adapter

  • Brand
  • Reference
    IADAP MDP-HDMIF12A
  • In stock
    14 Items
  • EAN13
    0766623152570
