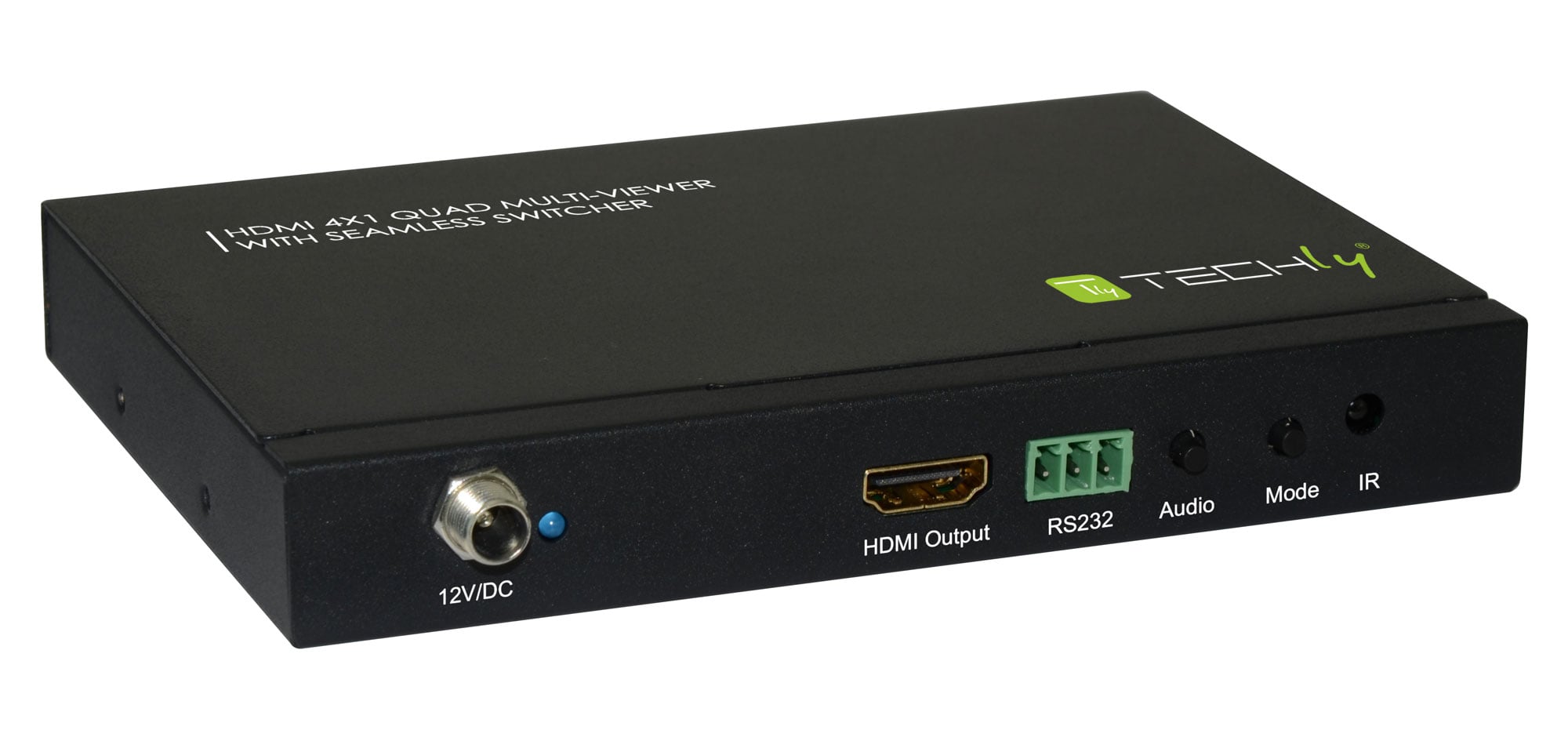

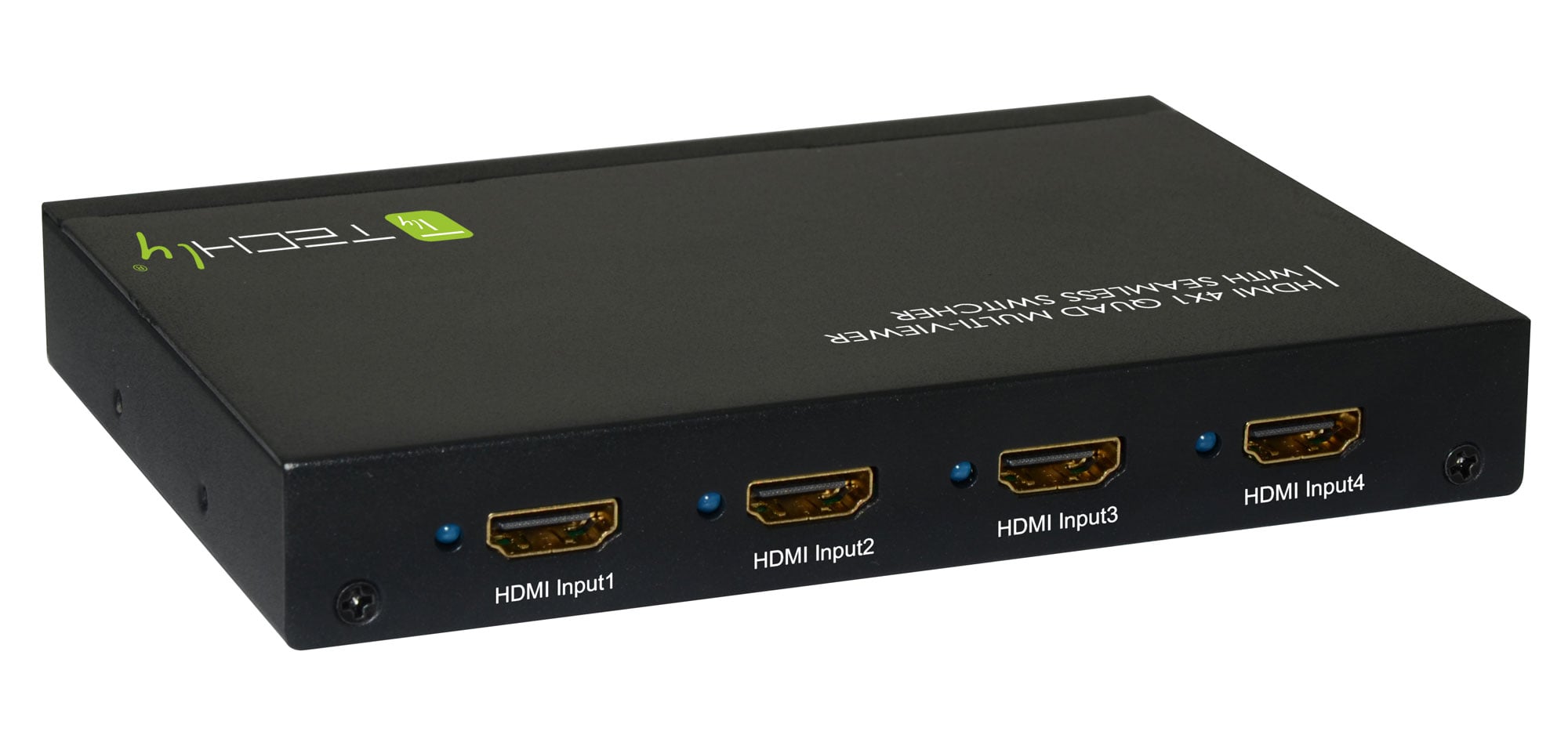

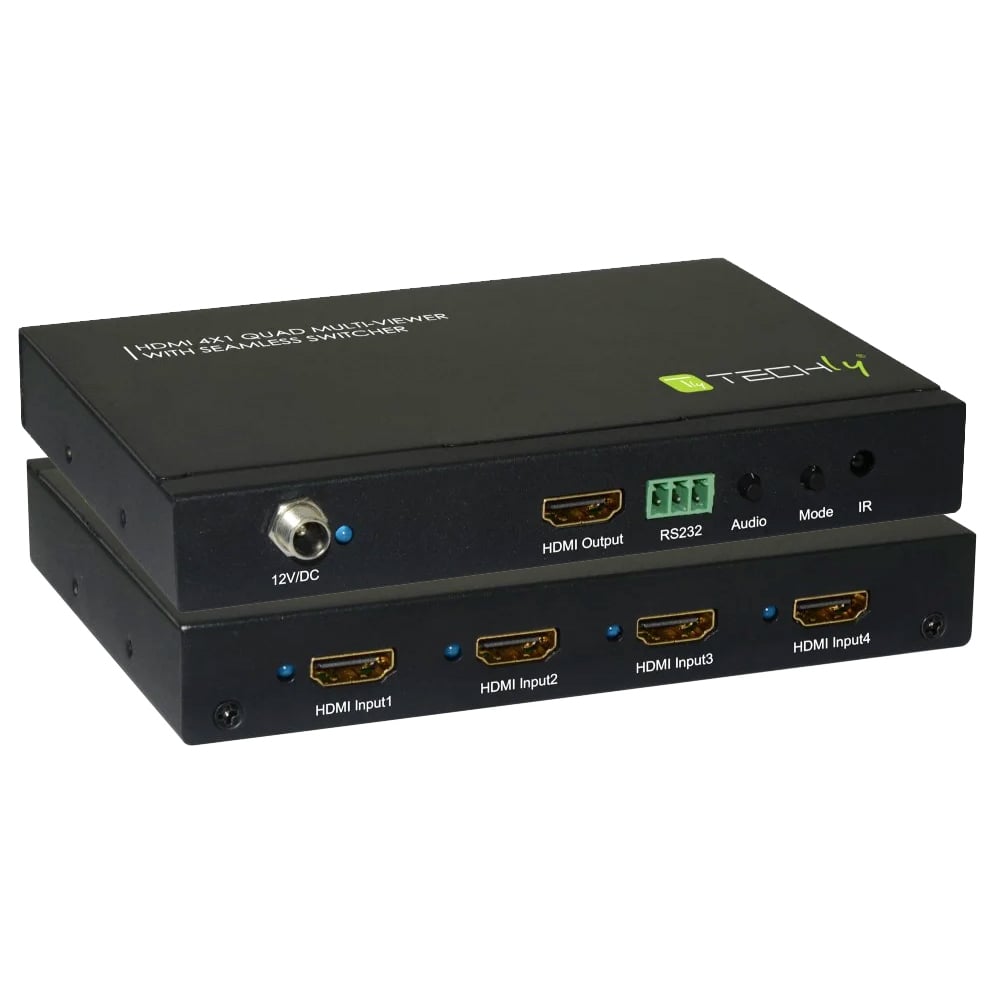

Multiview HDMI 4 x 1 with seamless switch - Techly IDATA HDMI- 41 MV

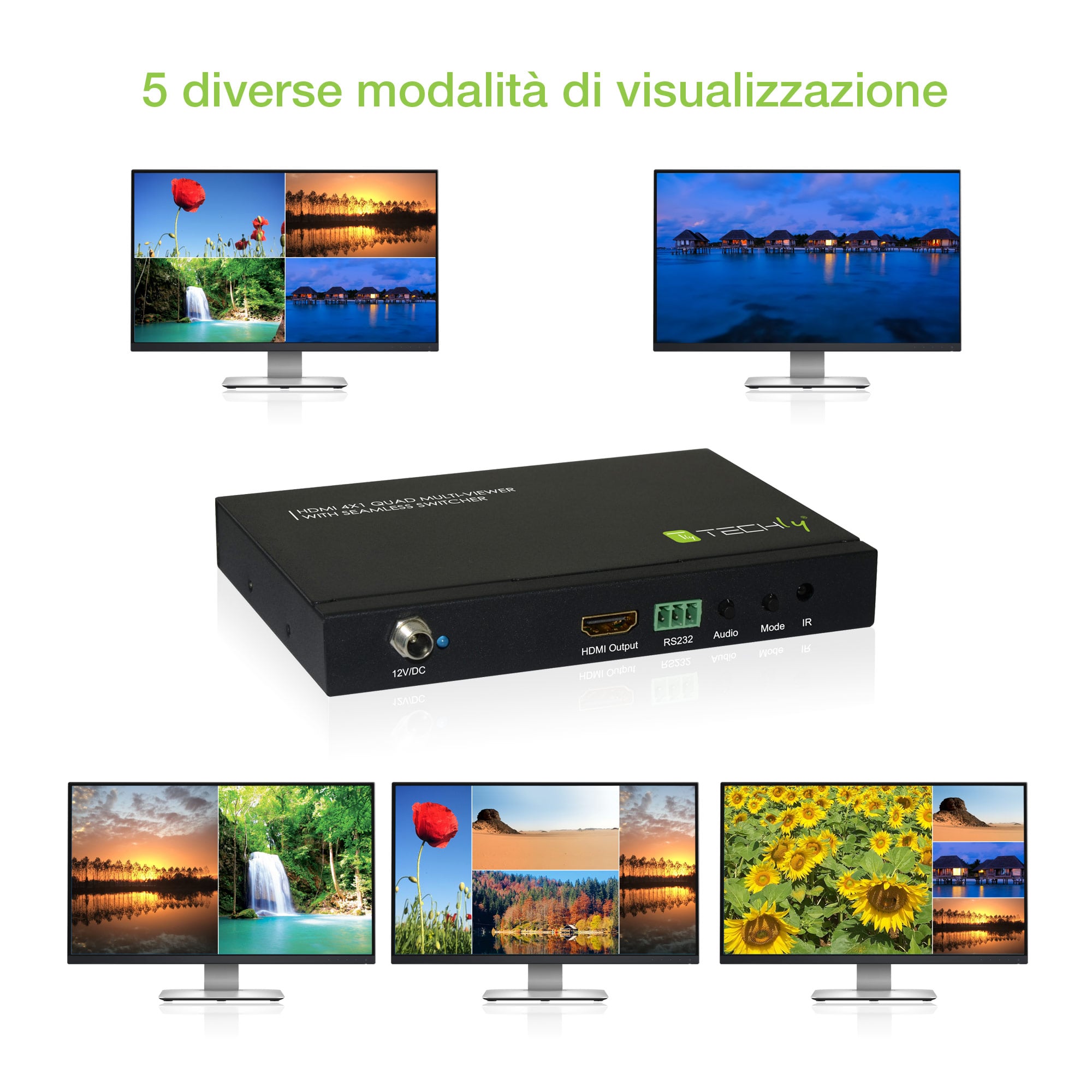

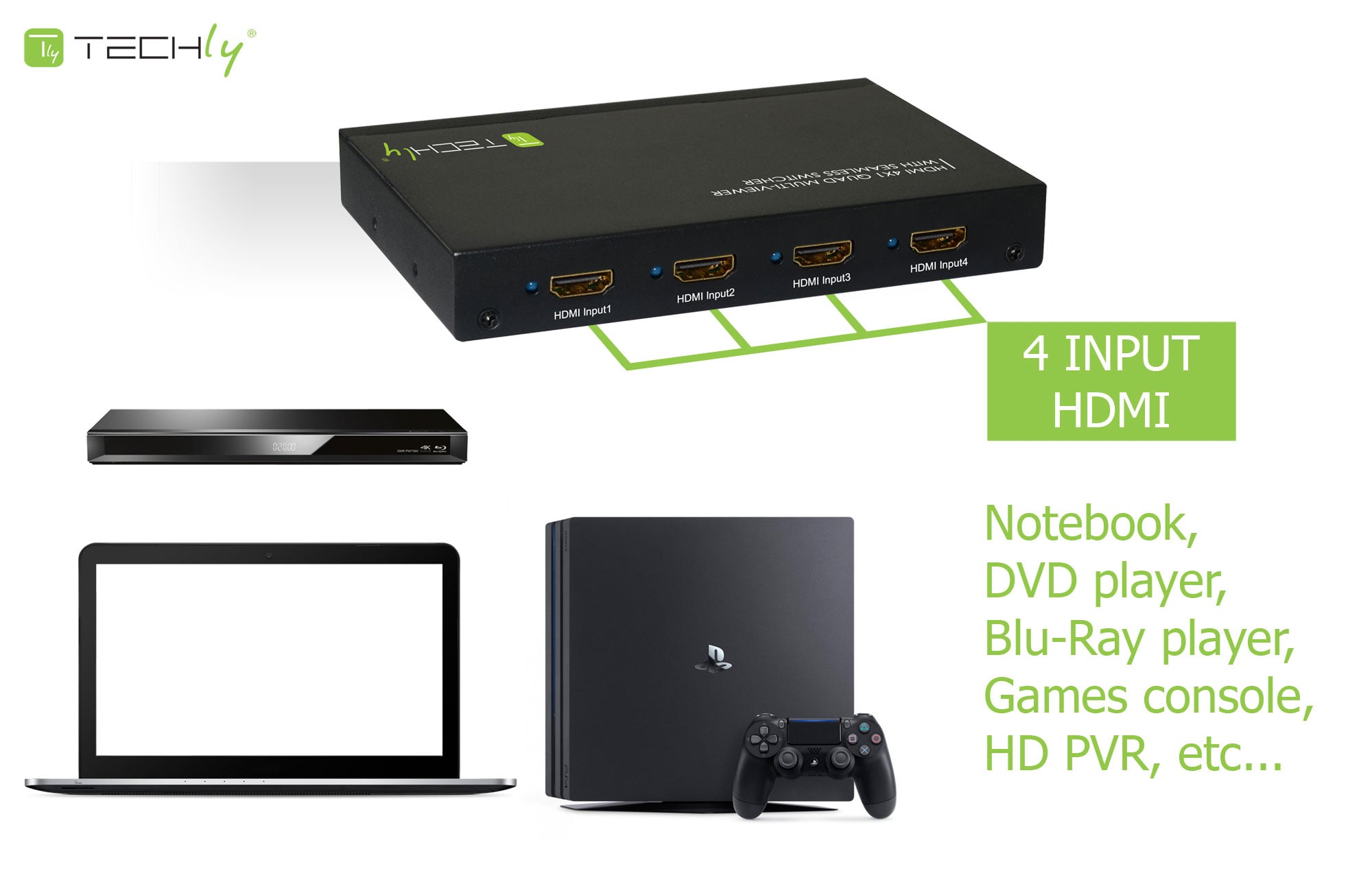

This HDMI 4 x 1 è a Seamless switch with high performance functionality à Multiview. It supports four input HDMI sources that can be viewed on a single screen with five modes à multiview: it allows you to integrate video signals from 4 different video sources for viewing on a single monitor. For the four connected inputs it also performs switch function with quick switching between the sources (seamless). It can ` be controlled in different ways, through buttons on the front panel, through IR, through RS 232 control, etc...



Features

• Multiview HDMI 4 x 1 with seamless switch


• Accept up to 4 HD and è sources that can scale and size each image to be sent to a single FullHD screen to get multiple viewing


• HDMI 1.3 to and HDCP 1.2


• Supports high definition resolution Full HD 1080 p


• Supports functionalityà Multiviewer 4 in 1 and seamless switch (with the same supported resolution)


• Quick switching between various HDMI sources (Seamless)


• Supports up and down scaler function


• Supports control via buttons on the panel, via IR and via RS 232


• Supports multi-output resolution


• Material: metal


• Color: black



Specifications 

• Single Link maximum range: 1920 x 1080 @ 60


• HDMI input/output connector: type A 19 pin


• Vertical frequency range: 50 / 60 Hz


• Video bandwidth: 2.25 Gbps


• Input resolution: 480 i 60 Hz, 480 p 60 Hz, 576 i 50 Hz, 576 i 60 Hz, 720 p 50 / 60 Hz, 1080 i 50 / 60 Hz, 1080 p 24 / 25 / 30 / 50 / 60 Hz


• Output resolutions: 720 p, 1080 p



Applications

• Video switch


• Surveillance for multiple video cameras


• Car camera with 4 frames


• Video Format Converter


• Multimedia Panel



Dimensions

• Width: 148.5 mm


• Depthà: 103 mm


• Height: 21.5 mm 


• Weight: 342 g



Environmental information 

• Operating temperature: from 0 °C to + 70 °C


• Humidità exercise: 10 % to 85 %RH (without condensation)


• Storage temperature: from - 10 °C to 80 °C


• Storage humidità from 5 % to 90 %RH (without condensation)



Feeding

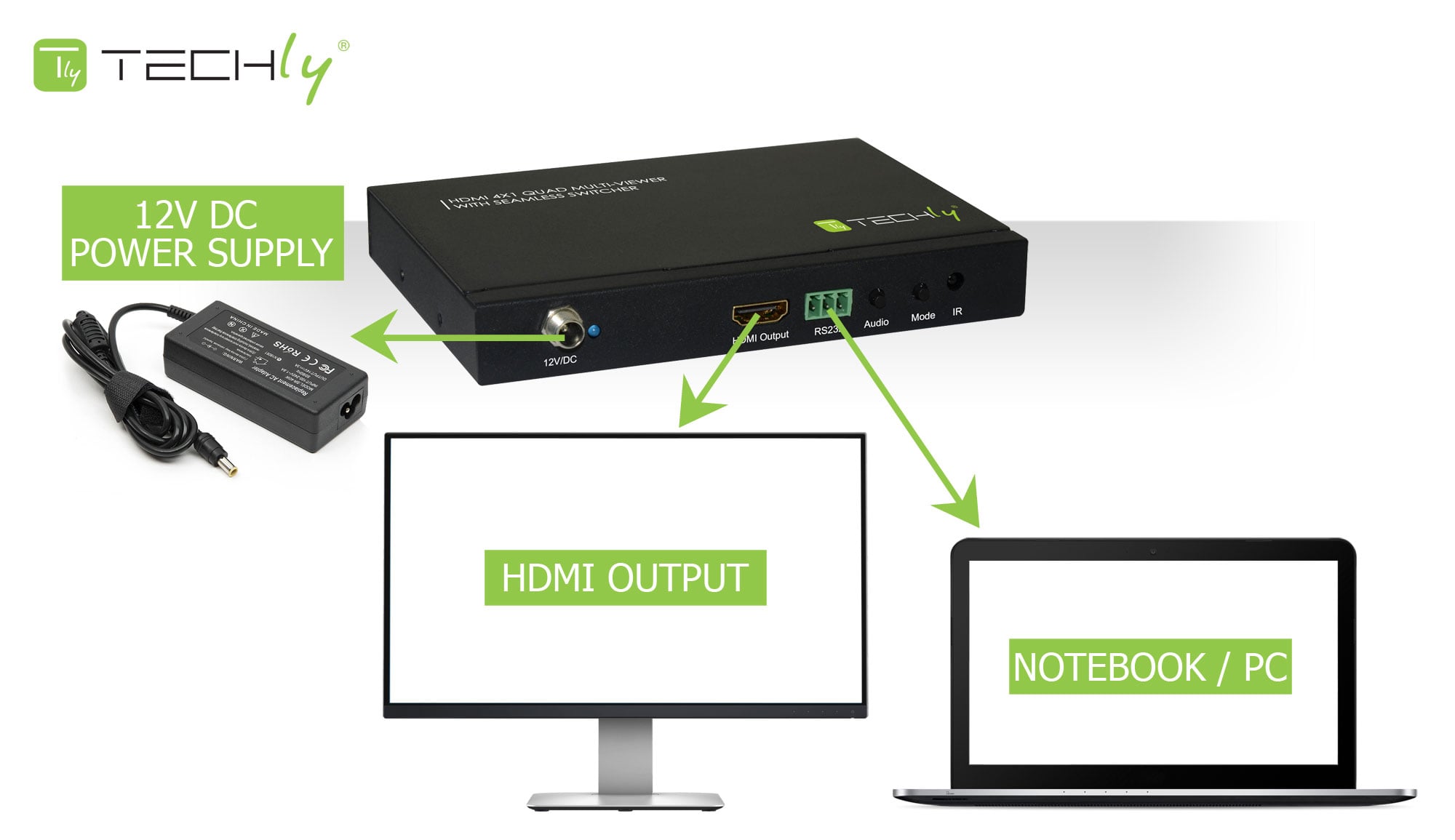

• External power supply: 12 V DC@ 2 A


• Consumption: 10 W



Package contents

• Multiview HDMI 4 x 1 with seamless switch


• 5 V / 2 A power supply


• Education manual


• Remote control
