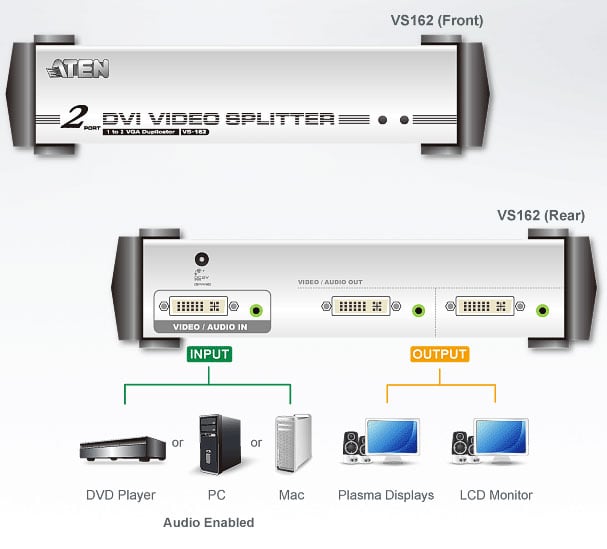

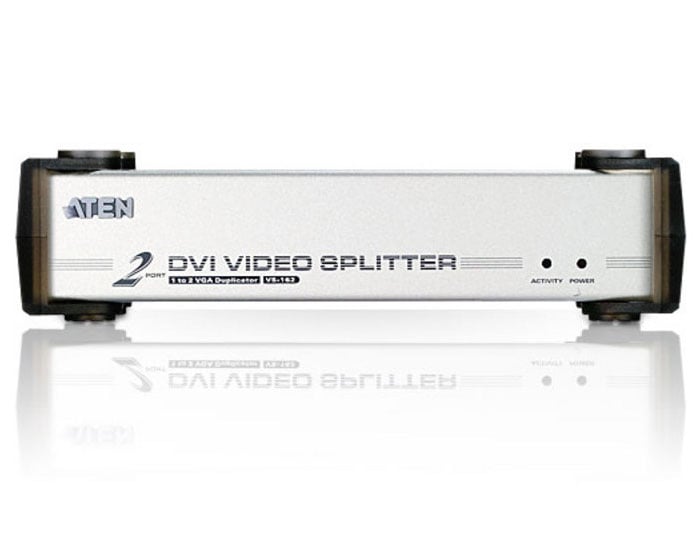

The VS 162 audio/video splitter provides DVI and audio video signals input to 2 video and audio DVI outputs, via duplication and amplification. An ideal solution for any type of environment, class or advanced computer user.
Features- Connect computers equipped with DVI graphics cards to more ù DVI compatible monitors or projectors.
- Fully compliant with digital and analog DVI.
- It supports the DDWG (Digital Display Working Group) standard for DVI compatible monitors.
- DDC/CI support, allows color adjustment, brightness, contrast and other settings via the LCD monitor user interface equipped with DDC/CI
- With speaker sockets.
- Possibility to connect in cascade up to 3 levels: it offers a maximum of 8 video signals.
- Waterfall connection distance: from source to device - 1,8 m; from device to device - 5 m; from device to screen - 5 m
- Installation takes a few minutes.
- Keep the highest possible video resolution DVI Single Link (up to 1920 x 1200).
- Compatible DDC, DDC 2 , DDC 2 B (only the 1 port).
- HDCP conform.
- Supported operating systems: Windows, Linux, Mac and Sun.

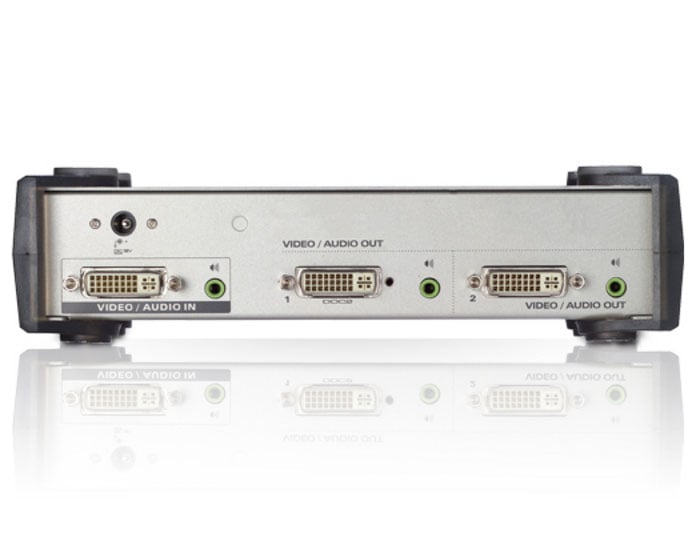

Specifications- Interfaces: 1 x DVI-I female (white)
- Impedance: 100
- Max. distance: 1,8 m
- Interfaces: 2 x DVI-I female (white)
- Impedance: 100
- Max. frequency of data: 6,75 Gbps (2,25 Gbps per lane)
- Pixel clock max.: 225 MHz
- Conformityà: HDCP conform
- Max resolution: Up to 1920 x 1200
- Max. distance: up to 5 m
- Input: 1 x Mini stereo jack female (green)
- Output: 2 x Mini stereo jack female (green)
- Connectors: 1 x DC connector
- Consumption: 5,3 V CC, 2,4 W
- Operating temperature: 0 - 50 °C
- Storage temperature: - 20 - 60 °C
- Humidità: 0 - 80 % relative humidity, without condensation
- Structure: Metal
- Weight: 0.62 kg
- Dimensions (L x P x A): 21.00 x 8.80 x 5.55 cm
Package contents- 1 splitter video DVI to 2 ports
- 1 power supply 0 AD 6 - 1605 - 24 EG
- 1 user guide
