Switch KVM Cable HDMI USB FHD to 2 ports - Aten IDATA CS- 22 HF

The KVM wired HDMI FHD USB switch to 2 ports CS 22 HF è a control unit that allows you to access two computers from a single USB and HDMI console, offering a quality à video up to 1920 x 1080 to 60 Hz / 1920 x 1200 to 60 Hz. With the CS 22 HF, è you can quickly and effortlessly switch between two HDMI USB computers via the button on the remote port selector. The CS 22 HF supports multiplatform operations that allow you to switch between two PCs with different operating system.



In addition, the compact and bus-powered design allows an efficient and tidy installation, providing an ideal solution to save space and keep your desktop station well organized. This plug and play è switch is ideal for those who need quick multitasking control between two computers on a desktop in any environment.

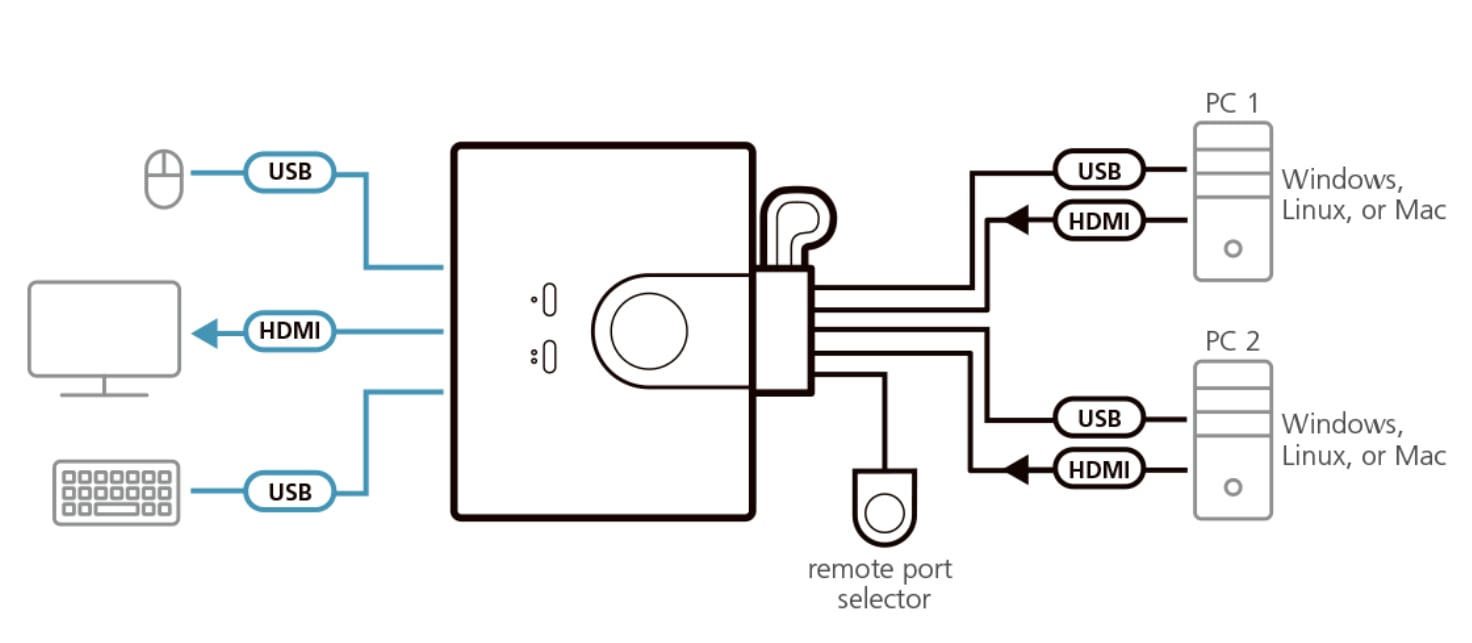

• A KVM console controls two computers with USB and HDMI interfaces


• Superior video - up to 1920 x 1080 at 60 Hz / 1920 x 1200 at 60 Hz


• Selecting your computer via remote port selector


• Compatible with HDMI; compatible with HDCP 1.4


• Multiplatform – Windows, Mac and Linux support


• USB ports of the console can be used for sharing USB devices


• Supports USB hot-plugging


• Powered by bus



Switching from one computer to another can be as easy as pressing a button. Upgrade your workspace with the CS 22 HF by setting a desktop console with a keyboard/mouse/screen set to control two computers via USB and HDMI connections. The compact CS 22 HF helps to create an organized desktop station with a reduced cable footprint, bringing a quality à FHD display that can enhance work performance.



Upper FHD visual clarity

The CS 22 HF enhances your desktop operations with a remarkable quality à FHD video to accelerate the workflow to a high intensity à visual.



Efficient desktop space configuration

The compact and easy-to-hook design allows you to expand the functionality à keeping your desktop station tidy for better productivityà.



Fluid integration between platforms

The CS 22 HF allows the integration of different computer systems (Windows, Mac and Linux), accessible via a KVM console.

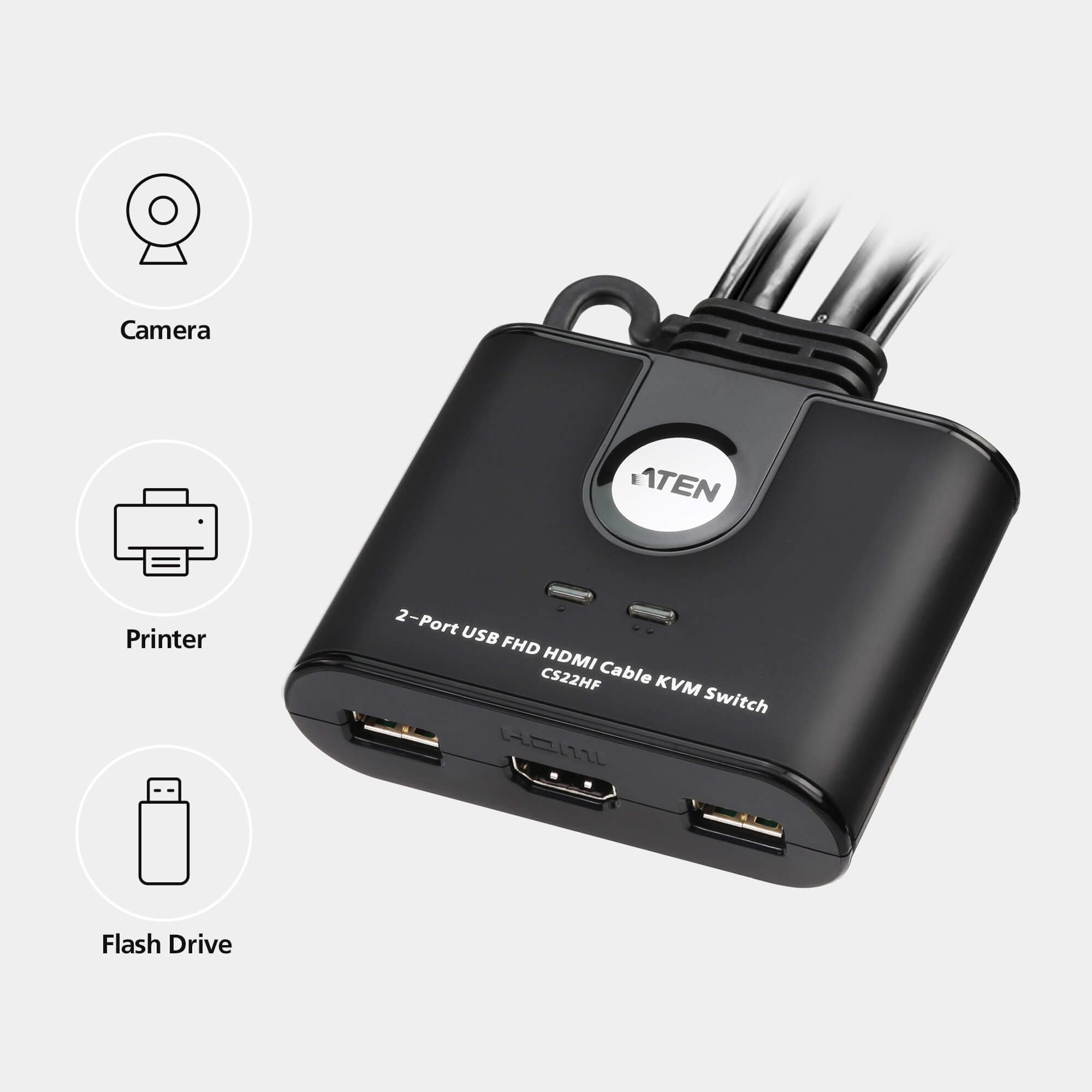

Flexible USB peripheral sharing

The USB ports of the console can be used for plug-n-play connection to USB 2.0 peripheral devices compatible to meet the high-intensity desktop working requirements of data.



Technical specifications

• Computer connections: 2


• Remote door selector


• Connectors:



- Console doors  

1 x female HDMI

2 x USB type A female

- Doors KVM 

2 x male HDMI

2 x USB type A male

• 2 Green color selection LED


• Length of cable:



- Computer 2 x 1,2 m

- Remote door selector 1,8 m

• Video resolution: 1920 x 1080 at 60 Hz; 1920 X 1200 at 60 Hz


• Consumption: DC 5 V: 1.518 W: 11 BTU



Compatibilityà

• Windows


• Mac


• Linux



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % RH, without condensation

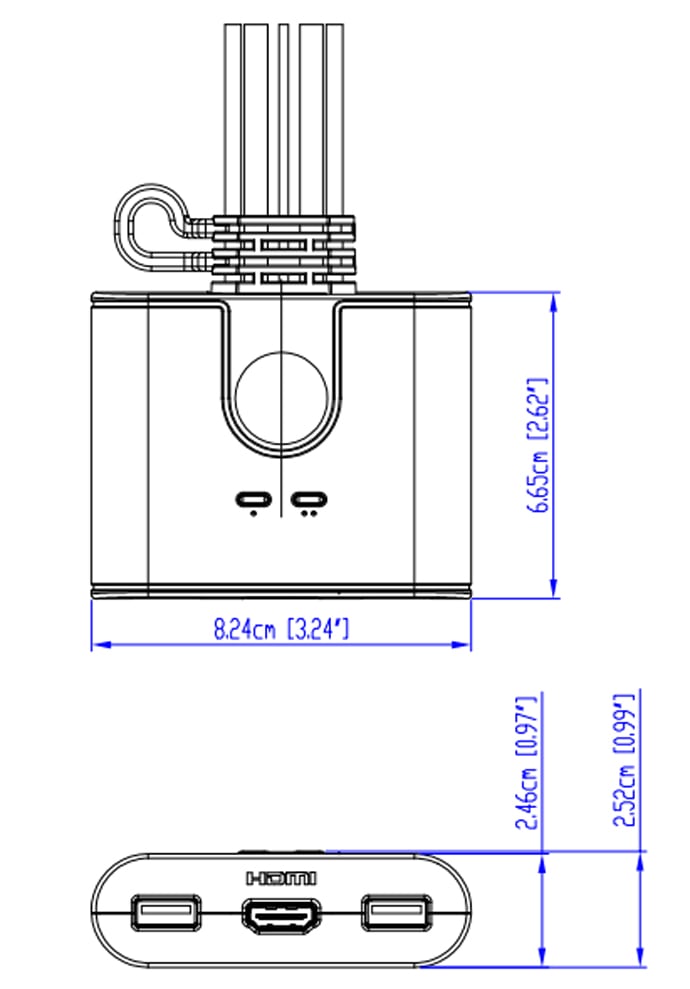

Dimensions

• Width: 8.24 cm


• Depthà: 6.65 cm


• Height: 2.52 cm



Package contents

• 1 x Switch KVM wired HDMI USB FHD to 2 ports CS 22 HF


• 1x User instructions
