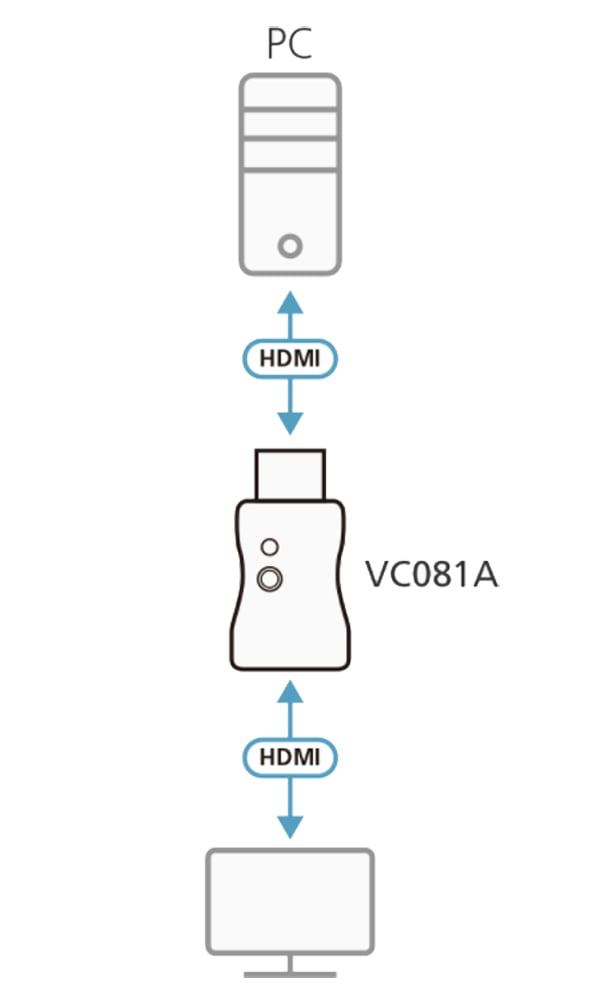

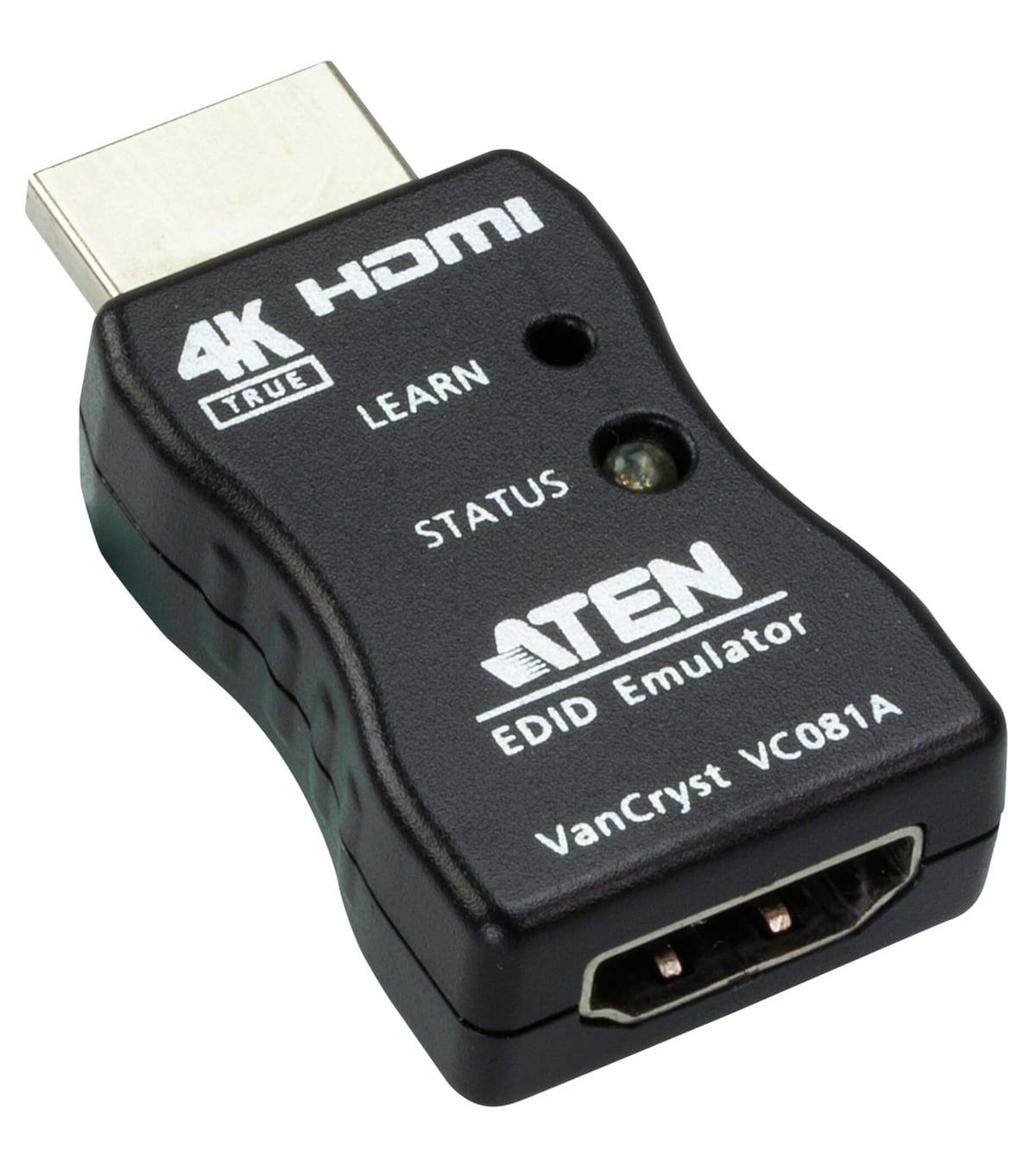

As a True 4 K HDMI EDID emulator adapter, the VC 081 A è designed to emulate and save an EDID set from the connected display by simplifying the 4 K video transmission. Thanks to the learning of EDID from the HDMI display and the re-transmission to the video source, the VC 081 A helps to eliminate the video communication problems that arise when the EDID data between the HDMI video source and the connected display are not synchronized correctly.
The new member contains a unique learning button that allows you to learn and save EDID efficiently. Once you learn EDID, the VC 081 A can be used to keep your PC or server active from a remote location via IP instead of the monitor. The VC 081 A è is an ideal device to avoid the appearance of black or illuminated LEDs by communicating errors between sources and displays while integrating a Pro AV system.
Features- Manages EDID communication between connected devices
- Easily learns and saves EDID from the HDMI display connected by a single push button and transmits it to the video source
- HDMI (3 D, Deep Color, True 4 K); HDCP 2.2 compliant
- Superior video quality – up to 3840 x 2160 at 60 Hz (4: 4: 4 )
- LED indicators to show learning status
- Managed by HDMI source
- Compact and lightweight design
Video Input- Interfaces: 1 x HDMI type A male (Black)
- Impedance: 100 Ω
Video output- Interfaces: 1 x HDMI type A female (Black)
- Impedance: 100 Ω
Video- Conformità: HDMI 2.0 (3 D, Deep Color)
- HDCP 2.2 compatible
- Consumer Electronic Control (CEC)
Feeding - Powered by bus (5 VCC from source device)
- Consumption: 5 V CC, 0,1 WBTU
Environmental features- Operating temperature: 0 - 50 oC
- Storage temperature: - 20 - 60 oC
- Humidità: 0 - 80% relative humidityà without condensation
Dimensions- Width: 4,40 cm
- Depthà: 2,40 cm
- Height: 1,18 cm
Package contents- 1 x HDMI EDID VC 081 A Emulator
- 1x User instructions
