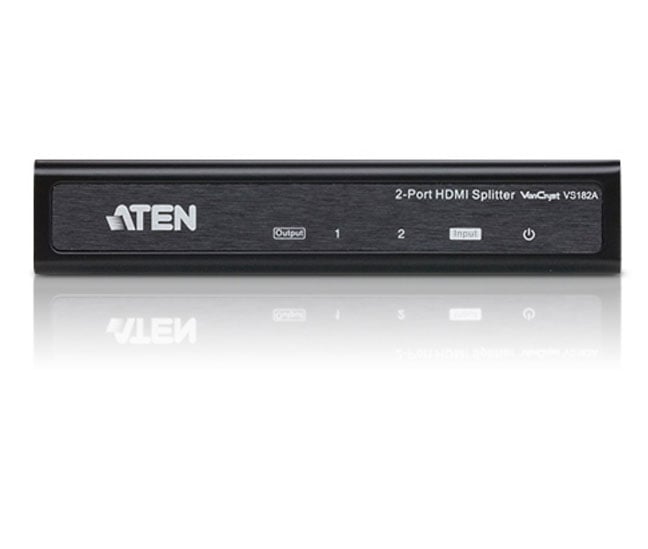

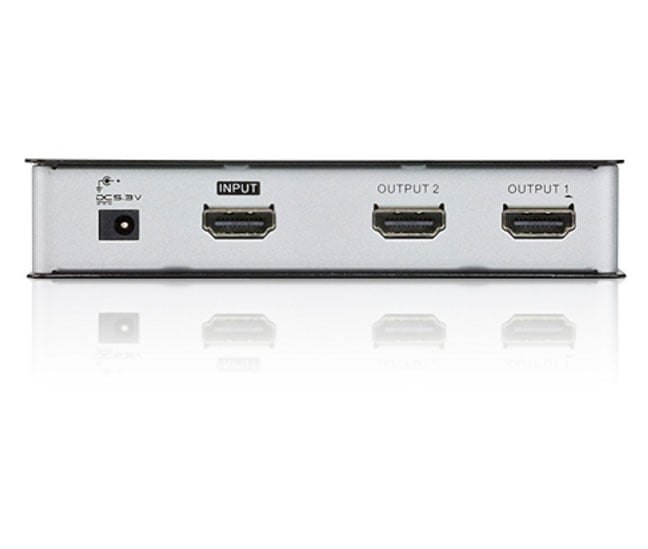

Splitter HDMI 4 K to 2 ports VS 182 A - Aten IDATA VS- 182 A

The HDMI VS 182 A è splitter is the perfect solution for anyone who needs to transmit a digital high-definition video source to two screens simultaneously. It supports all HDMI equipment such as DVD players, satellite set-top boxes and screens.

IDATA VS- 182 A è HDCP (High Bandwidth Digital Content Protection), suitable for use with all HDMI screens for home theater, business, educational or commercial applications.



Features

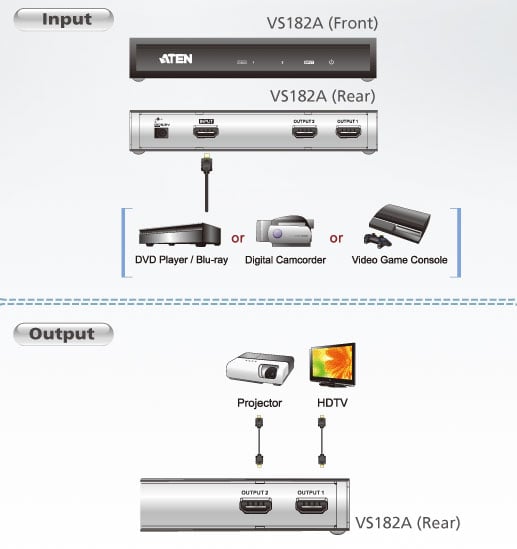

• Simultaneously connects an HDMI source to two HDMI screens


• HDMI compatible (3 D, Deep Color, 4 k 2 k) and HDCP 1.4


• Supports resolutions up to Ultra HD 4 kx 2 k and 1080 p Full HD


• Supports Dolby True HD and DTS HD Master Audio


• Long distance transmission – up to 15 m (24 AWG)


• Supports bandwidth up to 340 MHz for high-performance video


• Plug-and-play: does not require software installation



Specifications

• Video Input



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

- Max. distance: 1,8 m

• Video output



- Interfaces: 2 x HDMI type A female (black)

- Impedance: 100

• Video



- Max. frequency of data: 10,2 Gbps (3,4 Gbps per lane)

- Pixel clock max.: 340 MHz

- Conformità:

HDMI (3 D, Deep Color, 4 K);

HDCP compatible

• Maximum resolution:



Up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )

- Max. distance: up to 15 m

• Audio



- Input: 1 x HDMI type A female (black)

- Output: 2 x HDMI type A female (black)

• Feeding



- Connectors: 1 x DC connector

- Consumption: 5,3 V CC, 2,0 W

• Environment



- Operating temperature: 0 - 50 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 0.31 kg

- Dimensions (L x P x A): 12.50 x 8.00 x 2.50 cm



Package contents

• 1 x VS 182 A splitter HDMI to 2 ports


• 1 x 0 AD 6 - 1605 - 09 EG power supply


• 1 x 2 L- 7 D 02 H HDMI cable


• 1 x user guide
