Mini Multiport Dock USB-C, HDMI/VGA/Ethernet/USB-A - ATEN IADAP UH-3232

The USB-C™ Multiport Mini Dock UH3232 connects a USB-C™ computer to an Ethernet, HDMI, VGA and USB Type-A port via a single cable. The UH3232 features an integrated and easy-to-use connector that immediately connects to the computer with USB-C™ or Thunderbolt™ 3 to an HDMI 4K Ultra HD (3840 x 2160 at 30 Hz) or VGA 2K (2048 x 1152 at 60 Hz) video output, USB 3.1 Gen 1 port and Gigabit Ethernet port for quick desktop connection. The 6-layer PCBA design reduces signal distortion and interference for uninterrupted, always-clear video, while the Gigabit Ethernet port provides Internet at speeds up to 1000 Mbps. A convenient and versatile dock that offers a perfect portable solution for quickly connecting multiple sources to a USB-C™ equipped computer.



This easy-to-carry, compact docking station offers more desk space wherever you are and makes it simple to connect to multiple devices. With the ATEN UH3232, you can travel light, connect quickly, and work efficiently anywhere.



Features

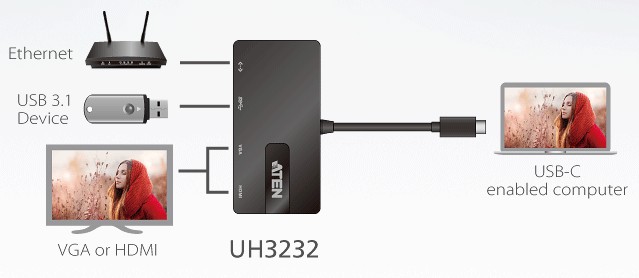

• Connects a computer equipped with USB-C™ or Thunderbolt™ 3 to one HDMI/VGA port, Ethernet, and USB Type-A via a single cable


• USB 3.1 Gen 1 port with data transfer speed up to 5 Gbps


• Gigabit Ethernet LAN port


• Supports HDMI 1.4b resolutions with 4K (3840 x 2160 at 30 Hz); or VGA resolutions with 2K (2048 x 1152 at 60 Hz)


• Supports Windows 10 (32-bit/64-bit), 11, Mac OSX Yosemite 10.10.5 and later, OS X El Capitan 10.11 and later


• Lightweight design, easy to carry



Computer connections

• 1 PC

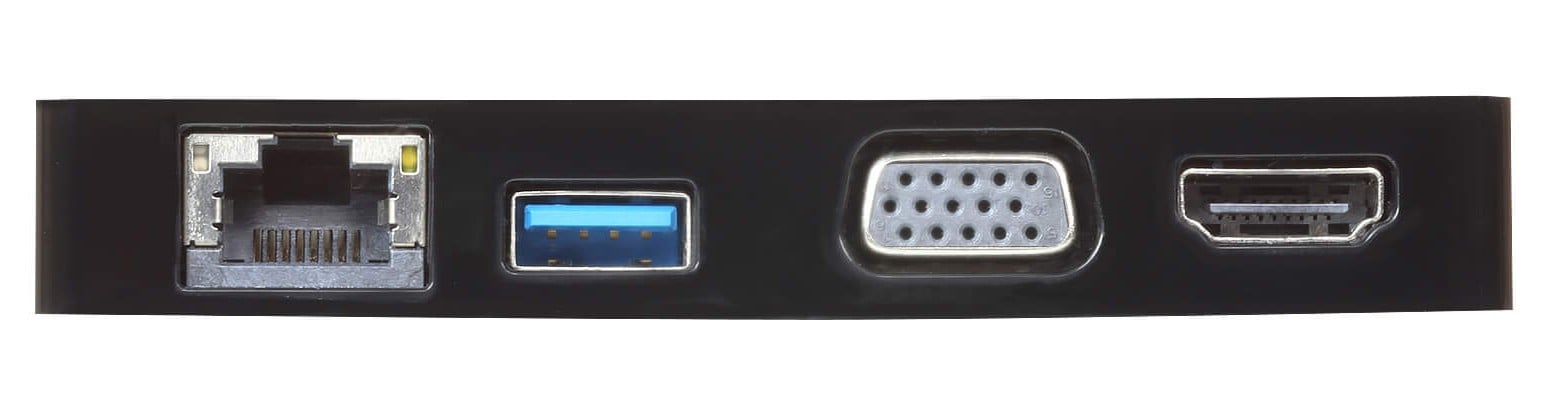

Connectors

• Computer: 1 x USB-C™ male (black)


• Device: 1 x USB 3.1 Gen1 Type-A female (blue)


• Video output:



- 1 x HDMI female (black)

- 1 x VGA female (black)

• LAN ports: 1 x Gigabit Ethernet female (black)



Video resolution 

• Single display: 



VGA - 2048*1152 at 60 or HDMI - 3840*2160 at 30



Power consumption 

• 5 V DC, 7,865 W



Environmental features

• Operating temperature: 0–40°C


• Storage temperature: -20–60°C


• Humidity: 0–80% relative humidity, non-condensing



Dimensions

• Width: 15,88 cm


• Depth: 10,80 cm


• Height: 1,52 cm



Package contents

• 1x Mini multiport USB-C™ dock UH3232


• 1x instructions for the user
