KVM Cable Hybrid DisplayPort 2 USB port - Aten IDATA CS- 52 DP

The KVM Hybrid Wired DisplayPort USB-C™ to 2 ports CS 52 DP è a control unità that allows you to access a USB-C™ device and a DisplayPort computer. With the CS 52 DP, è can quickly and effortlessly switch between two computers using the convenient remote port selector button.



The compact CS 52 DP also offers a vivid quality à display 4 K to enhance work performance. Other advanced features of the CS 52 DP include bus-powered mode à no need to install software or configure the device. This plug and play è switch ideal for those who need fast multitasking control between a computer and a USB-C&trade device; on a desktop in any environment. In addition, the compact design allows an efficient and tidy installation, providing an ideal solution to save space and keep the desktop station well organized.

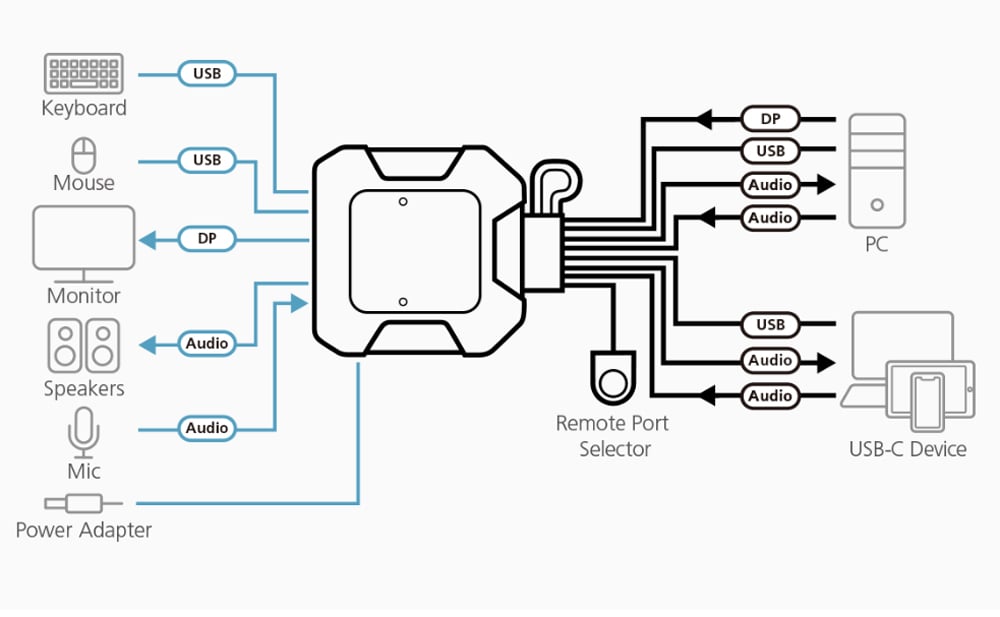

• A KVM console controls a USB DisplayPort computer and a USB-C&trade device;


• Superior video quality – up to 4096 x 2160 at 60 Hz


• Selecting your computer via remote port selector


• Supports Modelità Alternative DisplayPort (DP Alt Mode) that allows USB connection to carry DisplayPort signals


• Compatible with DisplayPort 1.2 and HDCP (1)


• Powered by bus- no external adapter required

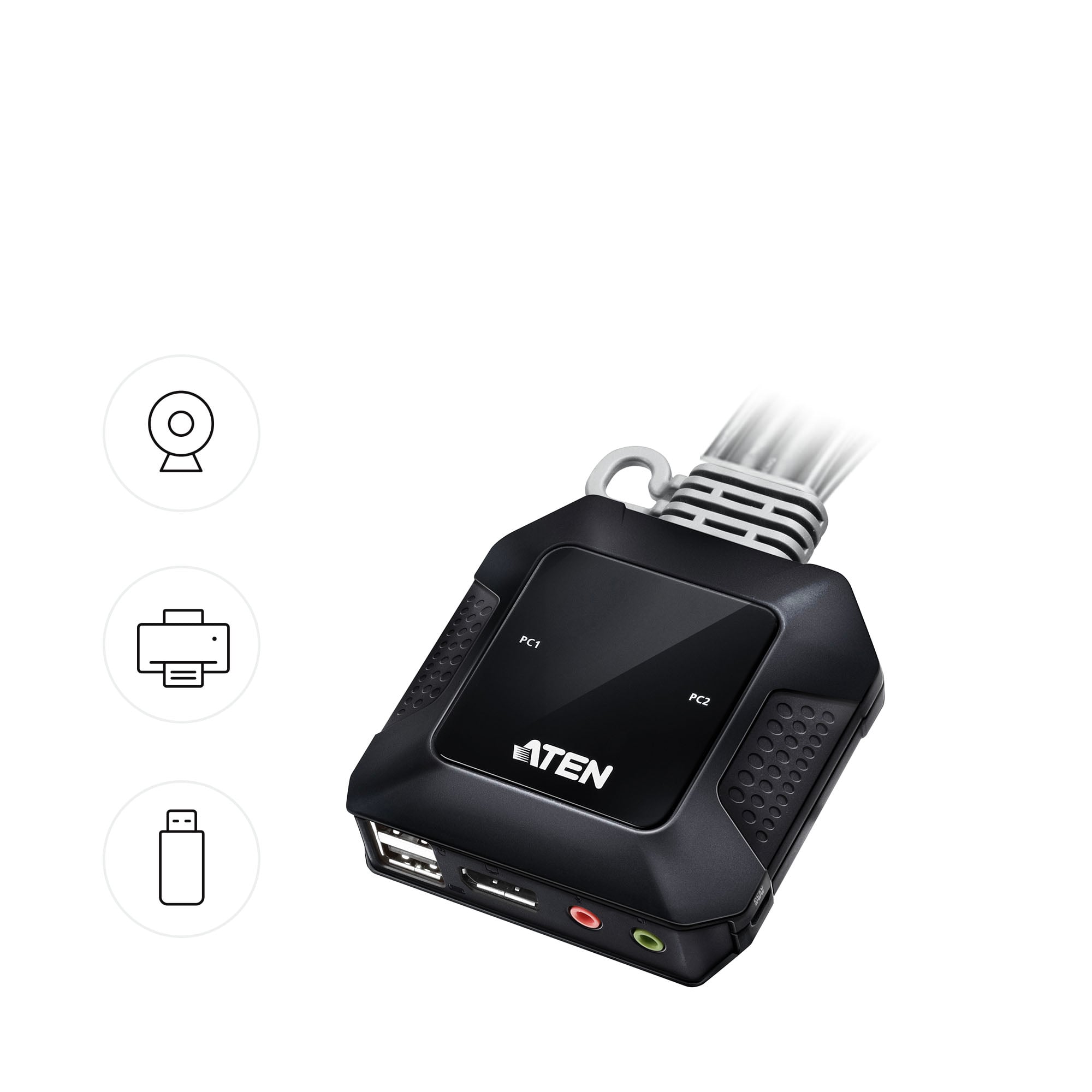

• USB ports of the console can be used for sharing USB devices (2)


• Multiplatform – Windows, Mac, Linux, Android and iOS support


• No software required

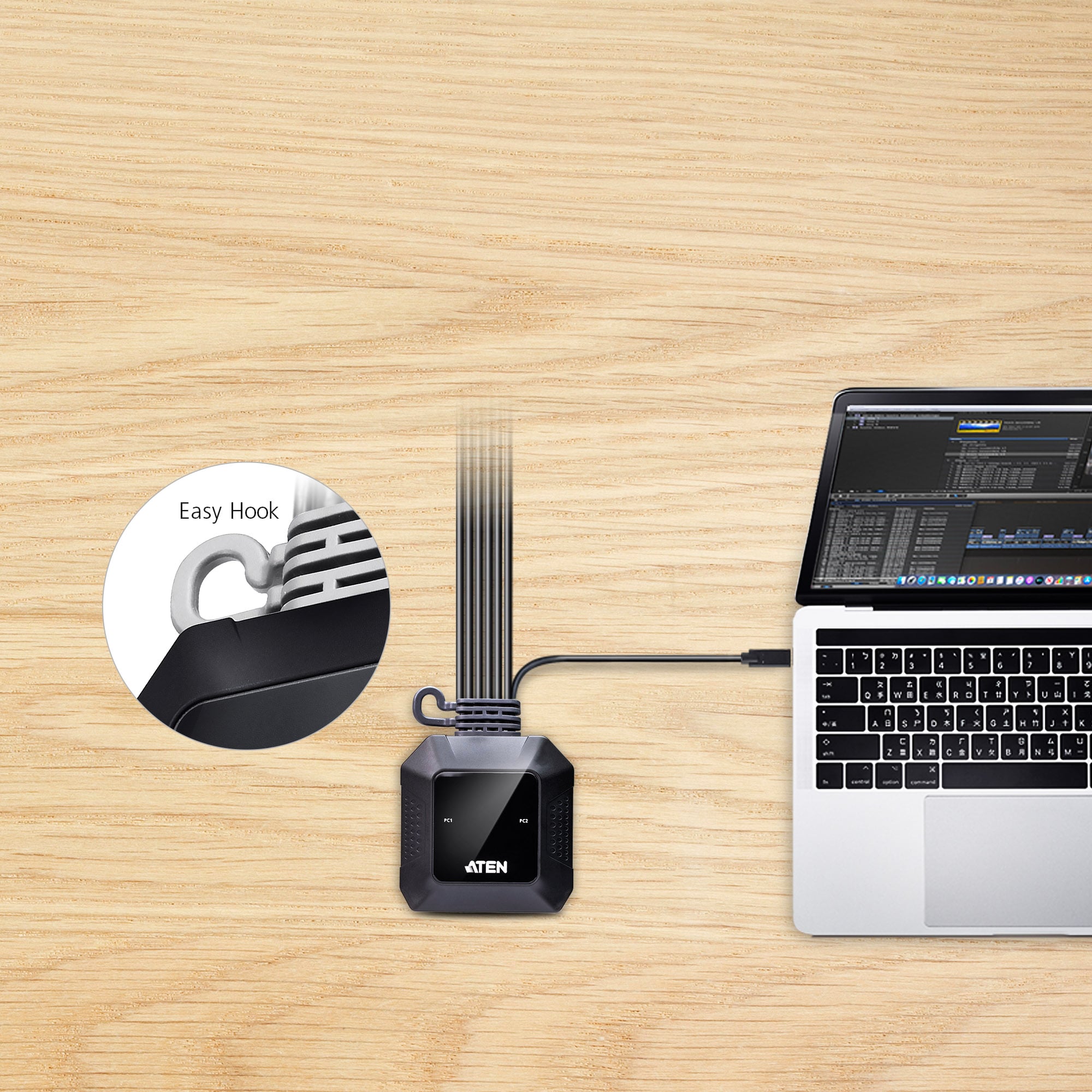

• Hook design for a space-saving and organized workstation


• Supports USB hot-plugging



Note:

1 . For display devices compatible with DisplayPort 1.4 , make sure to configure the device setting to be compatible with DisplayPort 1.2 and avoid compatibility problems à .

2 . The CS 52 DP may require external power supply via the Micro-B USB power port. For the Micro-B USB cable that connects to the Micro-B USB power port, è a separate purchase is required according to the type of power supply used.



Technical specifications

• Computer connections: 2


• Remote door selector

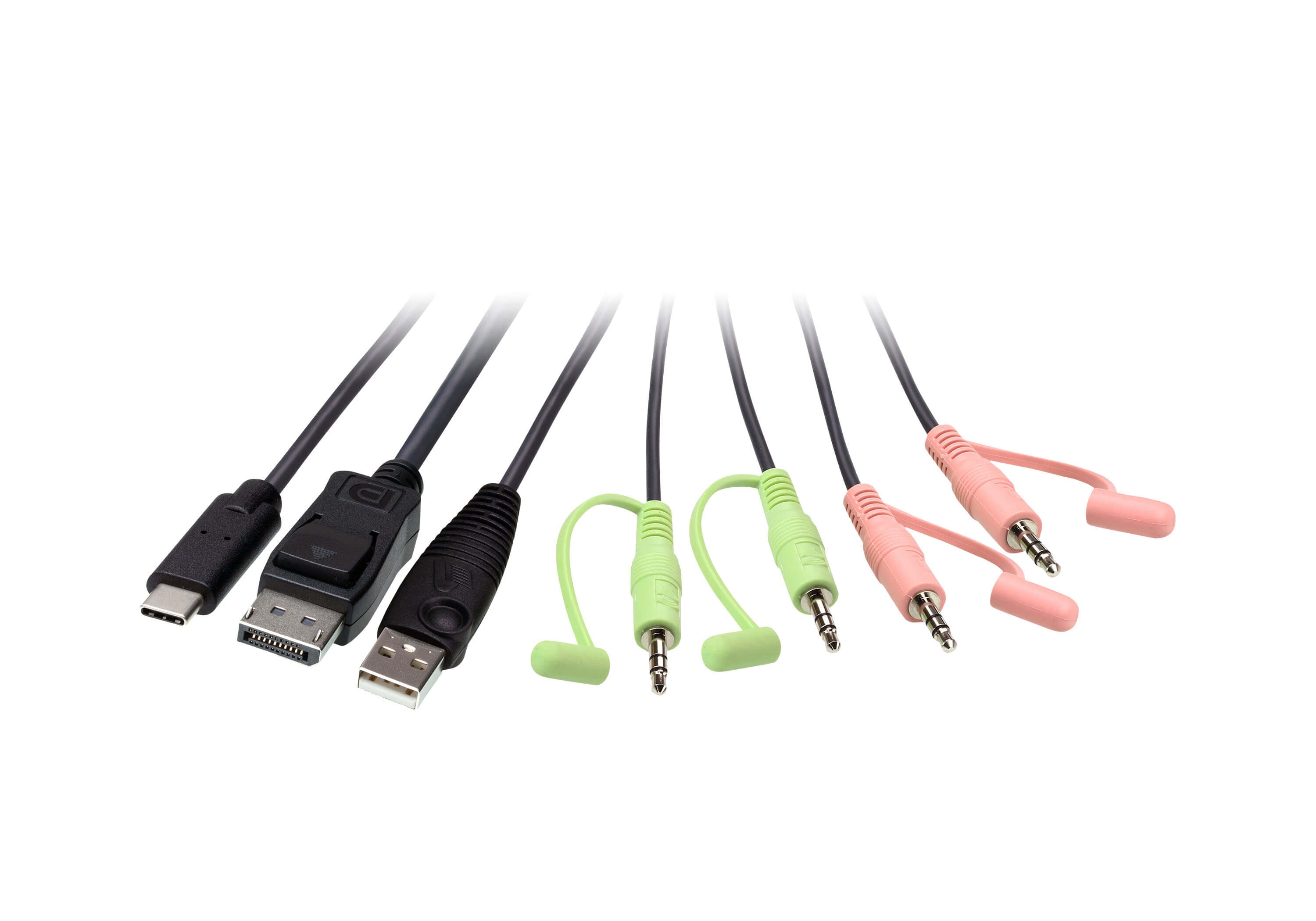

• Connectors:

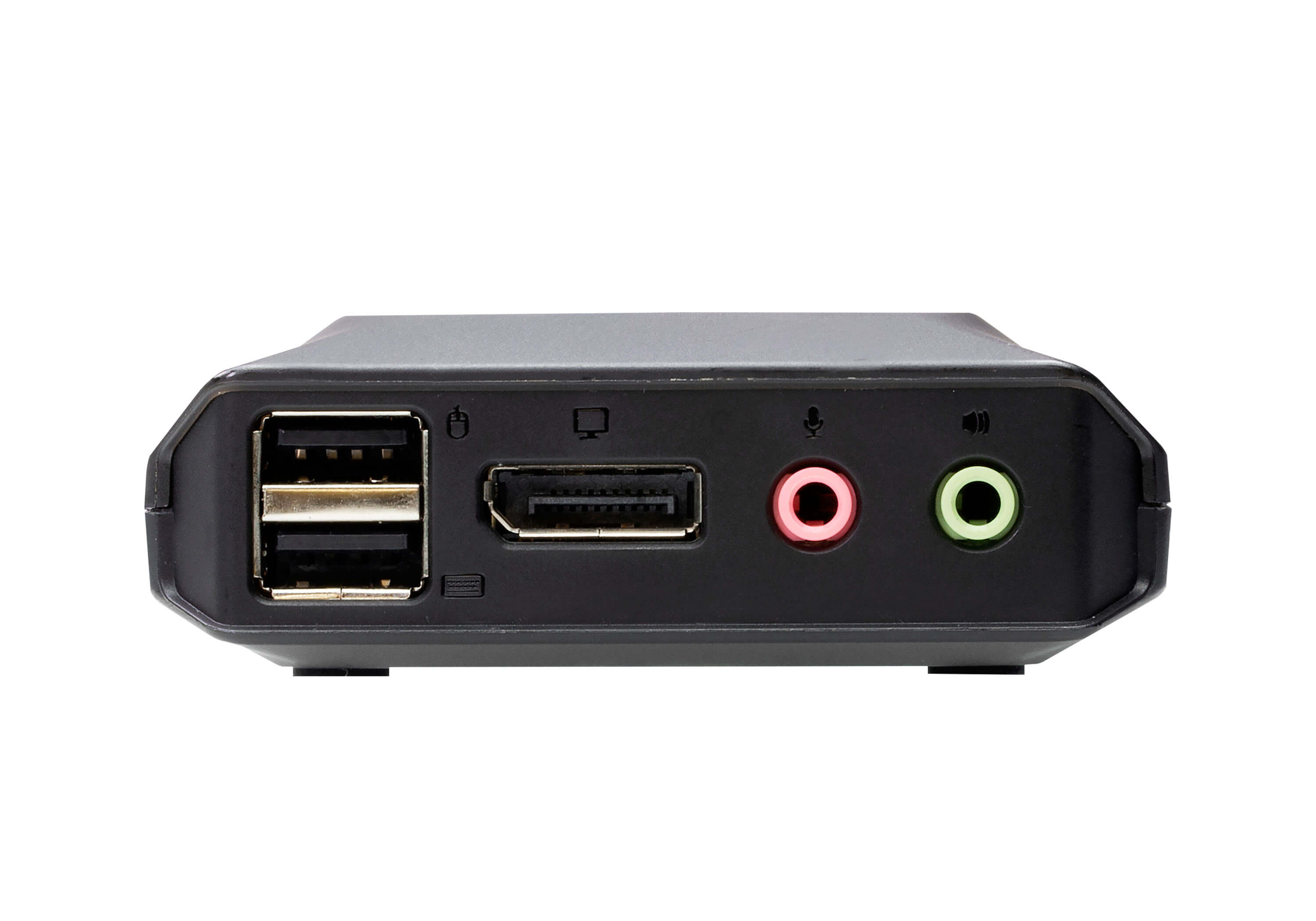

- Console doors  

1 x DisplayPort female

2 x USB type A female

1 x Female audio jack 3,5 mm (Green)

1 x Female audio jack 3,5 mm (Rose)

- KVM ports (computer) 

1 CPU:

1 x DisplayPort male

1 x USB type A male

1 x Male audio jack 3,5 mm (Green)

1 x Male audio jack 3,5 mm (Rose)

2 CPU:

1 x USB type C male

1 x Male audio jack 3,5 mm (Green)

1 x Male audio jack 3,5 mm (Rose)

• Power supply: 1 x USB micro type B female


• 2 LED for white KVM port


• Length of cable:



KVM 2 x 1,2 m

Remote door selector 1,8 m

• Video resolution: 4096 x 2160 at 60 Hz


• Consumption: DC 5 V: 0.74 W: 8 BTU



Compatibilityà

• Windows


• Mac


• Linux


• Sun


• Android


• iOS



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % RH, without condensation

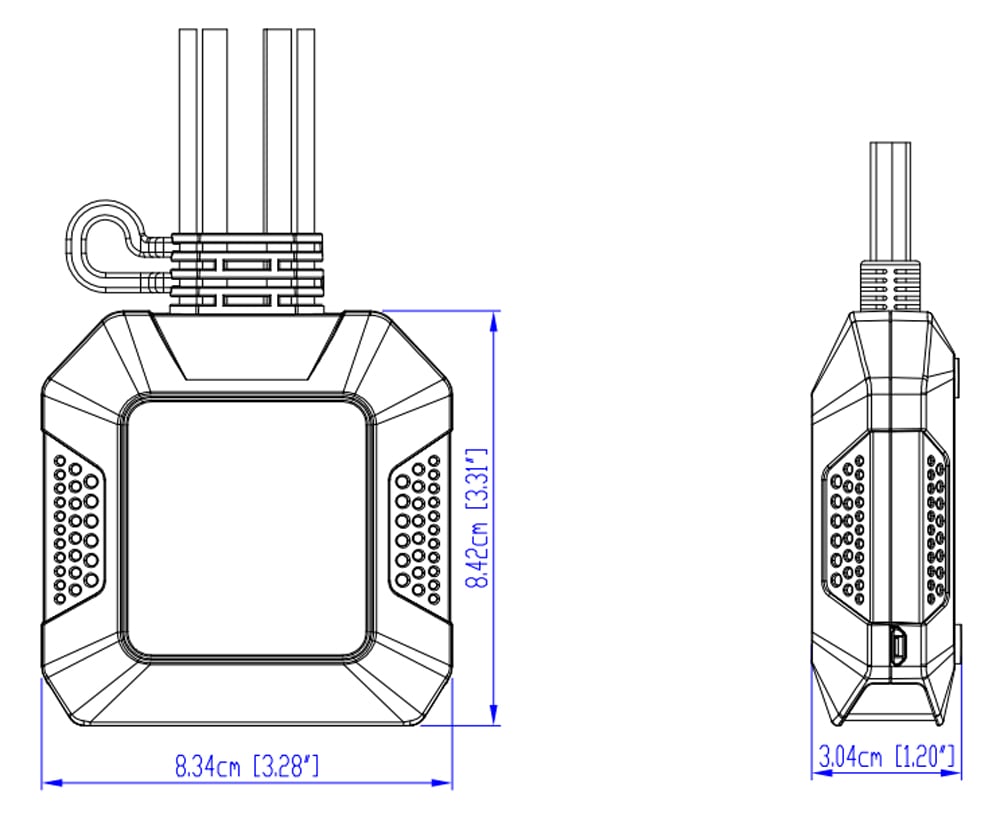

Dimensions

• Width: 8.34 cm


• Depthà: 8.42 cm


• Height: 3.04 cm



Package contents

• 1 x Switch KVM hybrid wired DisplayPort USB-C™ a 2 ports CS 52 DP


• 1x User instructions
