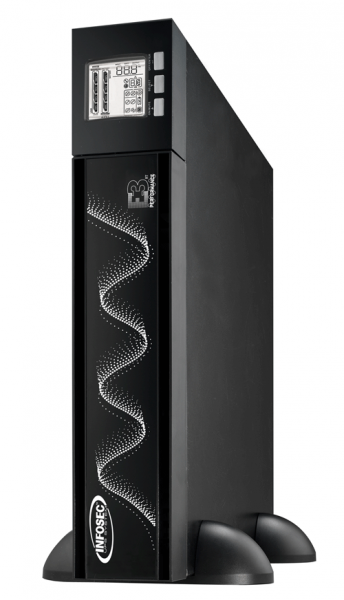

Continuity Group UPS AND 3 1100 VA Line Interactive Synusoid Wave - Infosec ICUL 110 R

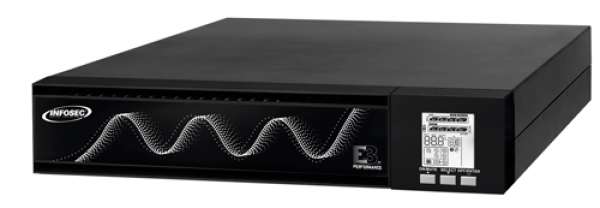

The UPS AND 3 Performance are dedicated to the electrical protection of networks and IT environments. With a high quality sinusoidal current output à and a variety à of connectors, they are ideal to provide energy to sensitive devices. Thanks to the Line Interactive technology controlled by microprocessor, it provides sinusoidal current and its high output power factor (0.9) provides adequate protection to servers and other IT equipment. The UPS AND 3 Performance ensures uninterrupted service and data protection in case of power failure. With programmable sockets, strategic loads and non-critical loads can be controlled easily and independently. Two RJ 45 connectors also provide protection for the Tel/ADSL line. The RS 232 and USB communication ports allow remote communication with various different types of devices. Connected devices. The flexible design of the E 3 Performance allows a simplified installation according to user needs both in tower and rack position (2 U - 19 )



In addition to their variety of connectors, UPS AND 3 Performance have local control functionality with InfoPower software (stocked); automatic file closure in the absence of network power; saving all computer data in a network; intuitive graphical interface: displays system status, various measurements, event history, etc.

Network control function via SNMP I Pro agent (available as option).

A SNMP slot is provided for connecting an optional SNMP agent and using the associated software to remotely control the UPS from the network.

User-friendly LCD display, rotating to fit your configuration



Technical specifications

• Technology: Microprocessor controlled Interactive Line


• Output waveform: pure sinusoidal


• Power: 1100 VA / 990 W

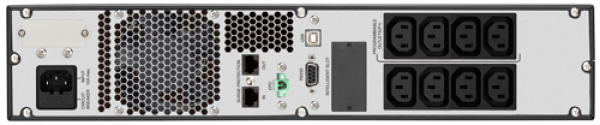

• IEC standard/programmable sockets: 4 / 4 (10 A)


• ADSL/Tel. line protection: RJ 45 (1 input / 1 output)



Protection and filtering

• Output form: pure sinusoidal form


• Protection: not loading / overloading / overvoltage + line Tel./ADSL


• Input protection: automatic switch



Dimensions

• Depthà: 425


• Width: 438 mm


• Height: 88 mm (2 U)



Input

• Voltage: 208 / 220 / 230 / 240 VAC


• Voltage range: 162 - 290 VAC


• Frequency: 50 / 60 Hz (auto sensing)



Exit

• Voltage: 220 / 230 / 240 VAC


• Voltage range: ± 10 %


• Frequency: 50 / 60 Hz + 1 Hz


• Crest factor: 3 : 1


• Harmonic distortion: 2 % max. @ Linear load to 100 %; 5 % max. @ Nonlinear load 100 % (before low battery alarm)



Battery

• carico massimo 1,5 A


• Charging voltage: 27,4 VDC ± 1 %


• Charging time: 4 hours at 90 % after full discharge


• Backup time: 20 minutes



Switches and alarms

• LCD Screen: Mode à Network Power, Mode à Battery, Charge Level, Battery Level, Input Voltage, Output Voltage, Overcharge, Battery Download and Battery Failure


• Alarms: mode à battery, batteries, overload, failure



Communication

• Communication ports: USB / RS 232


• Communication software: InfoPower (compatible with Windows 2000 / 2003 / XP / 2008 , Windows 7 , 8 , 10 , Linux, Unix and MAC)



SNMP I Pro (option): Power management from SNMP (VMware, Hyper V compatible) and an Internet browser



Protection

• Do not load


• Overload


• Overvoltage


• Line protection tel./ADSL



Certifications

• CE


• RoHS



Package contents

• Continuity group; ICUL 110 R


• 1x power cable


• 1 x VDE cable


• 1 x Infopower Software


• 1 x Base for tower installation


• 1 x rack fixing brackets


• Manual of use
