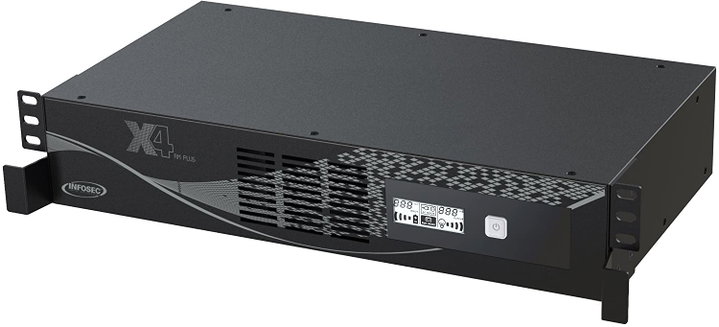

UPS X 4 2000 VA Line Interactive a Black Rack - Infosec ICUX 4 RMP 2000

continuità group designed to protect PCs and small IT business systems against power problems and dangerous electrical disturbances.

In case of short or prolonged power outages, the batteries of the continuità group verify that the hardware continues to receive power for a few minutes, allowing applications to be closed and the PC to be switched off.

Equipped with Line Interactive technology and automatic voltage adjustment, ICUX 4 RMP 2000 ensures that the connected devices are supplied with regular current during major changes, without using batteries.



Energy saving functions:

• Built-in charger that reduces battery charging time and allows you to charge up to 90 % of the capacity à in only 4 hours. In this way you can ` ensure maximum charging between successive power interruptions;


• X 4 RM Plus automatically restarts when network power is restored;


• Cold start function for start without power supply;


• Batteries recharge as soon as c è power supply;


• These functions à allow X 4 RM Plus to save 50 % more energy than a normal UPS

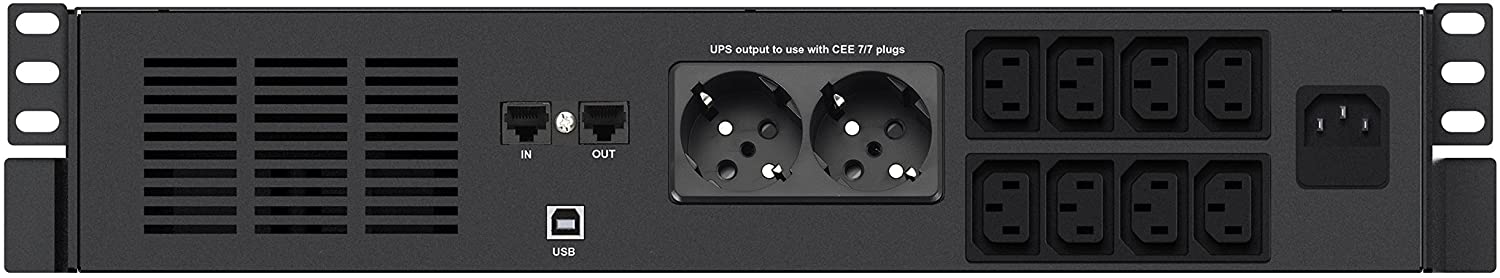

• Each è model equipped with IEC and FR / SCHUKO sockets;


• The USB communication port allows remote control of the UPS using the InfoPower software that also manages automatic extinction in case of a prolonged power failure;


• X 4 RM Plus offers protection of the Tel/ADSL line thanks to its RJ 45 connectors.



Characteristics required

• A single On/Off switch


• An LCD screen for the detailed status of UPS


• Thanks to its rack format, X 4 RM Plus can be easily integrated into a 19 rack server cabinet



General characteristics

• Technology: Line Interactive controlled by microprocessor


• Power: 2000 VA / 1200 W


• Power factor: 0,6


• IEC 320 C 14 plug-in


• Electric sockets: 8 sockets IEC 320 C 13 + 2 sockets Schuko/French EEC 7 / 7



Input

• Voltage: 220 VAC


• Voltage range: 162 - 268 VAC


• Frequency: 50 / 60 Hz (automatic detection)



Exit

• Voltage: 220 VAC


• Automatic voltage adjustment: ± 10 %


• Frequency: 50 Hz ± 1 Hz


• Crest ratio: 3 : 1



Protection and filtering

• Output form: modified sinusoidal


• Protection: not loading / overloading / overvoltage


• Input protection: fuse


• Line protection Tel/ADSL: RJ 45 (1 -IN / 1 -OUT)



Battery

• Charger: works when the UPS è connected to the network


• Cold start (without network): Sì


• Battery type: 2 x 12 V / 9 AH


• Power voltage: 13,7 +/- 0,5 V


• Charging time: 4 - 6 hours at 90 % after full discharge


• Backup time (1 PC load): 50 min



Indicator

• LCD Touch: mode à AC, modeà battery, load level, battery level, input voltage, output voltage, overload, failure and low battery



Communication

• Communication port: USB


• Software: InfoPower (supports Windows® 2000 / 2003 / XP / Vista / 2008 , Windows® 7 , 8 , 10 , Linux, Unix et MAC)



Environmental features

• Ideal environment: 0 - 40 ° C, 0 - 90 % relative humidity (without condensation)


• Noise level: < 40 dB



Dimensions

• Height: 88 mm


• Width: 440 mm


• Depthà: 300 mm



Certifications

• CE


• RoHS



Package contents

• 1 x continuit&agrave group; ICUX 4 RMP 2000


• 1x Power cable


• 1 x User manual
