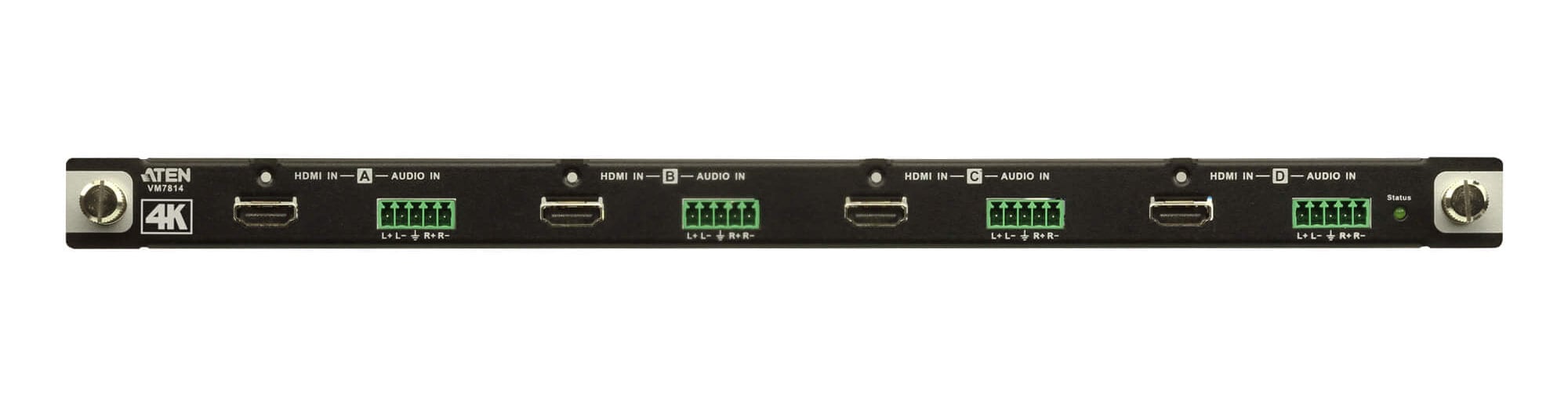

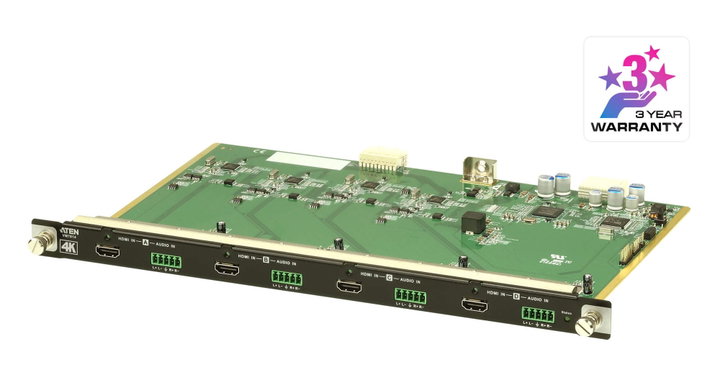

Input card 4 K HDMI to 4 Doors VM 7814 - Aten IDATA VM- 7814

IDATA VM- 7814 è an input board 4 K HDMI that works with a modular ATEN matrix switch to offer an easy way to direct 4 HDMI sources to 4 screens. In addition to the HDMI interface that carries digital A/V signals, è equipped with 4 stereo audio input ports that allow stereo audio integration.

ATEN VM input/output boards support hot-swap installation that offers system integrators maximum flexibility à and maintenance efficiency. ATEN VM input/output cards together with ATEN modular matrix switches offer ideal solutions to perfectly meet the demands of important video applications.



Features

• Compatible with VM 1600 / VM 3200 , it can be combined with modular I/O cards of any type for optimal flexibility


• Superior video quality – HDTV resolutions of 480 p, 720 p, 1080 i, and 1080 p (1920 x 1080); VGA, SVGA, SXGA, UXGA, WUXGA (1920 x 1200), and 4 K 2 K at 60 Hz (4: 2: 0)


• Audio active, can be built-in stereo audio


• EDID Expert – selects optimal EDID settings for trouble-free and high quality display


• HDMI (3 D, Deep Color); HDCP 2.2 compatible


• Tester quality à audio – examines the quality à of the HDMI cable


• Support for Consumer Electronics Control (CEC)



Technical specifications

• Video Input



- Interface 4 x HDMI type A female (black)

- Impedance 100

- Max. distance to 5 m

• Video



- Max. frequency 10,2 Gbps data (3,4 Gbps per line)

- Pixel clock max. 340 MHz

- Conformityà: HDMI (3 D, Deep Color, 4 K); HDCP 2.2 compatible; CEC (Consumer Electronics Control)

- Maximum resolution 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 ); 4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )

• Audio Input



- 4 x Prisoner screw connector, 5 poles (green); audio signal type: stereo, balanced/unbalanced

• Environmental features



- Operating temperature: 0 - 40 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Dimensions (L x P x A): 35.20 x 23.80 x 2.33 cm



Package contents

• 1 x input board 4 K HDMI


• 4 x terminal blocks


• 4 x HDMI LockPro


• 1 x user instructions
