Input card 4 K DisplayPort to 4 doors - ATEN ICC VM- 7904

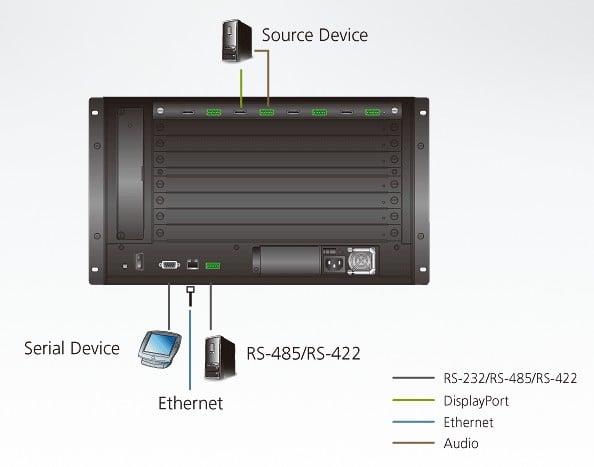

The VM 7904 è an input board 4 K DisplayPort that works together with a modular ATEN matrix switch to offer an easy way to direct 4 audio and video sources DisplayPort to up to 16 or 32 screens. In addition to the DisplayPort interface that transmits the digital A/V signal, the VM 7904 offers 4 stereo audio input ports that allow you to direct stereo audio independently or integrated for HDMI output.



Ideal for high-resolution video wall applications, the VM 7904 effectively addresses DisplayPort sources with 4 K resolution up to 4096 x 2160 at 30 Hz (4 : 4 : 4) and EDID Expert technology for optimal resolution across different screens. All input/output cards in ATEN's VM series support hot-swap installation that offers system integrators maximum efficiency and flexibilityà for maintenance. VM Series input/output cards along with the modular ATEN matrix switch offer flexible solutions that perfectly respond to the demands of demanding video applications.



Features

• Compatible with VM 1600 A/VM 3200 ; combine modular I/O cards of any type for optimal flexibility


• Connect up to 4 DisplayPort inputs to up to 16 (VM 1600 A) or 32 (VM 3200) screens


• Qualità higher video, up to 4096 x 2160 / 3840 x 2160 at 30 Hz (4: 4: 4 )


• Audio enabled, stereo audio can be directed independently or integrated for HDMI output


• EDID Expert: select the best EDID options for trouble-free ignition, high quality à display and use of best resolution between different screens


• Support DP 1.1 with speed à data up to 10,8 Gbps (2,7 Gbps per line)


• HDCP 2.2 Conforms


• Hot-swap design for simplified integration and maintenance



Technical specifications

• Video input:

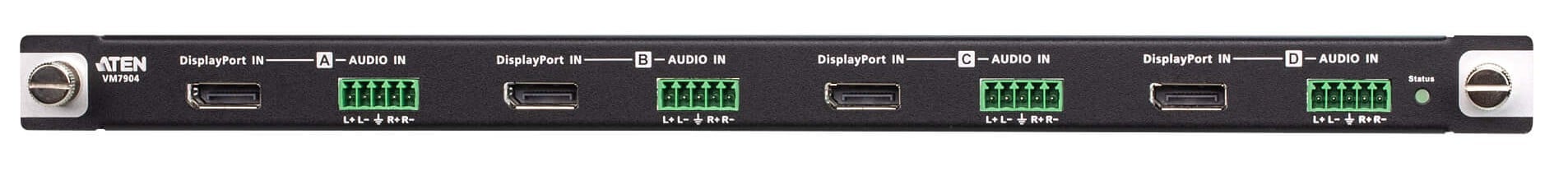

- Interfaces: 4 x DisplayPort female (black)

- Impedance: 100

- Max. distance: up to 3 m

• Video:



- Max. frequency of data: 10,8 Gbps (2,7 Gbps per line)

- Pixel clock max.: 340 MHz

- Conformityà HDCP

- Resolution max. 

4096 x 2160 a 30 Hz (4 : 4 : 4 )

3840 x 2160 a 30 Hz (4 : 4 : 4 )

• Audio:



- Entry 4 x Prisoner screw connector, 5 poles (green)

*Audio signal type: stereo, balanced/unbalanced.

• Consumption: 7,18 W, 34 BTU



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 35,20 cm


• Depthà: 23,80 cm


• Height: 2,33 cm



Package contents

• 1 x VM 7904 Input card 4 K DisplayPort to 4 doors


• 4 x terminal blocks


• 1x User instructions
