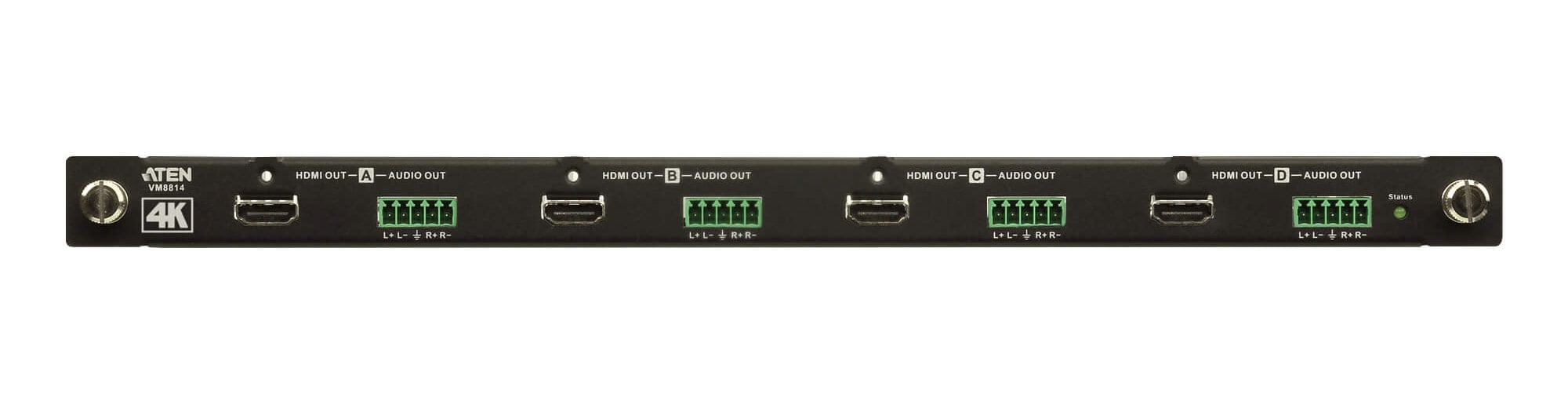

4 K HDMI Exit tab to 4 Doors with Scaler VM 8814 - Aten IDATA VM- 8814

IDATA VM- 8814 è an output card 4 K HDMI that works with a modular ATEN matrix switch to offer an easy way to direct 4 HDMI sources to 4 screens. In addition to the HDMI interface that carries digital A/V signals, è equipped with 4 stereo audio output ports that allow HDMI audio extraction.

Keeping in mind the need to quickly change videos and adapt resolution in video wall applications, this card supports Seamless Switch™ and EDID Expert™ that make it possible to change video in real time, as well as contain an integrated 4 K scaler that handles the different video resolutions. ATEN VM input/output cards support hot-swap installation that offers system integrators maximum flexibilityà and efficiency for maintenance. ATEN VM input/output cards together with ATEN modular matrix switches offer ideal solutions to perfectly meet the demands of important video applications.



Features

• Compatible with VM 1600 / VM 3200 , it can be combined with modular I/O cards of any type for optimal flexibility


• Superior video quality – HDTV resolutions of 480 p, 720 p, 1080 i, and 1080 p (1920 x 1080); VGA, SVGA, SXGA, UXGA, WUXGA (1920 x 1200), and 4 K 2 K at 60 Hz (4: 2: 0)


• Active audio, can ò be extracted HDMI audio


• Scaler 4 K has a video scaling function to convert input resolutions to get optimal visualization resolutions


• Seamless Switch & trade; has fast switching (close to zero seconds), continuous video transmissions, real-time switching and stable signal transmissions*


• Video wall allows you to create a custom video wall using an intuitive web graphic interface*


• EDID Expert selects optimal EDID settings for trouble-free and high quality display


• HDMI (3 D, Deep Color); HDCP 2.2 compatible


• Tester qualityà audio examines HDMI cable qualityà


• FrameSync avoids the presence of little sharp images by synchronizing the output camera frequency of the scaler with the input signal frame frequency


• Consumer Electronics Control (CEC) Support



*Note:

1 . When è enabled Seamless Switch™, 3 D, Deep Color or interlaced formats (e.g. 1080 i) will not be supported. To use these formats, make sure Seamless Switch™ is disabled.

2 . Videos may not be displayed in the range when è enabled Seamless Switch™ or Video Parades, in this case adjust device display settings.



Technical specifications

• Video output:



- Interface 4 x HDMI type A female (black)

- Impedance 100

- Max. distance to 15 m

• Video



- Max. frequency 10,2 Gbps data (3,4 Gbps per line)

- Pixel clock max. 340 MHz

- Conformityà: HDMI (3 D, Deep Color, 4 K); HDCP 2.2 compatible; CEC (Consumer Electronics Control)

- Maximum resolution: 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 ); 4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )

• Audio output:



- 4 x Prisoner screw connector, 5 poles; type of audio signal: stereo, balanced/unbalanced.

• Environmental features



- Operating temperature: 0 - 40 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Dimensions (L x P x A): 35.20 x 23.80 x 2.33 cm



Package contents

• 1 x output card 4 K HDMI


• 4 x terminal blocks


• 4 x HDMI LockPro


• 1 x user instructions
