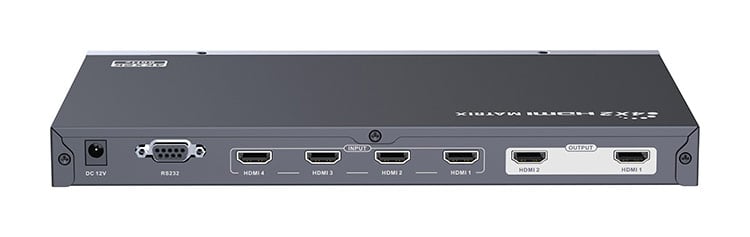

Matrix Switch HDMI 2.0 4 x 2 - Techly NP IDATA HDMI 2 -MX 412

This product è an HDMI 2.0 4 × 2 matrix switch supports resolutions up to 4 K × 2 K to 60 Hz, with 4 HDMI inputs and 2 HDMI outputs. 4 HDMI inputs allow simultaneous connection up to 4 high definition video sources, such as satellite systems and Blu-ray players. 2 HDMI outputs send high definition A/V signals to 2 ultra HD display. This Matrix switch supports IR remote control, button control and RS 232 for switching inputs and outputs. This product is perfect for security systems, digital monitoring systems, school systems, exhibition centers, multimedia conferences, control systems, etc.



Features

• Switch Matrix HDMI 2.0 with 4 HDMI inputs and 2 HDMI outputs, supports 4 resolution K@ 60 Hz and transmission to 18 Gbps

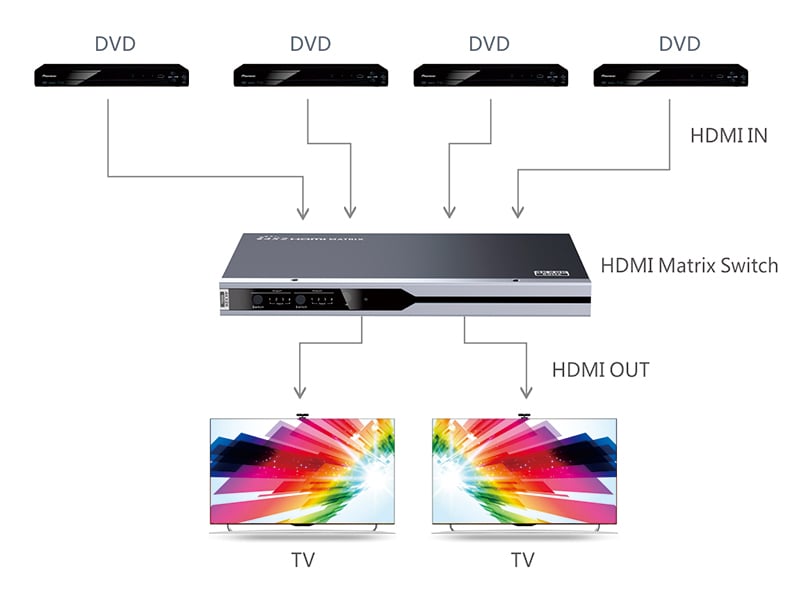

• 4 HDMI inputs allow simultaneous connection up to 4 high definition video sources; 2 HDMI outputs send high definition A/V signals to 2 ultra HD display


• Supports remote IR control, control via drive à and RS 232 buttons for switching inputs and outputs


• Supports DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/Dolby-AC 3 /DSD audio


• Supports YUV 4: 4: 4; supports 3 D


• HDCP 2.2 compatible


• Pure hardware design, plug and play


• Support for RS 232 control



Technical specifications

• HDMI 2.0 , compatible with HDCP 2.2


• 4 HDMI inputs


• 2 HDMI outputs


• Velocità transmission 18 Gbps


• Supports resolution: 480 i @ 60 Hz, 480 p @ 60 Hz, 576 i @ 50 Hz, 576 p @ 50 Hz, 720 p @ 50 / 60 Hz, 1080 i @ 50 / 60 Hz, 1080 p @ 50 / 60 Hz, 4 Kx 2 K @ 25 / 30 / 60 Hz / 3 D


• Supports audio format: DTS-HD / Dolby-true HD / LPCM 7.1 / DTS / Dolby-AC 3 / DSD


• YUV: 4 : 4 : 4


• Video signal: 0.5 ~ 1.5 Vp-p (TM DS)


• DDC signal: 5 Vp-p (TTL)


• Video bandwidth: 600 MHZ


• HDMI port: Type A 19 pin, female


• RS 232 : serial port 9 pin


• Working temperature: 0 ? ~ 60 ?


• Working humidità 0 ~ 90 % (without condensation)


• Power supply: DC 12 V / 2 A


• Consumption: 15 W (max)


• Size: 283.50 (L) X 164.75 (P) X 27.20 (A) mm


• Color: black



Package contents

• Matrix


• Remote control


• 2 brackets for wall mounting


• DC power supply 12 V 2 A


• Instructions manual
