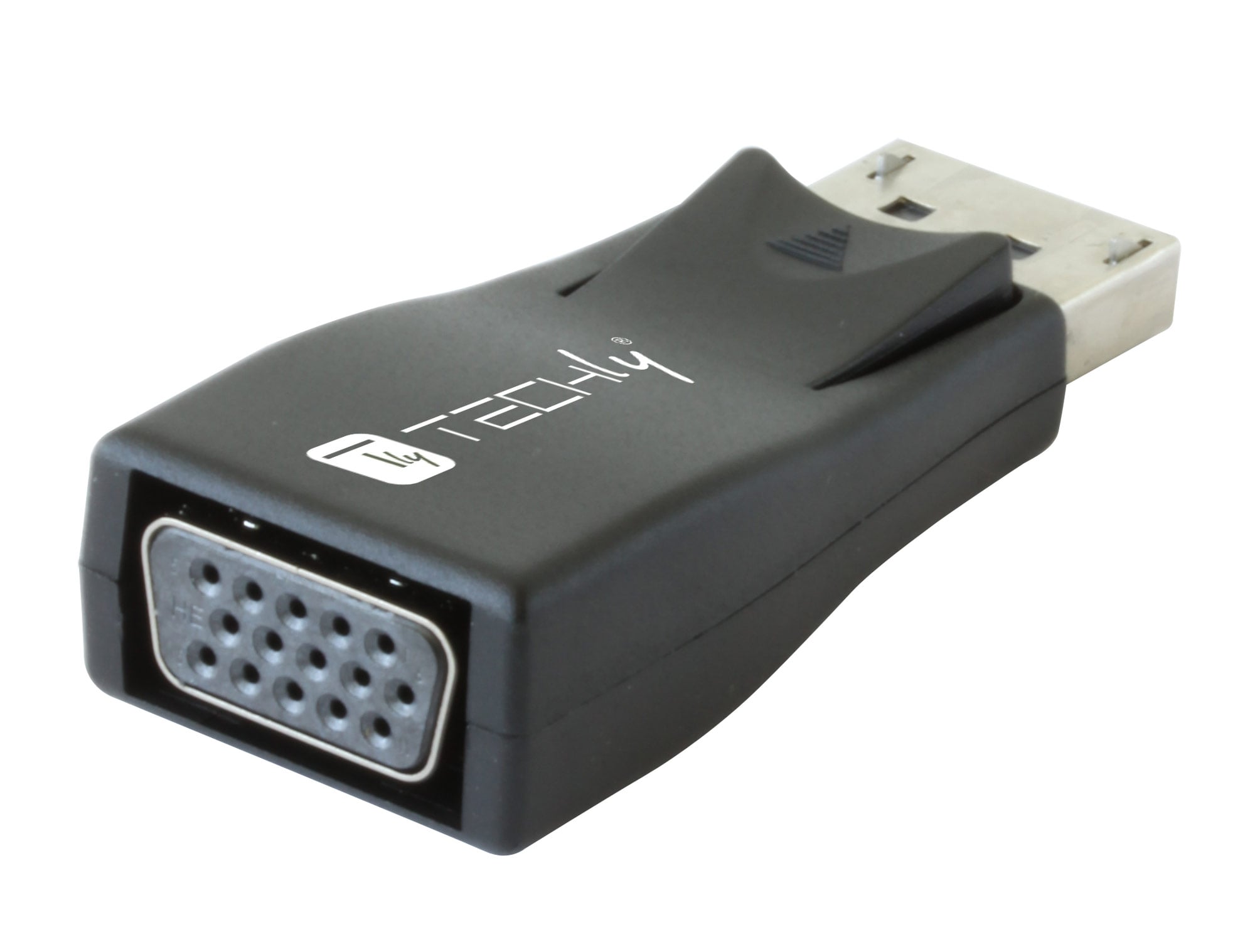

Name: Compact DisplayPort v.1.2 to VGA F Converter - Techly IADAP DSP-230T
Brand: TECHLY
SKU: IADAP DSP-230T
Price: 10.8 EUR
Availability: InStock

€10.80

Tax included

DisplayPort 1.2 to VGA Converter. Supports resolutions up to WUXGA (1920x1200@60Hz). Compatible with VESA DP 1.2 and 1.1a. Low power consumption: 485mW active, 12mW standby.

Return policy

Delivery policy

Direct contact for info

Secure Payment

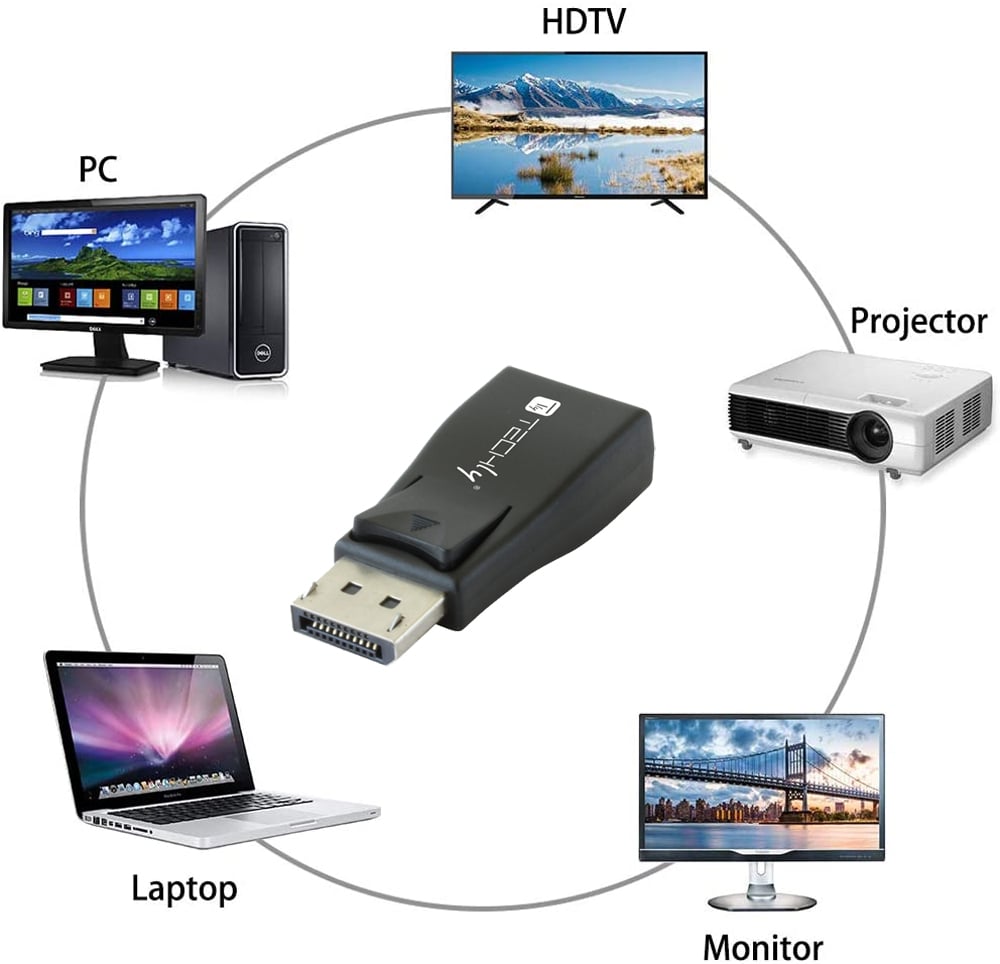

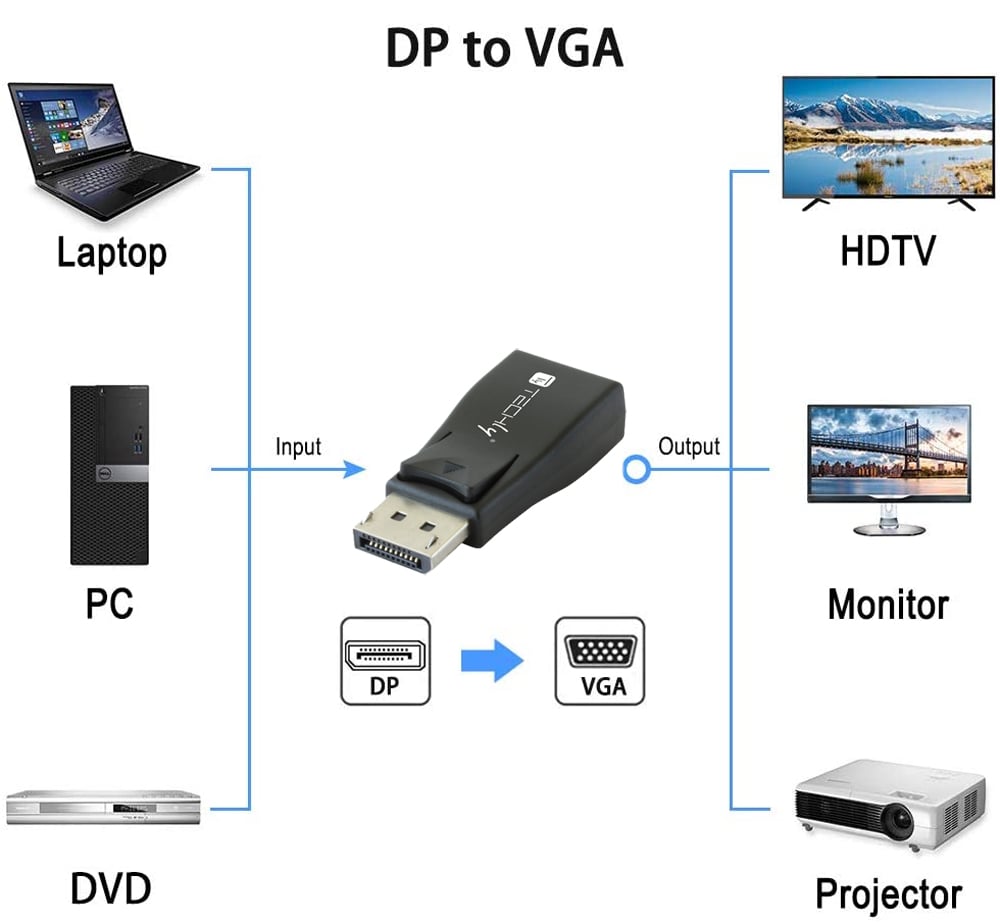

DisplayPort to VGA Converter to interface the new generation of PCs and laptops equipped with DisplayPort with traditional VGA monitors such as CRT, LCD and projectors

Technical specifications

Compatible with VESA DisplayPort ™ 1.2 standard with backwards compatibility 1.1a
Compatible with VESA and DP v1.3 standard
2 high-speed differential input lanes with configurable speed: 2.7Gbps or 1.62Gbps
Supports Spread Spectrum (SSC)
Supports resolution with pixel rate up to 180MHz
Supports resolutions up to WUXGA (1920x1200@60Hz@60Hz, reduced blanking, 24bpp)
VGA output conforming to VESA VSIS V1R2 clock jitter specification
Low power standby mode with automatic monitor connection and disconnection
DDC speed control for use with longer VGA cables
EDID pass-through from PC source to display
Wide spread spectrum (de-spreading) for EMI reduction
Low power operation - 485mW active, 12mW in standby mode
Display resolution: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz, 1920x1080P, 60Hz, 10bpc: 144MHz
Vertical frequency range: 50/60Hz
Video bandwidth: 162MHz mechanical
Color: black

Connections

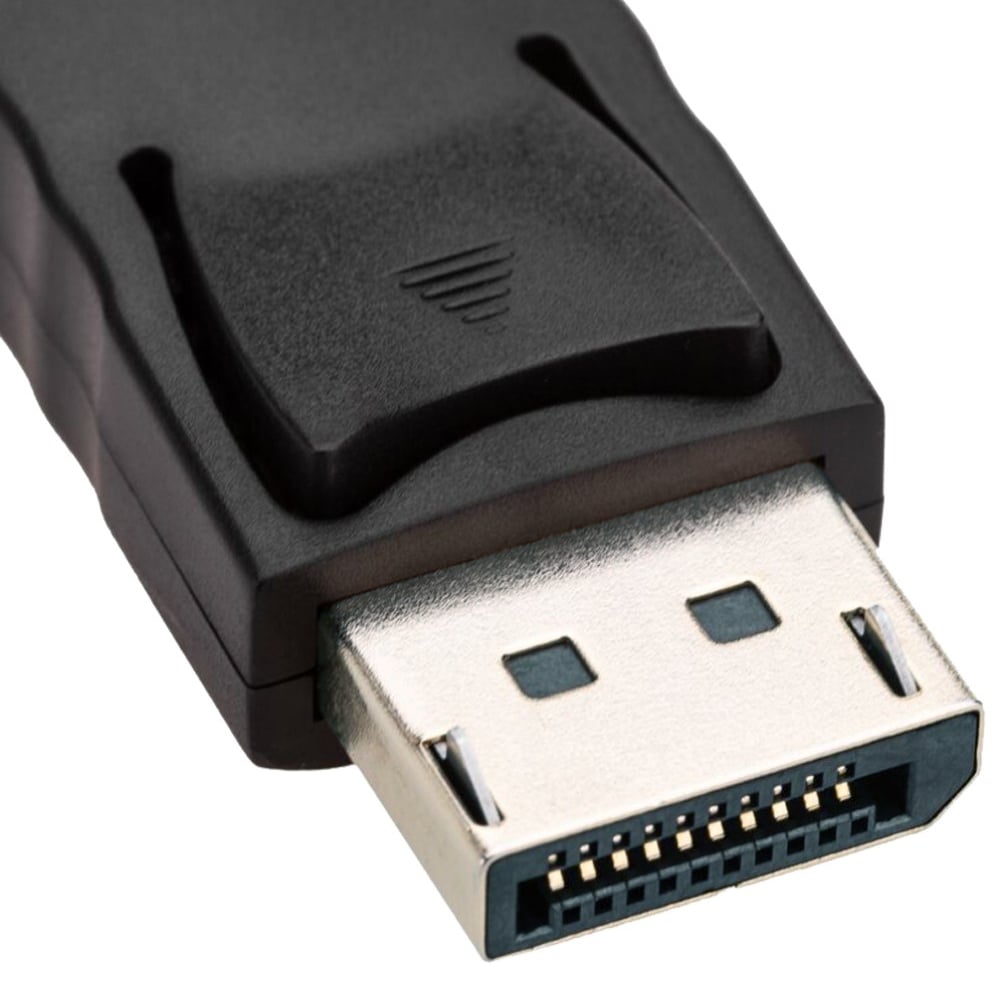

DisplayPort M for connection to DisplayPort source
VGA F for connection to monitor with VGA M/M cable (If using the DisplayPort F/F coupler, please use a DisplayPort cable with 20 pins connected)

Dimensions
