Active Mini DisplayPort (Thunderbolt) 1.2 / VGA Adapter - Techly IADAP MDP-VGAF2

€16.70
Tax included €13.70 excl. VAT

Active converter from Mini DisplayPort 1.2 (Thunderbolt) to VGA. Supports resolutions up to WUXGA (1920x1200@60Hz), standby power consumption 12 mW.



Return policy



Delivery policy



Direct contact for info



Secure Payment

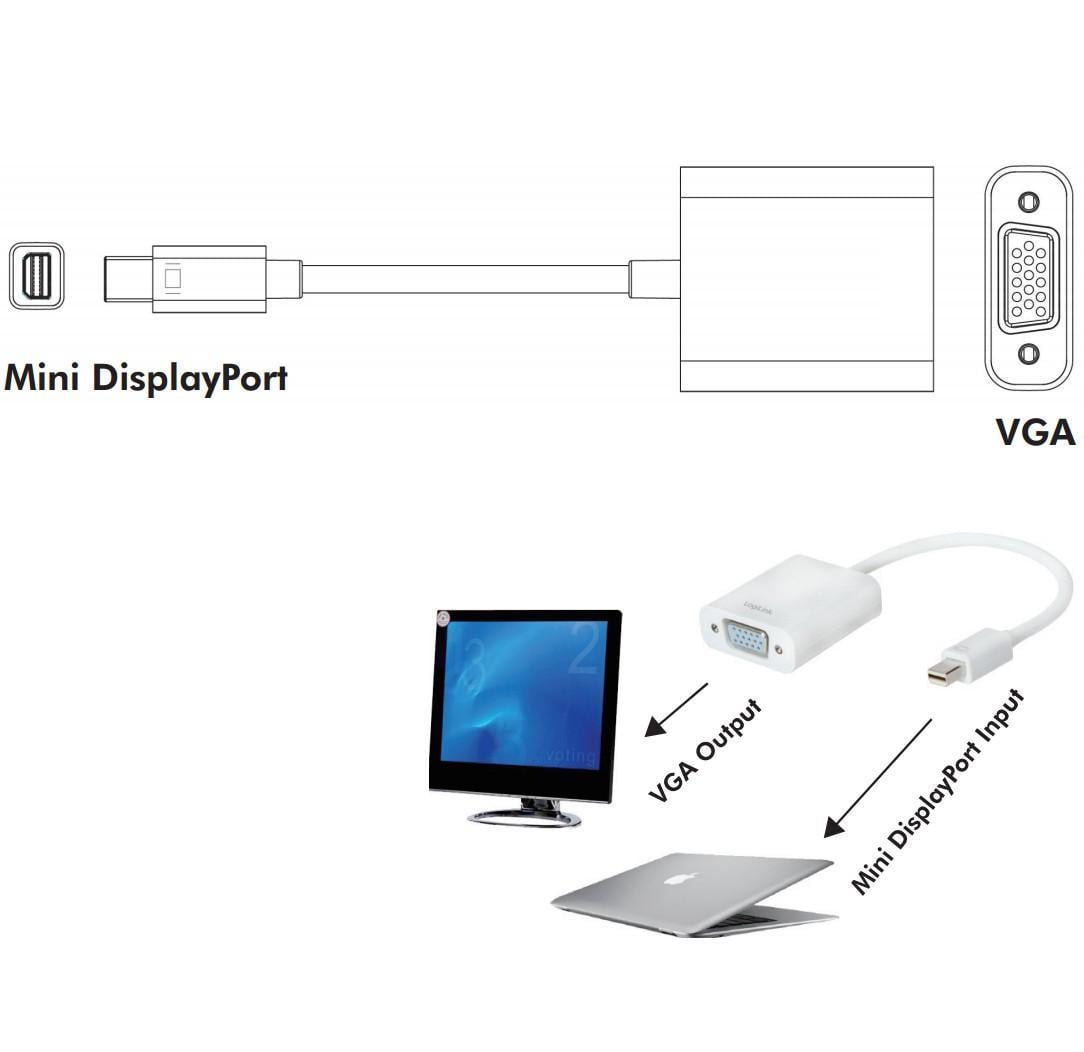

  • This converter allows connecting the new generation of MacBook, MacBook Pro or MacBook Air equipped with Mini DisplayPort (Thunderbolt) connector to a conventional VGA display, such as CRT, LCD monitors and projectors

  • Compatible with VESA Mini DisplayPort 1.2 and previous 1.1a

  • Compatible with VESA and Mini DP v1.3 Standard

  • Supports resolution with pixel rate up to 180MHz

  • Supports resolutions up to WUXGA (1920x1200@60HZ, reduced blanking, 24bpp)

  • 2 high speed differential input lanes with configurable speed: 2.7Gbps or 1.62Gbps

  • Supports Down spread Spectrum (SSC)

  • VGA output compliant with VESA VSIS v1r2 clock jitter specification

  • Power saving mode with automatic detection of monitor connected or disconnected

  • DDC Speed control for use with longer VGA cables

  • EDID pass-through from PC source to monitor

  • Spread Spectrum (de-spreading) for EMI reduction

  • Low consumption during operation – in active mode 485mW, in standby mode 12mW



Note: with some video cards, the image does not appear until the PC is restarted in Windows from DOS



Contacts

  • (1) Mini-DisplayPort 20-pin male (Thunderbolt)

  • (1) VGA female

  • Press-molded PVC connector covers

  • Shielded



Signal IN/OUT

  • Video signal input: Mini DisplayPort

  • Maximum Single Link range: 4K x 2K

  • Video output: VGA

  • Input connector: Mini DisplayPort male 20pin

  • Output Connector Type: VGA female



Operating frequency

  • Vertical frequency range: 50 / 60Hz

  • Video bandwidth amplifier 180 MHz



Resolutions (HDTV)

  • 1920x1200, 1920x1080, 1600x1200, 1600x960, 1360x1024, 1360x768, 1280x1024, 1280x720



Dimensions

  • Length 65 mm

  • Width 35 mm

  • Height 15 mm

  • Cable length 15 cm



Environmental features

  • Operating temperature: 0°C to +70°C

  • Operating humidity 10% to 85% (non-condensing)

  • Storage temperature -10°C to +80°C

  • Storage humidity 5% to 90% (non-condensing)



Power requirements

  • No external power required

  • Power consumption (max) 485 mW



Standards and certifications

  • DisplayPort 1.2

  • CE

  • RoHS

  • RAEE



Package contents

  • Mini-DisplayPort (Thunderbolt) 1.2 to VGA Active Adapter

  • Instruction manual


  • Brand
  • Reference
    IADAP MDP-VGAF2
  • In stock
    99 Items
  • EAN13
    8057685302891
