Switch matrix presentations 7 x 3 scaler mixer audio HDBaseT - Aten IDATA VP- 2730

The VP 2730 è a complete presentation switch that integrates the video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and digital analogue converter into a compact device. With seven multi-format inputs on two HDMI outputs and a high-definition HDBaseT, VP 2730 allows more ù meetings and facilitates collaboration between local and remote participants in meeting rooms, video conferencing rooms, classrooms or classes for distance learning.



Thinking of the user, the VP 2730 è with OSD and easy and accessible web user interface to simplify operations for local and remote participants. To make it easier to share and collaborate without limits, the VP 2730 allows not only the moderator of the meeting to share video content with up to five remote sites, but also to remote sites or local participants to stream in modalità wireless in their content for discussion. The moderator can ò monitor and exchange resources in any modalità full screen, double view, triple view, quadruple display or PIP, with up to six sources displayed simultaneously on a single screen.



The VP 2730 also has advanced meeting management functions: The Modelità moderator allows the meeting moderator to control other displays via the host; Chat room makes it easier to communicate in the meeting; while Capture screen and Block record and control the meeting flow. The Collaborative Presentation function makes it easier to share content regardless of distance with advanced audio by simplifying AV integration by eliminating the need for à numerous individual components and compatibility challenges; that accompany them.



Multi format AV exchange without problems

• Supports 7 multi-format inputs:



- 2 combo inputs (HDMI/VGA, HDMI/DisplayPort)

- 3 HDMI inputs

- 2 HDMI and 1 HDBaseT outputs

• Qualityà higher video up to 1080 p at 60 Hz (HDMI/DisplayPort)


• Ultra Seamless Switch™: Instant switching that offers continuous video streaming, real-time switching and stable signal transmissions


• Scaler: presents a video scaling function for converting input resolutions into optimal visualization resolutions


• Flexible format conversion



Streaming at 1080 p for sharing and collaboration at a distance

• Vali license: meeting moderator can ò stream HD videos to up to 5 remote locations


• streaming input: Remote locations can stream and share content with the meeting moderator at any distance via the intuitive web interface


• Coda streaming: shares content submitted approved by the meeting moderator one at a time to help in managing the meeting flow



Audio mixer integration for advanced applications

• Audio Mixer: lets you mix microphone inputs on any analog or external digital audio output device


• Integrated/disassembled audio: HDMI/DisplayPort audio signals can be extracted to separate digital/analogue audio signals; Mic/Line audio can be integrated into HDMI audio


• Supports multi-format digital/analogue audio outputs, including coaxial, TOSLINK and RCA



Advanced conference management function for collaboration

• Multi-view: simultaneously view and switch in any mode variation; full screen, double view, triple view, quadruple view or PIP, with up to six sources displayed simultaneously on a screen


• Modelità Moderator: Allows meeting moderator to control other displays via host display


• Chat room: makes it easier and more precise for remote participants to communicate in real time


• Screen Capture: Capture all the contents of the screen with one click


• Block: Block screen for discussions or to control the meeting stream



Operations without problems

• Multiple control options: flexible control via integrated web interface, front panel, OSD, IR remote control, and RS- 232


• Automatic Switching: automatically detects and switches to a new source as soon as connected to save time and comfortà

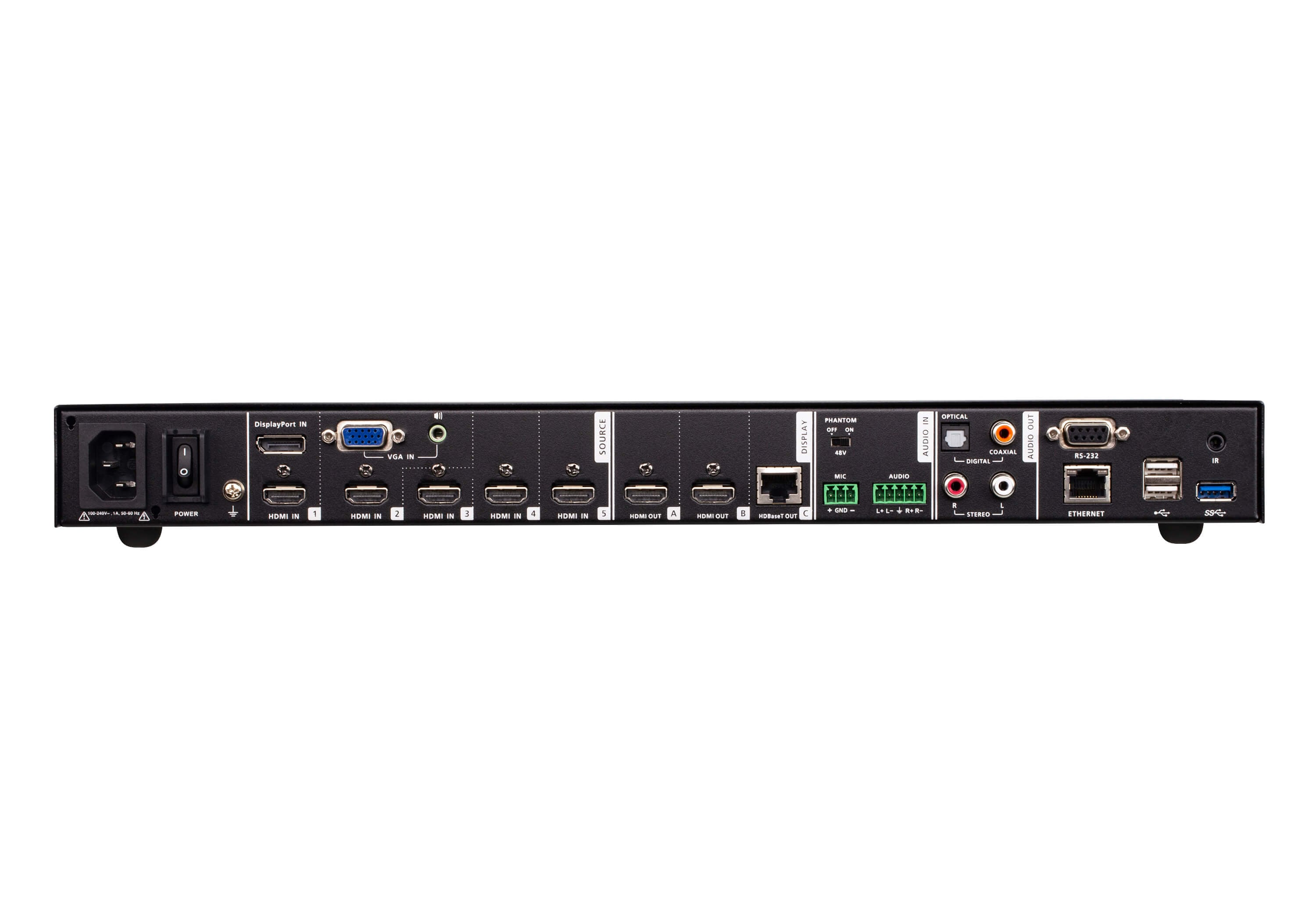

Video Input

• 5 x HDMI type A female (black)


• 1 x female DP (black)


• 1 x HDB- 15 female (blue)



Video output

• 2 x HDMI type A female (black)


• HDBaseT: 1 x RJ- 45 female (silver)



Maximum distance

• HDMI: Up to 15 m


• HDBaseT: Up to 1080 p a 60 m (Cat 5 e/ 6)/ 70 m (Cat 6 a/ATEN 2 L- 2910 Cat 6 )



Video

• Resolution max. 



HDMI/DP: Up to 1080 p at 60 Hz

VGA/Analog: Up to 1920 x 1200 at 60 Hz

• Conformityà 



HDMI/DP: HDCP 1.4 compatible; Consumer Electronics Control (CEC)



Audio

• Input  



Stereo audio: 1 x Mini female stereo connector (green)

Audio balance: 1 x Prisoner screw connector, 5 poles

Microphone: 1 x Prisoner screw connector, 3 poles

• Exit 



Optical audio: 1 x Toslink (black)

Coaxial audio: 1 x female RCA (orange)

Stereo audio: 2 x female RCA (white/red)



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 43,24 cm


• Depthà: 26,28 cm


• Height: 4,40 cm



Package contents

• 1 x switch matrix for presentations 7 x 3 VP 2730 with streaming, HDBaseT


• 1 x IR receiver


• 1 x IR remote control


• 1x power cable


• 2 terminal blocks


• 4 x feet


• 1x User instructions
