- Saves time and money by providing data and power over an existing wired network
- Total PoE power budget of 95 watt
- Compatible with IEEE 802.3bt Type 4 (Ultra-PoE +), IEEE 802.3at and IEEE 802.3af
- Protection against overload, overcurrent, and high voltage

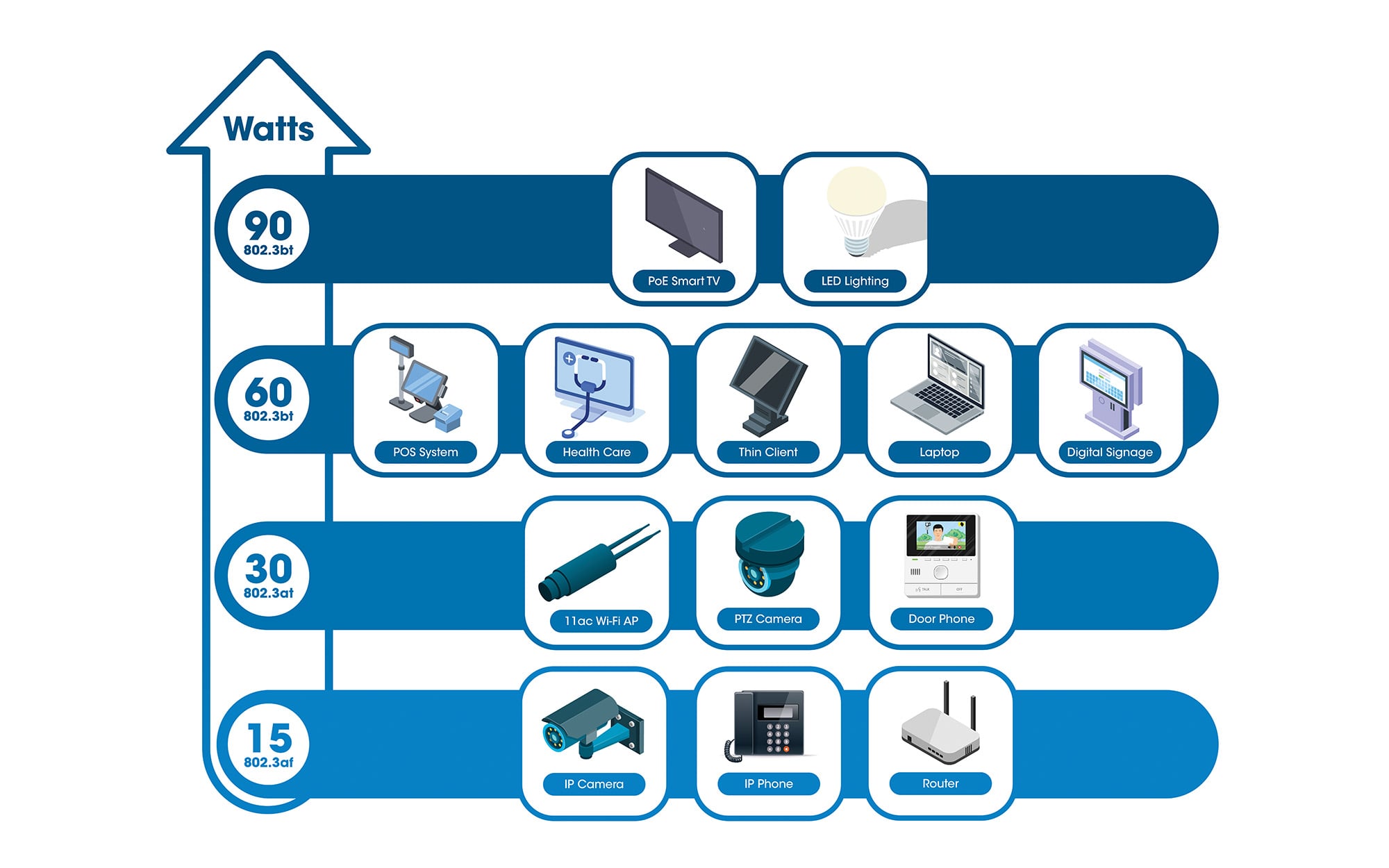

- Supports all PoE devices compliant with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af (wireless LAN access points and bridges, VoIP phones [Voice over Internet Protocol], IP surveillance cameras)
- Supported distance: up to 100m

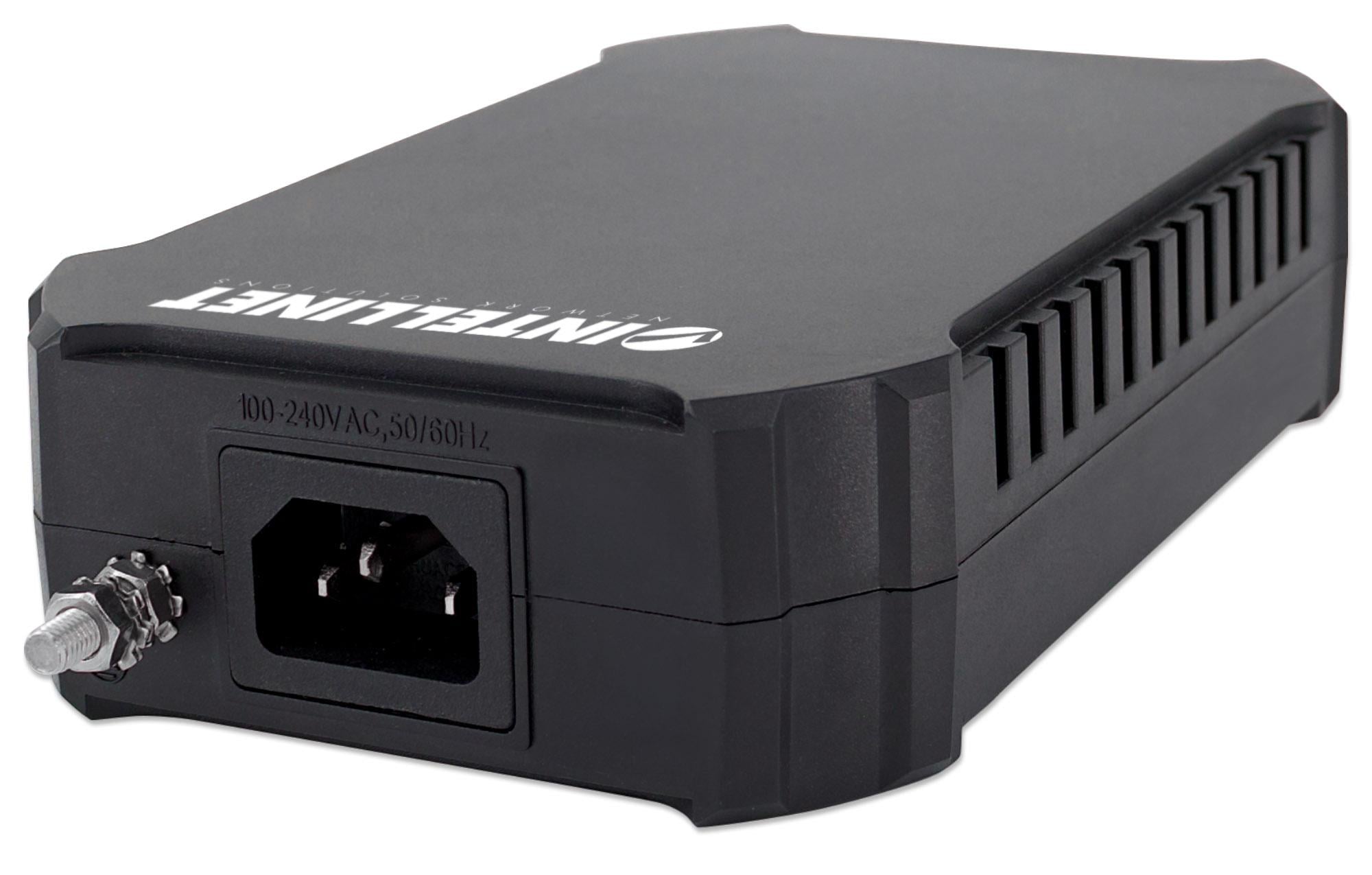

- Internal power supply

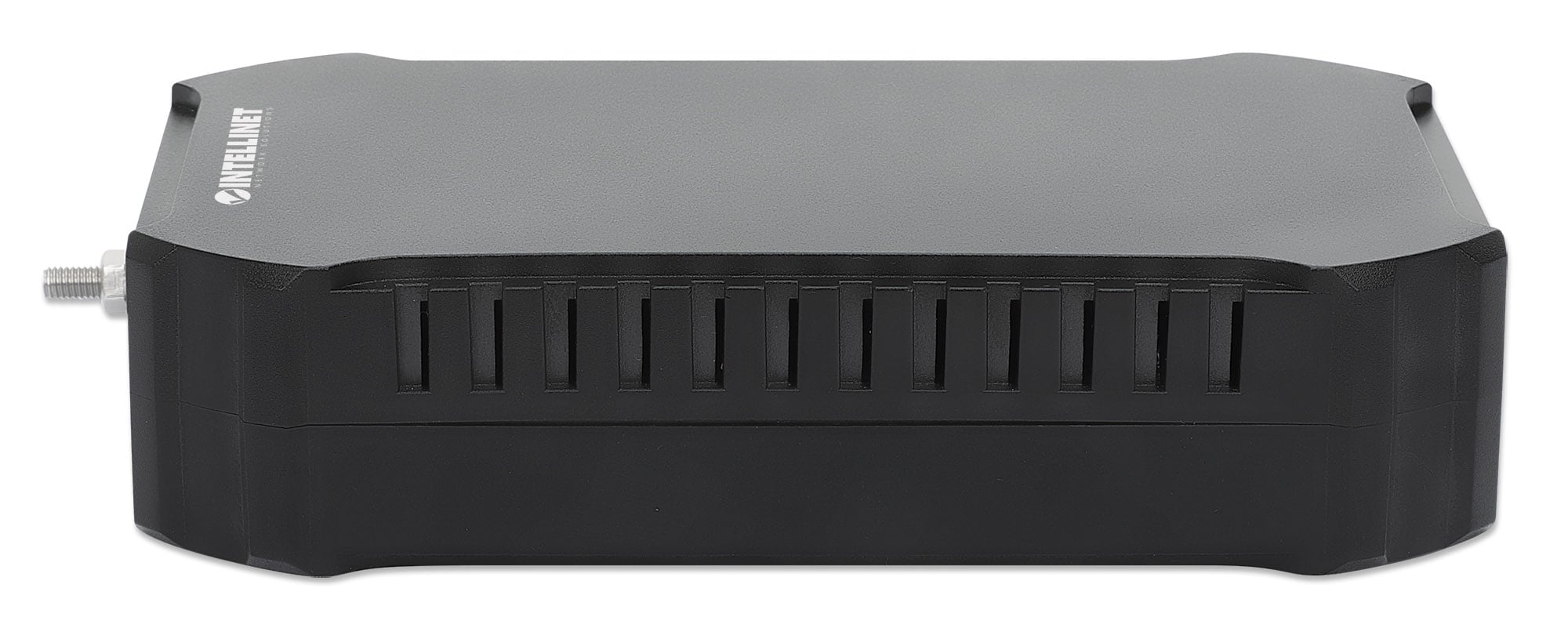

- Fanless design ideal for silent operation
- Optional wall-mount installation
Standard- IEEE 802.3af (Power over Ethernet)
- IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)
- IEEE 802.3bt (4 Pair Power over Ethernet)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
General information- 10Base-T Cat5 UTP/STP RJ45, 8 pin
- 100Base-TX Cat5 UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

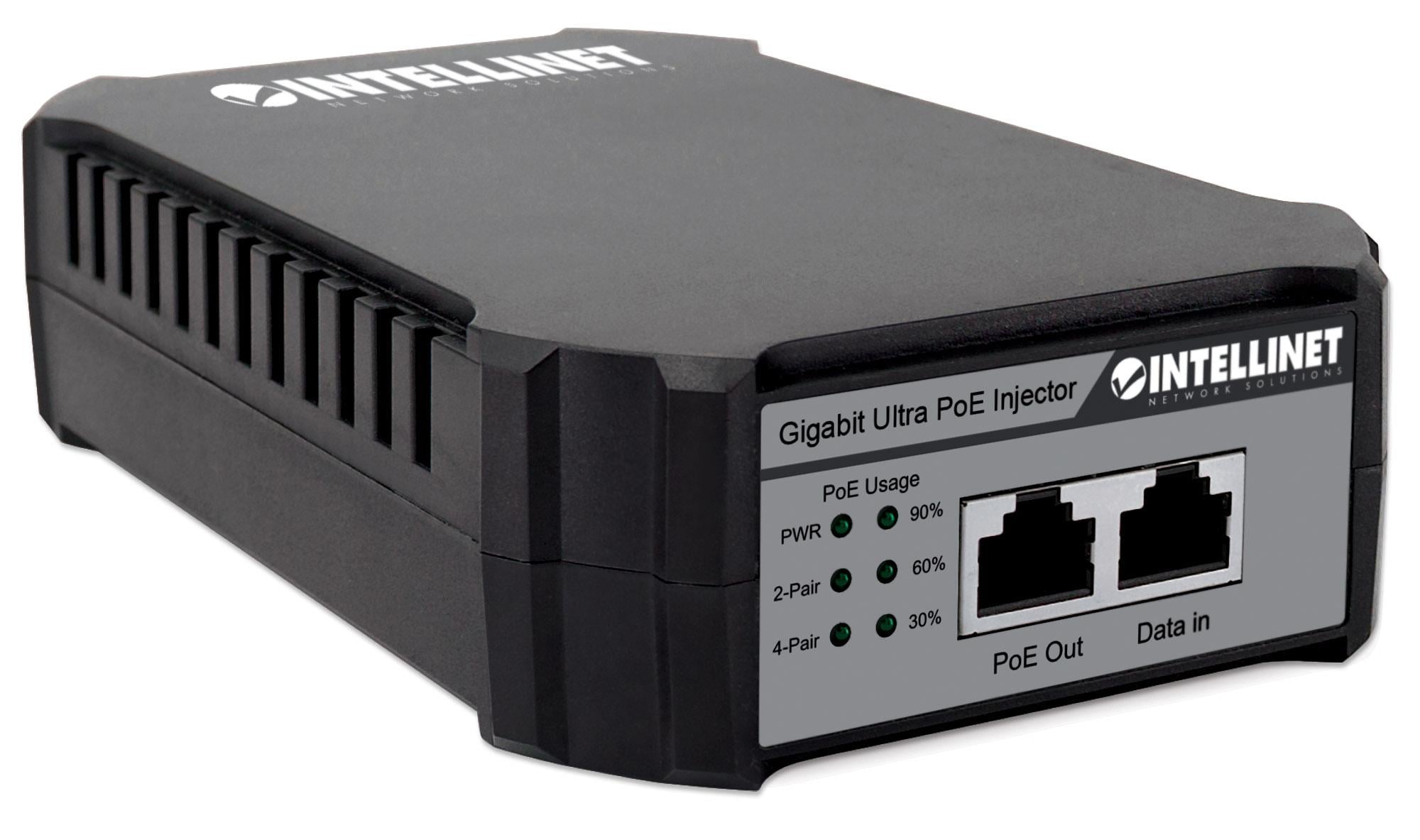

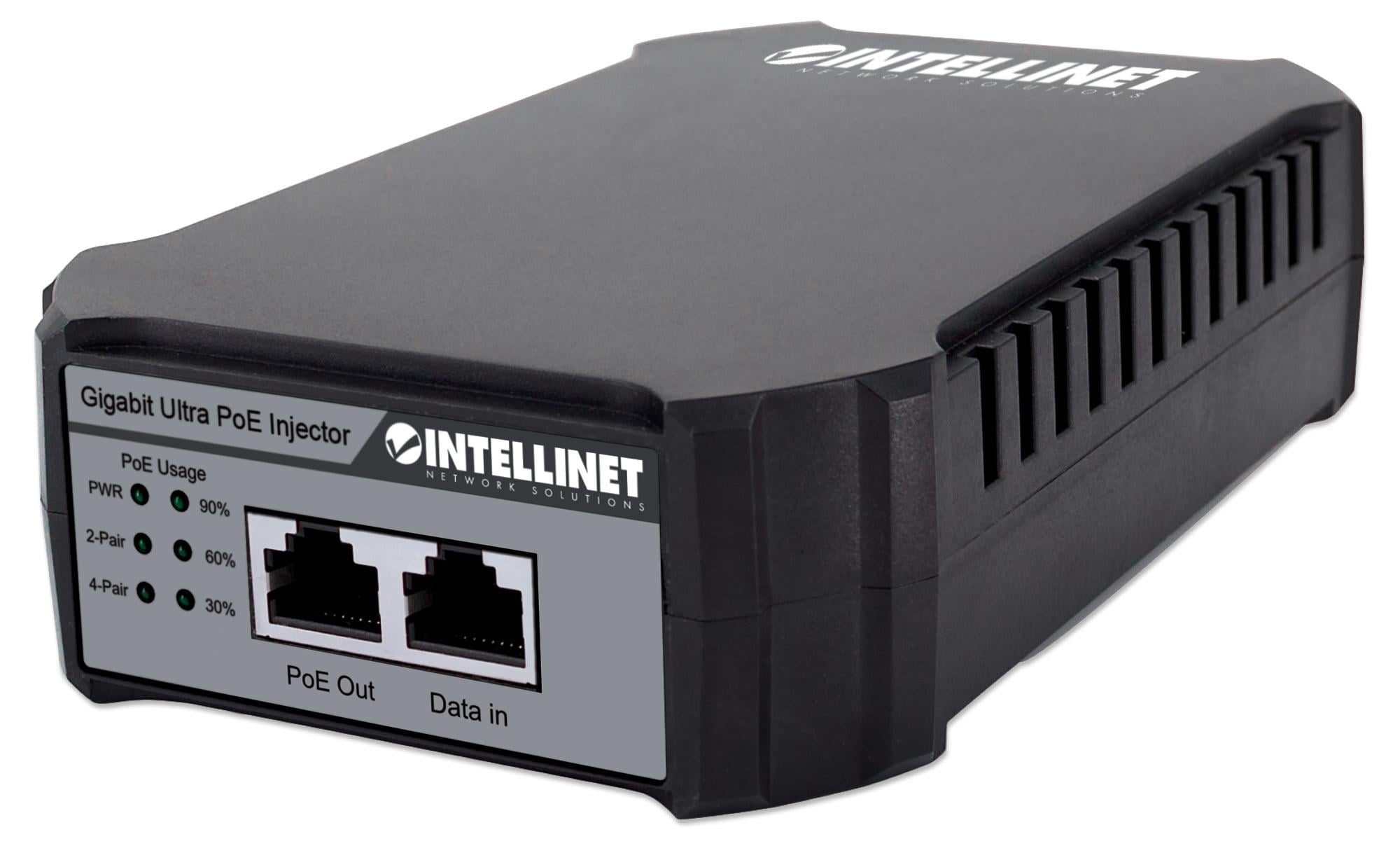

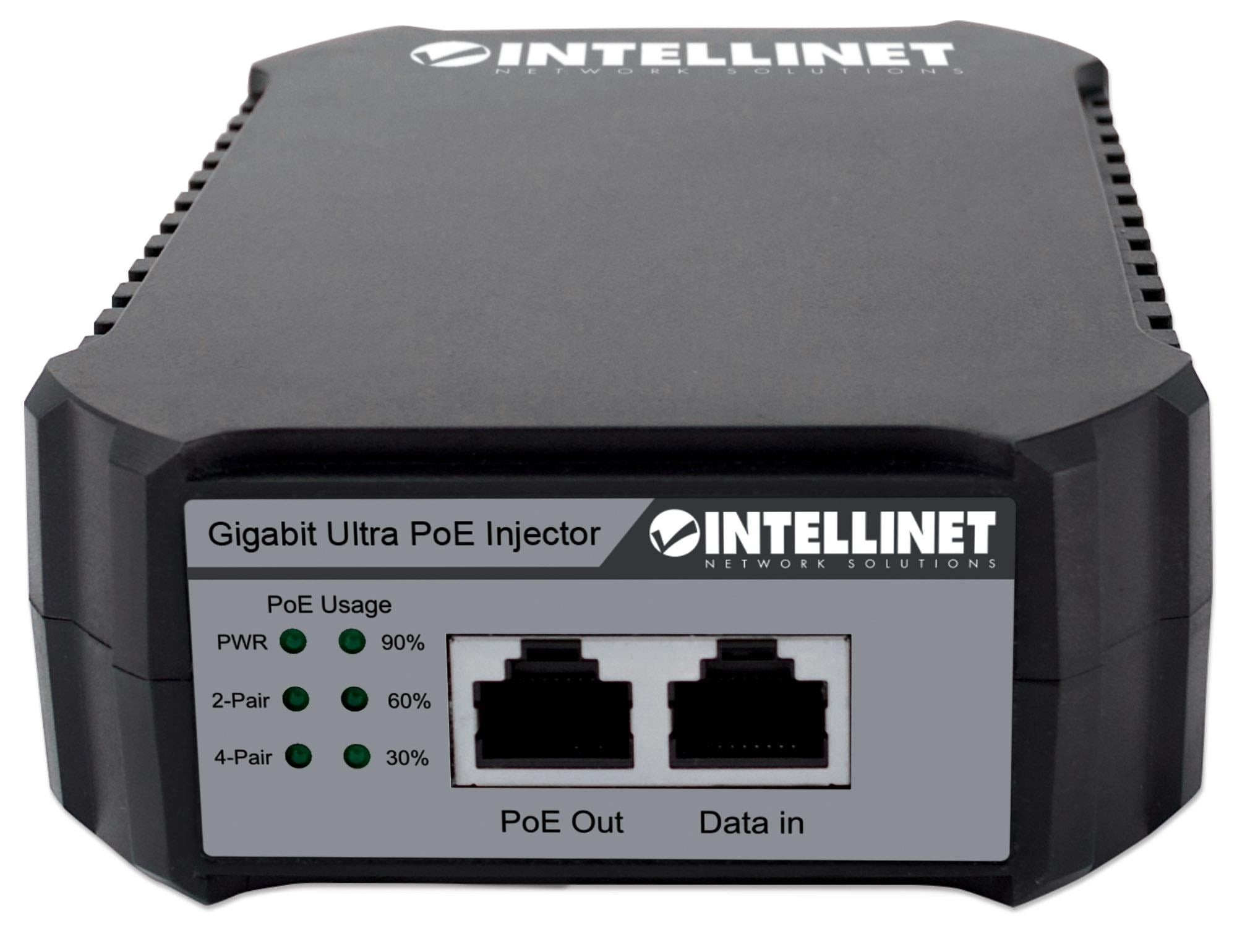

- One RJ45 port 10/100/1000 Mbps
- One RJ45 10/100/1000 Mbps output port for data and power
- Short circuit protection
- Overcurrent protection
- Overvoltage protection
- Pin 1: DC (-)
- Pin 2: DC (-)
- Pin 3: DC (+)
- Pin 4: DC (+)
- Pin 5: DC (+)
- Pin 6: DC (+)
- Pin 7: DC (-)
- Pin 8: DC (-)
- Certifications: CE, RoHS, FCC Class A

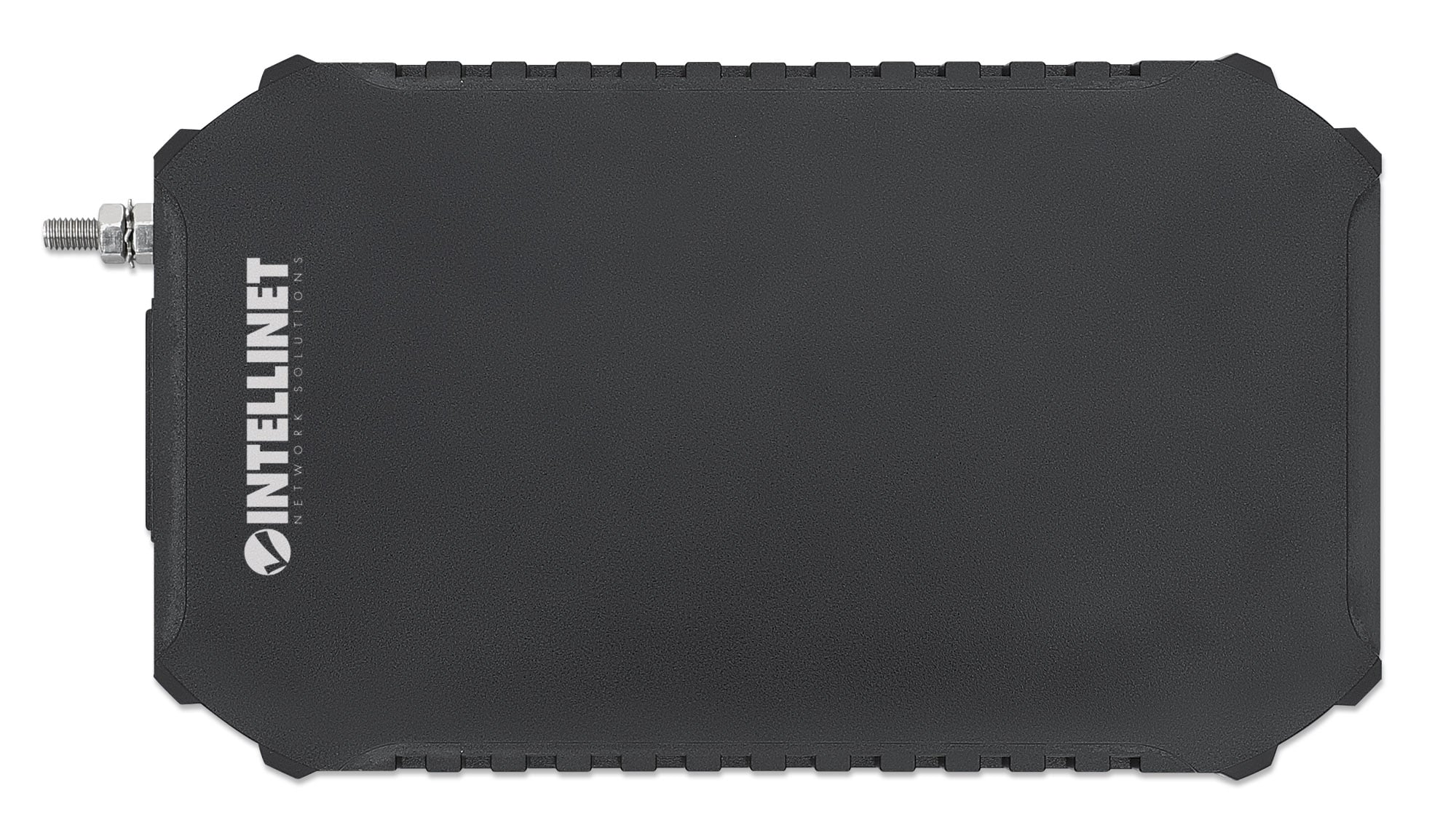

LED:Physical information- Plastic housing
- Dimensions: 160 (L) x 94 (D) x 40 (H) mm
- Weight: 0.502 kg
- Operating temperature: 0 - 40°C
- Operating humidity: 10 – 90% non-condensing
- Storage temperature: -40° to 70°C
Package contents- Ultra PoE Gigabit Injector
- Power cable
- User manual
