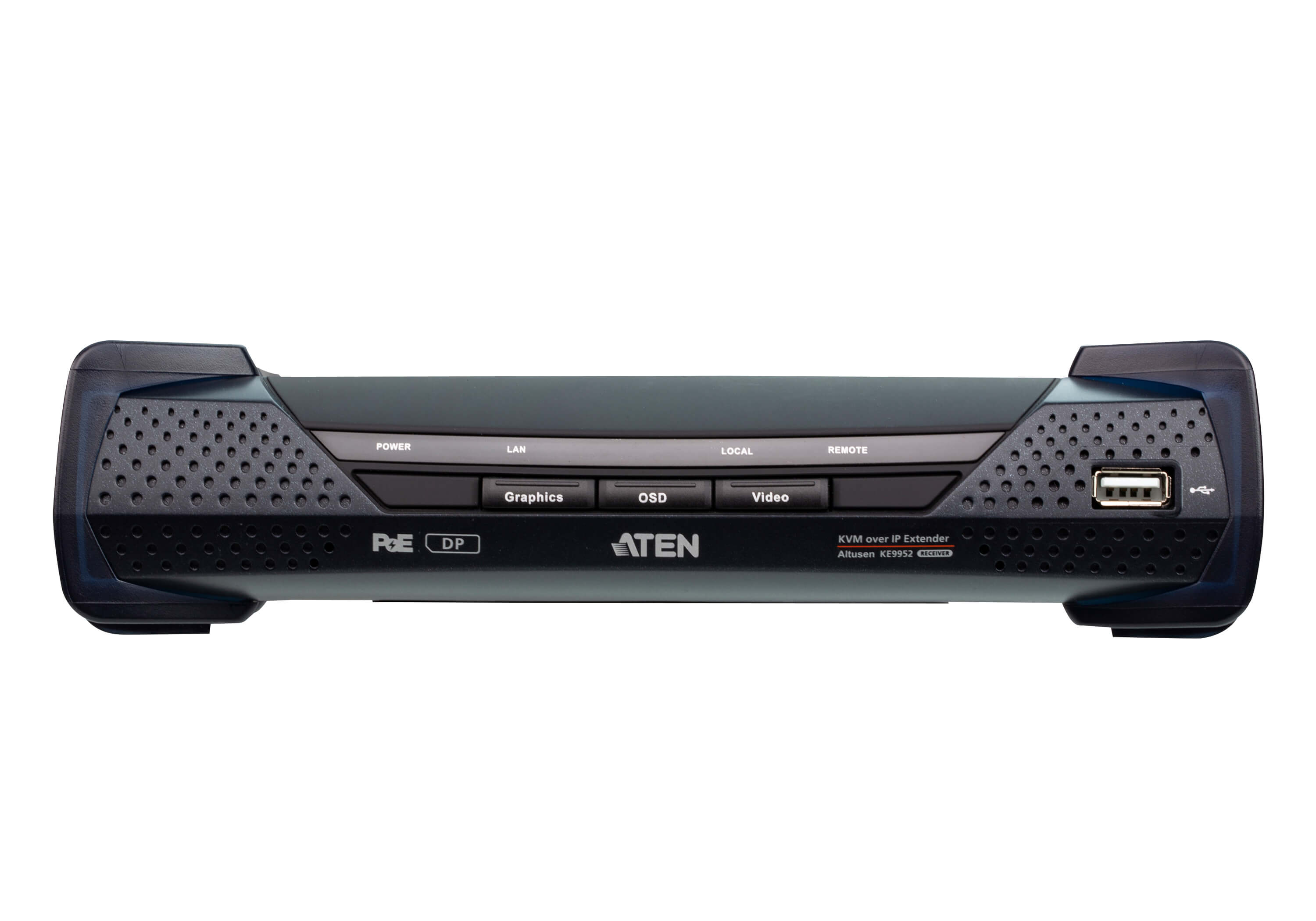

KVM receiver over IP 4 K DisplayPort Single PoE - Aten IDATA KE- 9952 R

The KVM over IP 4 K DisplayPort with single display KE 9952 è consists of a high-performance IP-based transmitter KE 9952 T that allows connection to the computer and the KE 9952 R receiver by offering access to the console from a different location. The KE 9952 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DisplayPort monitor) via the Intranet to allow users to set up computers in a safe environment with controlled temperature, isolated from user workstations.

The product supports a DisplayPort display on each end; to offer video resolutions up to 3840 x 2160 at 30 Hz (4 : 4: 4) in addition to an integrated video compression quality and loss-free with minimal latency.

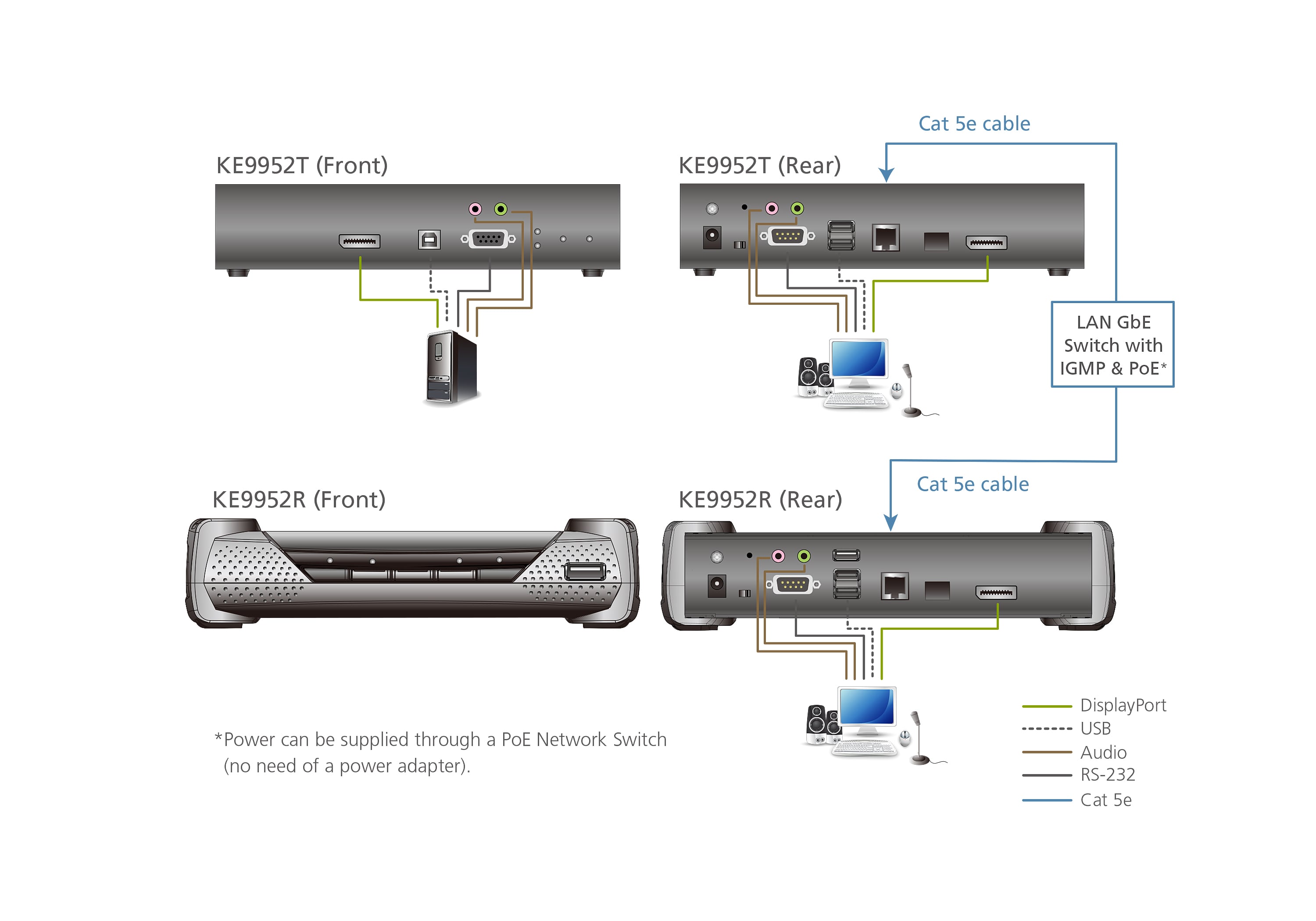

The KE 9952 supports connections via RJ- 45 port or SFP slot. The transmitter and receiver can be connected either directly to each other or via a high-speed network; via a copper-based or fibre-based LAN, to ensure a remote access to servers is available; 24 / 7. For connection via SFP slots, the extender supports expansions of the 1 Gbps SFP* fiber module that allow connections via the fiber optic network to extend transmission distances up to 10 km.

The KE 9952 can be placed on a desk, mounted on the wall or on the back of a rack thanks to its design saves space for mounting on 0 U racks. As IP-based matrix extender, the KE 9952 can be used as a multipoint point/multipoint multipoint extender/multipoint multipoint, or integrated into a multipoint KVM over IP (multipoint multipoint) matrix system when combined with the KE (CCKM) Matrix Management Software, so as to offer more flexible applications in different network environments.

When integrated with the KE Matrix Management Software, the KE 9952 supports several advanced features such as boundless switching, Push and Pull, video wall and multi-screen configuration, as well as profile planning that provides seamless access with quick and easy control tools to use the KE 9952 on the network.

Other features include the automatic detection of all KE** series extenders in the same subnet to make installation or configuration, authentication and permission faster, username/password, and the ability to define different types of connections that can be exchanged and shared. Security features also offer additional protection in addition to support for AES encryption for secure data transmissions, while RADIUS, LDAP, AD or remote authentication of users offers an additional level of connection security; however, with the OSD, RS- 232 and Auto MDIX support, the KE 9952 è the most economical and convenient way to get the maximum digital extension from anywhere on the Intranet.

Whether during computer monitoring, use, control or extension of access, the matrix KVM over IP è system that adapts to an infinite variety of work environments and workstation settings, as well as providing solutions in traffic control centers, surveillance centers, plant control centers, control centers, plant production control centers, transmission distribution monitoring systems, network operating centers (NOC) and many other areas where è request the matrix extension.

The product has the Power over Ethernet (PoE) function that allows to supply the power via a PoE network switch; therefore, eliminating the need for a è network adapter can reduce the costs related to the power configuration.



Hardware Cards

• Supports video DisplayPort with resolutions up to 3840 x 2160 to 30 Hz (4: 4: 4 ) and 3840 x 2160 to 60 Hz (4: 2: 0 ); depthtà 36 -bit color


• Supports digital video output, stereo speakers and a stereo microphone


• Conforms with 1.2 DP and 1.3 HDCP


• Supports Virtual Media or vUSB


• Auto-MDIX: automatically detects cable types


• ESD protection 8 KV/ 15 KV integrated and overvoltage protection 2 KV


• Fan-free design for high energy efficiency silent operations


• Supports connection via the Gigabit Ethernet port (RJ- 45) or SFP for failover or access from two IP addresses


• Supports 1 Gbps SFP*** Fiber Module expansions up to 10 km


• Power redundancy: 1 DC + PoE connector


• Support for Power over Ethernet (PoE): compliant with IEEE 802.3 at


• Mountable on rack



* 2 A- 136 G/ 2 A- 137 G compatible SFP modules sold separately



Management

• KE Series Central Management Software: KE Matrix Management Software (CCKM) allows users to easily administer all KE devices with an intuitive web-based user interface


• Double console operations: control the system from the keyboard, mouse and console of the transmitter and receiver più local console for emergency operations


• OSD (On Screen Display) on the receiver to configure both Tx/Rx devices


• EDID Expert™: select the best EDID settings to prevent compatibility problems; videos caused by different monitors


• Screen preview: allows users to view videos of up to 36 monitors on a screen


• Compression level saw: allows you to increase/reduce qualityà video so as to adjust it to the most appropriate network band


• CLI: administrators can control all KE devices via RS- 232 or Telnet by emitting commands


• RS- 232 serial port: allows you to connect to a serial terminal for text menu, CLI or serial devices such as touch screens and barcode scanners


• Compatible with all KE devices



Security and Virtual Media

• Dedicated LAN port for direct KE connections: can & grave; be isolated from the business network


• Secure data transmission: AES encryption to protect video/keyboard/mouse/data transmission


• Supports TLS industry standard protocol (Transport Layer Security)


• The virtual media mode improves data transmission performance, ideal for file transfers, operating system patches, software installations and diagnostic tests


• Supports drivesà DVD/CD USB 2.0 , USB mass storage devices, PC hard drives, ISO images and a smart/CAC card reader



Advanced functions*

• Boundless Switching: just move the mouse cursor over the screen limits to switch to different receivers (Rx)


• Push and Pull: immediately share content on/from a single Rx or video wall with just one click


• Video walls: create more ù video walls up to 8 x 8 (maximum 64 screens) in each layout


• Advanced planning: improves efficiency and savings by allowing connections based on time and date


• Virtual Transmitter: Independently transmit video, audio, USB and serial sources from different Tx


• Supports both internal and external authentication: External authentication supports LDAP, Active Directory, RADIUS and TACACS+


• Advanced User Authorisation Settings: Administrators can set four ways à of access permissions on Tx devices for collaboration or to avoid interference between users


• User permissions and configurable group for access and control of KE devices


• Tx groups up to 4 KE transmitter series to support multi-screen applications


• Rx Access Control: local console users can enable/disable Rx access by simply pressing the control button**



*Advanced functions are supported when KE transmitters are associated with KE receivers via the KE Matrix Management Software (CCKM)

**The KVM over IP access control box (2 XRT- 0015 G) è sold separately.

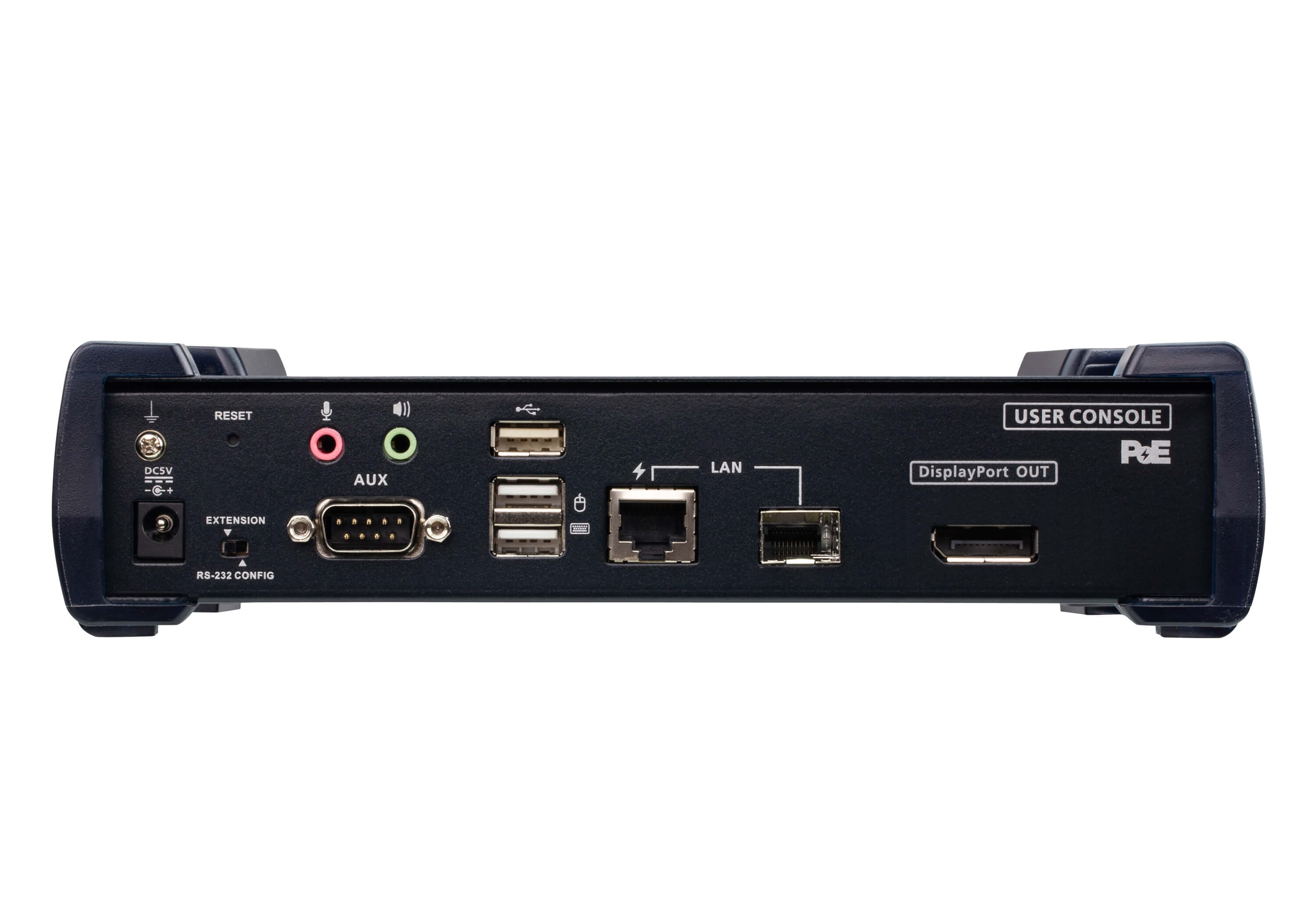

Connections

Virtual Media:

• 2 x USB type A female



Console doors:

• 1 x DisplayPort female


• 1 x Mini stereo connector


• 1 x Mini stereo connector


• 1 x DB- 9 male



Feeding:

• 2 x DC connector (1 tx + 1 rx)



Doors Connection:

• 1 x RJ- 45 10 / 100 / 1000 + POE


• 1 x Slot SFP



Physical and environmental data

• Operating temperature:  0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità:  0 - 95 % relative humidity without condensation


• Structure: Metal


• Weight:  1.27 kg (rx)


• Dimensions (L x P x A):  22.75 x 17.16 x 5.48 cm (rx)



Package contents

• 1 x KVM receiver over IP 4 K DisplayPort with single display with PoE KE 9952 R


• 1x User instructions
