SFP transceivers are high-performance modules that support a dual data transmission rate of 1,25 Gbps and a transmission distance of 550 m with MMF.

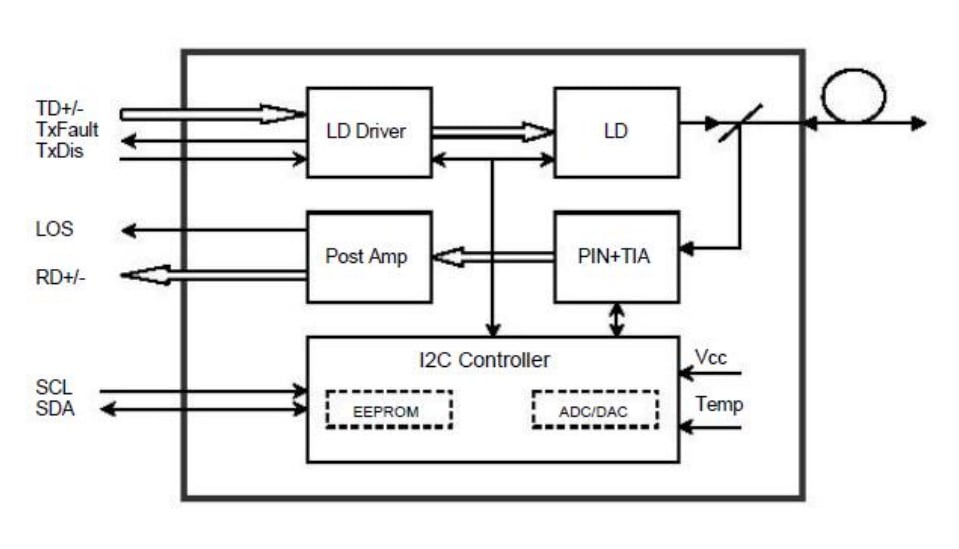

The transceiver is composed of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a transimpedance amplifier (TIA) and an MCU control unit.
All modules meet Class I laser safety requirements. The transceivers are compatible with the SFP multi-source agreement (MSA). For more information, refer to SFP MSA.
Technical specifications- Data links up to 1,25 Gbps
- VCSEL laser and PIN photodetector at 850nm
- Compliant with SFP MSA and SFF-8472
- With Duplex LC connector
- Digital diagnostic monitoring: internal or external calibration
- Transmission 500m with MMF 50 / 125µm
- Transmission 300m with MMF 62,5 / 125µm
- RoHS Compliant
- Single power supply +3.3V
Operating temperature- Standard: from 0 to +70 °C
- Industrial: from -40 to +85 °C
Package contents- Fiber Optic Transceiver Module 1.25Gbps
