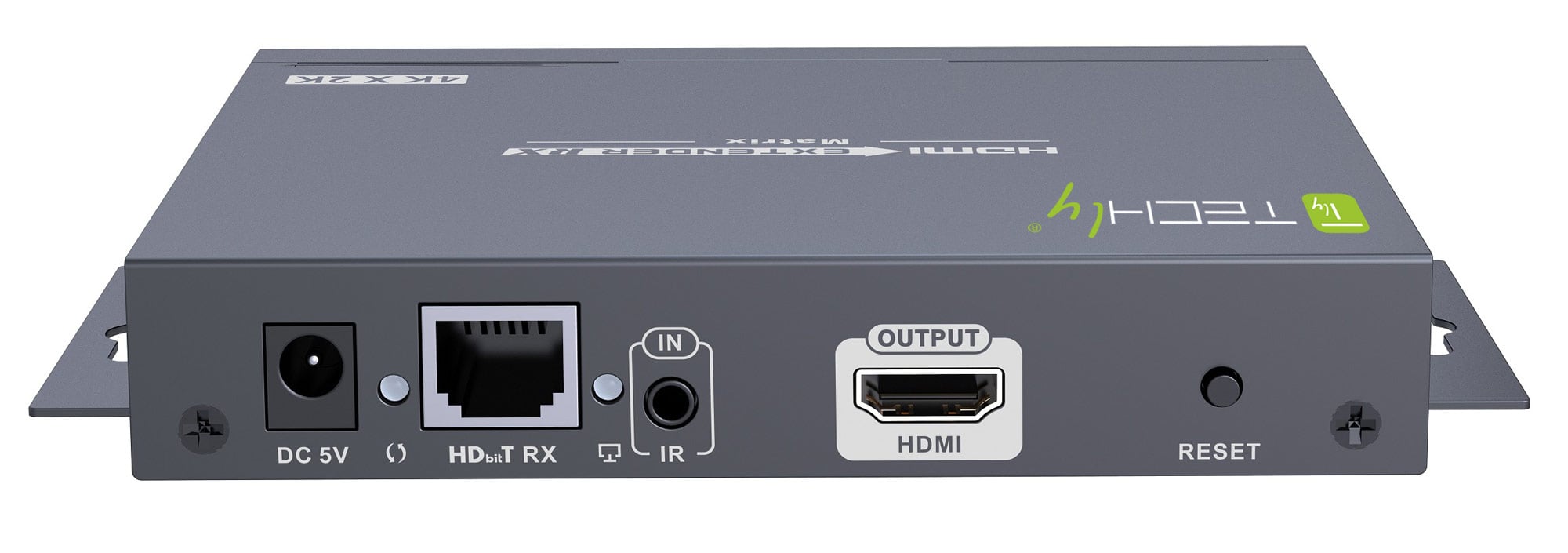

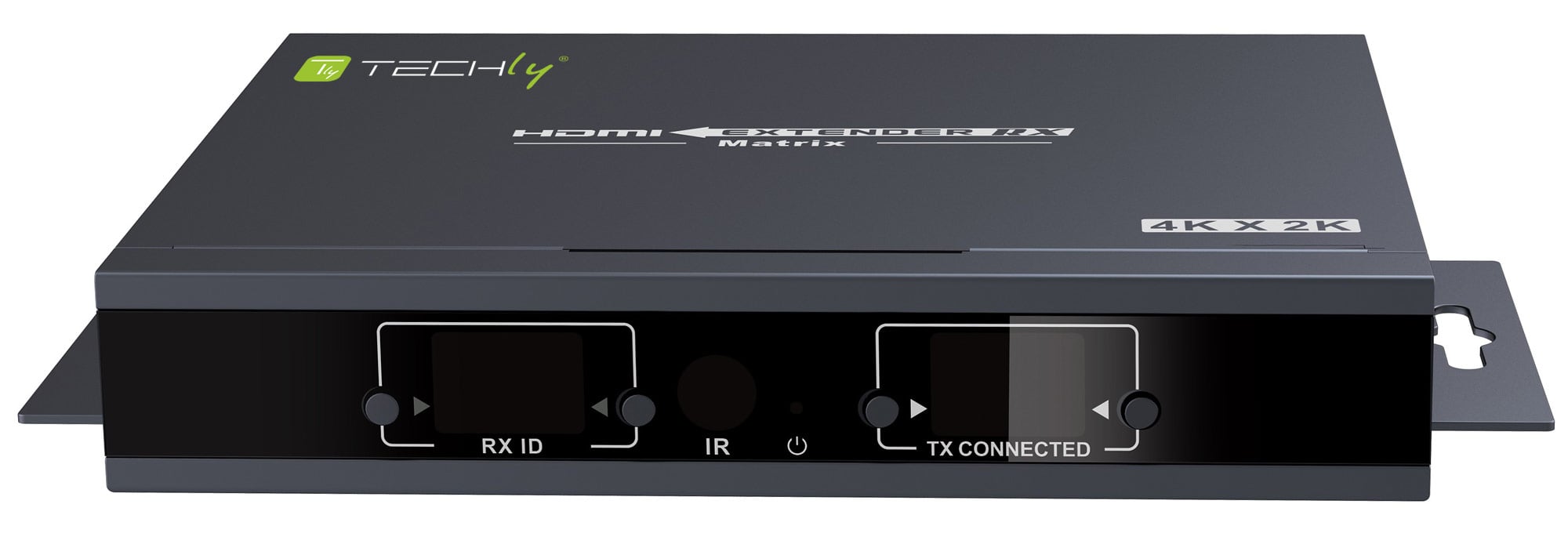

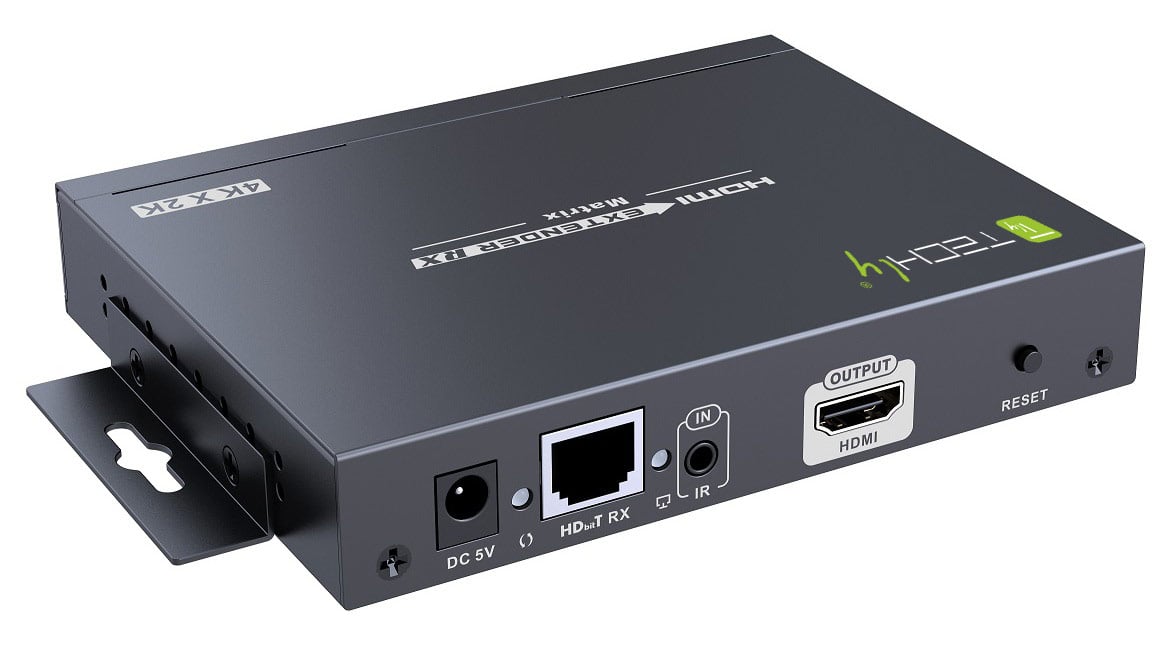

Matrix HDMI HDbitT Extender receiver up to 120 m over IP - Techly NP IDATA HDMI-MX 683 R 4

Unità receiver (RX) for HDMI HDbit matrix over IP.

Along with the transmitter, it allows the distribution and switching of the audio/video high definition signal and the standard IGMP switch. It applies advanced HDBIT technology, the supported resolution è up to 4 Kx 2 K@ 30 Hz ultra HD. It can also be used in a point-to-point connection, the distance è up to 120 meters. It is widely applied in digital signage advertisingà, control rooms, control centres, exhibition and entertainment center, security monitoring system, etc.

Not compatible with previous product versions.



Features

• Plug and play


• Advanced HDbitT over IP technology


• Transmission distance of 120 meters via CAT 6


• Supported resolution up to 4 Kx 2 K@ 30 Hz ultra HD

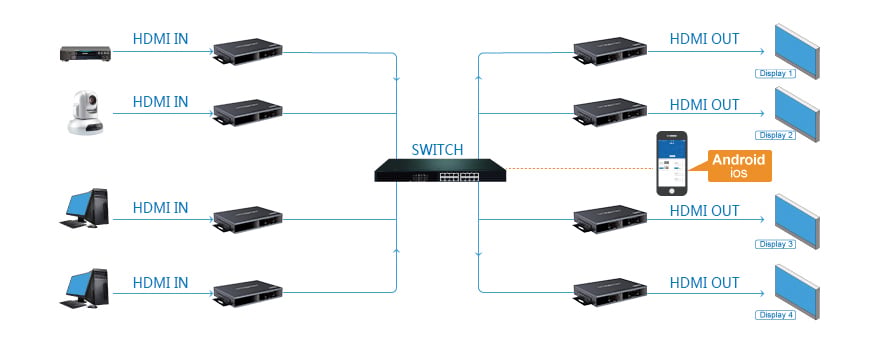

• Supports scalable and flexible input-output matrix configuration; supports 100 input to endless outputs


• Selection and change of input of the source device from the receiver via remote control or button


• Supports pass-back IR function to control the source device from the RX position


• Supports computer control software to select and change source device input



Technical specifications

• HDMI signal


• HDMI 1.4 , HDCP compliant


• 28 Mbps network bandwidth


• Supported HDMI input resolution:



480 i @ 60 Hz, 480 p @ 60 Hz, 576 i @ 50 Hz, 576 p @ 50 Hz,

720 p @ 50 / 60 Hz, 1080 i @ 50 / 60 Hz, 1080 p @ 50 / 60 Hz,

4 Kx 2 K @ 24 / 25 / 30 Hz

• Supported audio format: stereo audio L / R


• TMDS signal: 0.7 ~ 1.2 Vp-p


• DDC signal: 5 Vp-p


• Supported remote control


• IR passback: supports IR devices from 20 ~ 60 KHz


• Matrix Configuration: è can connect up to 100 source signals and switch to endless outputs


• Voltage / current: 5 V / 2 A


• Power consumption: RX≤ 5 W


• Weight: RX: 310 g


• Color: black



Dimensions

• Width: 164 mm


• Depthà: 107,6 mm


• Height: 23,6 mm



Environmental features

• Operating temperature: 0 ~ 60 °C


• Storage temperature: - 20 ~ 70 °C


• Humidità: 0 ~ 95 % (without condensation)



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 x Matrix HDMI Receiver


• 1 x Receiver extension cable


• 1 x Instructions for use


• 1 x DC power supply 5 V/ 1 A
