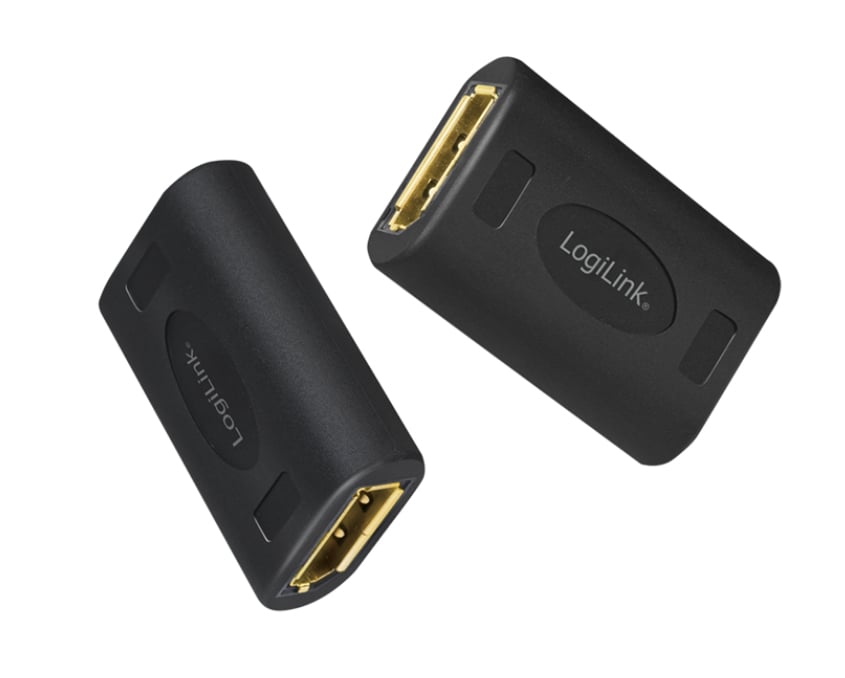

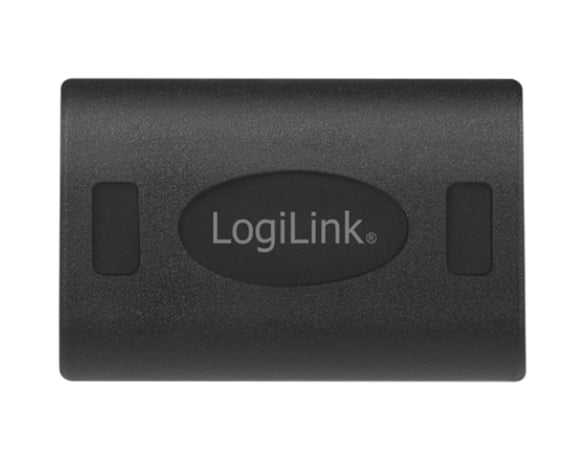

DisplayPort DP F to DP F UHD 8K@60Hz black repeater extender - Logilink IADAP DSP-F/F

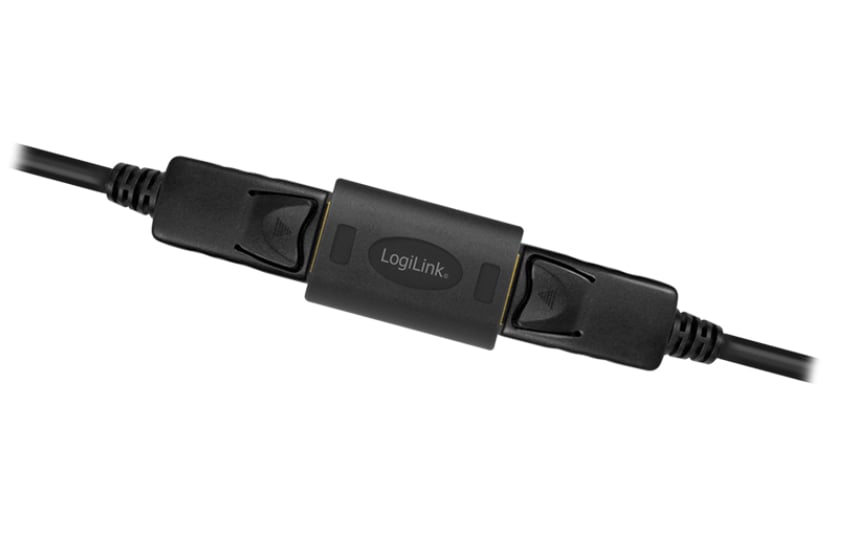

This DisplayPort adapter allows you to connect two DisplayPort M/M cables into an extension.

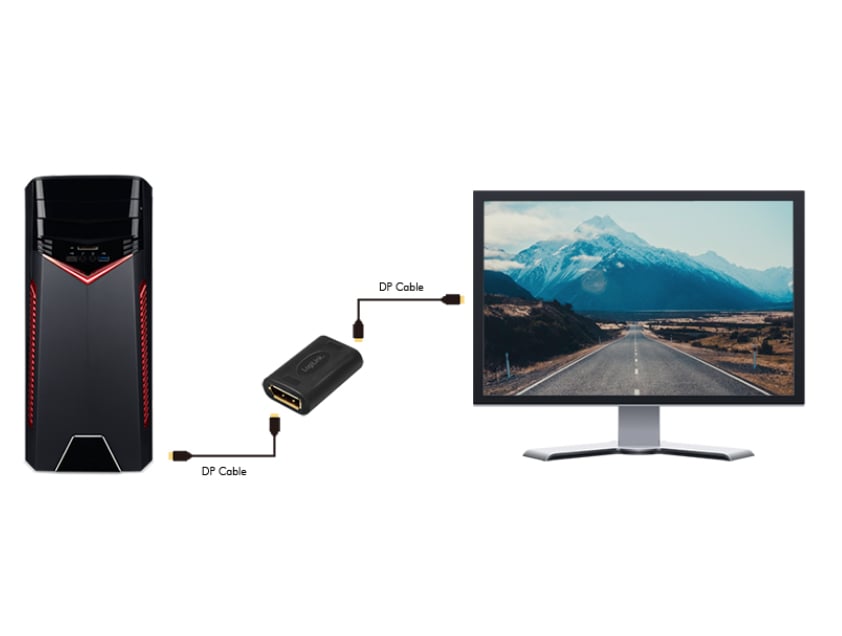

Instead of disconnecting a hard-to-reach cable or one behind furniture, it is possible to extend existing DisplayPort cable connections with signals up to 8K at 60 Hz, depending on the cables used. Reference link length: 15 m with 28 AWG cable; 10 m with 30 AWG cable.

Compliant with DisplayPort 1.4 and HDCP 2.2.



Features

• Connection 1: DisplayPort female


• Connection 2: DisplayPort female


• Compliant with DisplayPort 1.4


• Resolution: Ultra HD up to 8K at 60 Hz, 7680x4320 pixels


• Video data rate: up to 32,4 GBit/s


• Supports: RBR, HBR, HBR2, HBR3, DPCP, HDCP 2.2, HDR, 3D


• Supports: Multi Stream Audio / Video


• Support for audio data formats Dolby Digital, Dolby Digital Plus, DTS, dts-HD, DVD audio, SACD and True HD


• Possibility to extend UHD 4K signal transmission at 60 Hz with 2 passive cables up to 15 m


• Gold-plated connections


• Color: black



Package contents

• DisplayPort F/F IDATA DSP-RIP Adapter


• User manual
