- Compatible with HPE (Hewlett Packard Enterprise) switches and routers
- Must be used with the Gigabit fiber WDM bidirectional SFP optical transceiver, model I-TX-MGBIC-WDMHA
- Data transfer rate: 1000 Mbps
- One 1000Base-LX single-mode LC fiber port
- Supported fiber distance: up to 10 km
- WDM (Wavelength Division Multiplexing) technology uses a single fiber optic link for data transmission on distinct wavelengths for transmission and reception
- Wavelengths: reception (RX), 1310 nm; transmission (TX), 1550 nm
- Equivalent to HPE transceiver SFP-1G-BXU-10
- Standard SFP form factor
- Supports Digital Diagnostic Monitoring (DDM)
- Reduced electromagnetic interference thanks to metal housing
- Supports hot-plugging
Standard- IEEE 802.3z (Gigabit Fiber Optic)
General- Supports: 1000Base-LX single-mode fiber 9/125 µm
- Connector: LC fiber port, 1000Base-LX
- Distance: 10 km
- Wavelengths:
- Reception (RX): 1310 nm
- Transmission (TX): 1550 nm
- Maximum transmission power: -3 dB
- Minimum transmission power: -8 dB
- Sensitivity: -24 dB
- Power budget: 16 dB
- Design: SFP (small form factor pluggable)
CertificationsPower- Required power: 3.3 V
- Power consumption: 1.0 Watt (maximum)
Dimensions- Width: 57 mm
- Depth: 14 mm
- Height: 12 mm
Environmental features- Operating temperature: 0 – 70°C
- Operating humidity: 10 – 85% RH, non-condensing
- Storage temperature: -40 – 85°C

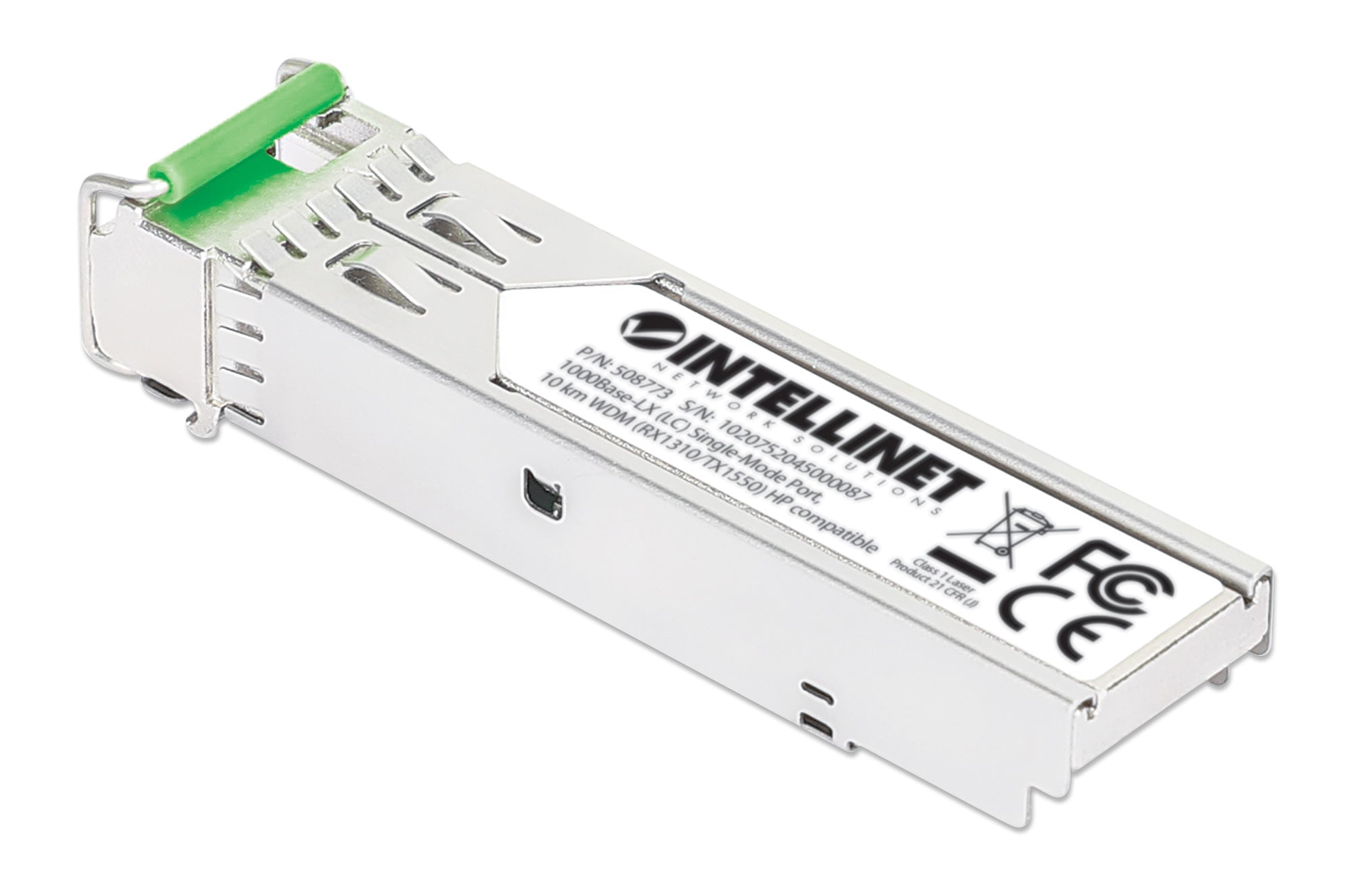

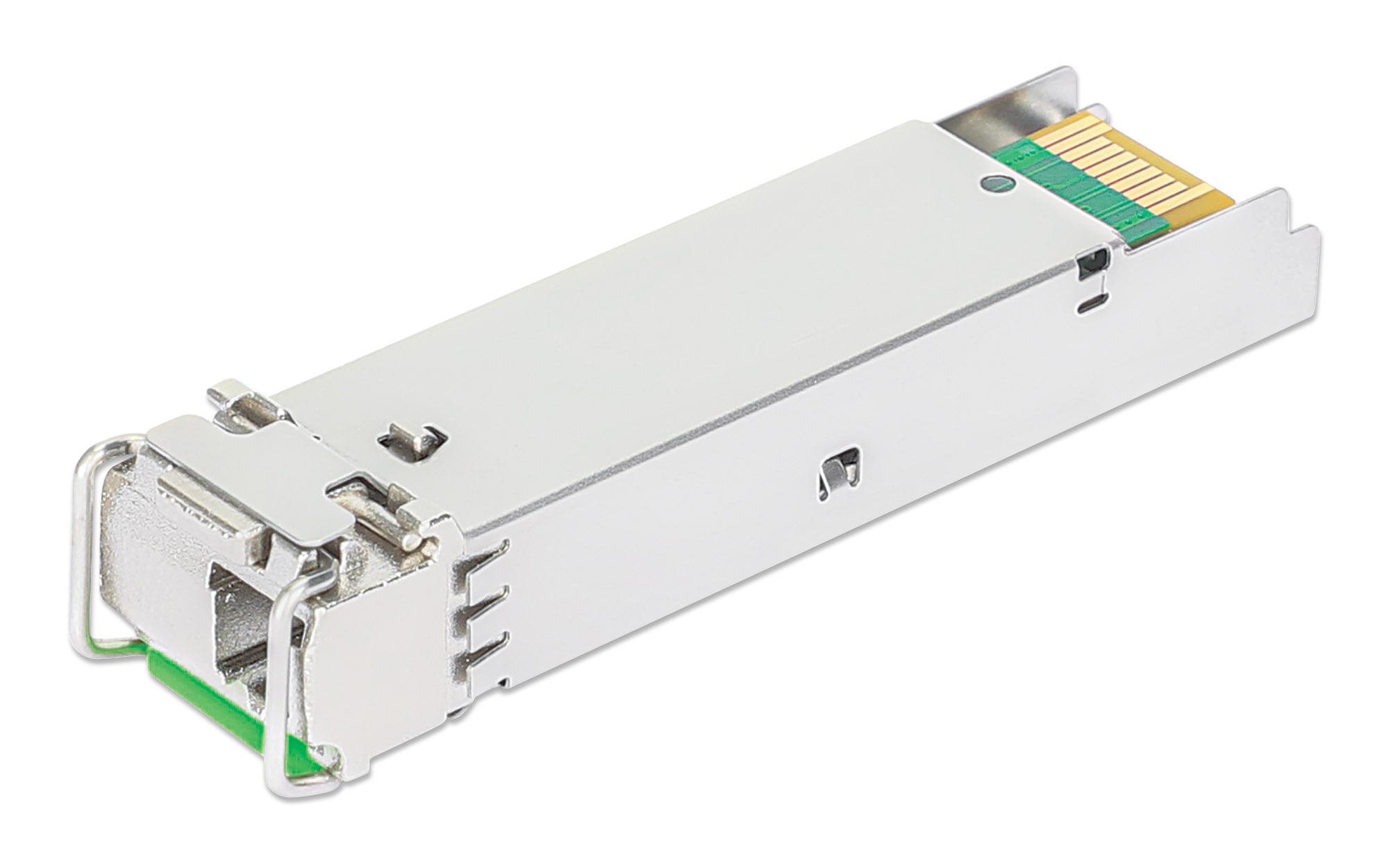

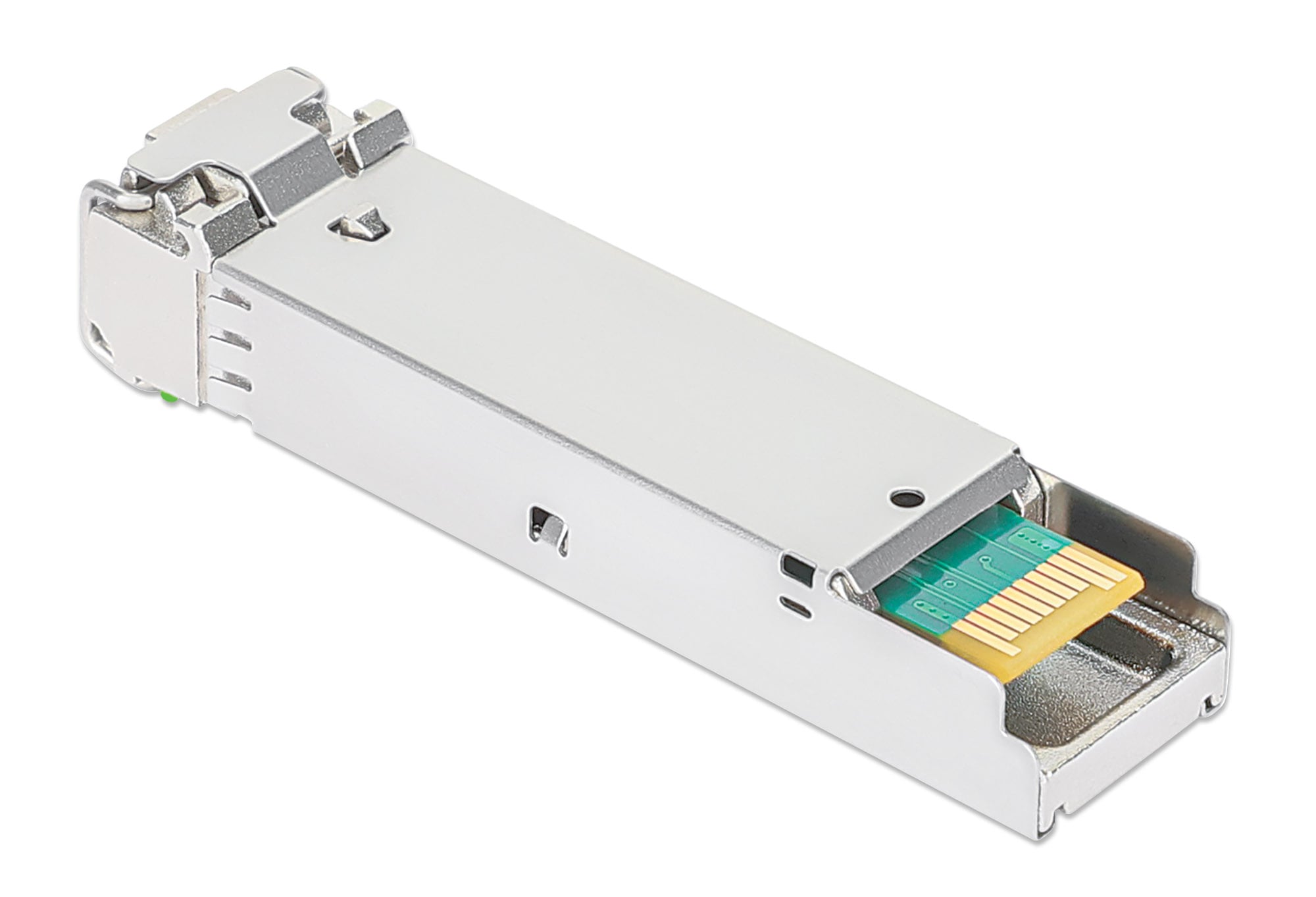

Package contents- Gigabit WDM Bi-Directional SFP Fiber Optic Transceiver Module
