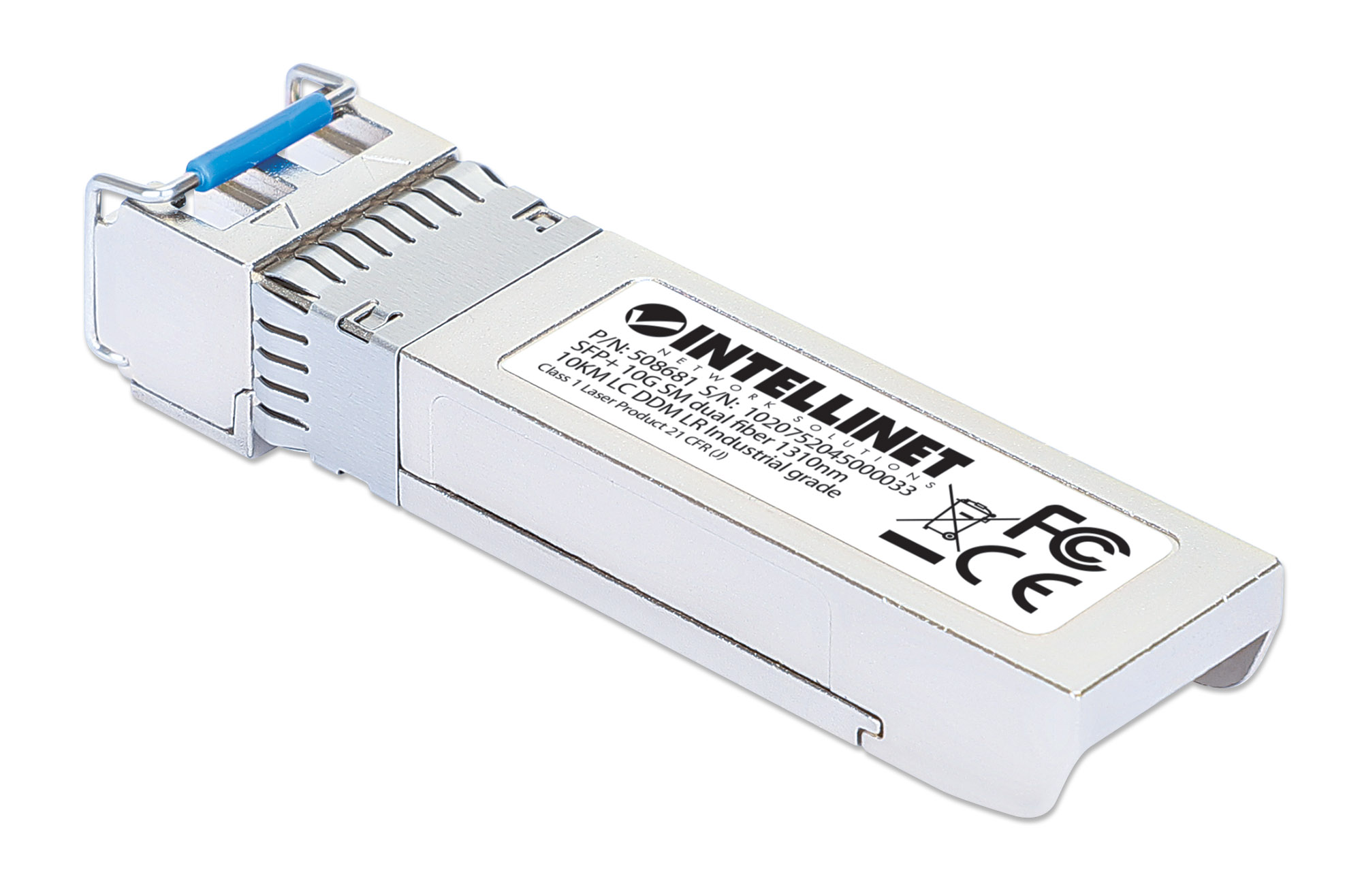

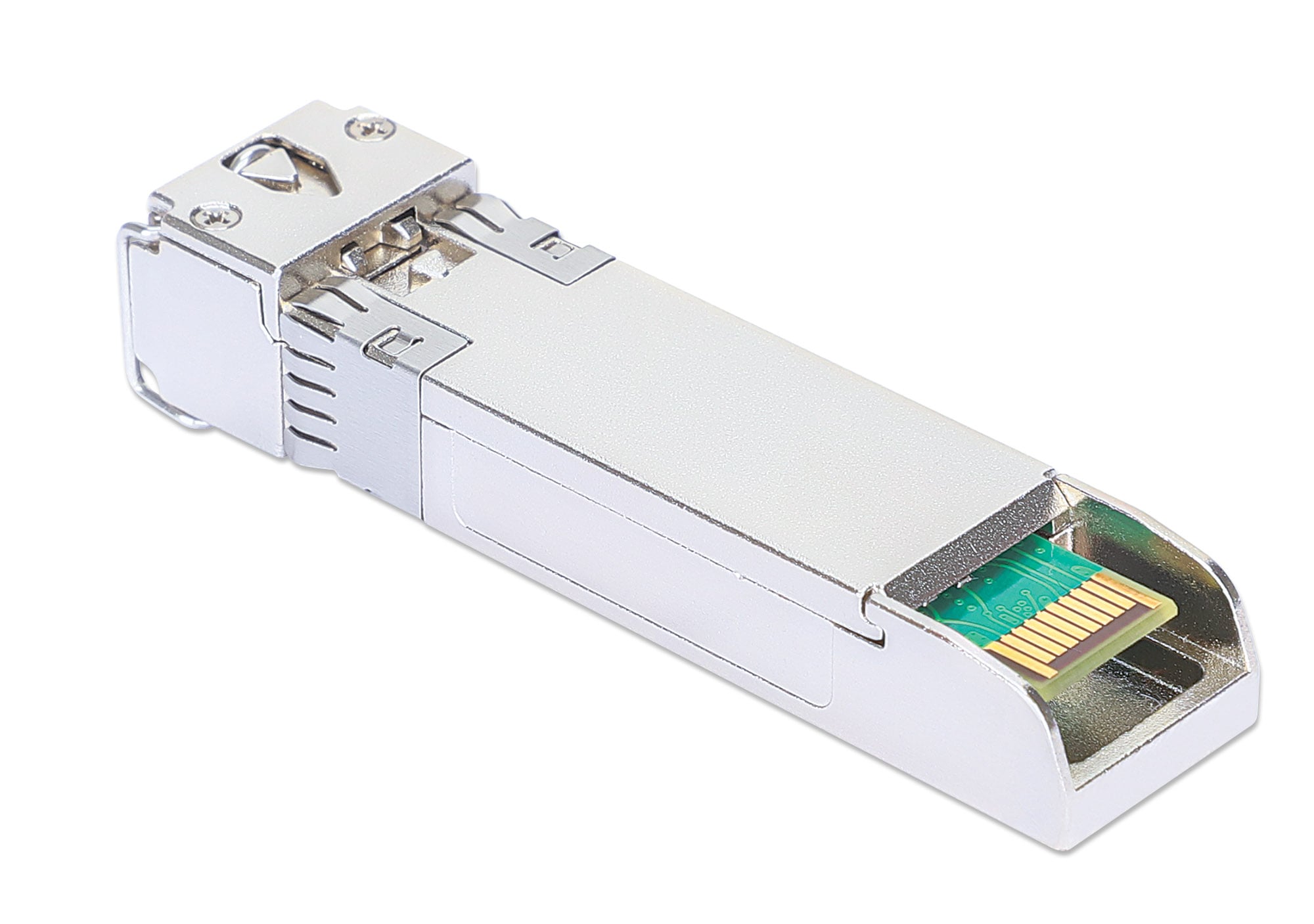

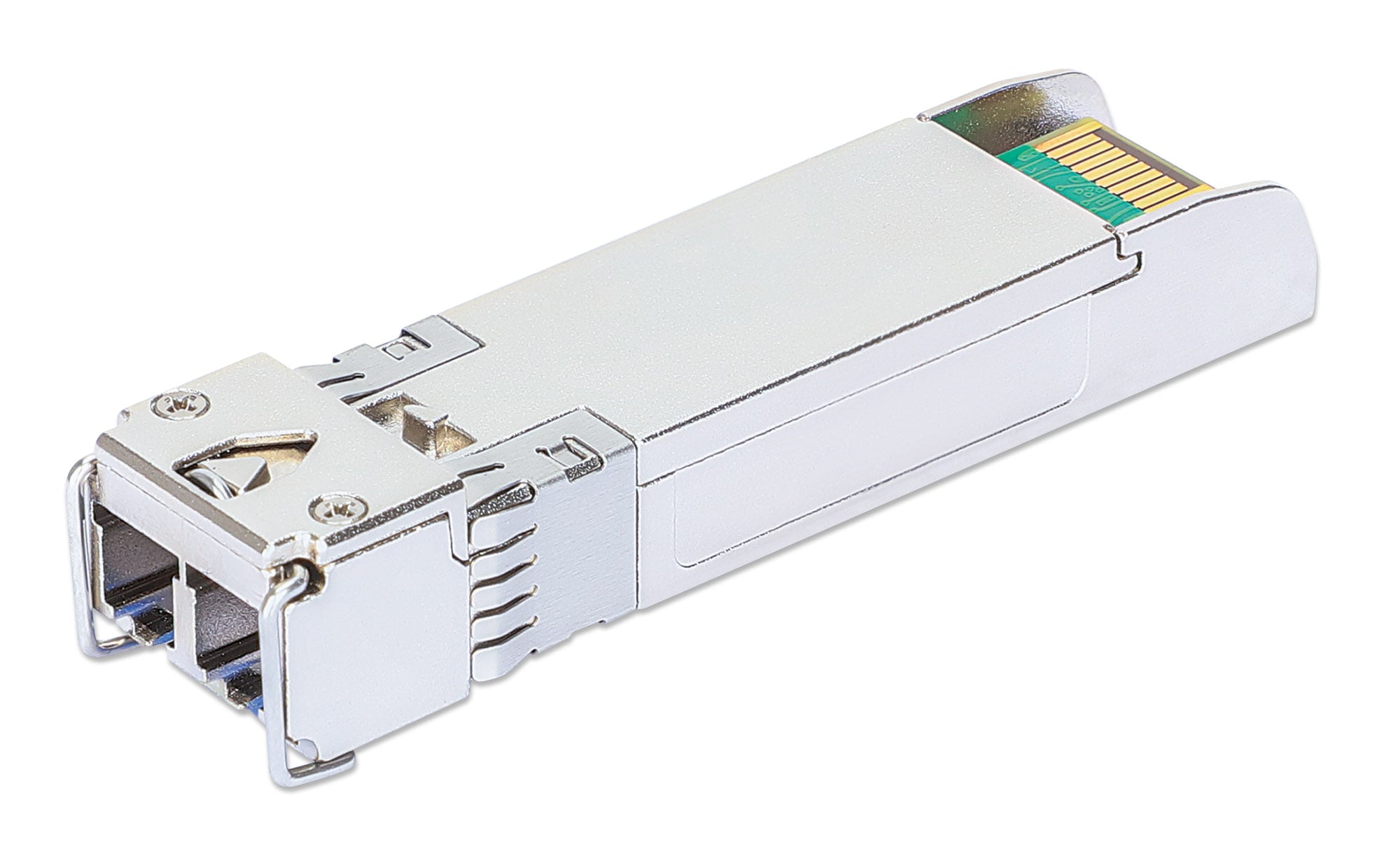

Transceiver SFP+ Single-mode Optical Fiber LC Duplex 10GBase-LR - Intellinet I-TX-MGBIC-10GSIND

€56.99
Tax included €46.70 excl. VAT

Transceiver SFP+ 10GBase-LR for single-mode fiber LC duplex, distance up to 10 km. MSA compliant, supports DDM and hot-plugging, operating temperature from -40 to 75 °C.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Compliant with MSA for compatibility with major switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and others (see specifications)

  • Data transfer speed: 10 Gbps

  • One 10GBase-LR single-mode fiber LC duplex port

  • Supported fiber distance: up to 10 km

  • Wavelength: 1310 nm

  • Equivalent to the Cisco SFP + 10 GB-LR transceiver

  • Standard SFP+ form factor

  • Supports Digital Diagnostic Monitoring (DDM)

  • Wide operating temperature: -40 - 75 °C

  • Reduced electromagnetic interference thanks to metal housing

  • Supports hot-plugging



Standard

  • IEEE 802.3z (Gigabit Fiber Optic)

  • IEEE 802.3ae (Fiber optic 10 Gigabit Ethernet)



General information

  • Media support: 10GBase-LR single-mode fiber

  • Connection: LC duplex fiber optic port

  • Distance: 10 km with 9/125 µm cable

  • Wavelength: 1310 nm

  • Fiber optic power:


- Maximum TX power: -0,5 dB

- Minimum TX power: -6 dB

- Sensitivity: -15 dB

- Power budget: 9 dB

  • Design: SFP+ (enhanced small form-factor pluggable)

  • SFF-8472 Diagnostic Monitoring Interface for Optical Transceivers

  • Certifications: FCC Class B, CE, RoHS



Power

  • Required power: 3.3 V

  • Power consumption: 1.0 Watt (maximum)



Physical information

  • Dimensions (L x W x H): 57 x 14 x 12 mm

  • Weight: 20 g



Environmental

  • Storage temperature: -40 to 85°C

  • Operating temperature: -40 to 75°C

  • Operating humidity: 5 – 95% RH, non-condensing



Package contents

  • SFP + industrial fiber optical transceiver module 10 Gigabit

  • Brand
  • Reference
    I-TX-MGBIC-10GSIND
  • In stock
    1 Item
  • EAN13
    0766623508681
