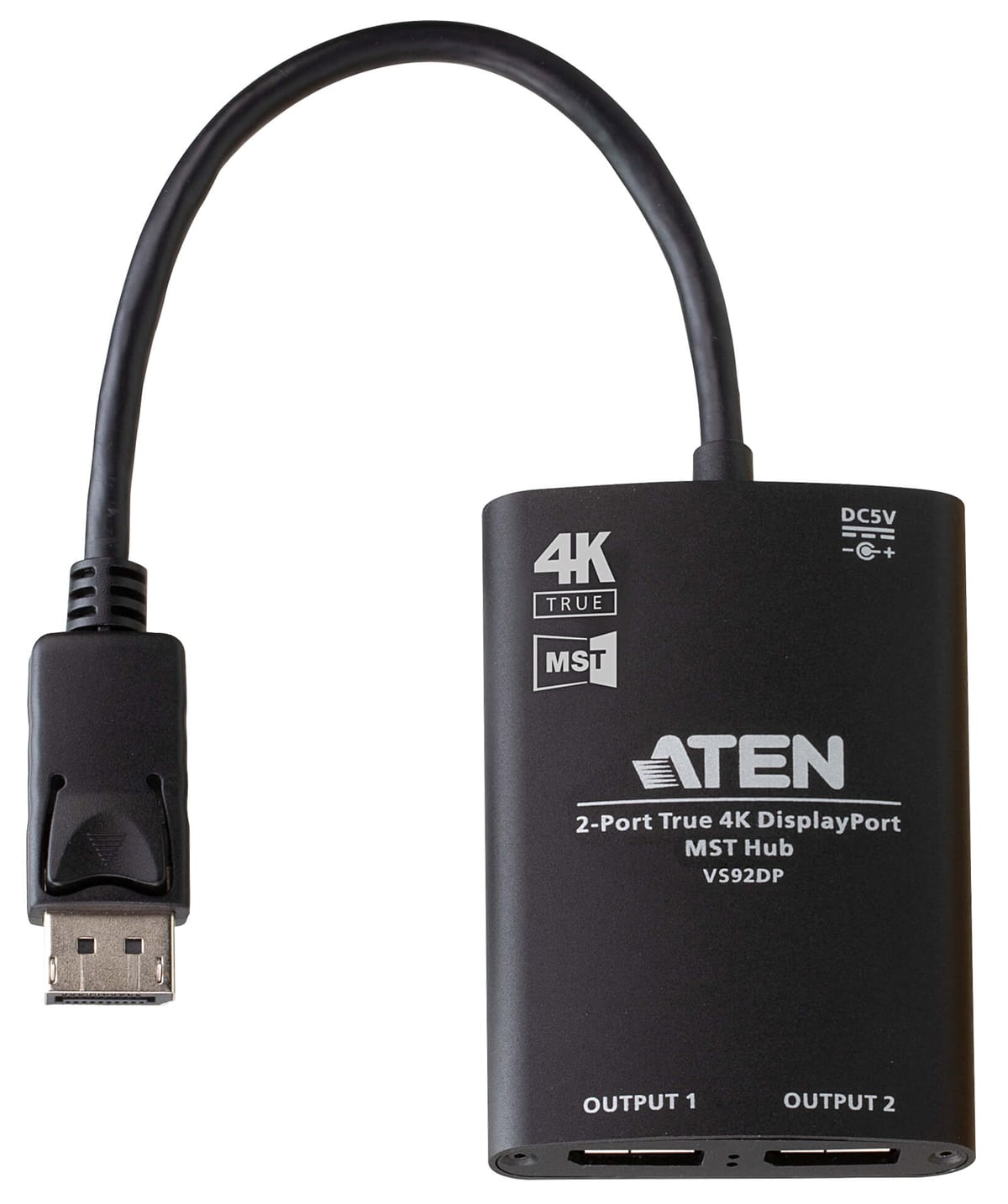

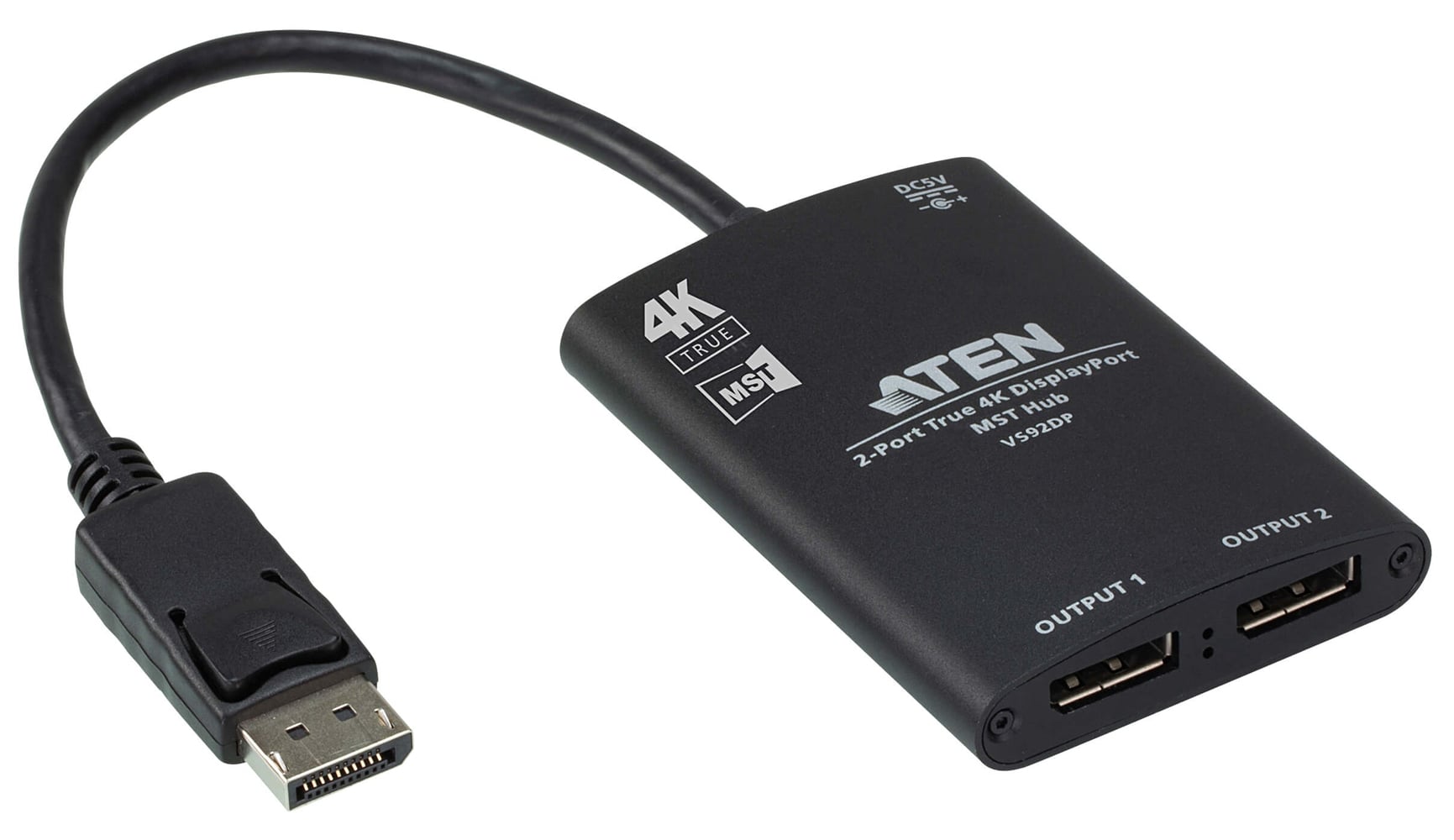

Hub True 4 K DisplayPort MST to 2 ports - Aten IDATA VS- 92 DP

Designed with a cost-effective but advanced DisplayPort MST solution, ATEN's Hub True 4 K MST dual-port display port VS 92 DP allows high-definition video transmission to two loss-free locations in terms of qualityà. It is possible to improve the outputà using a function that allows you to connect up to two displays to a Windows-based PC/laptop. In addition, è can mirror the same image on two displays or display different content on each multitasking display.



The VS 92 DP supports video resolution up to 4 K at 60 Hz (4 : 4 : 4 ), HDR Dolby TrueHD and DTS-HD Master Audio 7.1 to ensure exceptional quality à video/audio and without distortion. It is ideal for home theater systems, commercial settings, training centers, conference rooms or any scenario requiring high quality videoà.



Features

• Distribute a True 4 K source simultaneously on two DisplayPort displays


• Allows the use of the single stream transport (SST) or multi-stream transport (MST) mode


• Supports a 4 K resolution for two – outputs up to 3840 x 2160 at 30 Hz (4: 4: 4 )


• DisplayPort 1.2 ; HDCP 1.3 compliant


• Offers Dolby TrueHD and DTS-HD Master 7.1 audio channel


• Durable and high quality aluminium housing;



LED

• 2 status x DisplayPort outputs (blue)


• 1 x power input (blue)



Video Input

• Interfaces: 1 x DisplayPort male (black)


• Max. distance 15 cm



Video output

• Interfaces: 2 x DisplayPort female (black)


• Maximum distance 3 m to 3840 x 2160 to 60 Hz (4 : 4 : 4 ) - Single exit


• Maximum 3 m at 3840 x 2160 at 30 Hz (4 : 4 : 4 ) - Double output (Modalità MST/SST)



Video

• Maximum frequency 21,6 Gbps data (5,4 Gbps per line)


• Conformità DisplayPort 1.2 /HDCP 1.3


• Maximum resolution up to 3840 x 2160 at 60 Hz (4: 4: 4 , 8 bit)



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 8.80 cm


• Depthà: 6.00 cm


• Height: 15.00 cm



Package contents

• 1 x Hub True 4 K DisplayPort MST to 2 ports VS 92 DP


• 1 x USB Type A cable to micro USB B


• 1x User instructions
