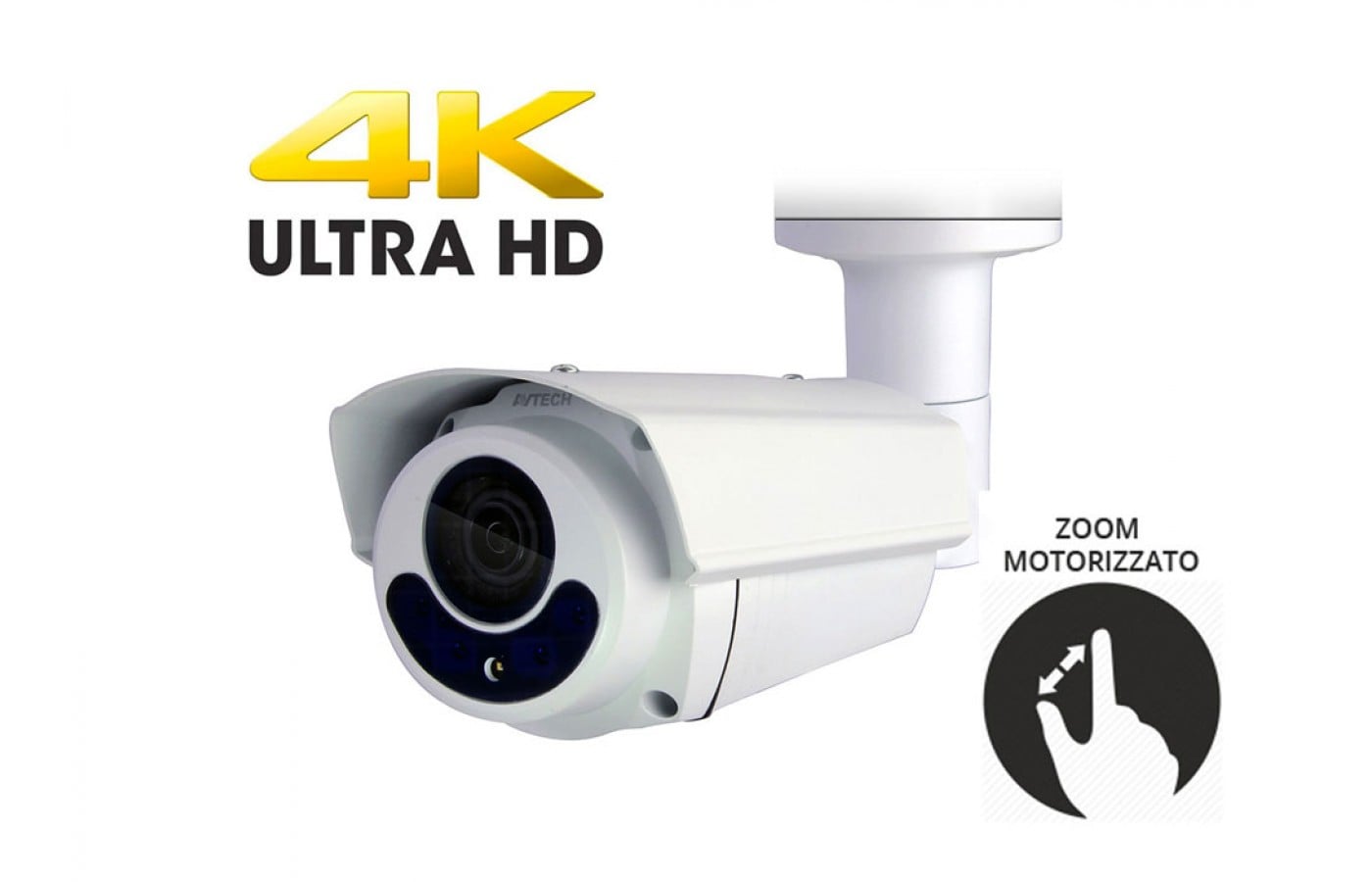

CCTV Camera Ceiling Wall Quadribrid 5Mp 4K IP66 with Motorized Zoom - Avtech IC-DGC5646

The AVTECH 4K DGC5646 is a model of Avtech camera with resolution 5 Megapixel, perfect for medium-large environments such as monitoring gardens of villas, parking lots and warehouses.

It allows night vision up to 50 meters, thanks to the new super-powerful SMT LED technology.

Thanks to the new Avtech EZUM™ patent, you can control the zoom and focus of the camera directly from the DVR or smartphone, without having to climb up a ladder: by pressing a button you can zoom up to 4x and the camera will focus automatically.

The new design of the IC-DGC5646 camera also allows you to install it on all 3 sizes, with a new 3D bracket, for wall, ceiling, or surface installations.



Features

• CCTV IR Ceiling Wall Camera 5 Megapixel


• Supports TVI, CVI, AHD, and CVBS video modes


• CMOS image sensor 1/2,5


• Number of pixels 2560 (H) x 1920 (V)


• Video frame rate 5MP @ 20fps


• Min. Illumination 0.1 Lux / F1.4 (Wide)-F2.8 (Tele), 0 Lux (IR LED On)


• S/N ratio More than 48 dB (AGC OFF)


• Lens f2.8-12mm / F1.4-F2.8


• Lens angle 113.5° (horizontal) / 59.3° (vertical) / 137° (diagonal)


• IR LED 4 units with effective IR distance up to 50 meters


• Equipped with IR movement, day and night mode, noise reduction


• Equipped with IRIS AES mode, Adjustable sharpness, White balance and automatic AGC


• Equipped with DWDR function


• IP rating IP66 for outdoor installation



Physical and environmental data

• Operating temperature: -20 ℃ ~ 40 ℃


• Operational humidity: 90% or less relative humidity


• Power supply (± 10%) DC12V / 0,5A


• Current consumption (± 10%) 120mA (IR lED OFF); 340mA (IR LED ON)

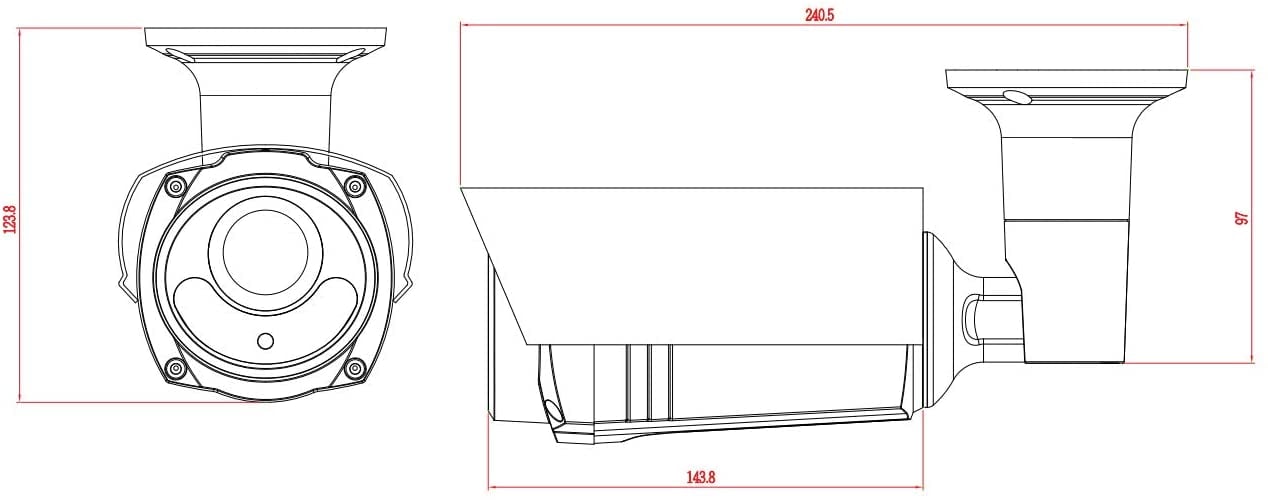

• Dimensions: total length 24,0 cm, camera diameter 9,7 cm, camera length: 14,3 cm



Package contents

• Camera IC-DGC5646


• Mounting screws


• User manual
