IP Bullet IR Camera H.265 5MP AI-Based Detection - Avtech IC-DGM5106

€156.36
Tax included €128.20 excl. VAT

IP Bullet Camera H.265 5MP with SONY Starlight CMOS sensor. AI detection of people/vehicles, IR range 30m, POE support and MicroSD card up to 256 GB. Maximum resolution 2592x1944.



Return policy



Delivery policy



Direct contact for info



Secure Payment

Technical specifications

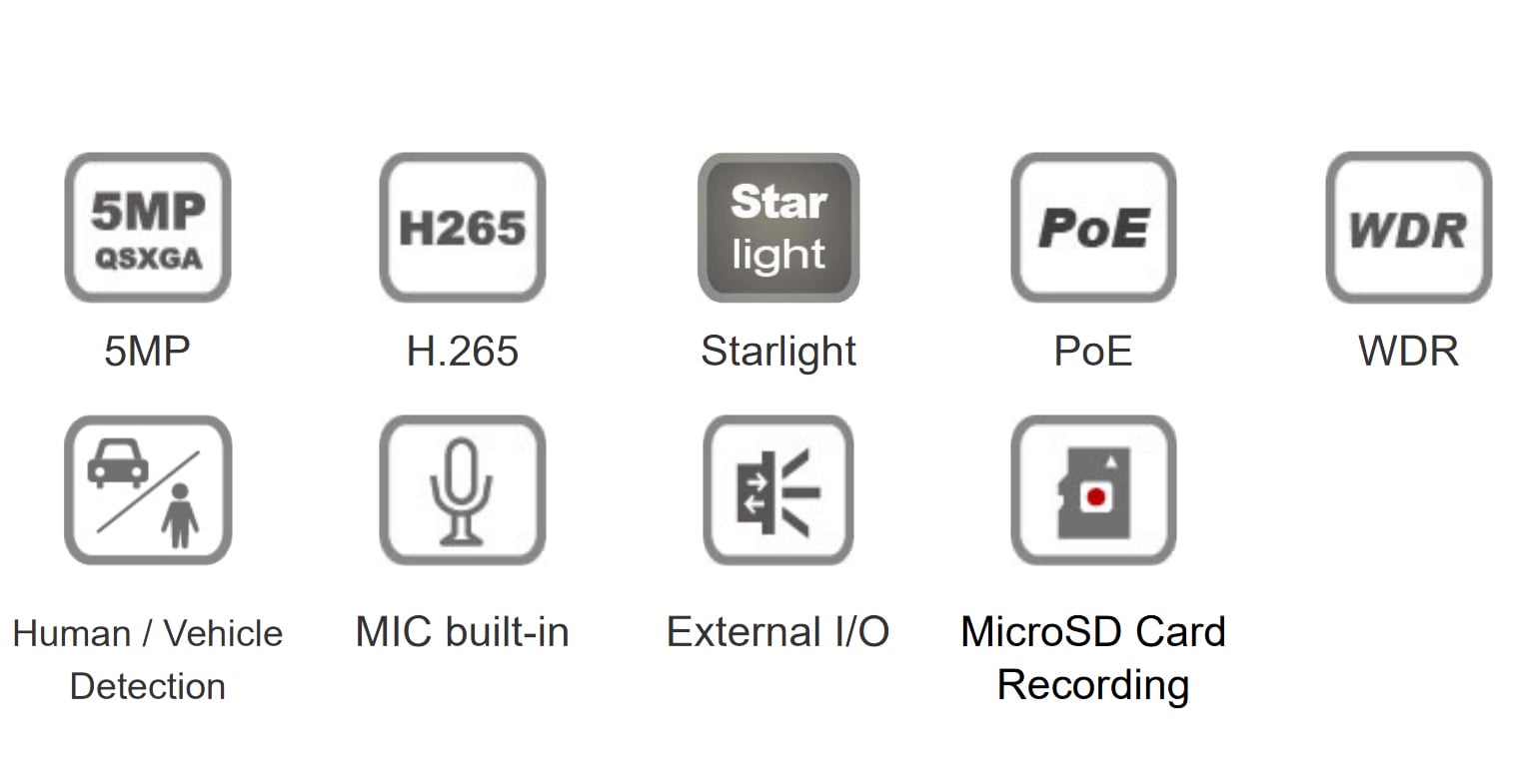

  • IP Bullet IR H.265 camera, 5MP

  • Starlight visibility to provide clear and colorful images even at night

  • Support for AI-based person/vehicle detection to avoid false detection alarms

  • Support for MicroSD card (up to 256 GB) for video storage

  • Supported ONVIF standard to simplify system integration

  • POE (Power-over-Ethernet) support to eliminate power cables and reduce installation costs

  • Built-in microphone for audio recording and line out support for audio transmission

  • External alarm I/O device connection

  • Effective IR range up to 30 meters for night surveillance

  • WDR to increase image recognizability in overexposed and dark areas

  • Remote surveillance

  • CMOS SONY image sensor 1/2,8

  • Maximum resolution 2592 x 1944

  • Lens f2,8mm/F1,6

  • Viewing angle 110° (diagonal)

  • Minimum illumination 0,001 Lux (LED IR off), 0 Lux (LED IR on)

  • Shutter speed AUTO, 1/25 ~ 1/100.000

  • IR LED: 2 units

  • Effective IR distance: up to 30 meters

  • Day/Night Vision

  • WDR mode (120 dB)

  • RTC (real-time clock)

  • MicroSD card slot (up to 256 GB)

  • POE IEEE 802.3af

  • Power supply (±10%) PoE / DC12V

  • Power consumption (±10%) < 8 W

  • Protection rating IP67



Video

  • H265 / H.264 compression

  • Video resolution:


Main stream 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P

Secondary stream D1/VGA/640x360/480x360/CIF

  • Frame rate 5 MP at 25 FPS

  • Video profile: High Profile/Main Profile/Baseline Profile

  • Multiple video streaming 2 streams

  • Bitrate control 512Kbps - 12Mbps, VBR/CBR

  • Image enhancement WDR/BLC/HLC/2D DNR/3D DNR/AWB/MWB/AGC

  • Day/Night switching Auto/Color/(B/N)/Timer

  • Forced anti-flicker

  • Defogging

  • Auto/Manual white balance

  • Image Orientation: Rotate/Mirror

  • Privacy mask

  • Text overlay

  • Configurable OSD title position/font size/text; text input (English and Chinese characters) and image upload (BMP) supported



Audio

  • Built-in microphone

  • Line-out

  • Encoding G.711-u / G.711-a

  • Audio adjustment



Alarm and event

  • Alarm in

  • Alarm output

  • Detection mode Motion/Human/Vehicle/Alarm detection

  • Detection program

  • Motion detection area 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18

  • Person/vehicle detection alert Audio alert with customized mp3 audio files



Storage

  • Built-in memory: Built-in memory card slot, supports microSD/SDHC/SDXC cards up to 256 GB

  • Overwrite

  • Maximum re-encoding time per file 1, 2, 3, 5, 10, 20 and 30 configurable minutes

  • Recording schedule



Network

  • LAN port RJ45 connector x 1/4KV surge-proof

  • Ethernet LAN speed based on T from 100 Mbps

  • Supported protocols HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP

  • Compatible with ONVIF Compatible with Onvif 17.06

  • Number of online users: 6



Compatibility

  • Compatible with Internet Explorer 6 and later, Microsoft Edge and Google Chrome

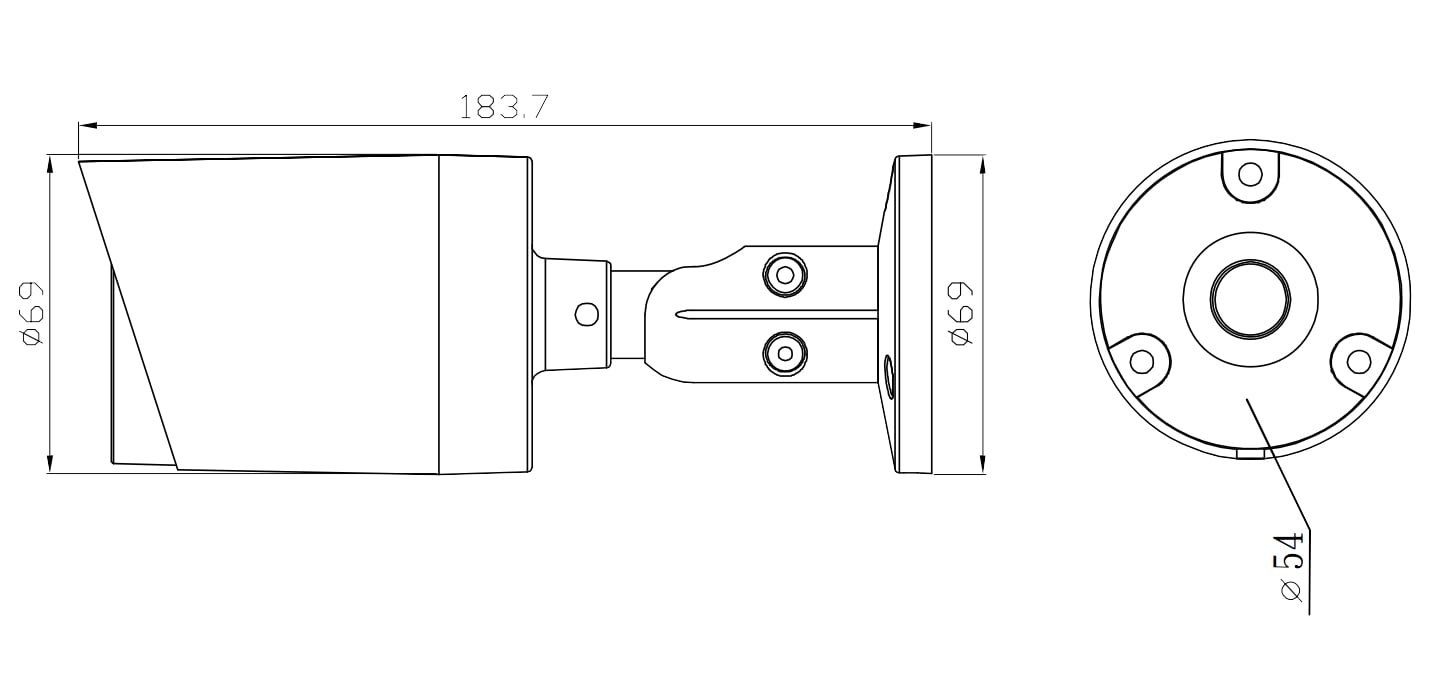

Dimensions

  • Length: 183.7 mm

  • Diameter: 69 mm



Environmental features

  • Operating temperature -30 ℃ ~ 60 °C

  • Operating humidity 10%-90%RH



Package contents

  • Camera IC-DGM5106

  • User manual

  • Brand
  • Reference
    IC-DGM5106
  • In stock
    8 Items
  • EAN13
    4713218634856
