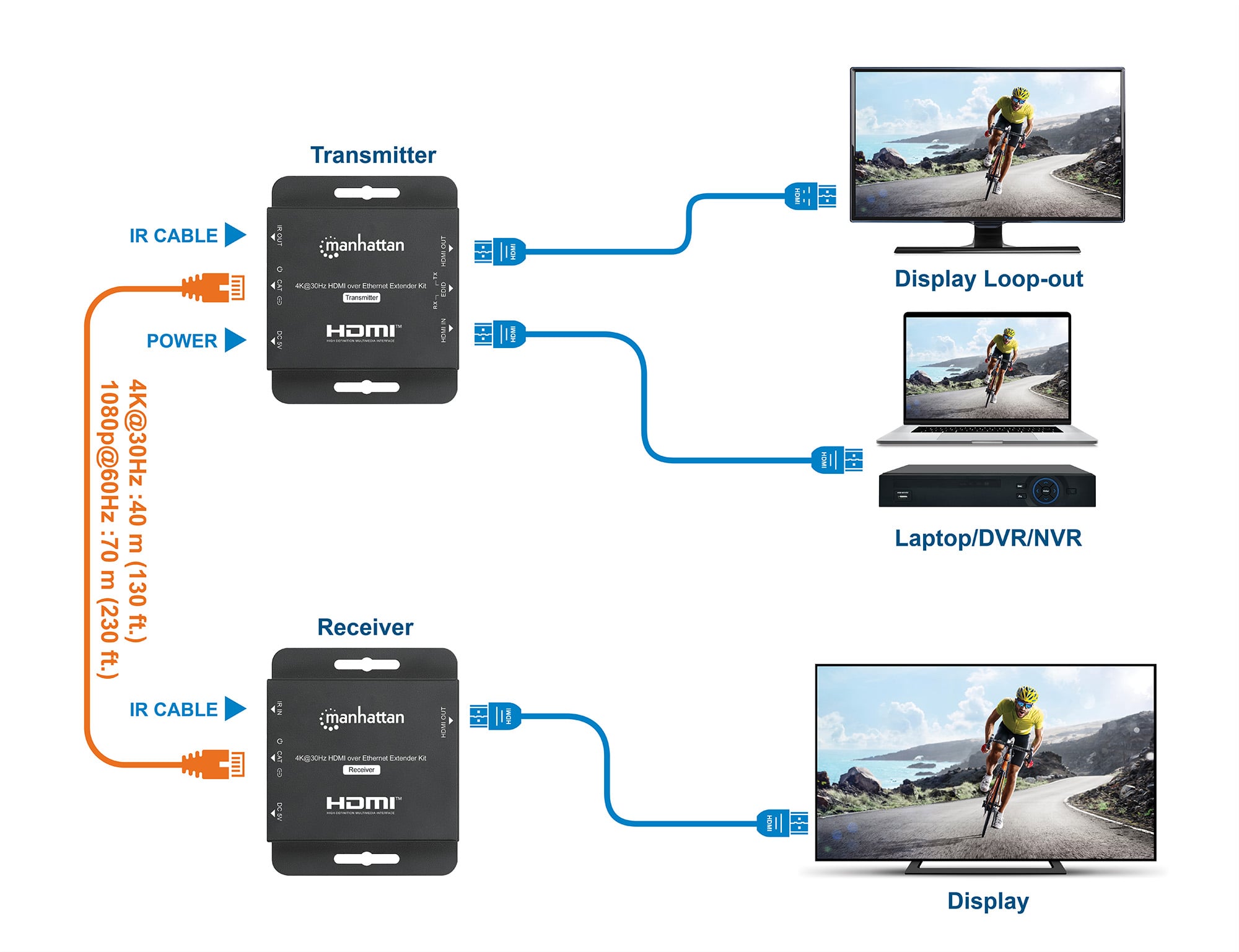

- Extends an HDMI signal up to 70 m from an HDMI source to a screen using a single Cat 6 network cable
- Resolution up to 4 K@ 30 Hz to 40 m or up to 1080 p@ 60 Hz to 70 m
- Power over Cable (PoC) technology allows power supply to both the transmitter (Tx) and the receiver (Rx) via a single power supply (connected to the transmitter)
- HDMI local port on the transmitter to connect a screen next to the source for a simpler configuration
- Includes infrared blaster (IR) and receiver for remote source control
- Plug and play - does not require installation and configuration software
- Up to 10.2 Gbps at 340 MHz bandwidth
- EDID switch for automatic image optimization based on the screen connected to the receiver or on the local screen connected to the transmitter
- Supports 4 : 4 : 4 Chrome subsampling
- Supports MJPEG protocol for video compression
- Supports 8 LPCM uncompressed audio formatting without loss and surround 7.1 sound
- Supports video 3 D
- Compatible with game systems like PlayStation®, Xbox®, Blu-ray players, set-top boxes, satellite receivers and much more
- Golden contacts for a long duration of time
- Robust metal housing for long life
- ESD protection up to 8 kV (air) and 4 kV (contact)
- Built-in mounting brackets for a clean wall and ceiling installation
- HDCP 1.4 compatible
- For longer distances, use a Manhattan HDMI High Speed cable with Ethernetda 15 m for both the transmitter and receiver
Standards and certifications- HDCP 1.4
- HDMI 1.4
- CE
- FCC
- RoHS
- UKCA
General information- Supported resolutions: 480 p/ 720 p/ 1080 i/ 1080 p/ 4 K (we recommend a Cat 6 or higher network cable for maximum distance and resolution)
- Maximum video bandwidth: 10.2 Gbps/ 340 MHz

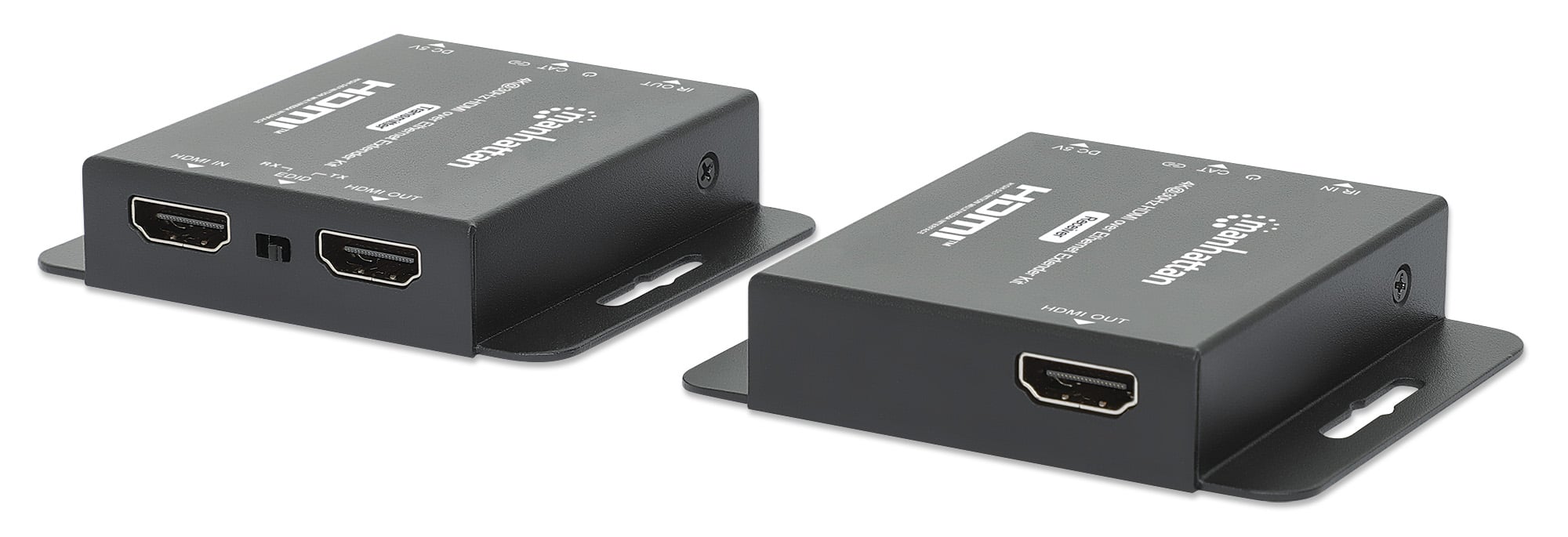

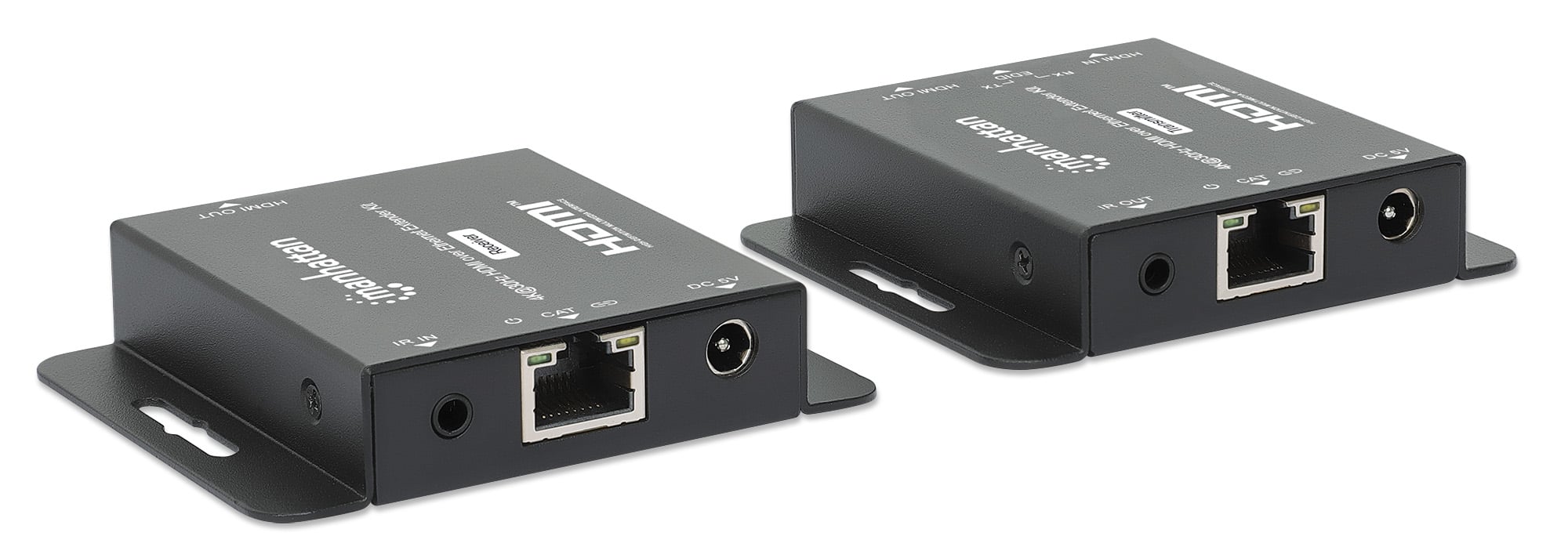

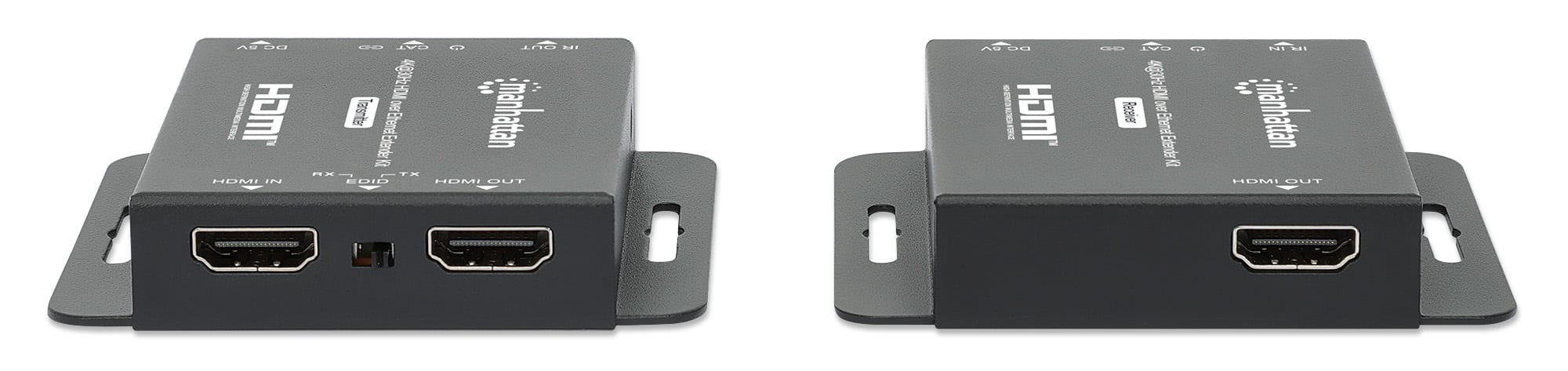

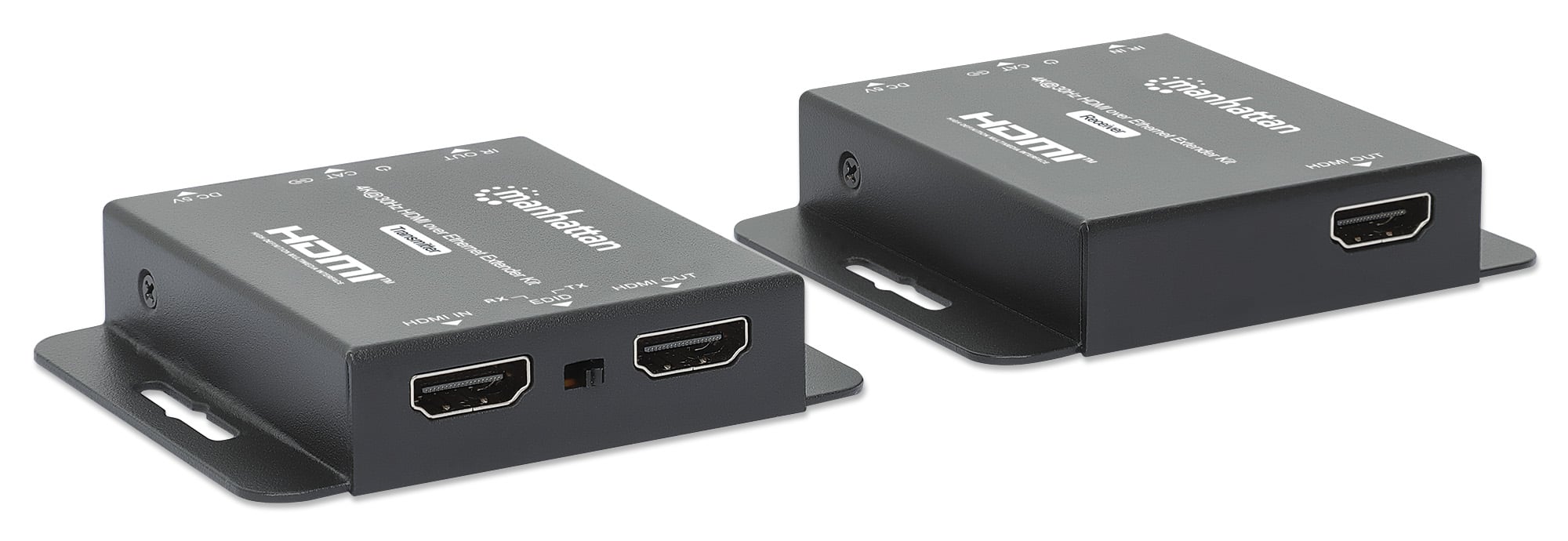

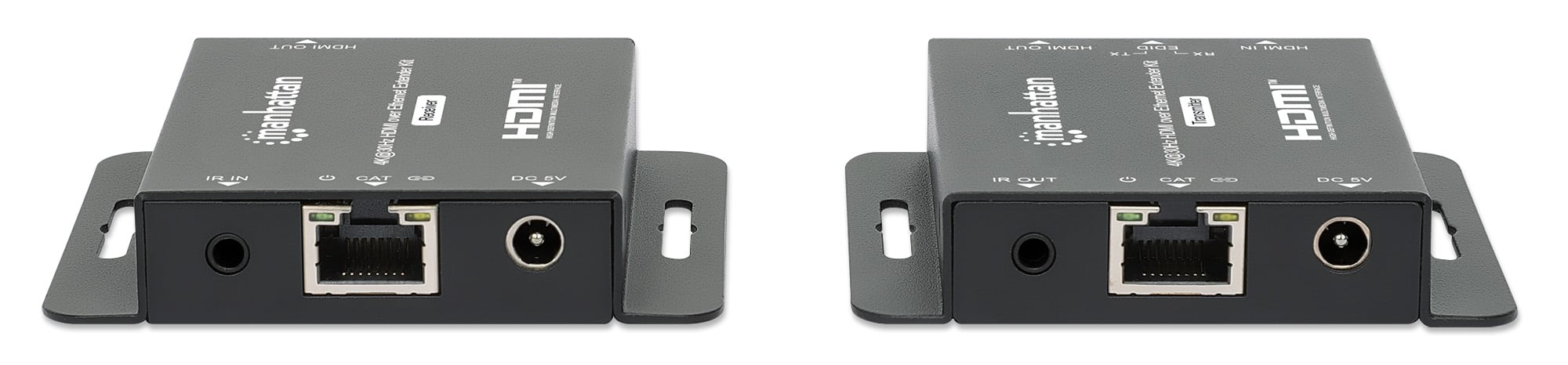

Connections/keys - 2 x HDMI female 19 -pin (one for local monitor)
- 1 x DC input 5.0 V
- 1 x RJ 45 female
- 1 x 3.5 mm IR female
- 1 x EDID switch
- 1 x HDMI female 19 -pin
- 1 x DC input 5.0 V
- 1 x RJ 45 female
- 1 x 3.5 mm IR female
Electrical information:- One DC power supply, cable 1.5 m
- Input: 100.0 - 240.0 VAC, 50 - 60 Hz
- Output: 5.0 VDC; 1.0 A
- Maximum consumption: 1.86 W (transmitter) / 0.87 W (receiver)
Input/Exit Signal- Video signal input: 3.3 V p-p
- DDC signal input: 5.0 V p-p
- Video output : HDCP 1.4
Physical information- Dimensions (P x L x A): 80 x 69 x 17 mm
- Net weight: 262 g
- Gross weight: 510 g
- Housing: metal
Environmental information- Operating temperature: from 0 to 40 °C
- Storage temperature: - 20 to 60 °C
- Humidità (without condensation): 20 - 90 %

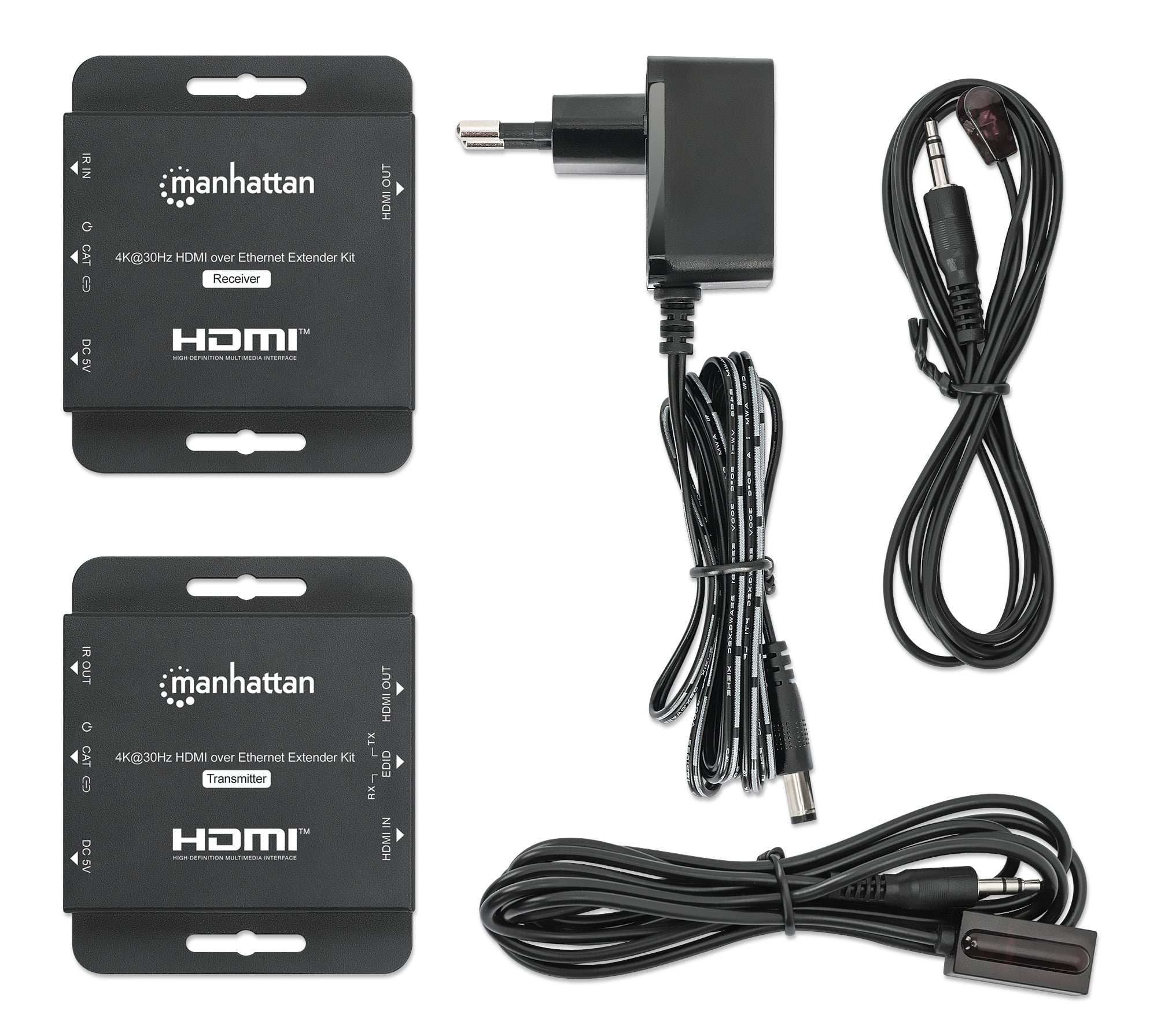

Package contents- Extender HDMI Over Ethernet Kit 4 K@ 30 Hz
- One DC power supply, cable 1.5 m
- Two IR connection cables, 1.5 m
- Instructions
