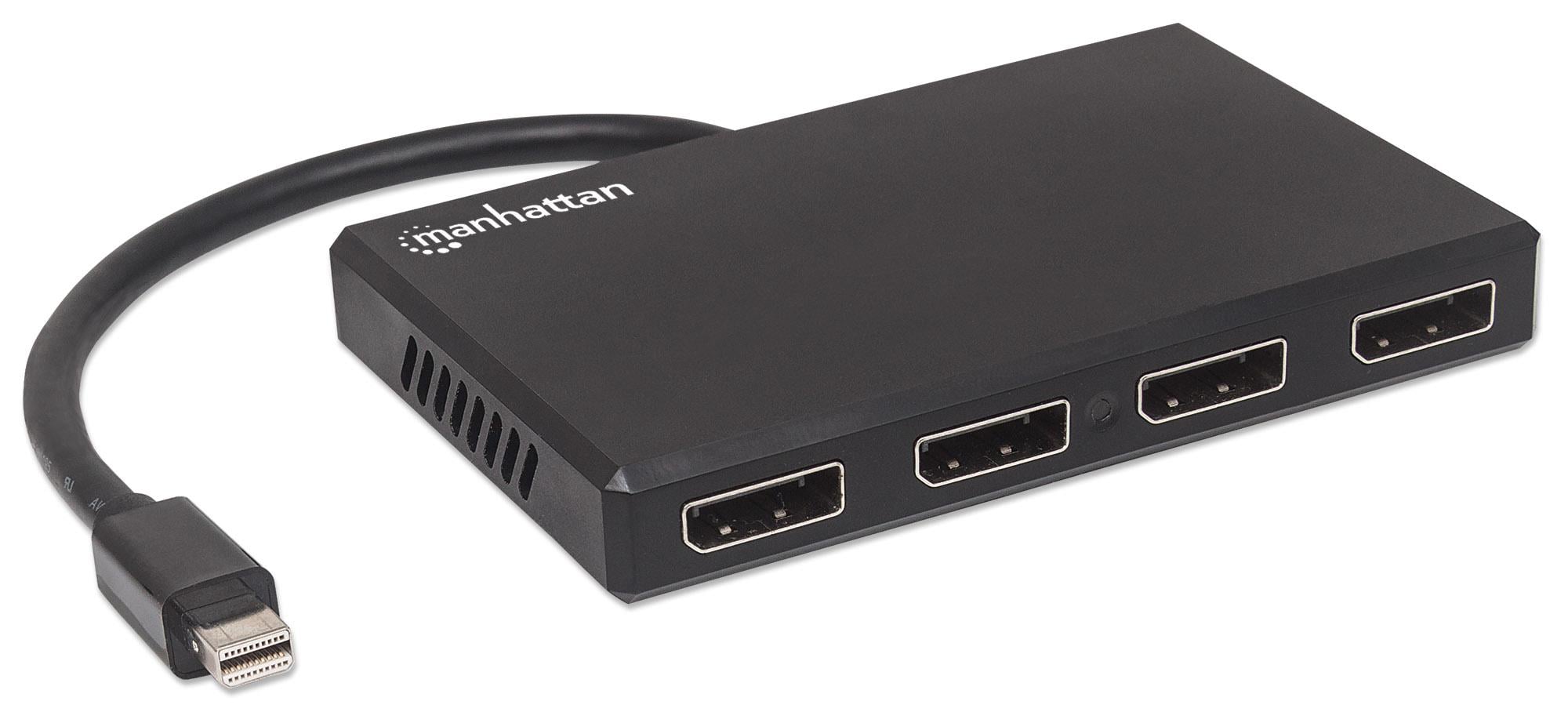

- Duplicate a Mini DisplayPort Ultra-High Definition (UHD) signal to up to four DisplayPort (DP) UHD monitors
- Resolution 4 K@ 30 Hz, full 3 D and Deep Color video
- Supports DTS compressed audio master and 7.1 surround audio up to 192 kHz
- Supports modes à Mirror, Extended and Multi-Stream (MST) to maximize work and play capabilities
- The modeà Mirror duplicates the computer screen on four screens with resolutions up to 4 K@ 30 Hz
- The mode à Extended expands the workspace on desktop up to four additional screens with resolutions up to 4 K@ 30 Hz
- The modeà MST creates the Video Wall display for a more intense experience, using four screens - with resolutions up to 3840 x 2160 at 30 Hz - as if it were one
- USB powered with Plug and Play installation; no special configurations or remote control required

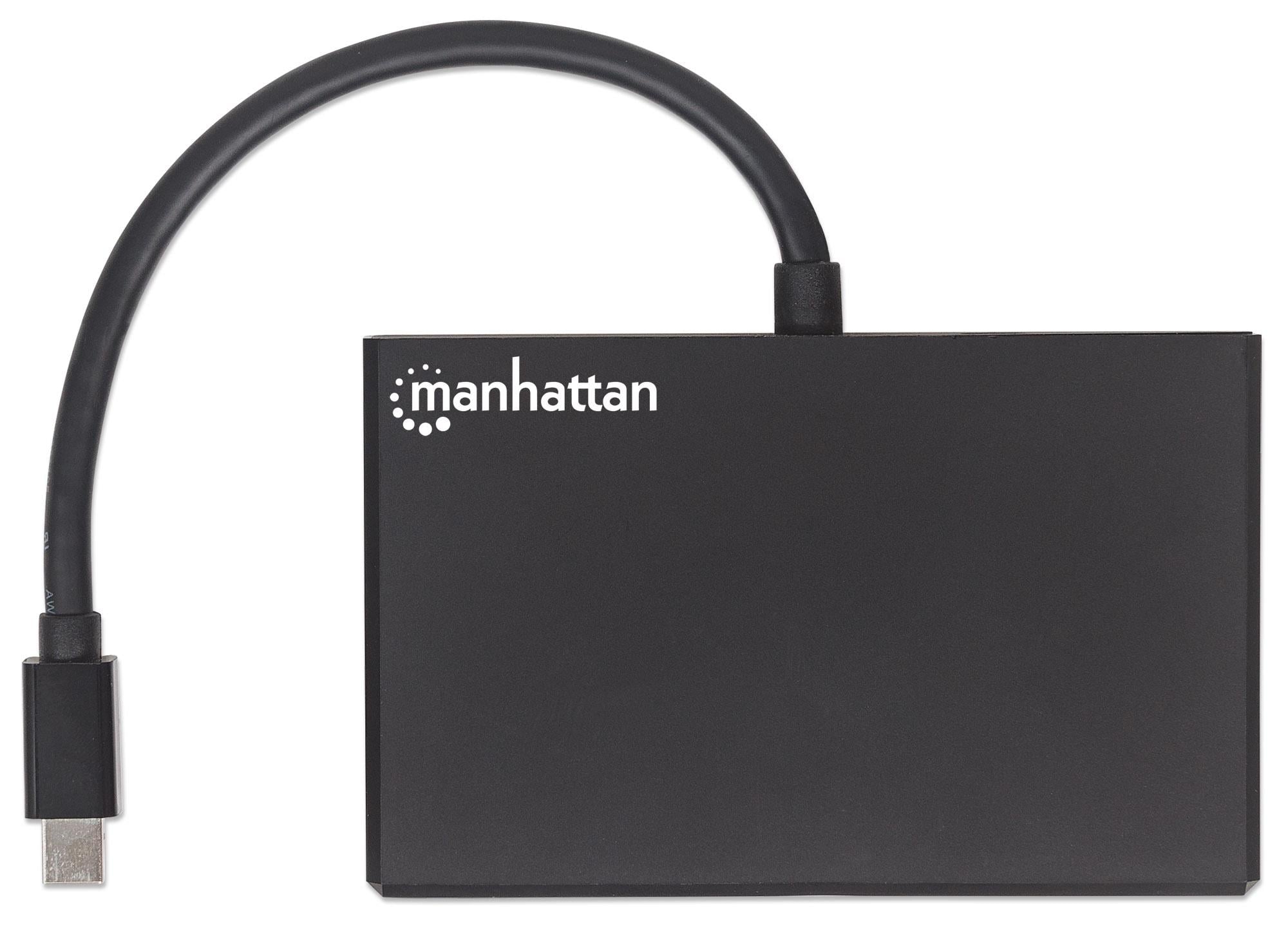

- Integrated Mini DisplayPort Cable
- Ideal to improve functionality à viewing or create a video wall in places like schools, churches, conference rooms, fairs and retail outlets; perfect for digital signage and AMD Eyefinity technology in the game
- HDCP 2.2 compatible
- Golden contacts for a long duration of time
Standard- DP 1.2
- HDCP 2.2
- DVI 1.0
- CTS 1.4
CertificationsConnections- 1 x Male Mini DisplayPort Input

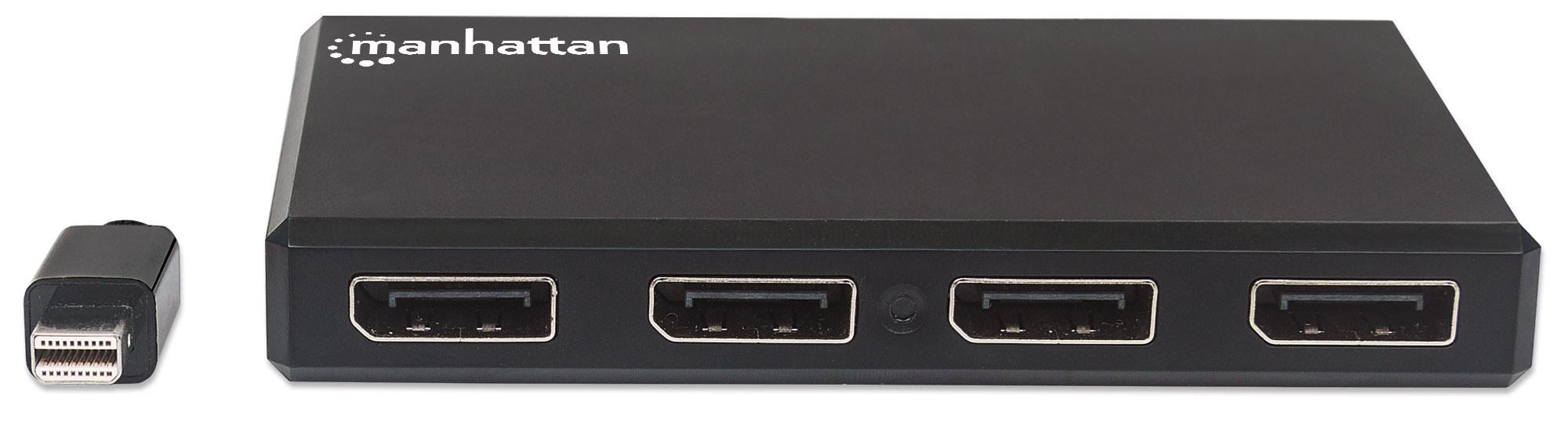

- 4 x DisplayPort (DP) female outputs

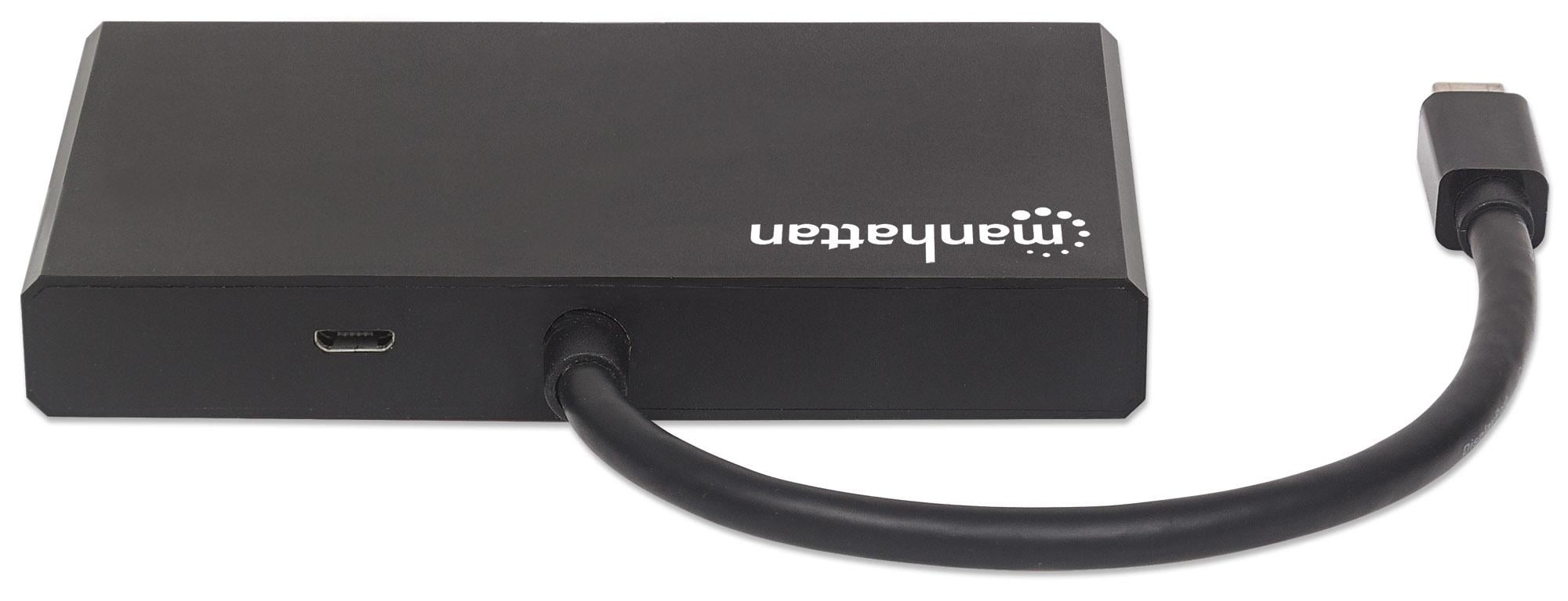

- 1 x Power input 5 V / 2 A USB (Micro-B) female
Input/Exit Signal- Video signal input: 0.5 – 1.0 V p-p
- Incoming DDC signal: 5 V p-p (TTL)
- Maximum single interface: 5.4 Gbps, 3840 x 2160 resolution 30 Hz
- Video output: HDCP 2.2 , DVI 1.0
Audio and Video Solutions- DTV/HDTV: 480 i/ 480 w/ 576 i/ 576 w/ 720 w/ 1080 i/ 1080 w/ 4 K@ 30 Hz
- A connected display: 4 K@ 30 Hz
- Two connected displays: 4 K@ 30 Hz
- Three connected displays: one at 4 K@ 30 Hz, two at 1080 p@ 60 Hz
- Four connected displays: all at 1080 p@ 60 Hz
- Supports 7.1 audio channel; maximum frequency of 192 kHz audio sample è
- Only one display supporterà the audio when two or more displays are connected
General information- Dimensions: 250 x 105 x 15 mm
- Micro-B USB power cable, 1 m
- Weight: 130 g
- Housing: plastic
Environmental features- Operating temperature: 0 - 40°C
- Storage temperature: - 20 - 60 °C
- Humidità (without condensation): 0 - 96 %
System requirements- Windows XP/Vista// 7 / 8.1 / 10
- DP 1.2 graphics card for MST function
Package contents- Splitter Hub Mini DisplayPort to 4 -Doors DisplayPort with MST
- USB Power Cable
- User manual
