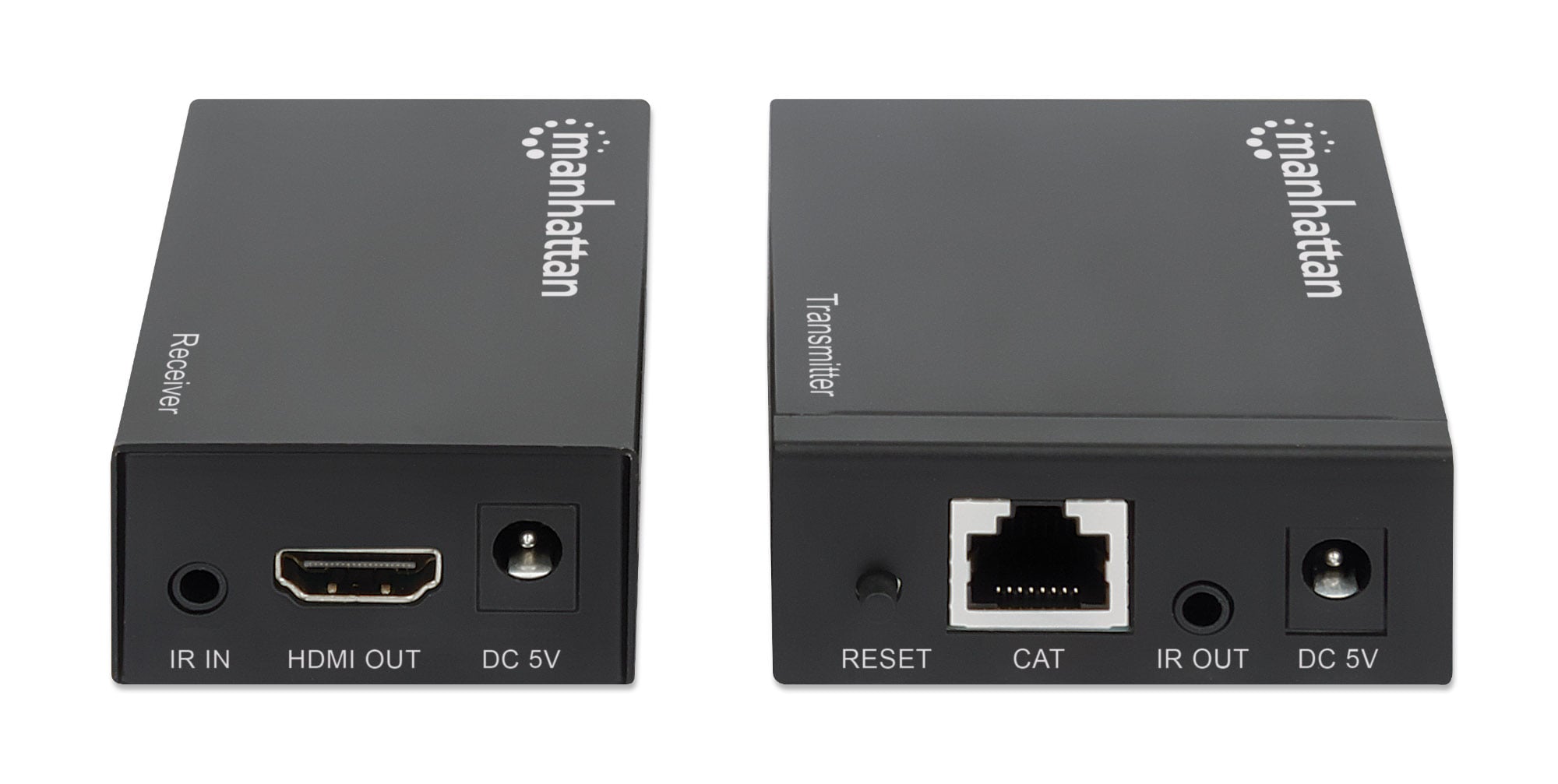

Extender HDMI over Ethernet Kit - Manhattan IDATA EX-HL 61

€69.41
Tax included €56.90 excl. VAT

HDMI extender kit on Ethernet cable up to 50 m. Supports 1080 p resolution, 5.1 surround, IR control and Power over Cable (PoC). HDCP compatible.



Return policy



Delivery policy



Direct contact for info



Secure Payment

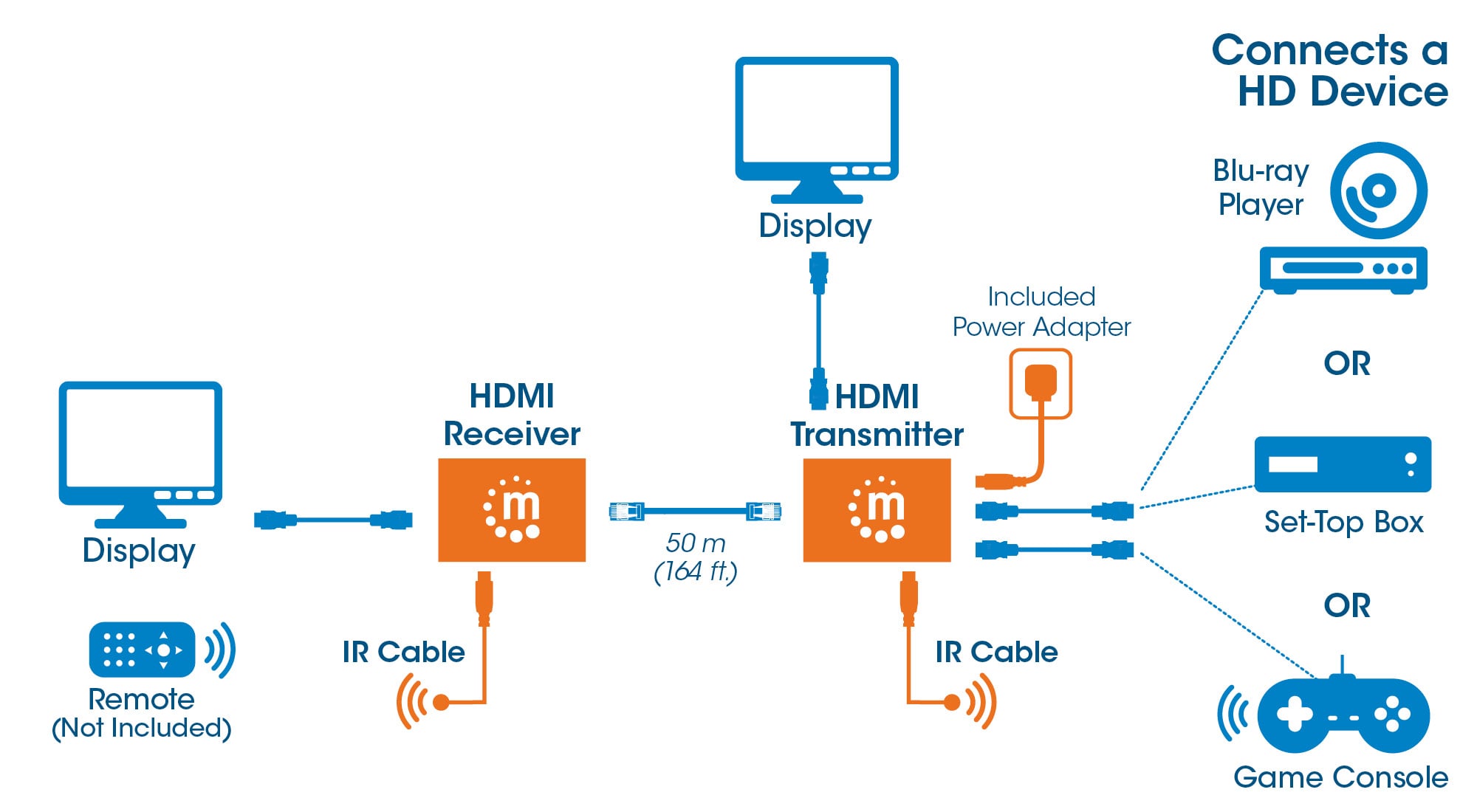

  • Extends HDMI connection to 50 m between an HDMI source and an HD monitor or projector, using an Ethernet cable
  • The 2 port transmitter (1 HDMI, 1 Ethernet) ensures that the HDMI signal is transmitted on the Ethernet network and simultaneously shared by the local display
  • Supports 1080 p resolution and 10.2 Gbps data transmission
  • Supports video amplifier with bandwidth up to 340MHz, 3.40Gbps per channel (10.2Gbps total) for 1080p display
  • Supports 5.1 surround sound
  • Broadband IR transmission and reception cables allow remote control of HD signal source
  • Supports Power over Cable (PoC), unità RX is powered by the unità TX
  • The EDID adjustable switch minimizes HDCP and display problems in general; choose which display to configure
  • HDCP compatible
  • Compliance with the HDCP standard ensures protection in the transmission of high-definition content and ensures quality reception;
  • Plug and play
  • Plug and play - does not require installation or configuration
  • Works with Playstation and Xbox game consoles, Blu-ray players, set-top boxes, satellite receivers and more
  • Gold plated contacts
  • Golden contacts for a long duration of time
  • For additional remote functionality, use HDMI cables from 15 m on transmitter and receiver


Standards and Certifications
  • HDCP
  • DVI 1.0
  • CTS 1.2
  • CE
  • FCC
  • RoHS2


General characteristics
  • Cat cable 6 1080 p up to 50 m
  • Cat cable 6 720 p up to 70 m
  • Cat cable 6 480 p up to 100 m
  • Power supply: 5 V DC/ 1 A; cable 1.4 m

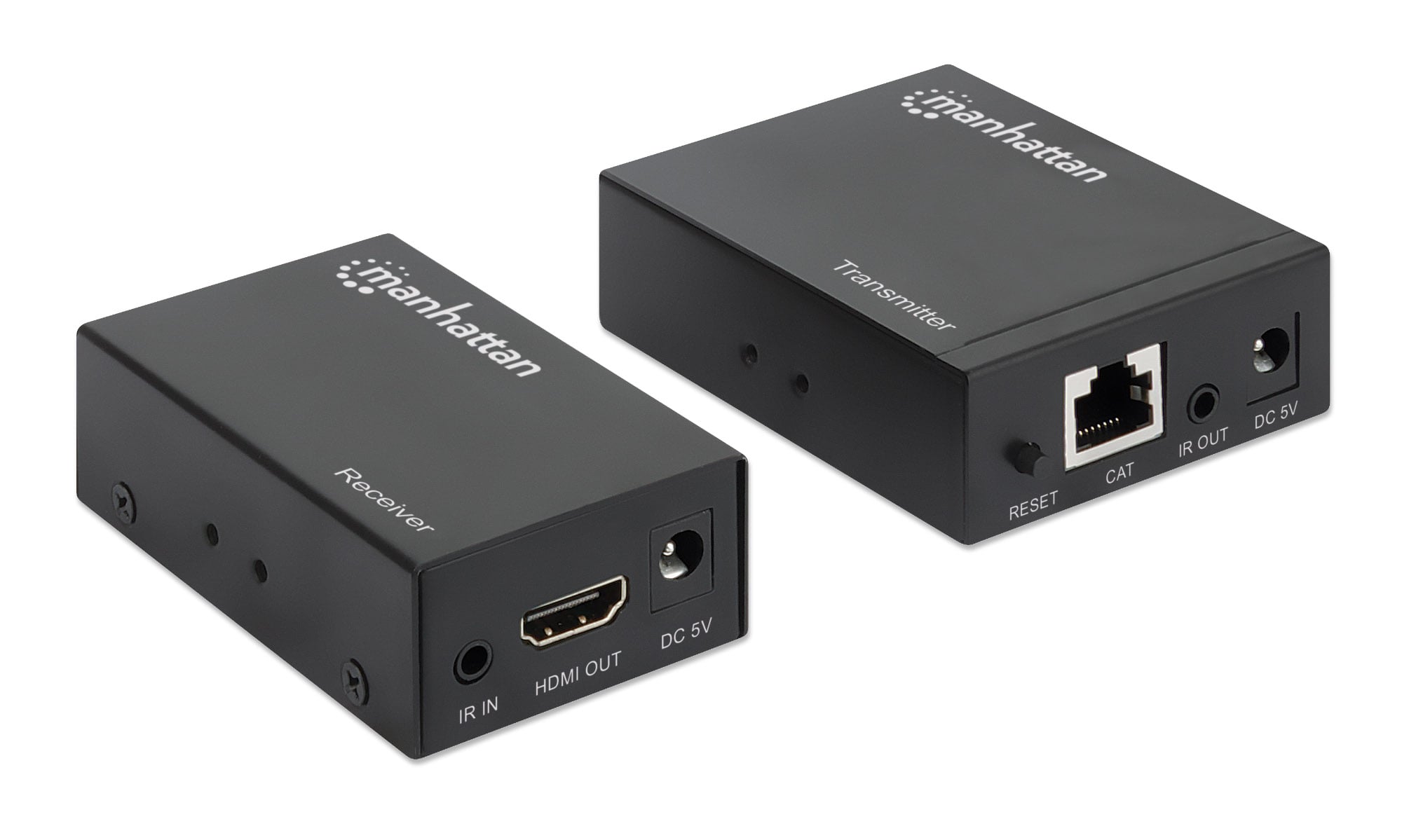

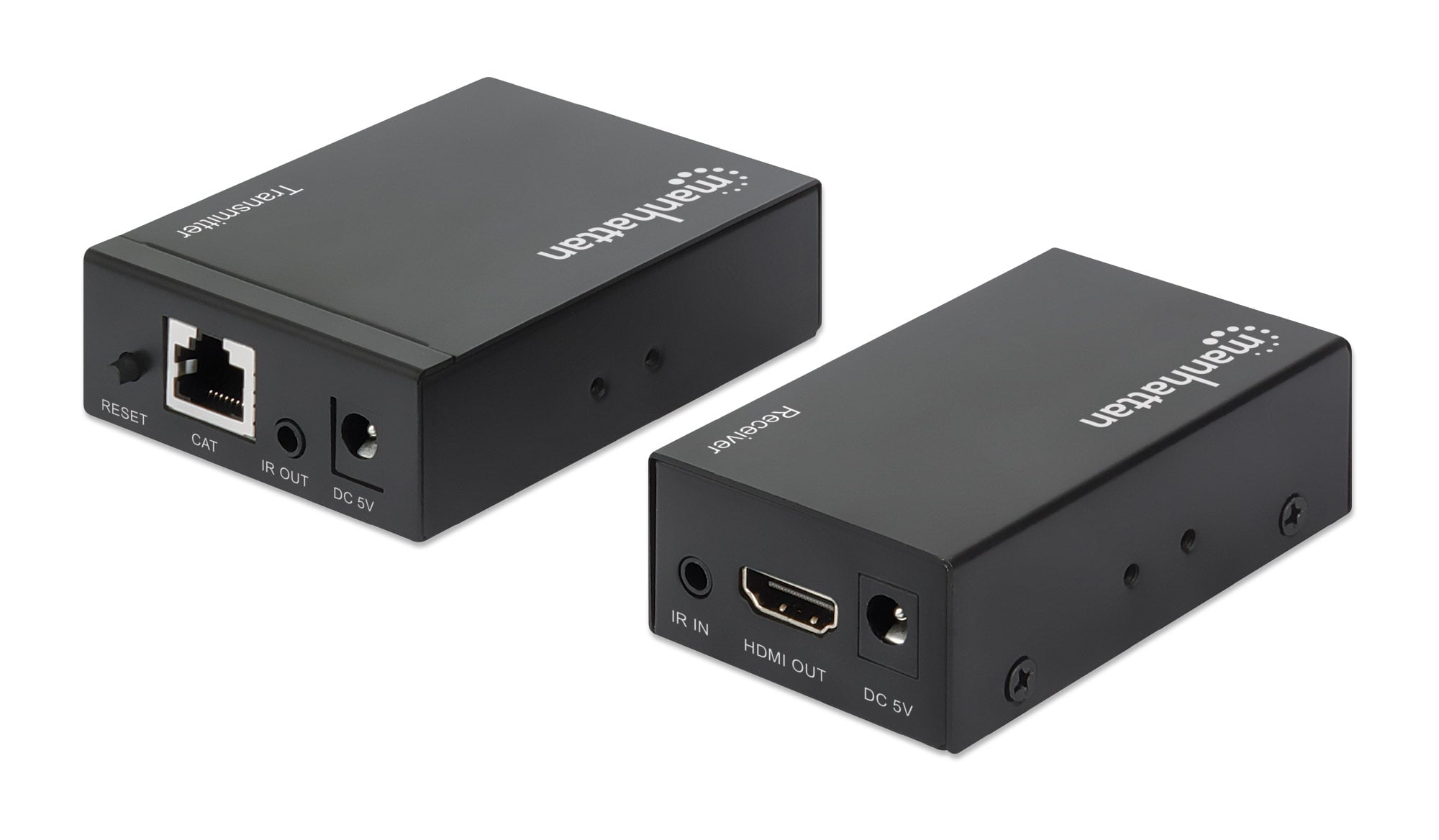

Connections

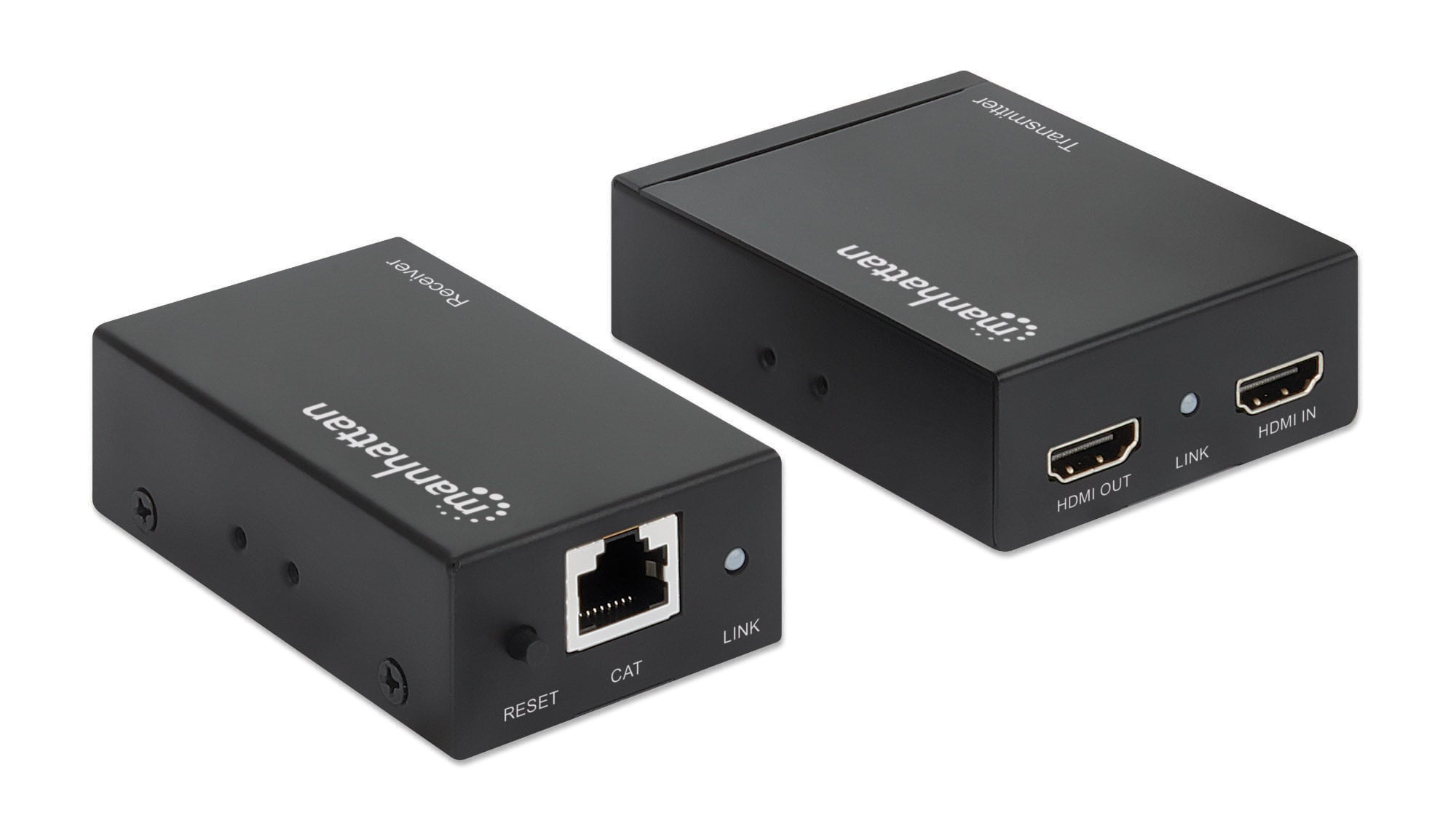

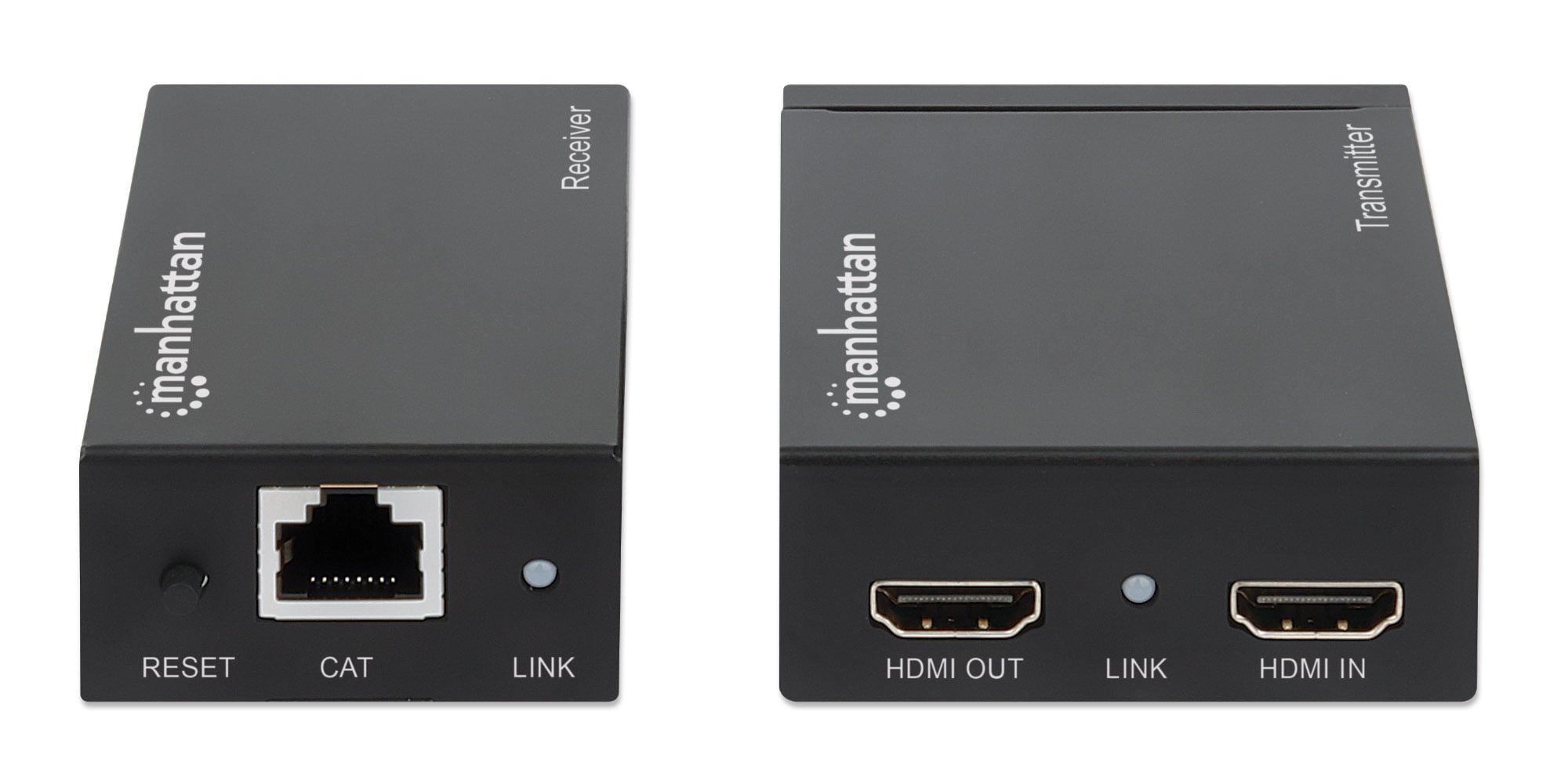

  • 2 HDMI female (transmitter)
  • 1 HDMI female (receiver)
  • 1 RJ 45 female (transmitter / receiver)
  • 1 power supply 5 V/DC female (transmitter / receiver)
  • 1 3.5 mm/IR female (transmitter / receiver)


Input/Exit Signal
  • Video signal input: 0.5 – 1.0 V p-p
  • Incoming DDC signal: 5 V p-p (TTL)
  • Maximum single-link range: 1920 x 1200 / 60 Hz, 1080 p
  • Video output: HDCP 1.2 , DVI 1.0
  • Frequency: 2.25 Gbps / 225 MHz


Video Solutions
  • VGA: 640 x 480 , 800 x 600 , 1024 x 768 , 1920 x 1200
  • DTV/HDTV: 480 i/ 480 w/ 576 i/ 576 w/ 720 w/ 1080 i/ 1080 p


Physical information:

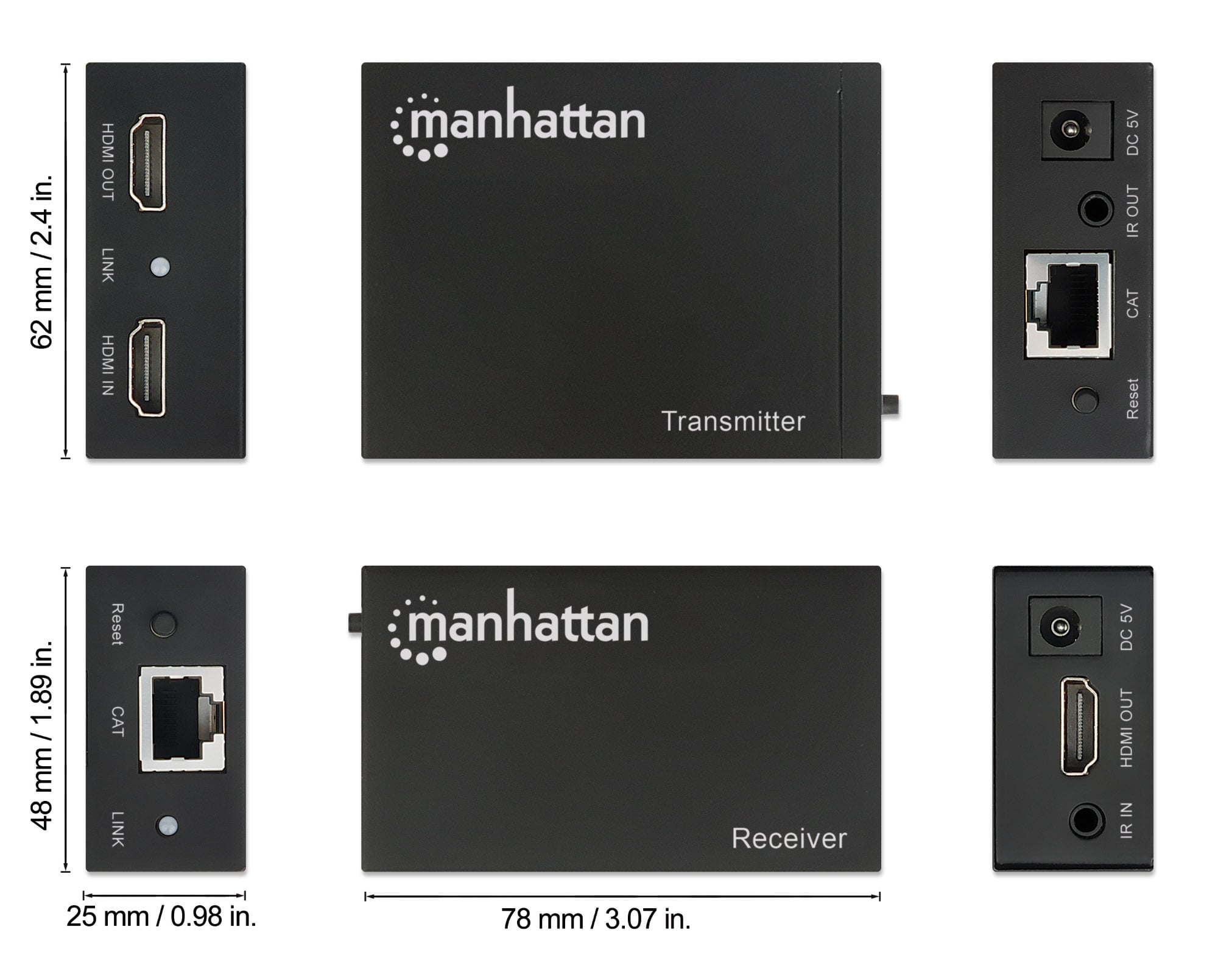

  • Dimensions: 81 x 62 x 26 mm
  • Weight: 0.583 kg
  • Housing: metal


Environmental features
  • Operating temperature: - 0 ~ 40 °C
  • Storage temperature: - 20 ~ 60 °C
  • Humidità: 0 ~ 96 %, without condensation


Package contents
  • HDMI extender (2 receiver/transmitter modules)
  • Power supply (1 pcs)
  • IR blaster and receiver (1 pcs each)
  • Quick Installation Guide

  • Brand
  • Reference
    IDATA EX-HL61
  • In stock
    17 Items
  • EAN13
    0766623207461
