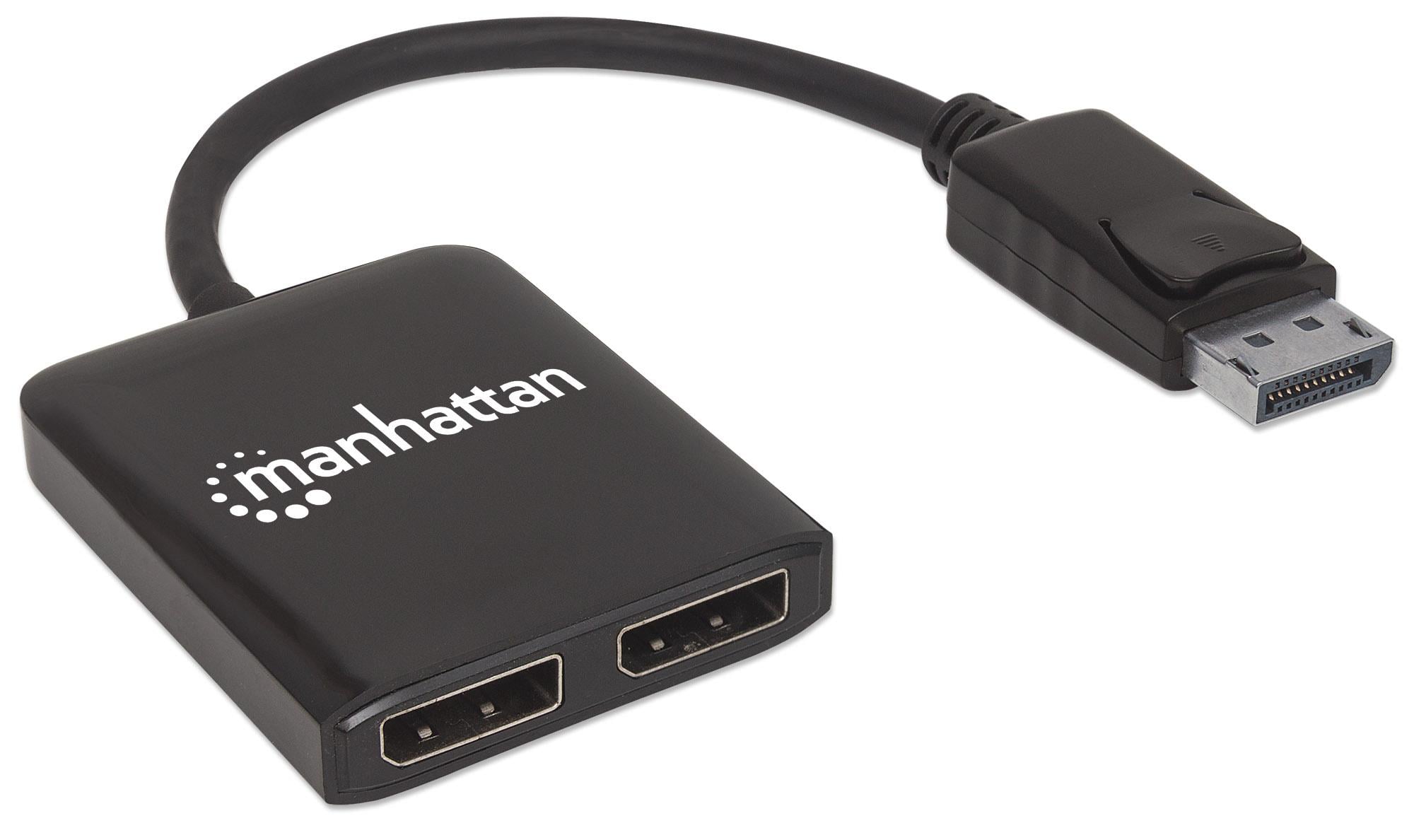

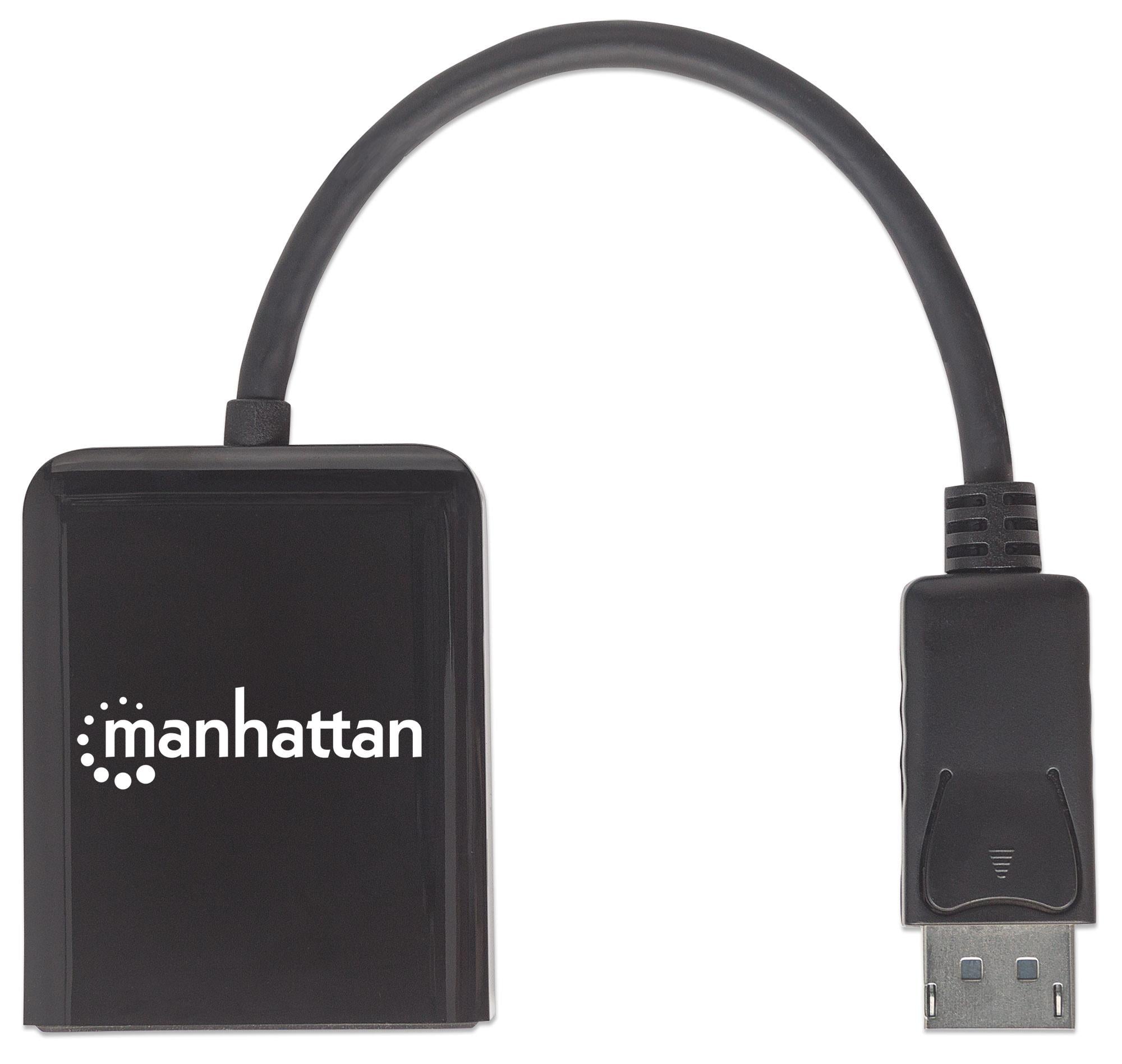

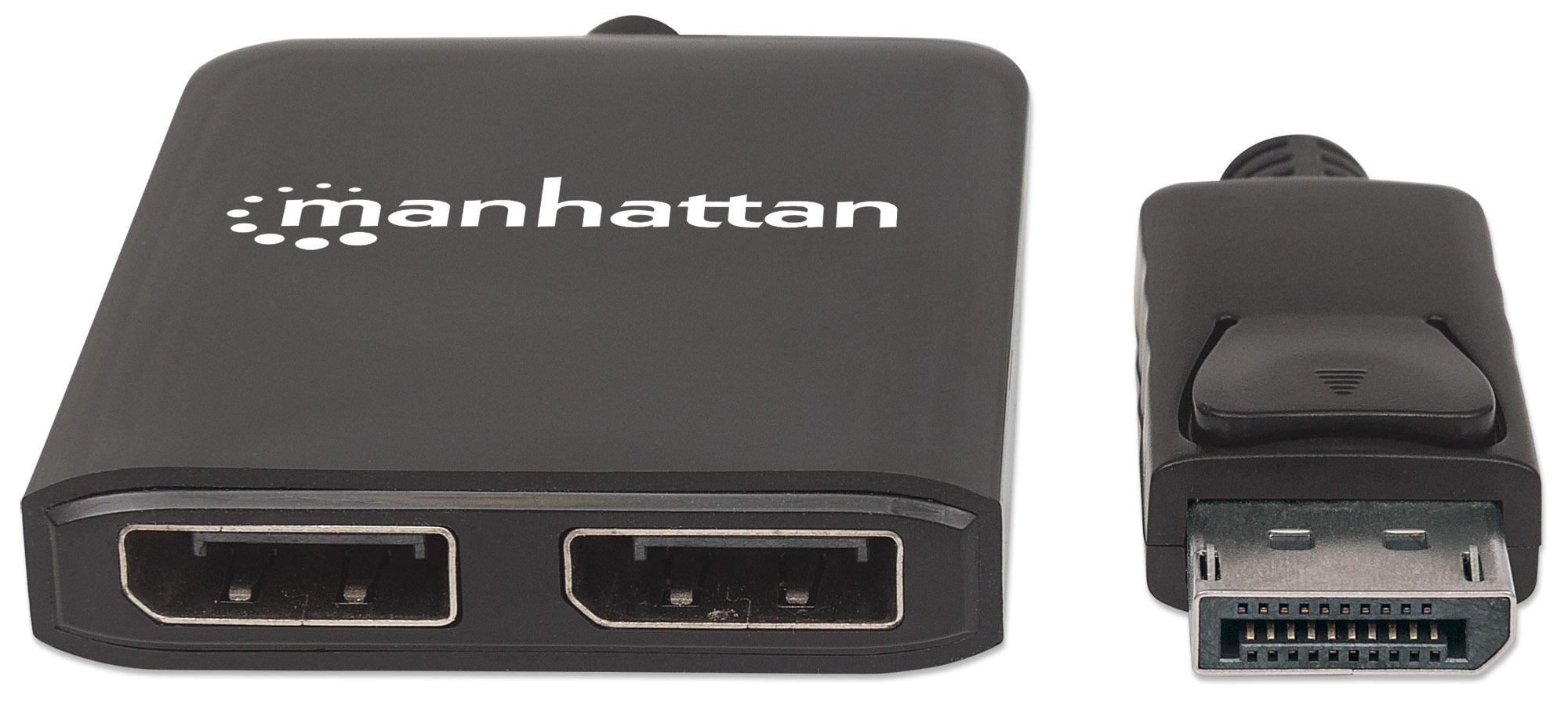

Splitter Hub DisplayPort to 2 Monitor DP MST 4 K@ 30 Hz - Manhattan IDATA DP- 102 M

€55.89
Tax included €45.80 excl. VAT

Hub splitter DisplayPort with 2 outputs. Supports 4 K@ 30 Hz, Mirror, Extended and MST mode. Integrated DP cable, powered via USB.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Duplicate a DisplayPort (DP) signal into Ultra-High-definition UHD on two displayPort UHD screens

  • Resolution 4 K@ 30 Hz, full 3 D and Deep Color video

  • Supports DTS Master Compressed Audio and Surround 7.1 audio up to 192 kHz

  • Supports modalità Mirror, Extended and Multi-Stream Transport (MST) to maximize your work and play capabilities

  • Modalità mirror duplicates the computer screen on two displays with resolution up to 4 K@ 30 Hz

  • The extended mode allows you to extend your desktop workspace to two additional screens with resolutions up to 4 K@ 30 Hz

  • The multi-stream transport mode (MST) allows you to create a video wall for a more intense experience, using two screens - with resolution up to 3840 x 2160 at 30 Hz - as if it were a single screen

  • Powered by USB with Plug and Play installation; no special configurations required

  • Integrated DisplayPort Cable

  • Ideal for improving the ability to display or create a video wall in schools, churches, conference rooms, fairs and retail outlets; perfect for digital signage and AMD Eyefinity technology in the game

  • HDCP 2.2 compatible

  • Golden contacts for a long duration of time



Standard

  • DP 1.2

  • HDCP 2.2

  • DVI 1.0

  • CTS 1.4



Certifications

  • CE

  • FCC

  • RoHS2



Connections

  • A male DisplayPort (DP) (input)

  • Two DisplayPort (DP) female (exit)

  • One input power 5 V / 2 A USB Micro-B female



Input/Exit Signal

  • Video signal input: 0.5 – 1.0 V p-p

  • Incoming DDC signal: 5 V p-p (TTL)

  • Maximum single interface: 5.4 Gbps, 3840 x 2160 resolution 30 Hz

  • Video output: HDCP 2.2 , DVI 1.0



Video Solutions

  • DTV/HDTV: 480 i/ 480 w/ 576 i/ 576 w/ 720 w/ 1080 i/ 1080 w/ 4 K@ 30 Hz



General information

  • Dimensions: 255 x 50 x 11 mm

  • Micro-B 5 V / 1 A USB power supply, 1 m

  • Weight: 50 g

  • Housing: plastic



Environmental features

  • Operating temperature: 0 - 40 °C

  • Storage temperature: - 20 - 60 °C

  • Humidità (without condensation): 0 - 96 %



System requirements

  • Windows XP/Vista// 7 / 8.1 / 10

  • DP 1.2 graphics card for MST function



Package contents

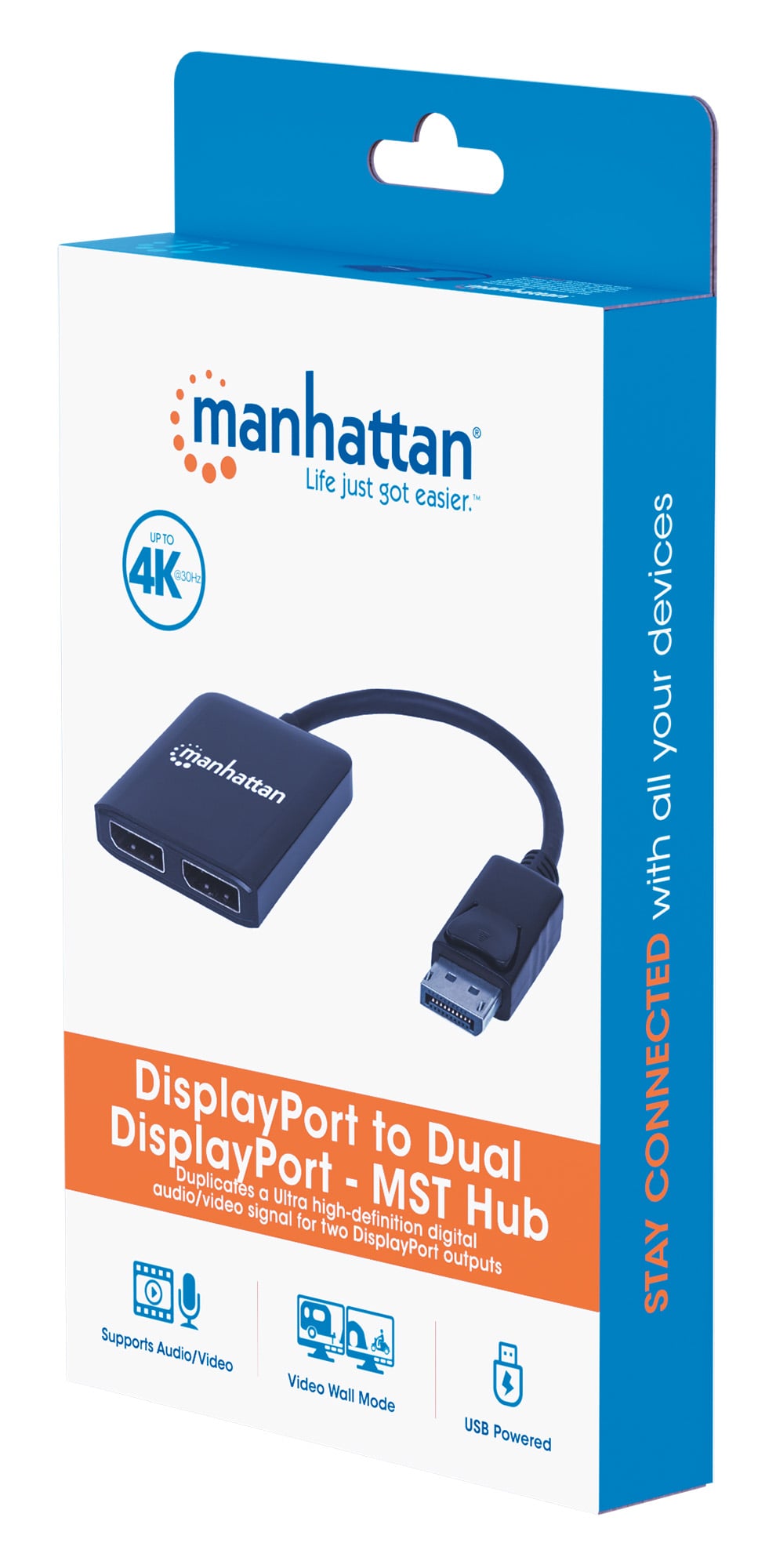

  • Splitter Hub DisplayPort to 2 ports DisplayPort with MST

  • User manual

  • Brand
  • Reference
    IDATA DP-102M
  • In stock
    57 Items
  • EAN13
    0766623207768
