Extender HDMI Over Ethernet 1080 p Compact Black - Manhattan IDATA EXT-E 70 SMH

€45.64
Tax included €37.40 excl. VAT

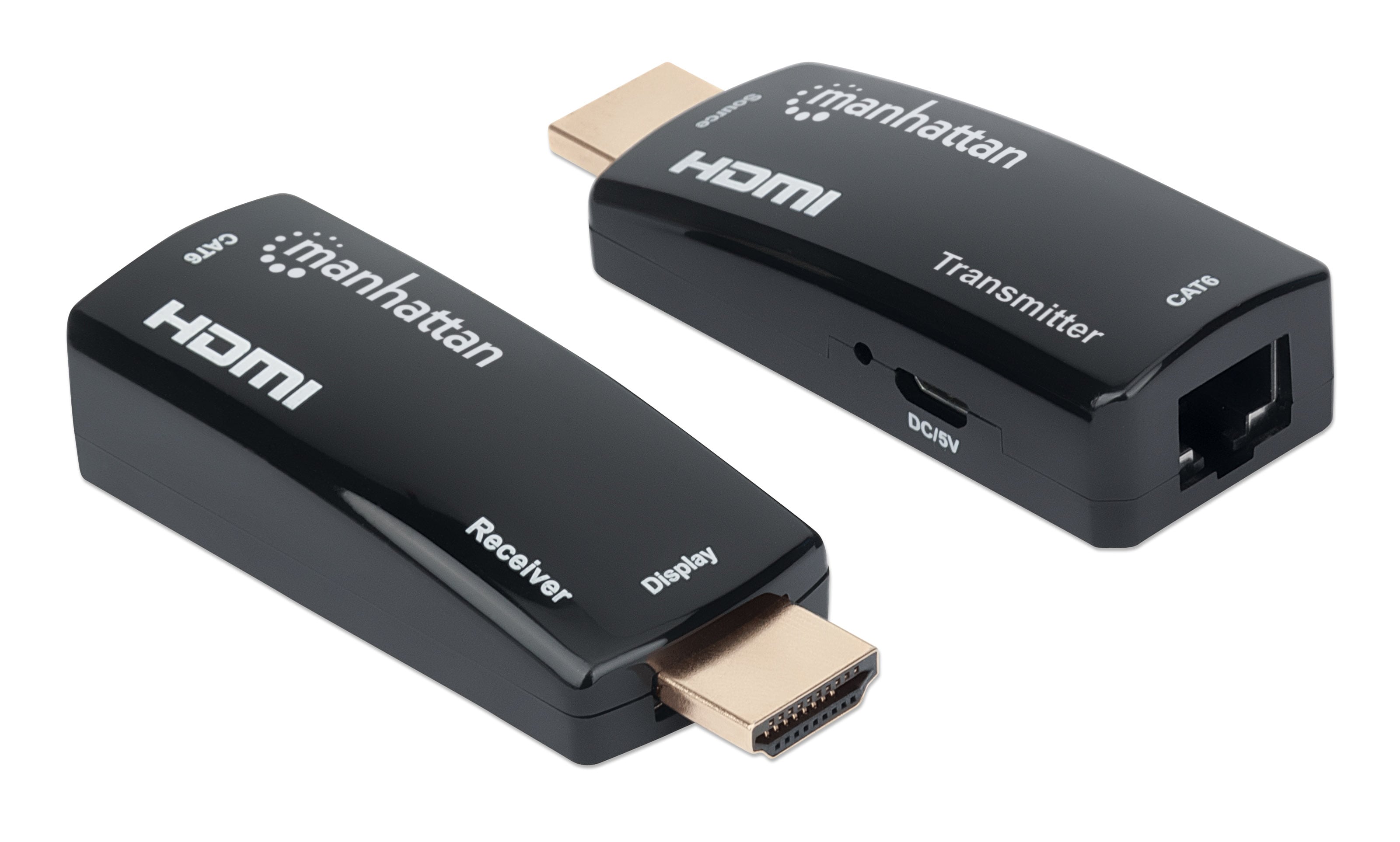

HDMI extender by network cable Cat. 6 up to 60 meters, resolution 1080 p@ 60 Hz not compressed. Supports PoC, HDCP 1.3 and audio surround 7.1 / 5.1. Compact design, plug and play.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Extends an HDMI signal up to 60 m from an HDMI source to a screen using a Cat network cable. 6

  • Provides a signal with 1080 p@ 60 Hz uncompressed resolution

  • Slim and compact design for installations in small spaces or virtually anywhere

  • Supports uncompressed audio formatting LPCM 8 lossless channels and surround audio 7.1 / 5.1

  • Power over Cable (PoC) technology that feeds both the transmitter (Tx) and the receiver (Rx) via a single power supply (connected to the transmitter)

  • Reset button on receiver to adjust the signal depending on the cable length

  • Full compatibility à to the HDCP standard guarantees protection in the transmission of contents in high definition and ensures the reception of quality à

  • Supports video 3 D

  • Plug and play - does not require installation or configuration

  • Compatible with game systems such as PlayStation®, Xbox®, Nintendo® Switch, Blu-ray players, set-top boxes, satellite receivers and much more

  • Golden contacts for a long duration of time

  • To increase the distance, use an HDMI High Speed with Ethernet Manhattan cable from 15 m on both the transmitter and the receiver



Standards and certifications

  • HDCP 1.3

  • DVI 1.0

  • CE

  • FCC

  • RoHS



General information

  • Cat. cable 6 : 1080 p a 60 m

  • Power supply: 5 VDC, Micro-USB

  • Reset Key

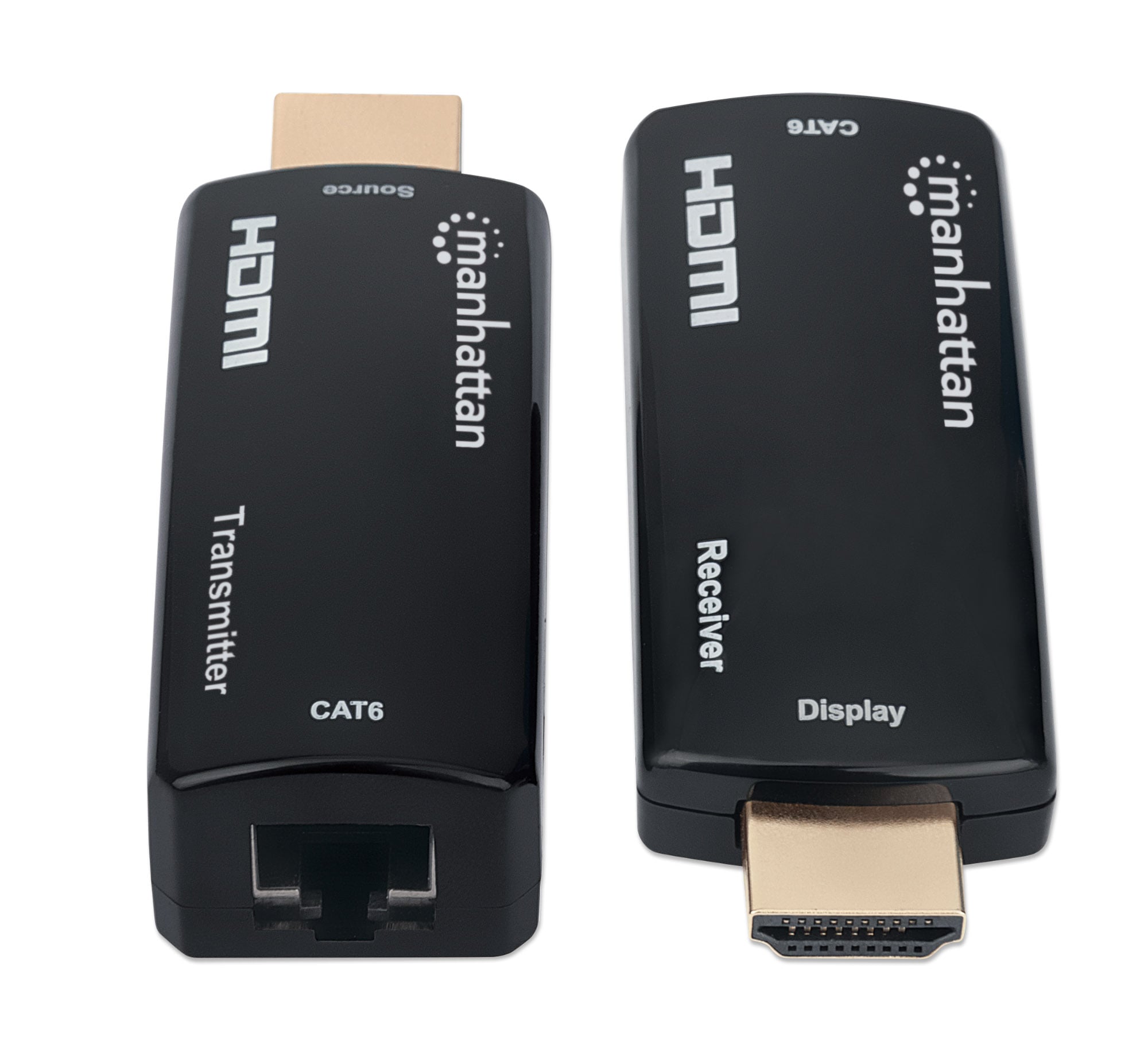

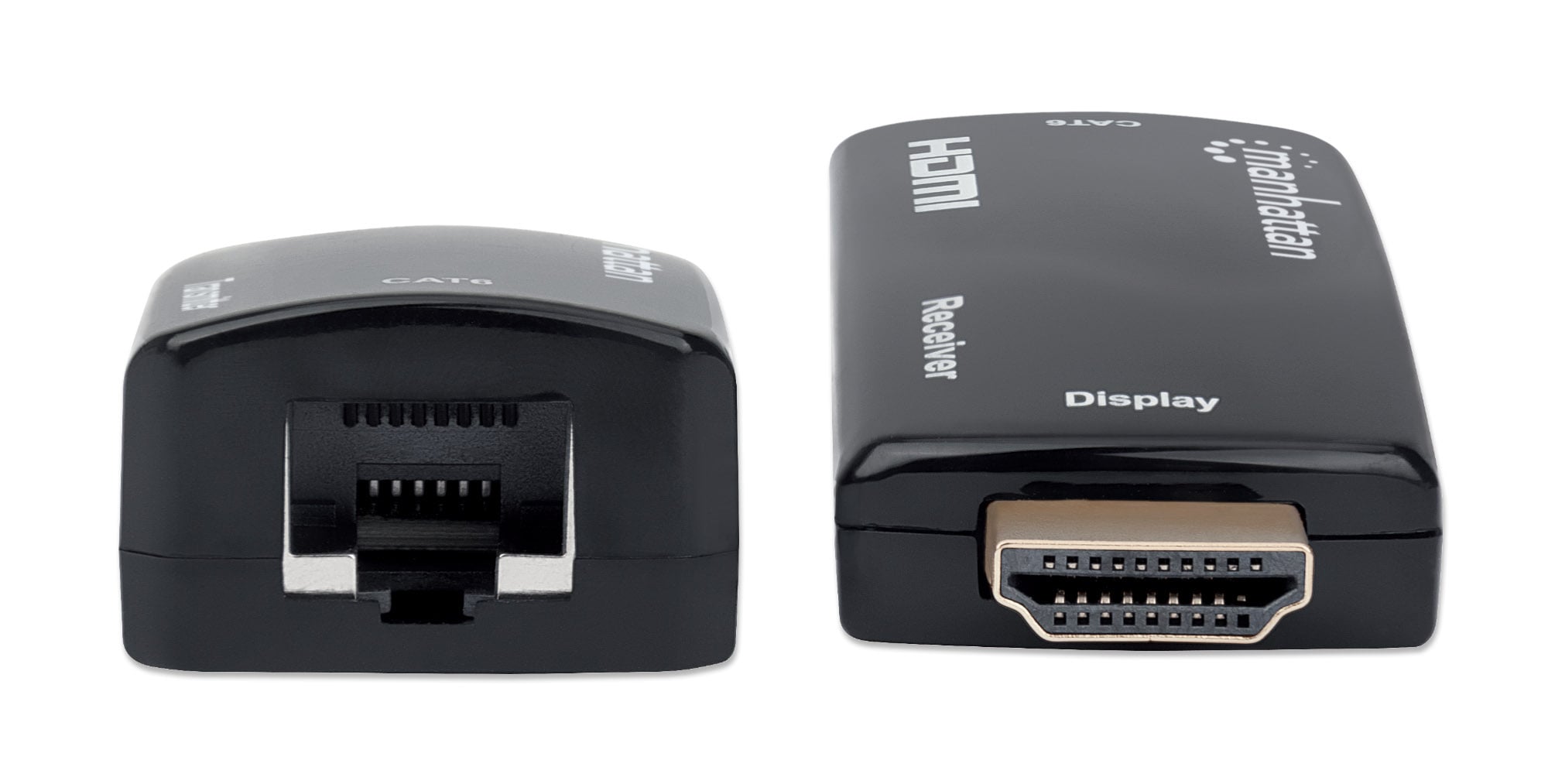

Connections:

  • A female HDMI (transmitter/receiver)

  • A female RJ 45 (transmitter/receiver)

  • One female feeding 5 VDC (transmitter/receiver)



Electrical information

  • A female 5 VDC power connection, Micro-USB (transmitter/receiver)

  • Consumption: 5 W (max)

  • Supports Power over Cable (PoC): a power supply can power both transmitter and receiver



Input/Exit Signal

  • Video signal input: 0.5 – 1.0 V p-p

  • Incoming DDC signal: 5 V p-p (TTL)

  • Video output: HDCP 2.2 , DVI 1.0



Video Solutions

  • Standard Definition, High Definition, Full High Definition: 480 i / 576 i / 480 w / 576 w / 720 w / 1080 i / 1080 p



Physical information

  • Dimensions: 62 x 27 x 17 mm

  • Weight: 34 g

  • Housing: ABS plastic



Environmental information

  • Operating temperature: from 0 to 50 °C

  • Storage temperature: - 10 to 60 °C

  • Humidità: 5 - 90 % (without condensation)

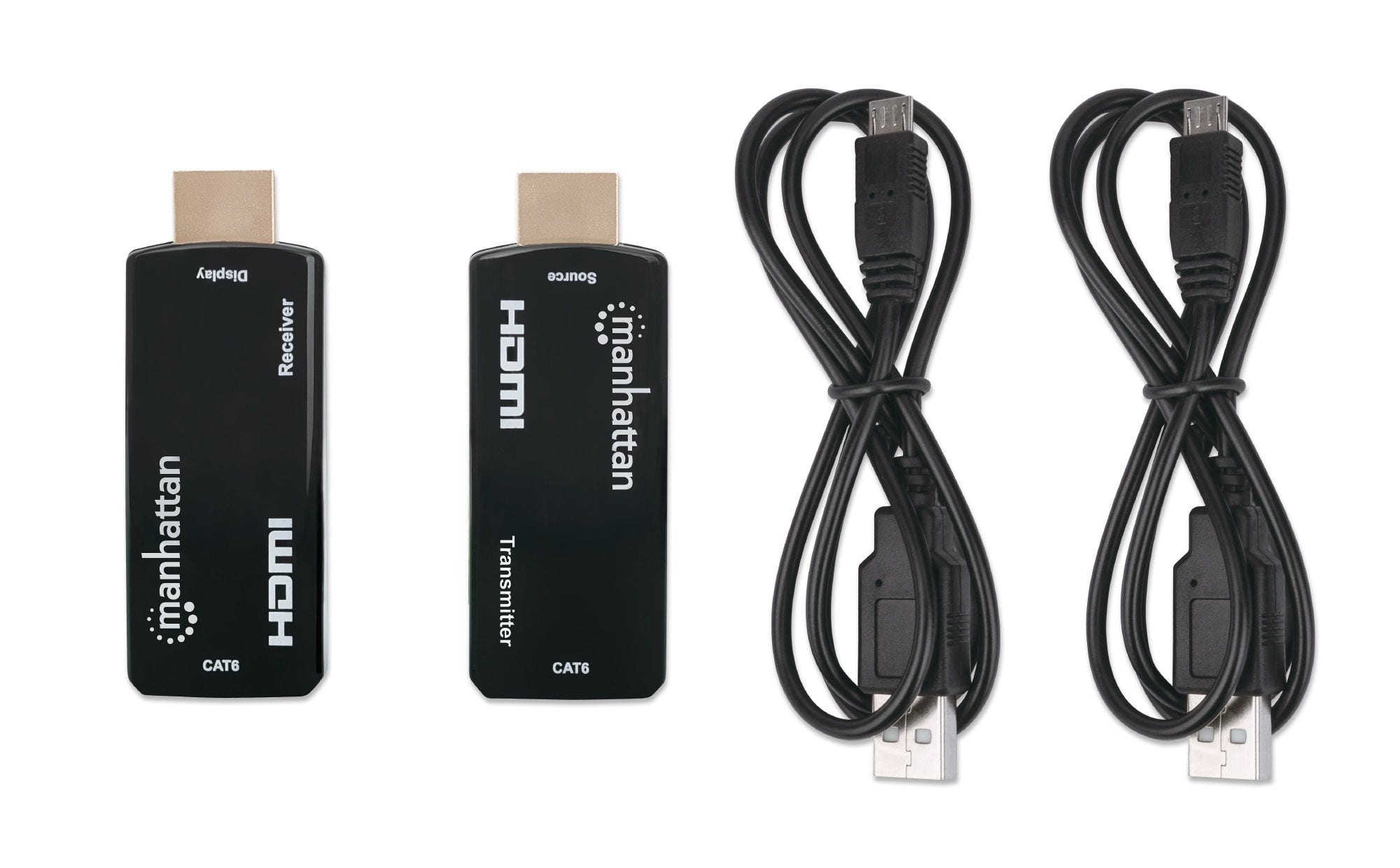

Package contents

  • HDMI extender over Ethernet 1080 p compact

  • Two power cables Micro-USB USB-A 0.8 m

  • User manual

  • Brand
  • Reference
    IDATA EXT-E70SMH
  • In stock
    10 Items
  • EAN13
    0766623207539
