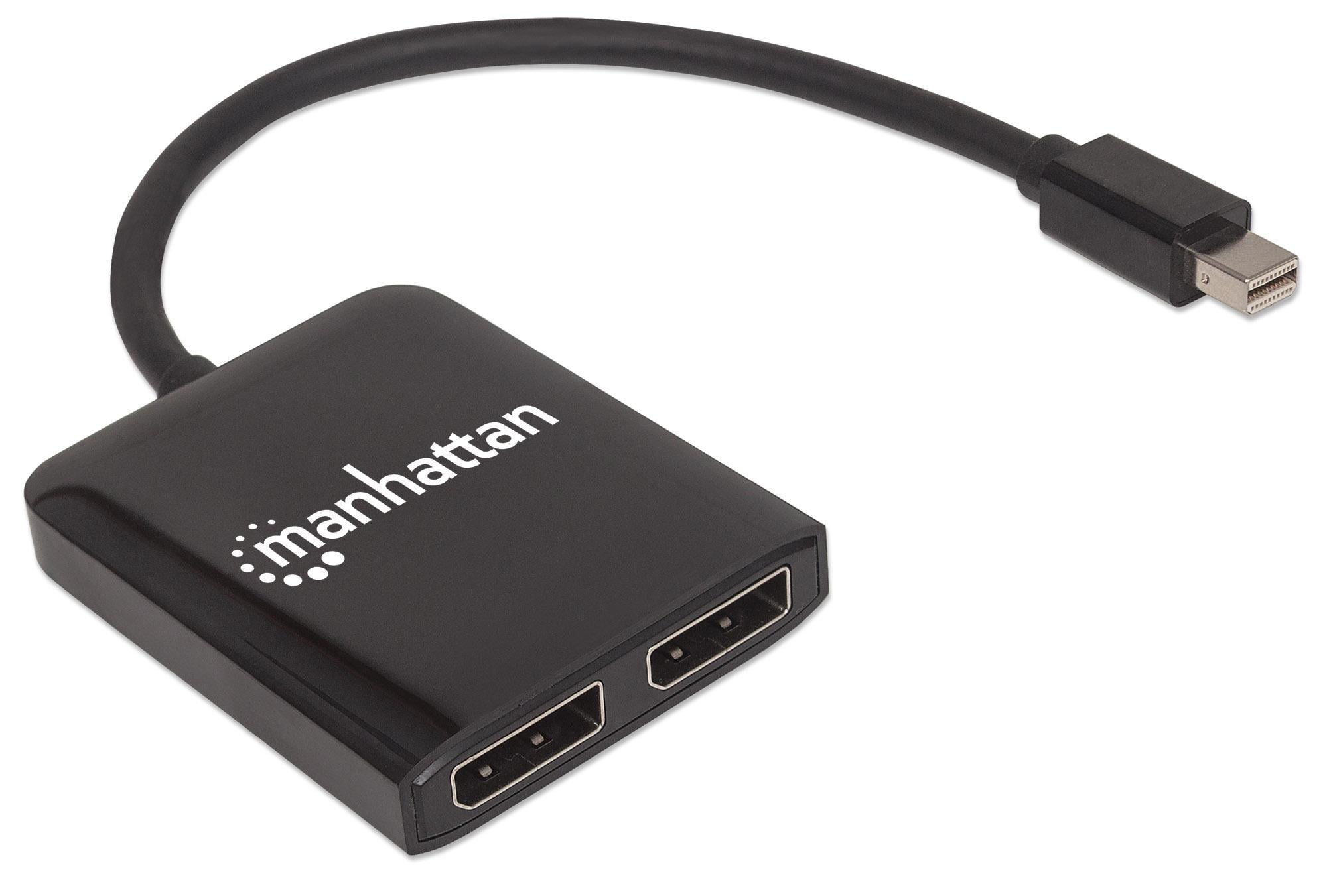

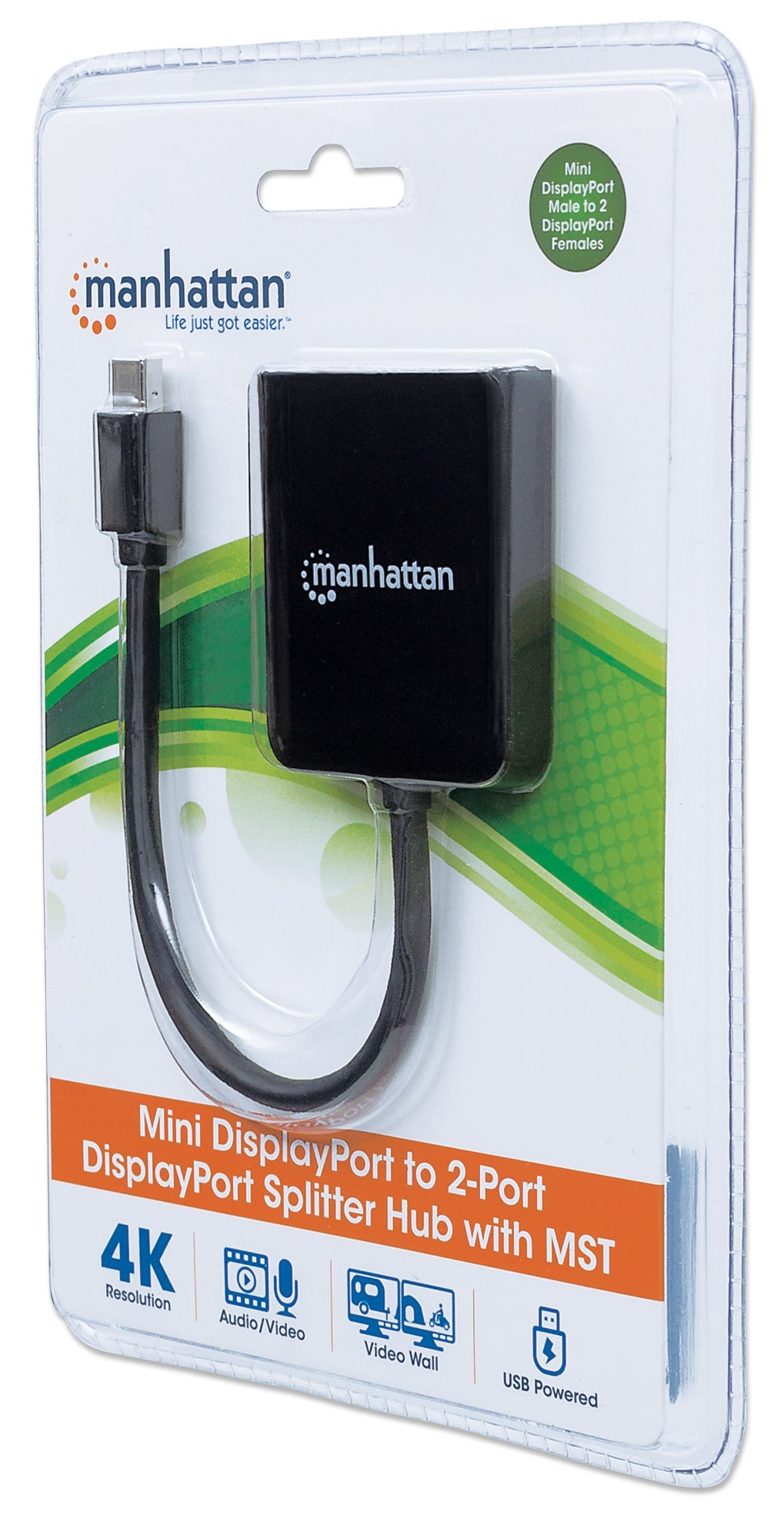

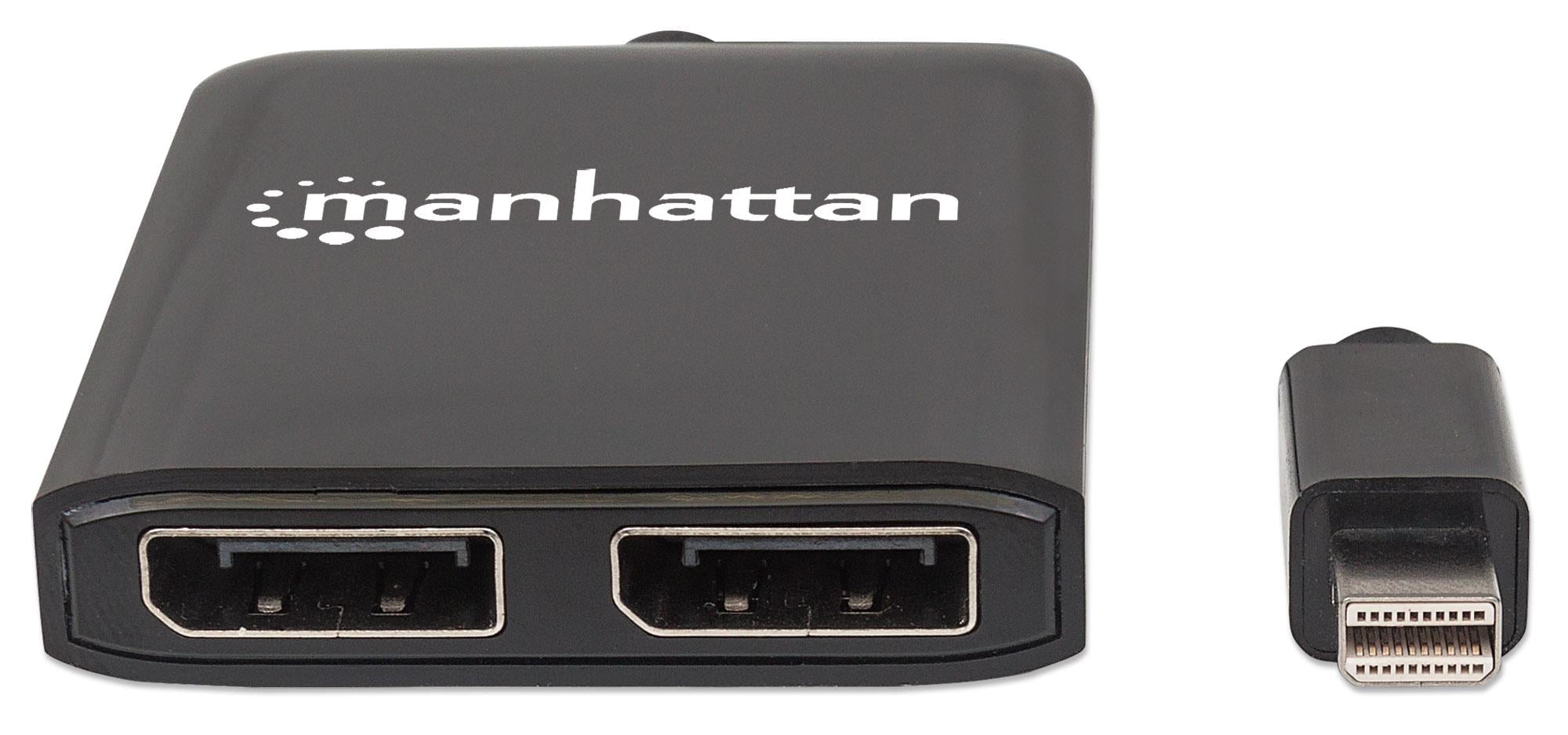

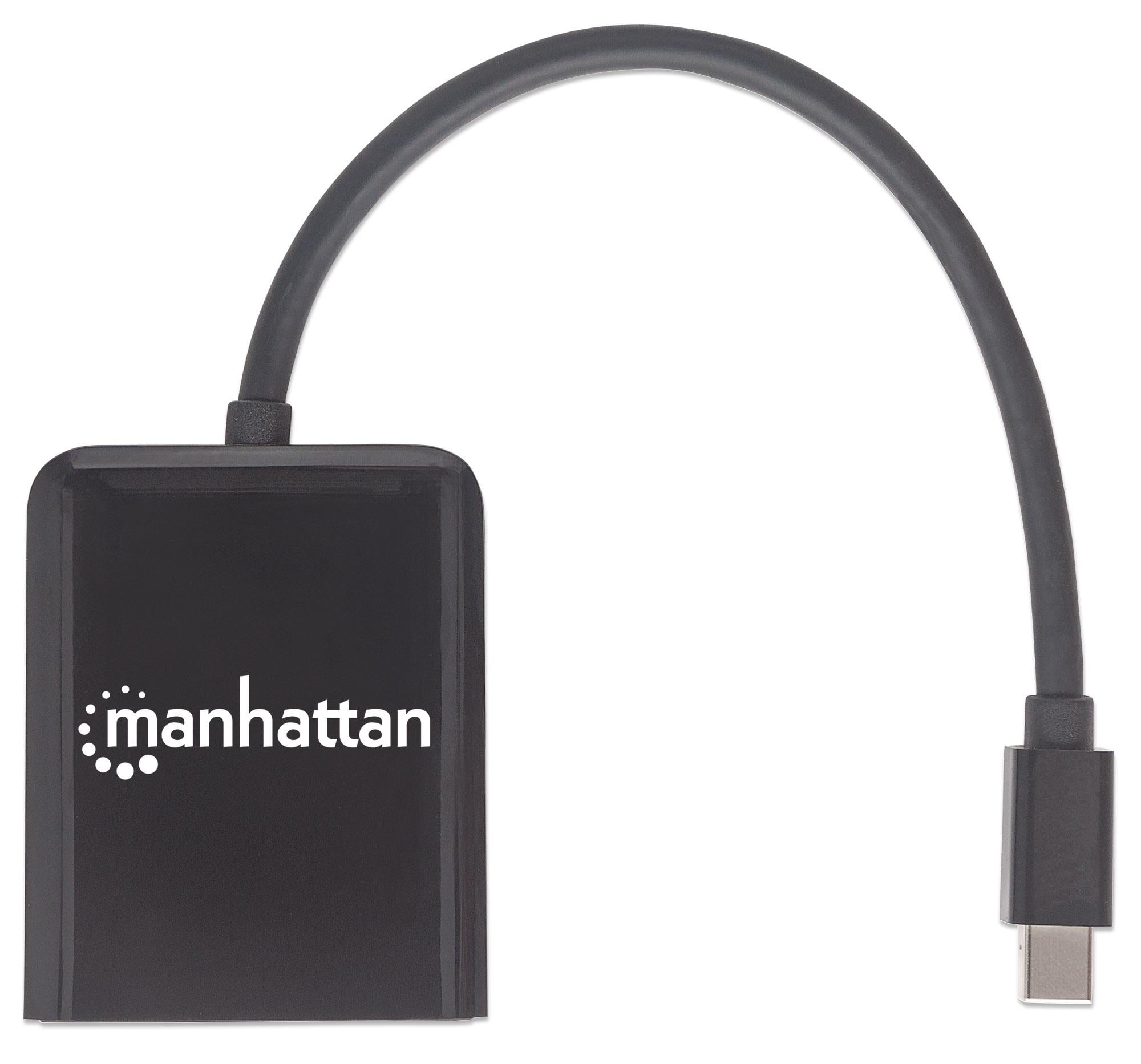

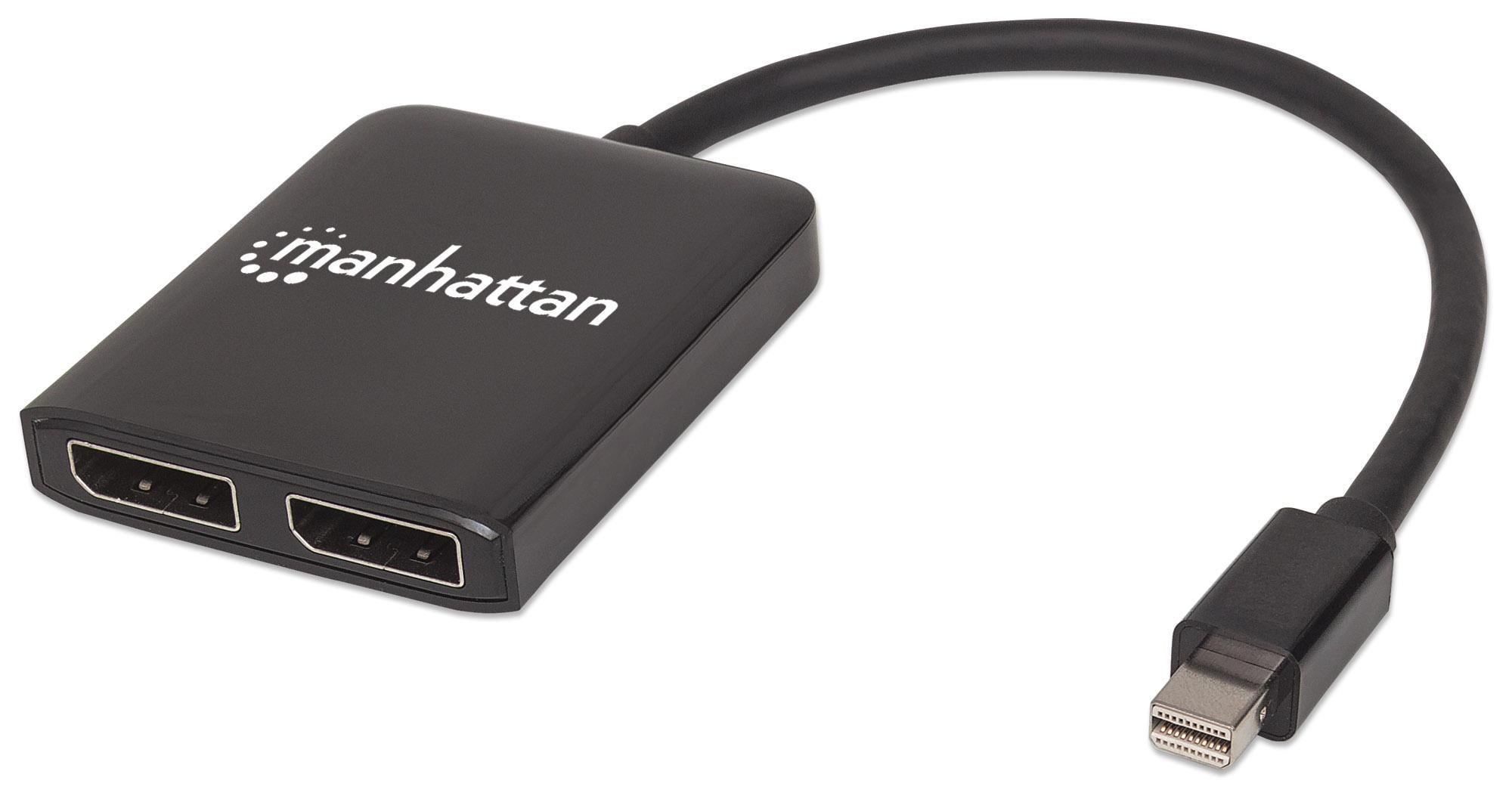

Splitter Hub Mini DisplayPort to 2 Doors DP MST 4 K@ 30 Hz - Manhattan IDATA MDP-DP 2 M

€38.72
Tax included €31.70 excl. VAT

Hub splitter Mini DisplayPort to 2 outputs DisplayPort. Supports 4 K@ 30 Hz, Mirror, Extended and MST mode. Integrated Mini DP cable, powered via USB.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Duplicate a Mini DisplayPort (Mini DP) signal into Ultra-High-definition on two displayPort UHD displays

  • Resolution 4 K@ 30 Hz, full 3 D and Deep Color video

  • Supports DTS compressed audio master and 7.1 surround audio up to 192 kHz

  • Supports modes à Mirror, Extended and Multi-Stream (MST) to maximize work and play capabilities

  • Modalità mirror duplicates the computer screen on two displays with resolution up to 4 K@ 30 Hz

  • The extended mode allows you to extend your desktop workspace to two additional screens with resolutions up to 4 K@ 30 Hz

  • The modeà MST allows you to create a video wall for a more ù intense viewing experience, using two screens as if they were a single screen - with resolutions up to 3840 x 2160 at 30 Hz -

  • Powered by USB with Plug and Play installation; no special configurations required

  • Integrated Mini DisplayPort Cable

  • Ideal to improve functionality à viewing or create a video wall in places like schools, churches, conference rooms, fairs and retail outlets; perfect for digital signage and AMD Eyefinity technology in the game

  • HDCP 2.2 compatible

  • Golden contacts for a long duration of time



Standard

  • DP 1.2

  • HDCP 2.2

  • DVI 1.0

  • CTS 1.4



Certifications

  • CE

  • FCC

  • RoHS2



Connections

  • A Mini DisplayPort (Mini DP) male (entrance)

  • Two DisplayPort (DP) female (exit)

  • One input power 5 V / 1 A USB Micro-B female



Input/Exit Signal

  • Video signal input: 0.5 – 1.0 V p-p

  • Incoming DDC signal: 5 V p-p (TTL)

  • Maximum single-link range: 5.4 Gbps, resolution 3840 x 2160 at 30 Hz

  • Video output: HDCP 2.2 , DVI 1.0



Video Solutions

  • DTV/HDTV: 480 i/ 480 w/ 576 i/ 576 w/ 720 w/ 1080 i/ 1080 w/ 4 K@ 30 Hz



General information

  • Dimensions: 255 x 50 x 11 mm

  • Micro-B USB power cable, 1 m

  • Weight: 50 g

  • Housing: plastic



Environmental features

  • Operating temperature: 0 - 40 °C

  • Storage temperature: - 20 - 60 °C

  • Humidità (without condensation): 0 - 96 %



System requirements

  • Windows XP/Vista// 7 / 8.1 / 10

  • DP 1.2 graphics card for MST function



Package contents

  • Splitter Hub Mini DisplayPort to 2 ports DisplayPort with MST

  • Rapid guide to education

  • Brand
  • Reference
    IDATA MDP-DP2M
  • In stock
    9 Items
  • EAN13
    0766623207775
