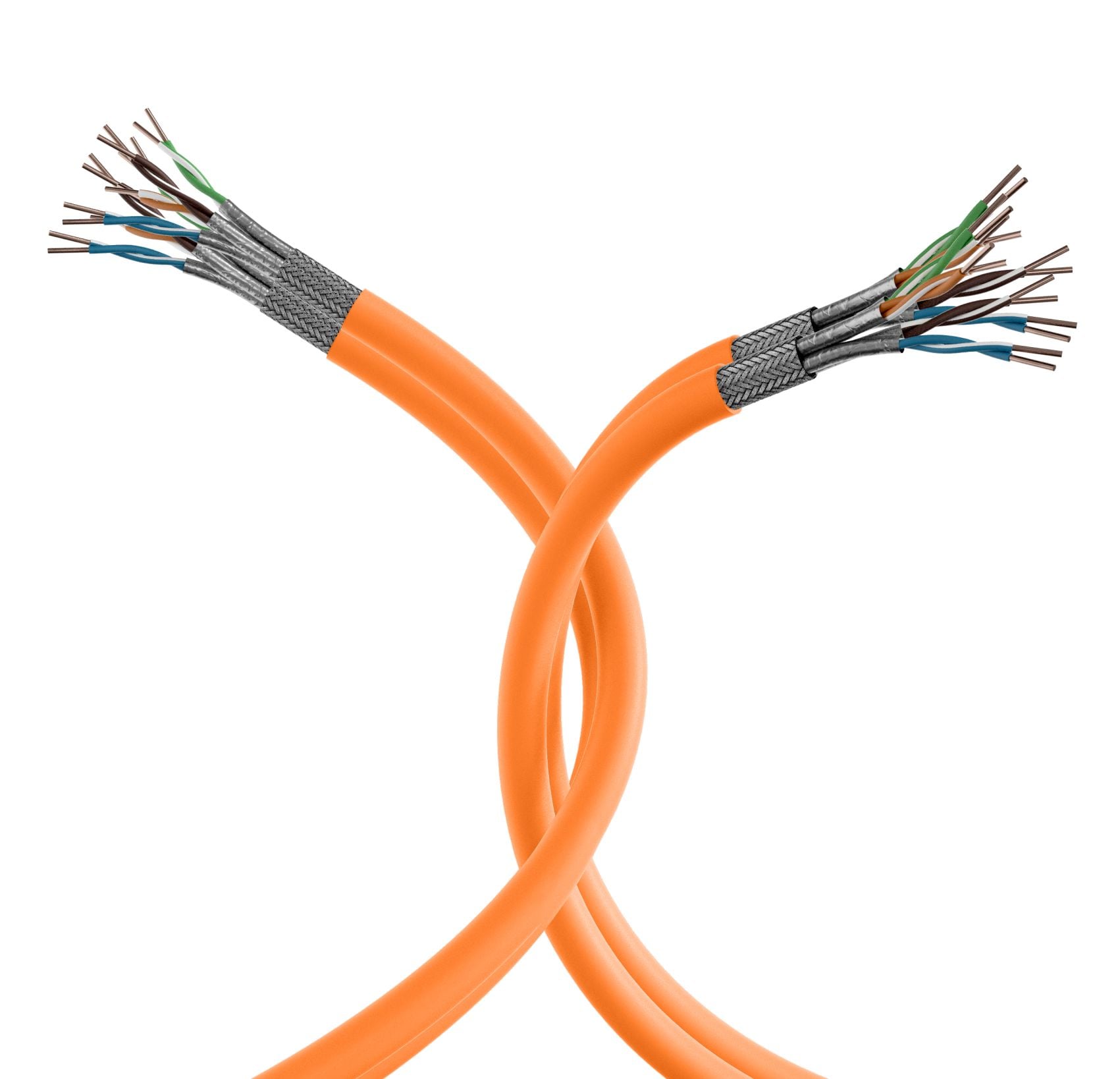

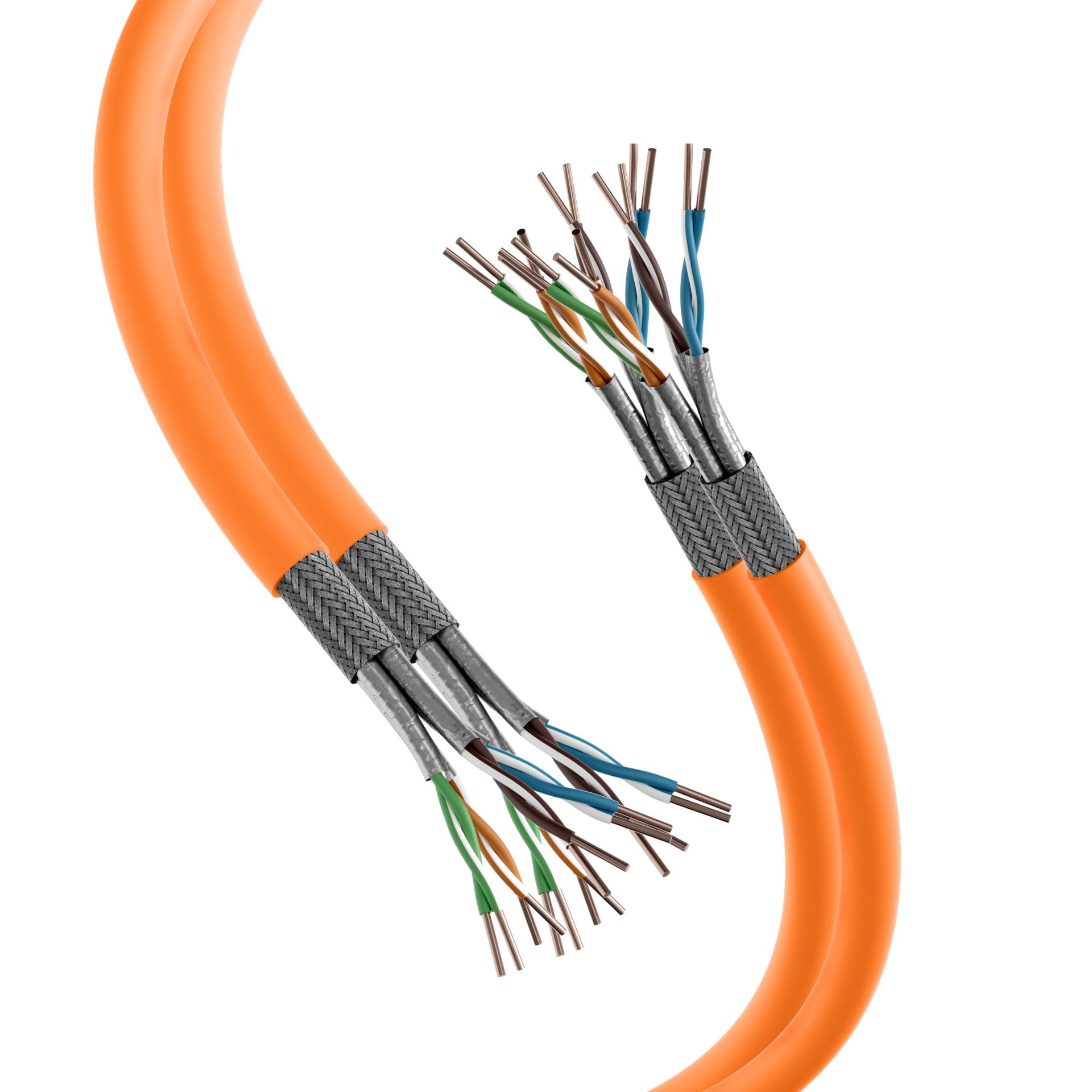

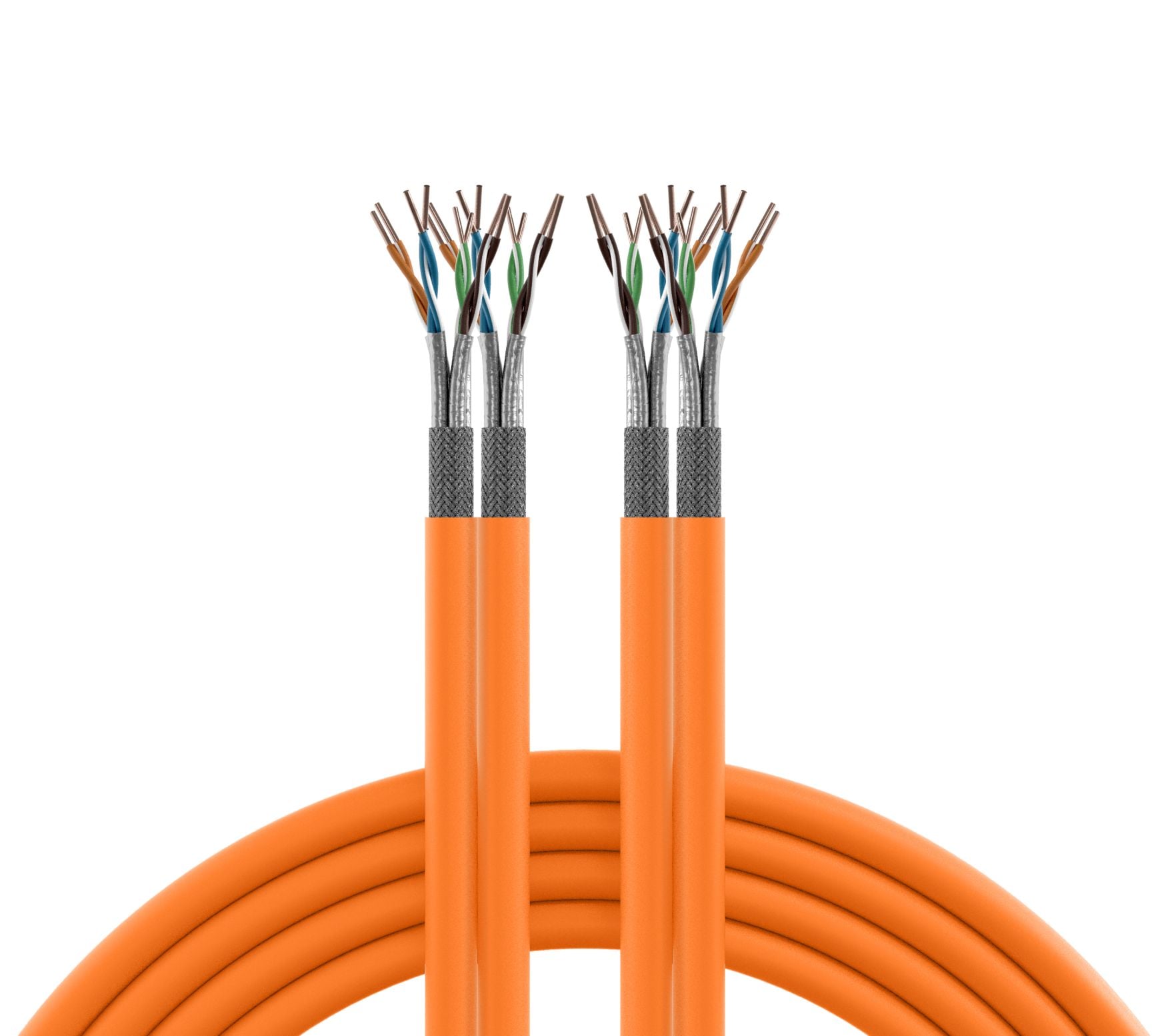

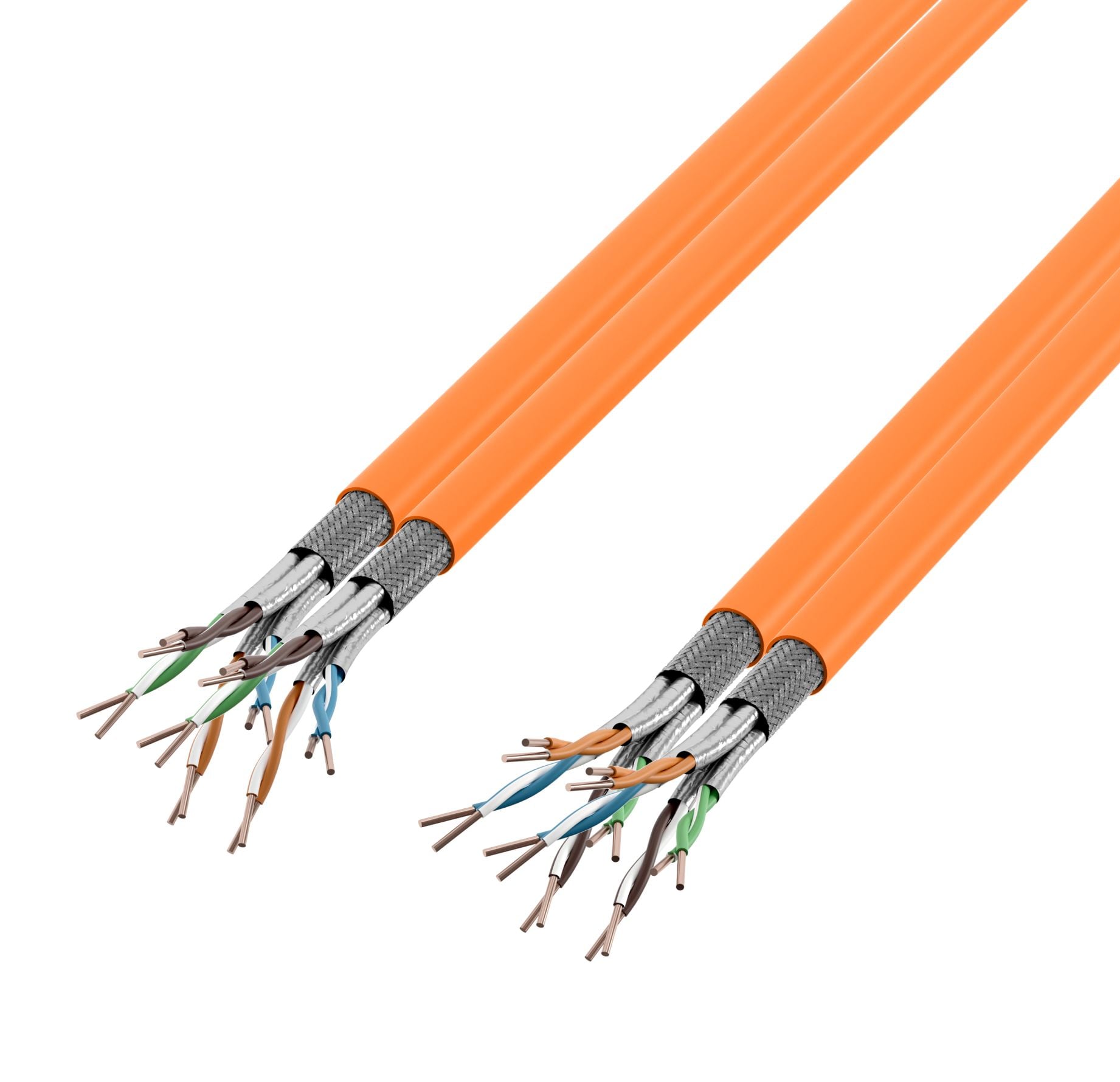

S/FTP Cat 7 A Copper 1200 MHz B 2 ca Duplex 500 m Hard Orange - ITP 10 -PIMF- 0500 BDX

The installation cable ITP 10 -PIMF- 0500 BDX è built for transmissions up to 1200 MHz and exceeds the requirements of category 7 A with the electric transmission properties. Suitable for structured wiring of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2: 2009) risp. EN 50173 - 1 (2009). The interlocked dowels are protected against interference with a shielding plate (PiMF) and a total shielding. This excellent protection also prevents the irradiation of the signals from cables. The shielding ensures the compliance ` of the interference emitted according to class B EN 55022 and the resistance to interference according to EN 55024. The roped dowels are minimal. This cable is possible. transmission speeds up to 10 GBit according to IEEE 802.3 .



Technical specifications

• Bending radius (dynamic): 8 x OD


• Bending radius (static): 4 x OD


• S/FTP cable structures


• Category 7 A


• Conductor category Kl. 1 = single wire


• CU conductive material, tinned


• AWG 22


• Color: orange


• Conductor diameter 0,62 mm


• External sheath material: FRNC


• CPR (EU 305 / 2011) class B 2 approx. - EN 50575 : 2014 + A 1 : 2016


• Fireproof EN 60332 - 1


• Halogen-free EN 60754 - 1 / 2


• Low smoke EN 61034 - 2


• NVP value 78 %


• Resistance of loop 143,4 Ohm/km


• Separating class sec. EN 50174 - 2: D


• Pairing Attenuation Type 1


• Relaxation of coupling 90 dB


• Maximum frequency 1200 MHz


• Standard wiring: ISO/IEC 11801 ;EN 50173 - 1 ;EN 50288


• Harmonised standard EN 50575


• IEEE 802.3 transmission standard from 10 Mbit to 10 Gbit


• IEC 61156 cable - 5



Environmental features

• Working temperature, flexible - 20 – 50 °C


• Operating temperature, fix - 20 – 60 °C


• Operating temperature, storage 0 – 50 °C



Certifications

• CE


• RoHS



Package contents

• Cable mat Cat. 7 A S/FPT Duplex on wooden coil
