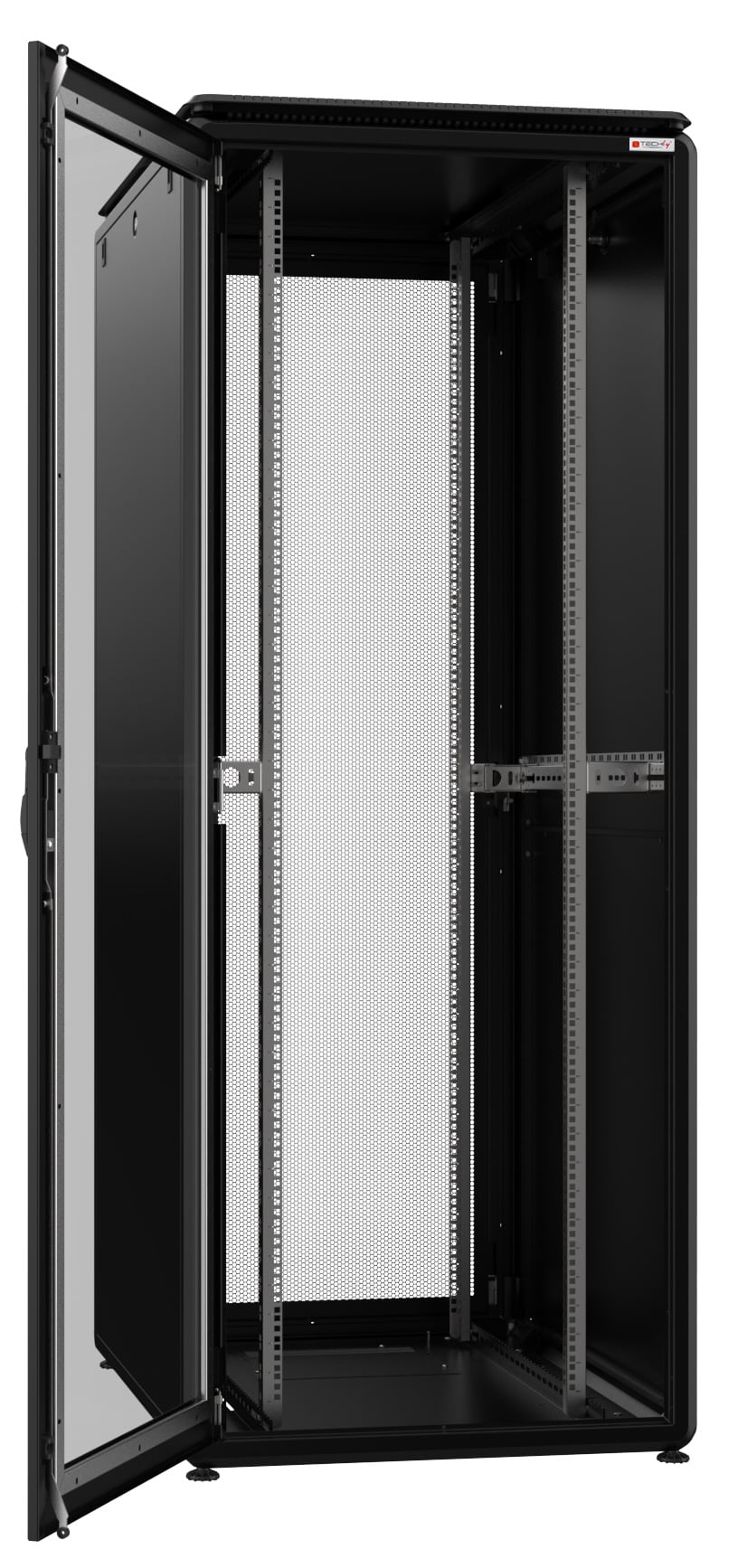

Server Rack Cabinet 19" 600x1000 26U Black series Evolution - Techly Professional I-CASE EV-2661B

Solid floor-standing rack cabinet characterized by a robust structure with 19” mounting rails of 2mm thickness and innovative corner profiles of 3 mm thickness and reinforced base. The robustness of the structure is combined with an innovative and modern design that does not neglect practicality in installation. In fact, using a simple key, the cabinet can be easily assembled and disassembled, thus allowing quick installation. This speed of assembly is guaranteed by the quick-release hinges on the front door and the quarter-turn locks on the panels. Other fundamental features such as the reversible door, removable side and rear panels, double pair of mounting rails, the bottom which can be kept closed or open at discretion to favor air circulation, together with the wide range of accessories offered, make these cabinets able to satisfy all installation needs. Furthermore, thanks to the increased depth, they allow housing and protection of all main types of servers on the market.



Features

• Panels and door easily removable to facilitate equipment installation


• Reversible front door with tempered glass conforming to standard EN UNI 12150-1, with quick-release hinges and handle with key lock


• Removable blind side panels with key lock

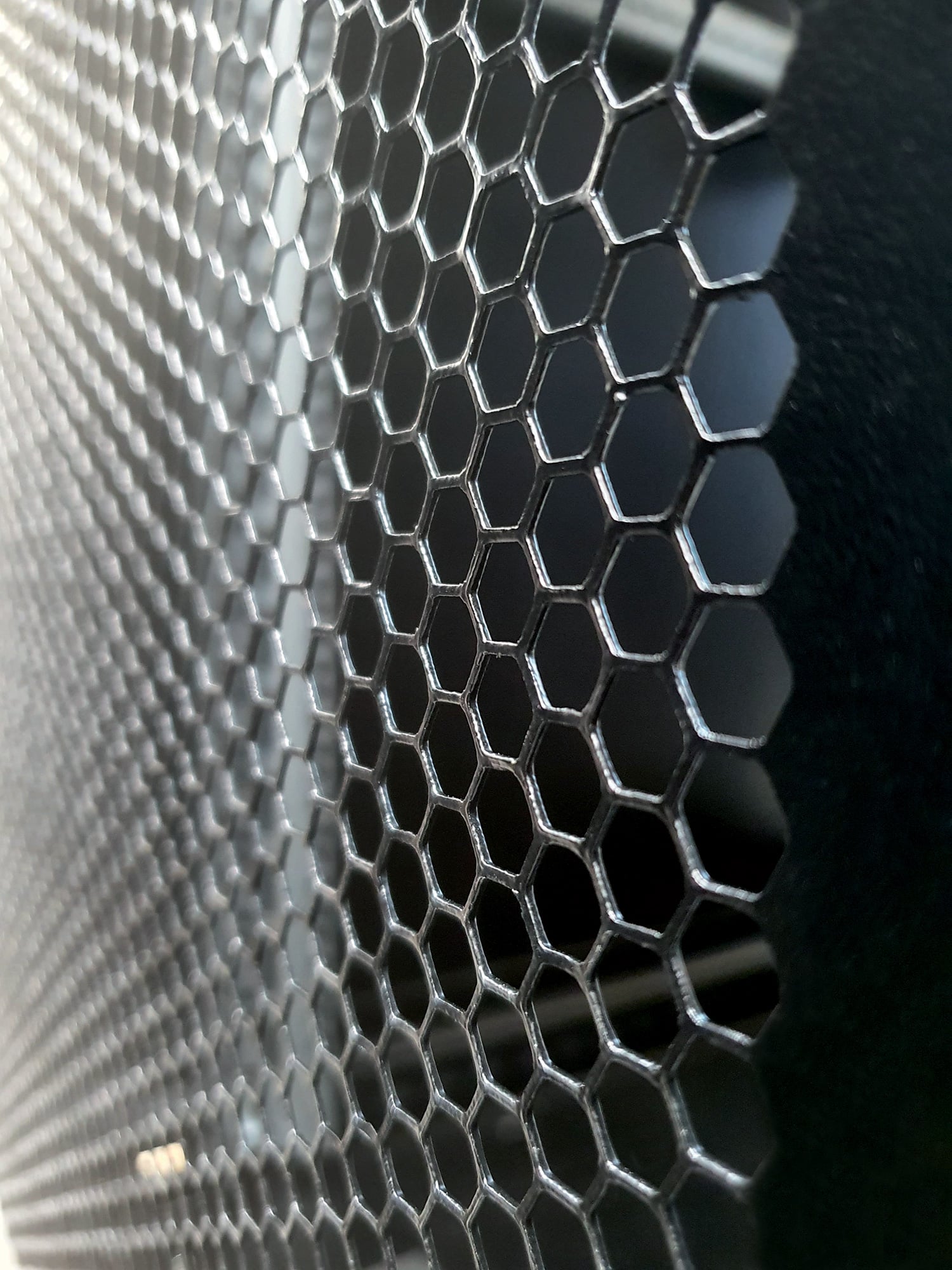

• Rear door perforated at 63%, removable with key lock


• Special pagoda roof installed 10 mm from the cabinet structure to facilitate passive ventilation if no ventilation units are present, or active ventilation if ventilation units are installed on the roof


• Bottom prepared for cable entry and equipped with a sliding panel (300x250 mm) which, when closed, allows placing devices such as UPS, when open, promotes ventilation

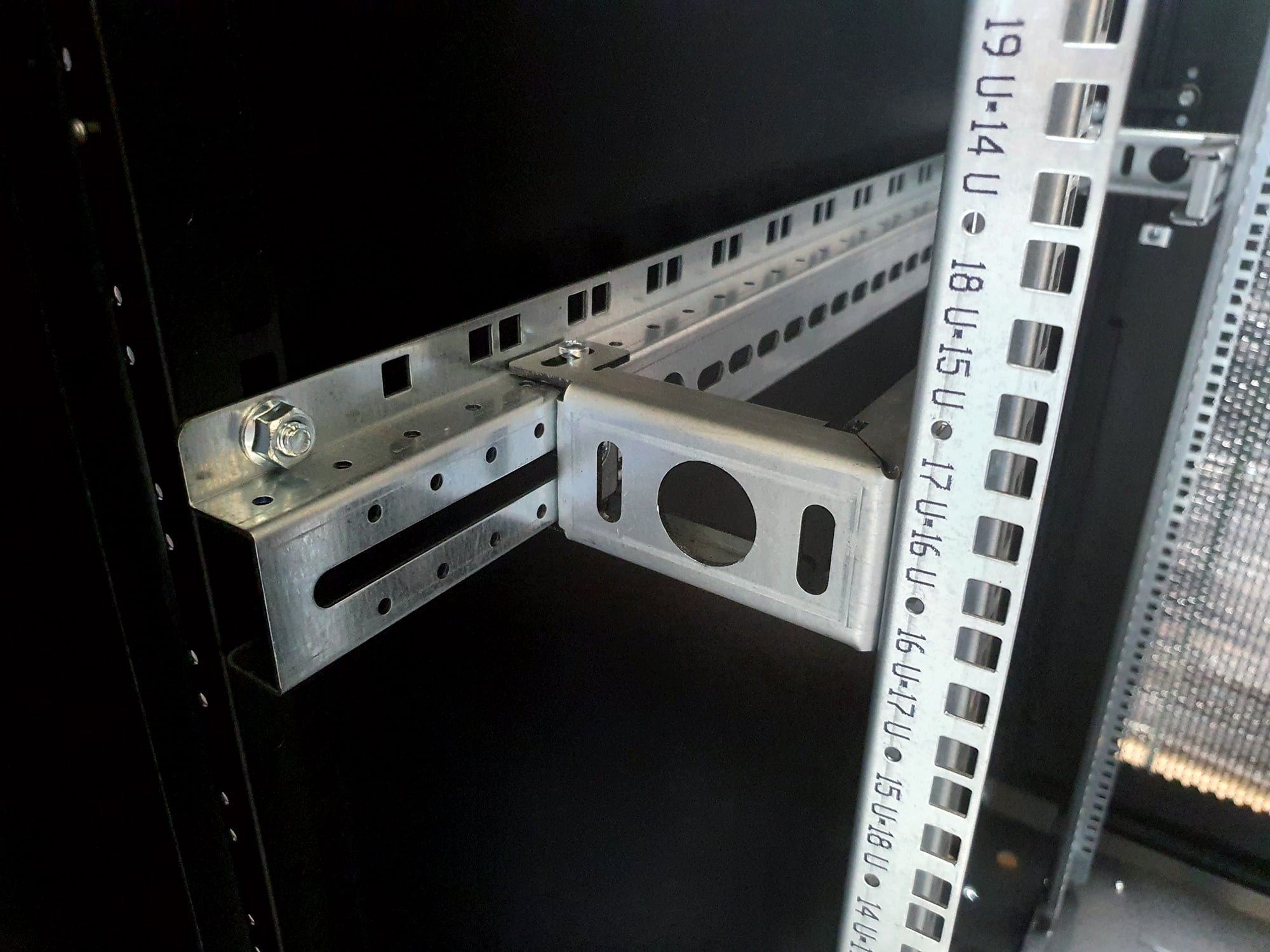

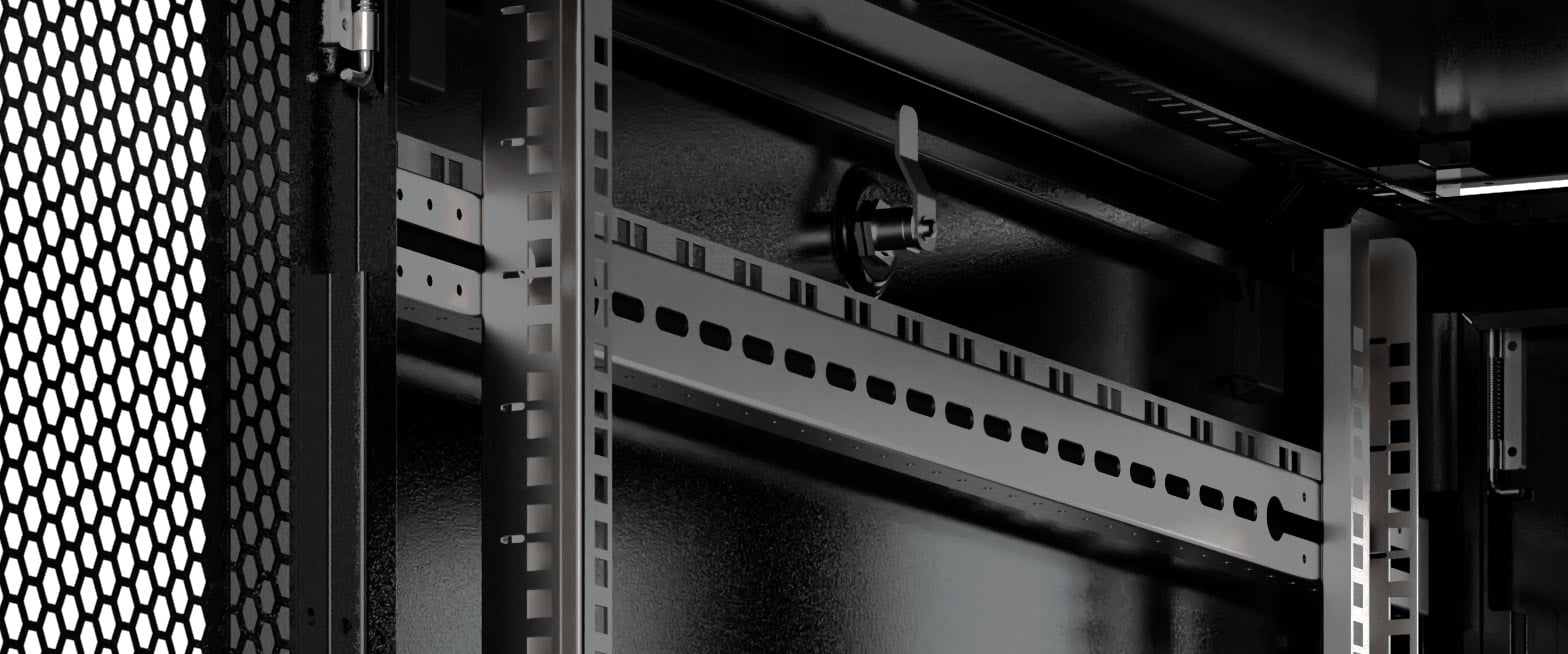

• Supplied with a pair of numbered 19” front and rear mounting rails adjustable in depth


• Supplied with feet


• Static load capacity 2000 kg


• Protection rating IP20 according to EN 60529


• Color: RAL9005 (Black)


• External dimensions: (H x W x D) 1342 x 600 x 1000 mm



Certifications

• CE certification according to EN 62208


• Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN60529; EN12150-1; RoHS II 2001/65/EU
