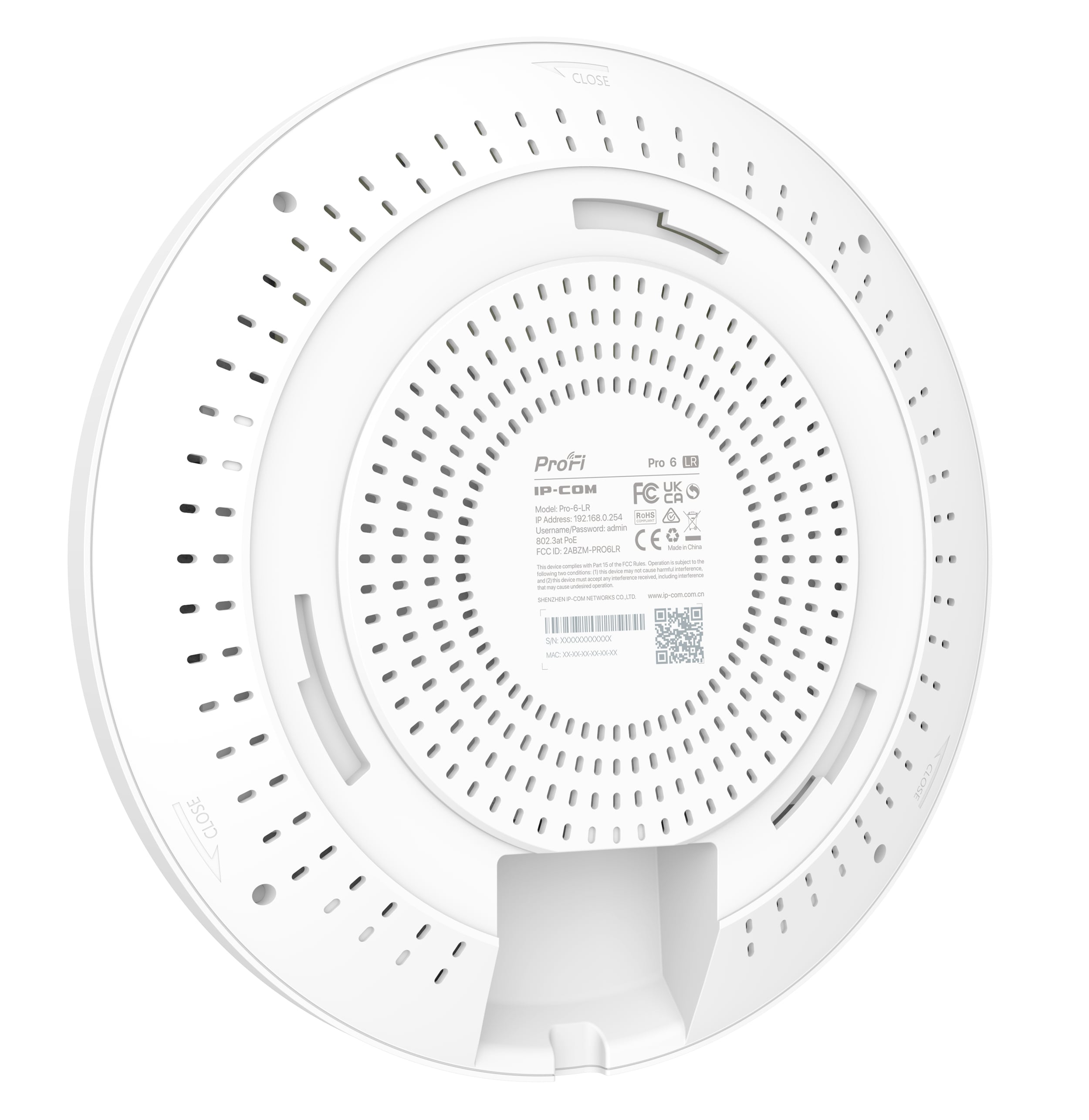

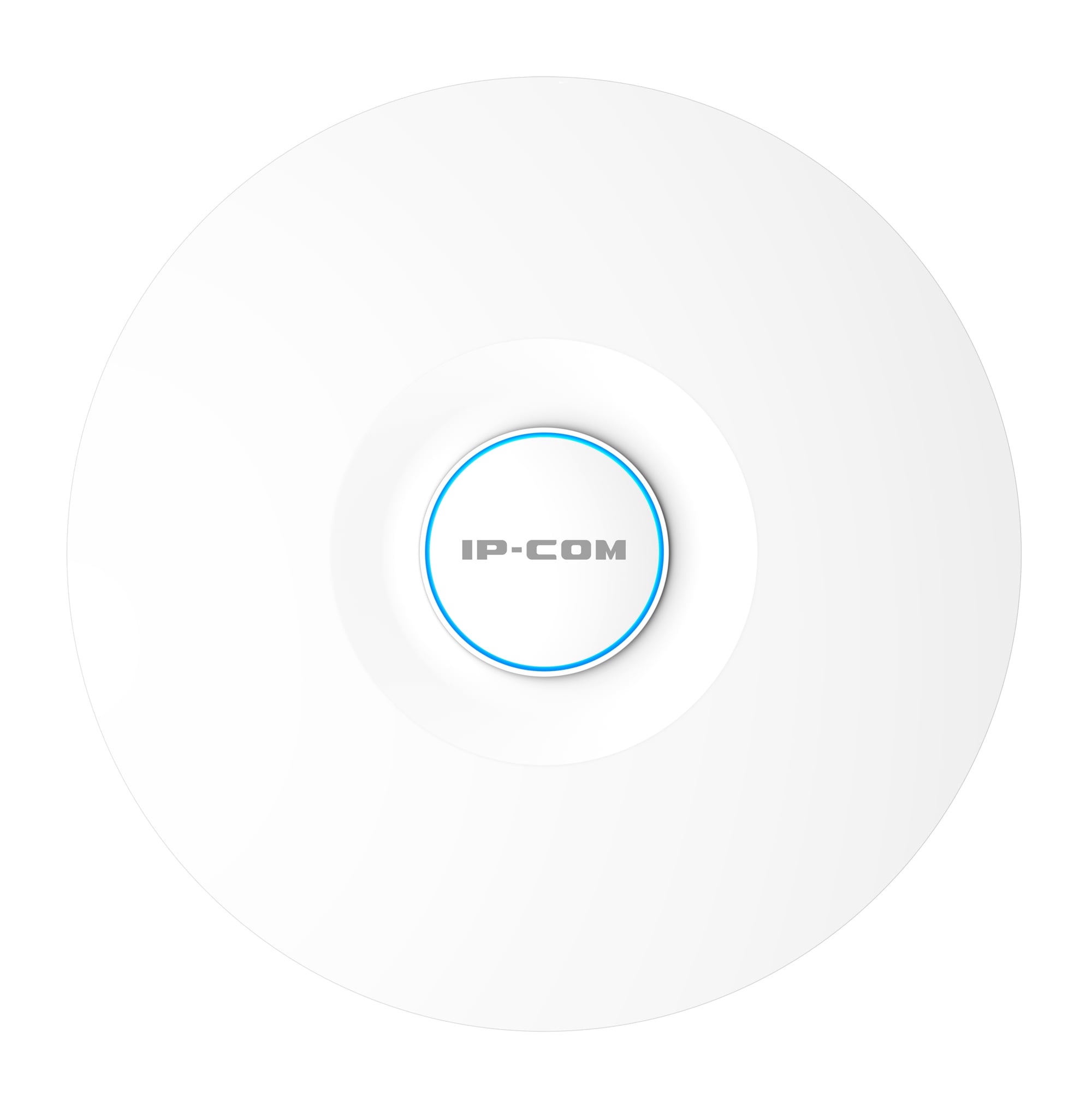

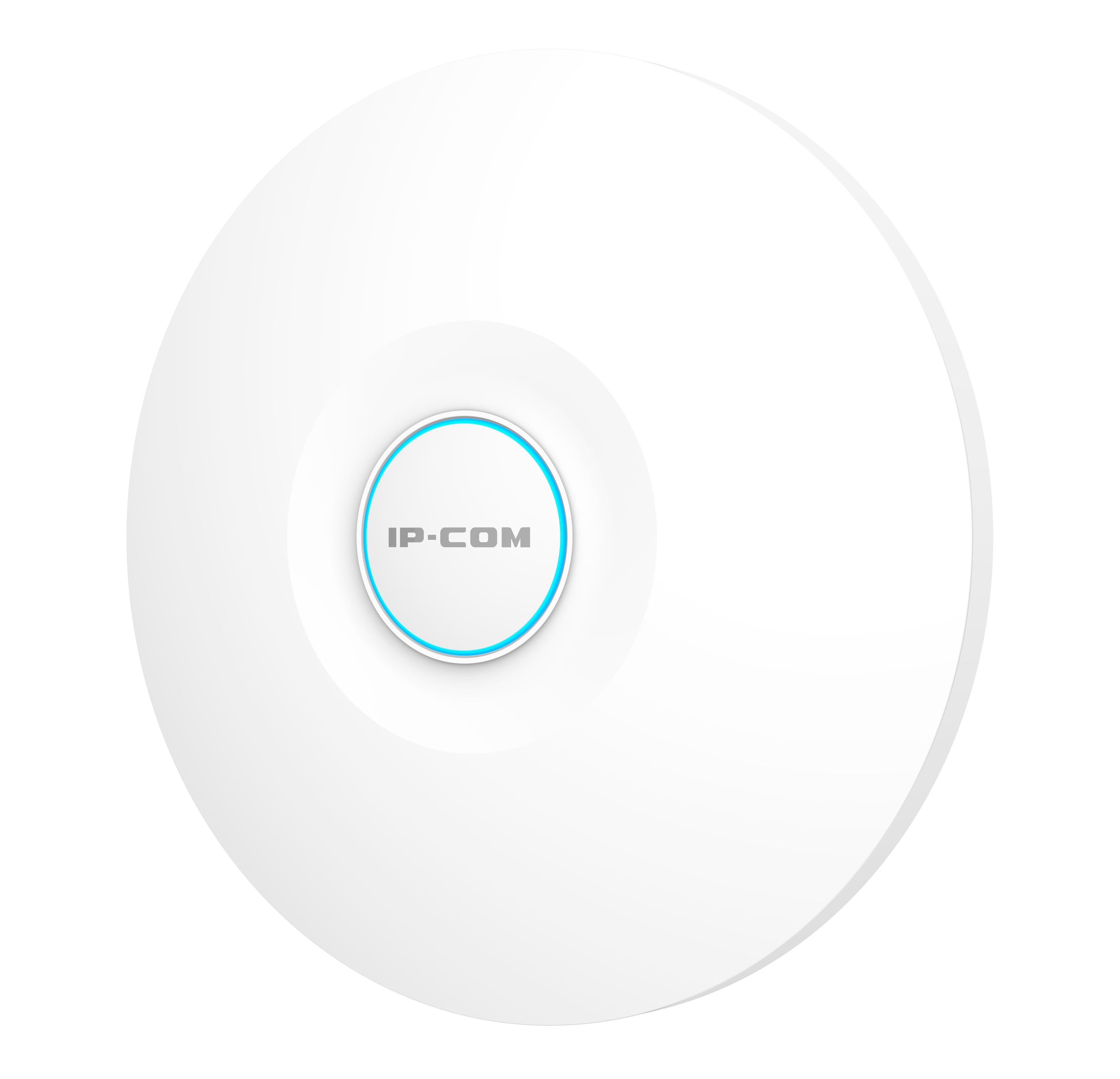

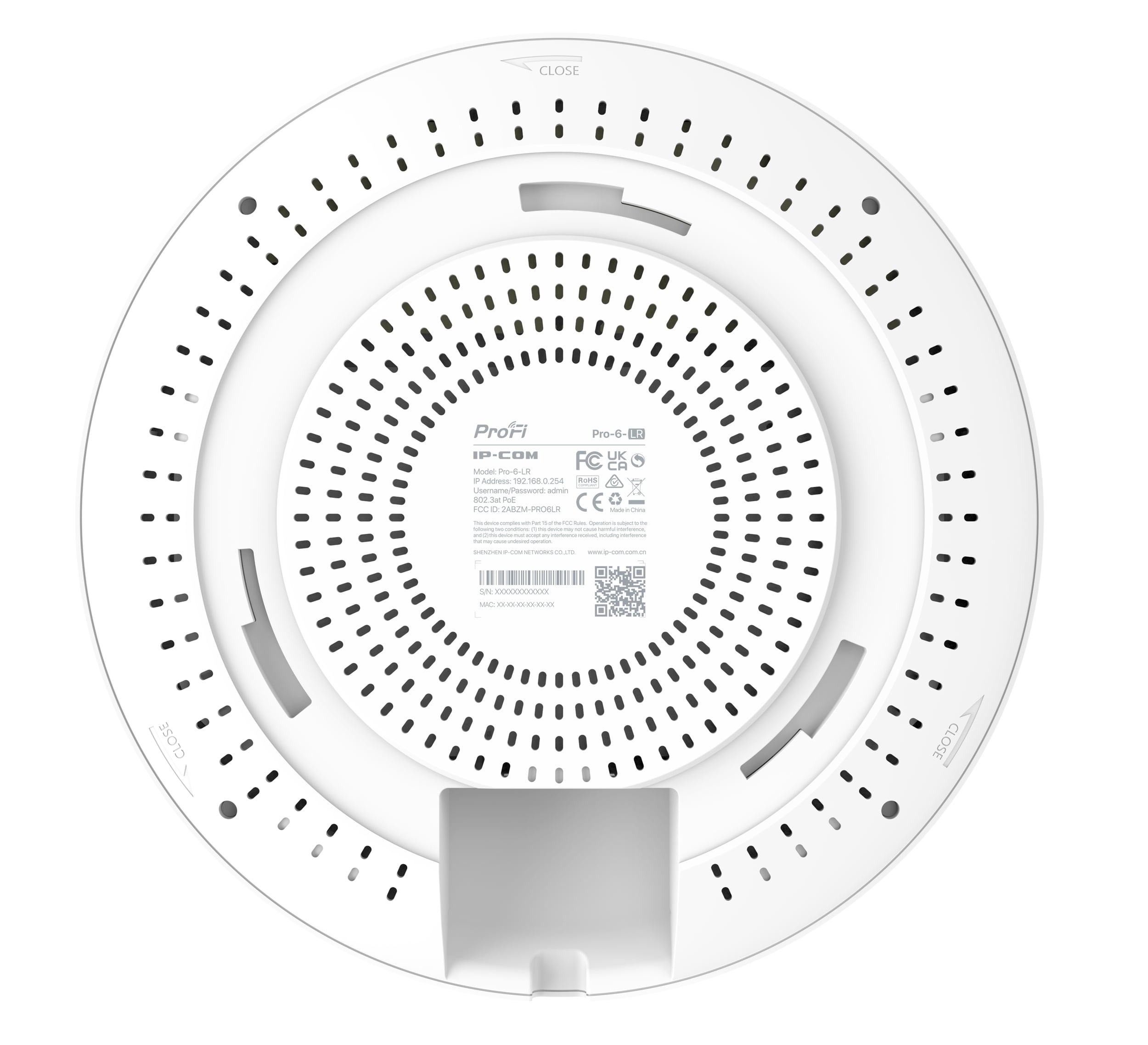

Long Radius Access Point Dual Band Wi-Fi 6 - IP-COM ICIP-PRO 6 LR

ICIP-PRO 6 LR è designed on the basis of the new Wi-Fi 6 technology. It achieves 160 MHz bandwidth and 5 GHz velocity up to 2,4 Gbps, a velocityà three times that of the normal Wi-Fi 5 AP and twice that of the normal Wi-Fi 6 AP.

The application of new technologies such as OFDMA, spatial multiplexing and MU-MIMO brings the network capability of a single Pro- 6 -LR to 4 times higher. The ad alta potenza RF design helps to maintain the quality of the Wi-Fi signal even over long distances, so that wireless clients and APs can operate in modeà high-performance Wi-Fi 6. Pro- 6 -LR è the perfect choice for locations such as companies and hotels to implement high-performance Wi-Fi networks.

ProFi Controller simplifies the management and monitoring of the entire ProFi series in real time and cloud services allow remote and secure access free of device location restrictions.

• Velocità dual-band data up to 3000 Mbps


• The new WPA 3 encryption mode protects network security


• MIMO band 2,4 GHz 2 x 2 with a speed à radio of 600 Mbps


• Power input with PoE 802.3 at



Wi-Fi at 3 Gbps, velocità 2,5 higher

Both the 2,4 GHz and 5 GHz radio bands support the new 6 Wi-Fi standard and the simultaneous speedà Wi-Fi reaches the 3 Gbps, 2,5 times that of the latest generation of AP (AC 1200).



Greater capacity;

Supporting OFDMA, SR and MU-MIMO, 802.11 ax greatly improves the system's capacityà compared to the latest generation 802.11 ac. With TWT technology, AP can ò program the reactivation and suspension of clients uniformly, significantly reducing client conflicts and the necessary reactivations, and è thus suitable for high density crowd scenarios; where a large number of clients are distributed.



More ù 20 wide Wi-Fi coverage %

With the long transmission mechanism of OFDM symbols and narrow-band transmission to 2 MHz, the 802.11 ax protocol significantly reduces the rate of packet loss and noise interference and improves the sensitivityà client reception. In addition, Pro- 6 -LR adopts a high-specific RF amplification circuit, greatly expanding the Wi-Fi coverage.



Strong ability & agrave; anti-interference

Supporting BSS coloring, dynamic CCA threshold, and power control, the 802.11 ax protocol significantly reduces channel interference in high density&agrave scenarios; and improves the rate of use of spectrum resources, improving capacityà anti-interference compared to 802.11 ac.



Enhanced Security

The AP Wi-Fi 6 supports the next generation WPA 3 Wi-Fi encryption protocol.

With the WPA 3 encryption protocol, even the simple password cannot be decrypted, greatly improving the security of Wi-Fi networks.



Smart roaming protocol

Supporting smart roaming technology based on 802.11 kv protocol, Pro- 6 -LR allows wireless clients to automatically connect to the AP with a better signal, effectively improving user experience.



PoE standard supported, easy installation and distribution

The efficient components and the excellent hardware design guarantee the 802.3 at standard power supply to the AP gigabit dual-band 802.11 ax, simplifying installation and implementation. By effectively improving the user experience.



Centralized management

The ProFi controller simplifies the management and monitoring of the entire ProFi series in real time and cloud services allow remote and secure access free of device location restrictions.



Technical specifications

• 2,4 GHz frequency band, 5 GHz


• Wireless standards IEEE 802.11 a/b/g/n/ac/ax


• Velocità 2,4 GHz data 1 - 574 Mbps


• Velocità 5 GHz data 6 - 2402 Mbps


• 20 MHz/ 40 MHz/ 80 MHz/ 160 MHz channel width


• MU-MIMO: 2 X 2 MU-MIMO

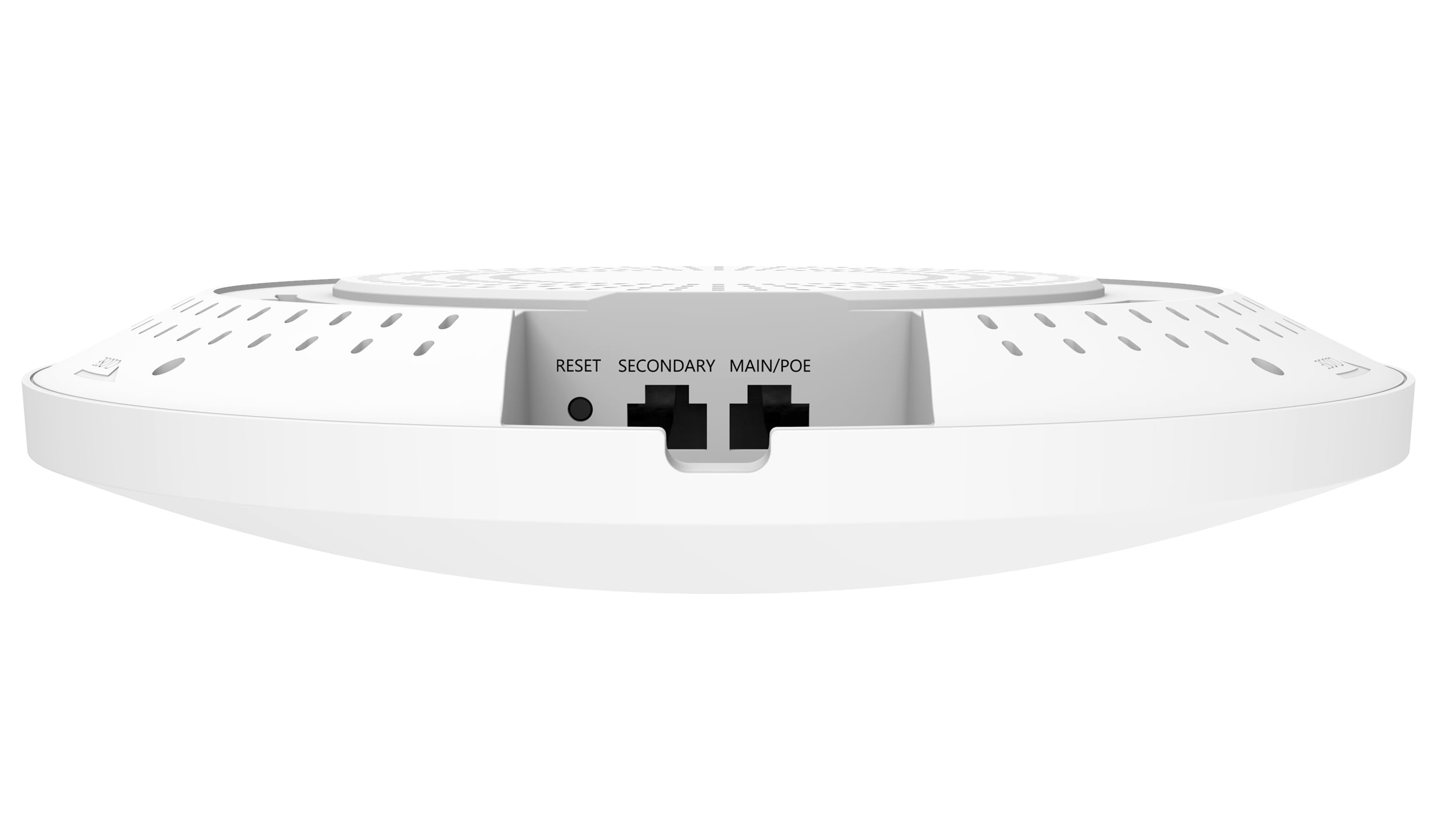

• Ethernet ports:



1 x 10 / 100 / 1000 Mbps Ethernet Port

1 x 10 / 100 / 1000 Mbps Ethernet Port (PoE)

• Power Standard IEEE 802.3 at PoE



Dimensions

• Width: 250.6 mm


• Length: 250.6 mm


• Height: 55 mm



Environmental features

• Operating temperature: - 10 / 45 °C


• Operating humidità (10 % - 90 %) RH without condensation


• Storage temperature - 30 / 70 °C


• Storage humidity (10 % - 90 %) RH, without condensation



Package contents

• ICIP-PRO 6 LR access point


• User manual
