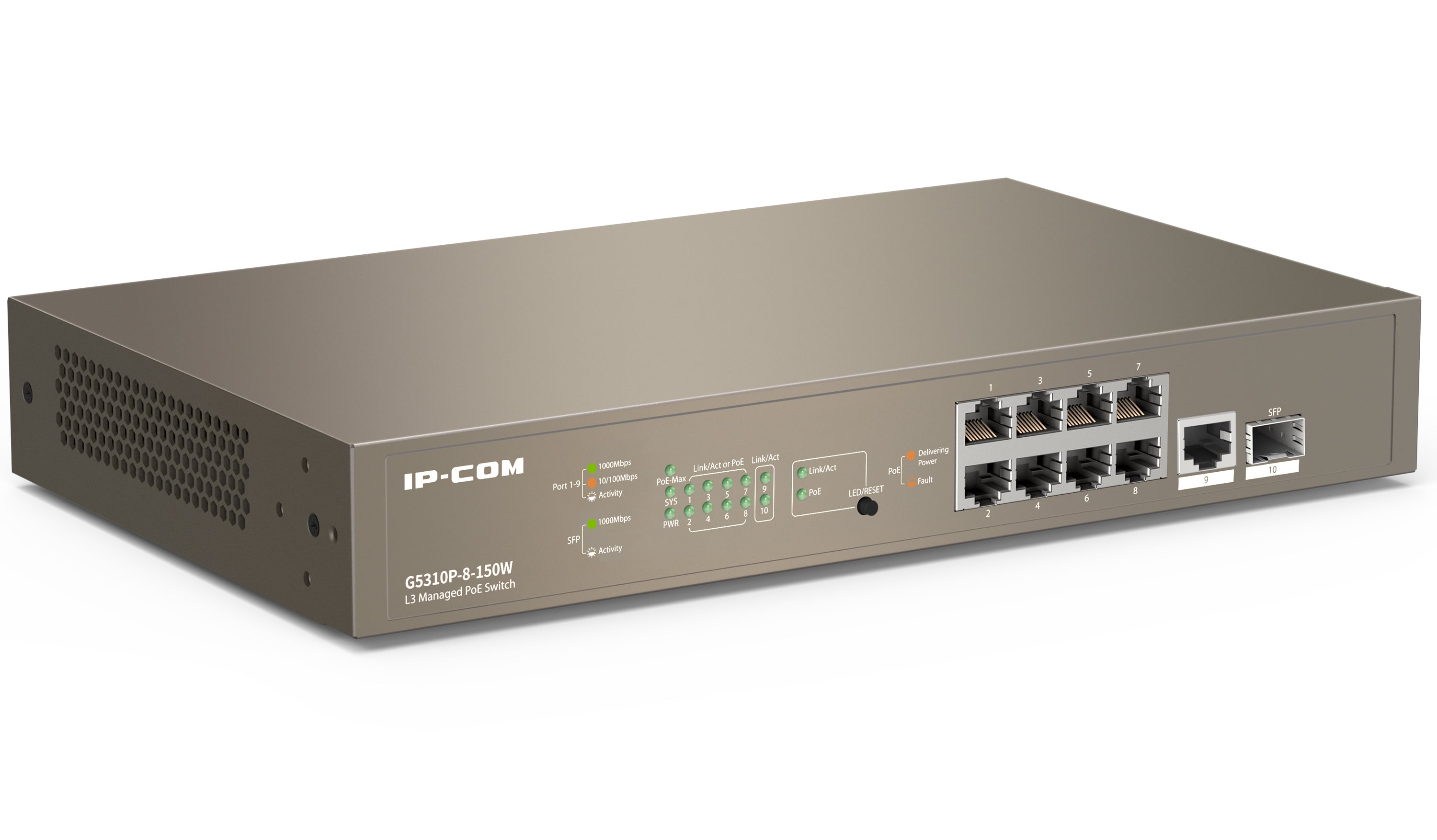

Switch Managed Layer 3 Cloud PoE 9 p Gigabit 1 SFP 130 W - Ip-com ICIP-G 5310 P- 8

ICIP-G 5310 P- 8 è a PoE switch managed by IP-COM Layer- 3 . To meet the request for high-performance access, the switch provides 9 Ethernet ports 10 / 100 / 1000 Mbps Base-T and 1 SFP Base-X ports from 1000 Mbps separate and PoE power up to 130 W. With innovative hardware for structure and platform of the software, it has a powerful capabilityà processing and a complete safety protection mechanism, making management and maintenance easy and simple, fully satisfying the requirements of high-density user access & high-performance aggregation, ideal for the level of aggregation or level of access of medium and large-sized networks such as companies and campuses. Includes brackets for mounting 19.



Double professional protection against lightning from 6 kV

Provides double 6 kV door and power lightning protection and supports multiple protection functions, such as PSE short circuit protection, PoE overload protection, overtemperature protection and overvoltage protection and overcurrent protection.



3 level routing protocol

It supports the 3 level static routing protocol, meeting the demand of the network environment at 3 levels where 3 level networks should be interconnected while 2 level networks should be isolated, thus achieving a fast and efficient 3 routing forwarding.



Cloud managed IMS

The switch can & grave; be managed by the IMS IP-COM cloud platform and supports remote configuration and maintenance, greatly reducing the after-sales costs of the user.



Rich functionality; safety

Supports IP address filter, MAC address filter, ARP filter, DoS attack defense, and ACL access control list, improving network security.



Technical specifications

• Standard: IEEE 802.3 ,EEE 802.3 u,EEE 802.3 ab,EEE 802.3 a,EEE 802.3 z,EEE 802.3 x,EEE 802.1 p,EEE 802.1 q,EEE 802.1 w,EEE 802.1 d,EEE 802.1 s,EEE 802.3 af/at


• A Link/Act or PoE LED indicator for each port


• Mode conversion LED indicator; One Link/One Link/Act for each device


• An LED mode conversion indicator; PoE for each device


• A PoE Max LED indicator for each device


• One LED power indicator for each device


• One LED SYS indicator for each device



Interfaces:

• 8 Ethernet doors 10 / 100 / 1000 Base-T (data/power supply)


• 1 x Ethernet ports 10 / 100 / 1000 Base-T (data)


• 1 x SFP 1000 Base-X port (data)


• Lightning protection: door and power 6 kV


• Modelità Forwarding: store-and-forward


• Capacità switching: 20 Gbps


• Velocità Package Forwarder: 14,9 Mpps


• Buffer: 12 Mbit


• MAC Address Table: 16 K


• PoE Power Supply: The ports from 1 to 8 support power supply PoE standard IEEE 802.3 af/at 1 2 4 5 + and 3 6 7 8 -


• Full switch consumption:


• Total power consumption of the switch: < 150W


• Maximum output power PoE: 130 W


• Input voltage 100 - 240 V 50 / 60 Hz



Environmental features

• Operating temperature: 0 °C - 40 °C


• Storage temperature: - 40 °C - 70 °C


• Operating humidity: (10 % - 90 %)UR, without condensation


• Storage humidity: (5 % - 90 %)



Dimensions

• Width: 294 mm


• Depthà: 179.6 mm


• Height: 44 mm



Certifications

• CE


• FCC


• RoHS



Package contents

• ICIP-G 5310 P- 8 Switch


• 19 rack mounting brackets


• User manual
