Security Kit HD Wireless Video to 4 Channels Cameras - IC-K 4 W- 3 TC

The K 4 W- 3 TC 4 channel HD video security kit contains a Wi-Fi network VCR and four Wi-Fi cameras.

The set supports automatic WiFi connection and networking, super HD color video recording from 3 MP, motion detection S, sound and light warning, high-performance video compression H. 265 and you can view videos via the app. It provides a wireless video monitoring solution for single-family homes, large households, shops, restaurants, factories, offices and farms.



Wi-Fi network

The network video recorder and cameras use Wi-Fi, which frees from the laying of Ethernet cables, facilitates installation and extends it saving time, energy and money.



Strong signal

The independent Wi-Fi chip, the double high gain antennas and the professional wireless transmission technology of Tent increase the stable and strong signal. It is able to produce clear and fluid images when the Wi-Fi signal covers a radius of 200 m in an open environment or penetrates through 3 walls.



Automatic connection

After being turned on, the NVR searches, finds and automatically adds cameras, the easy and fast network connection è does not require manual operations.



HD video from 3 MP

The updated HD camera from 3 MP (2304 × 1296) acquires clear and delicate monitoring images, offering more ù details and a brand new visual experience.



Color Image

Equipped with two high power spotlights and two IR lights and high sensitivity image sensors, your night vision è now illuminated and colored. Three night vision modes are available: Smart Mode, Fullcolor Mode and Black & White Mode.



Motion Detection

Based on deep learning image identification technology, the cameras accurately recognize the movement of the figure. Non-human targets are filtered, greatly improving the alarm accuracy.



Sound and bright alarm

When an intrusion is detected during, a sound and flashing alarm is triggered to alert intruders. At the same time, the alarm message will verrà sent to the TDSEE app to promote security.



Remote monitoring

You can watch the video on your mobile anytime and anywhere and feel comfortable when you're away from home. Alarm messages are sent in time, you can check the abnormal state in real time.

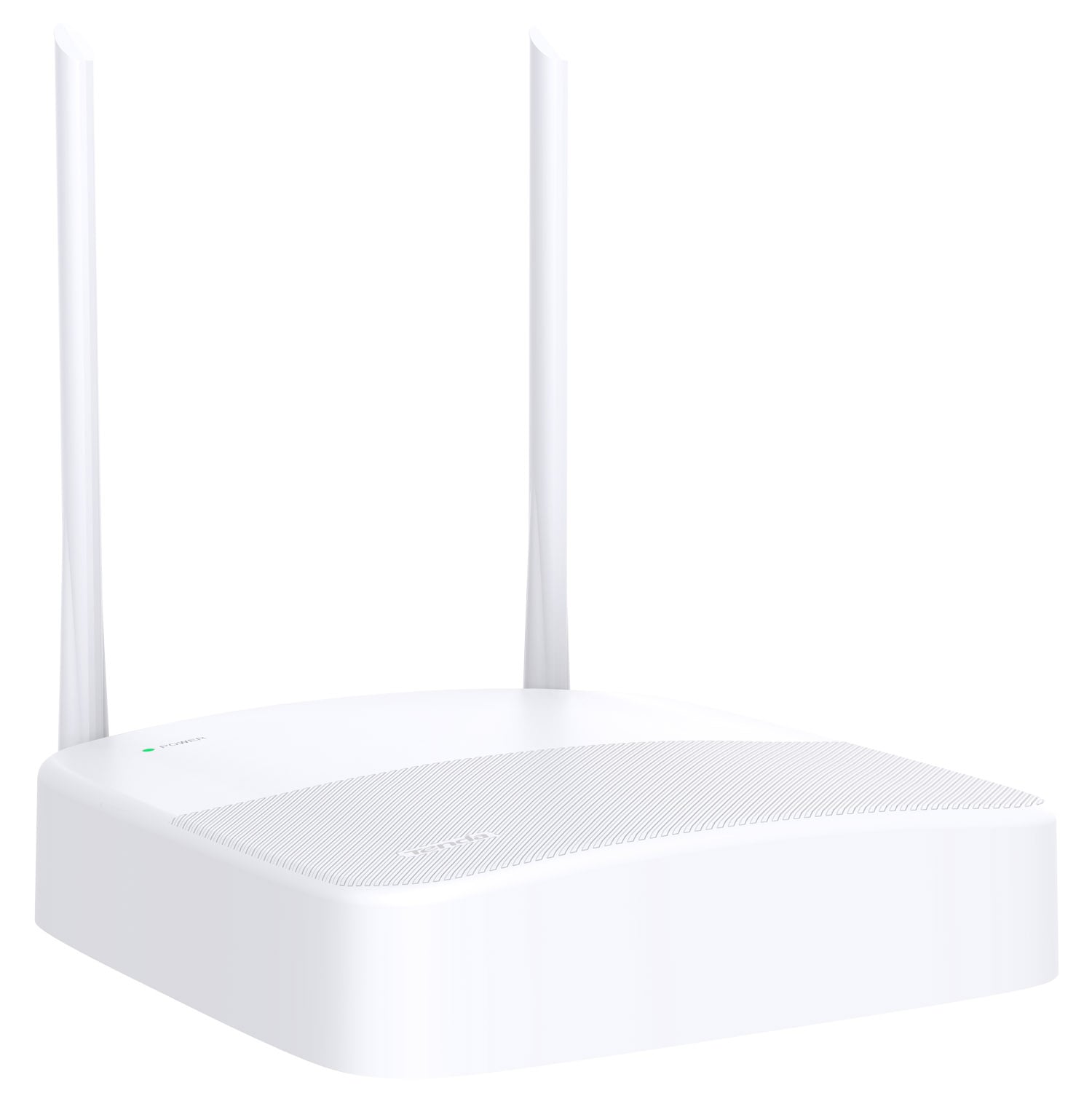

Wi-Fi network viewer

• IP video input: 4 channels


• IP video resolution up to 3 MP


• Input bandwidth: 60 Mbps


• Output bandwidth: 60 Mbps


• HDMI output: 1 channel, 1920 × 1080 w/ 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz


• VGA output: 1 -ch, 1920 × 1080 w/ 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, simultaneous HDMI/VGA outputs


• Video decoding format: H. 265 , H. 264


• Audio decoding format: G. 711 A


• Record resolution: 3 MP, 1080 p, UXGA, 720 p, VGA, nHD, 4 CIF, CIF


• Capacità decoding: 4 channels @ 1080 p (30 fps)


• Flow type: video, video and audio



Wireless

• IEEE 802.11 standard b/g/n


• Frequency: 2.4 GHz


• Two external antennas


• Data transmission up to 144 Mbps



Dimensions

• Width: 200 mm


• Depthà: 200 mm


• Height: 48 mm



Environmental features

• Operating temperature: 0 °C ~ 40 °C


• Storage temperature: - 30 °C ~ 70 °C


• Operating Humidità 10 % ~ 90 % RH (without condensation)


• Storage humidità 5 % ~ 95 % relative humidity (without condensation)

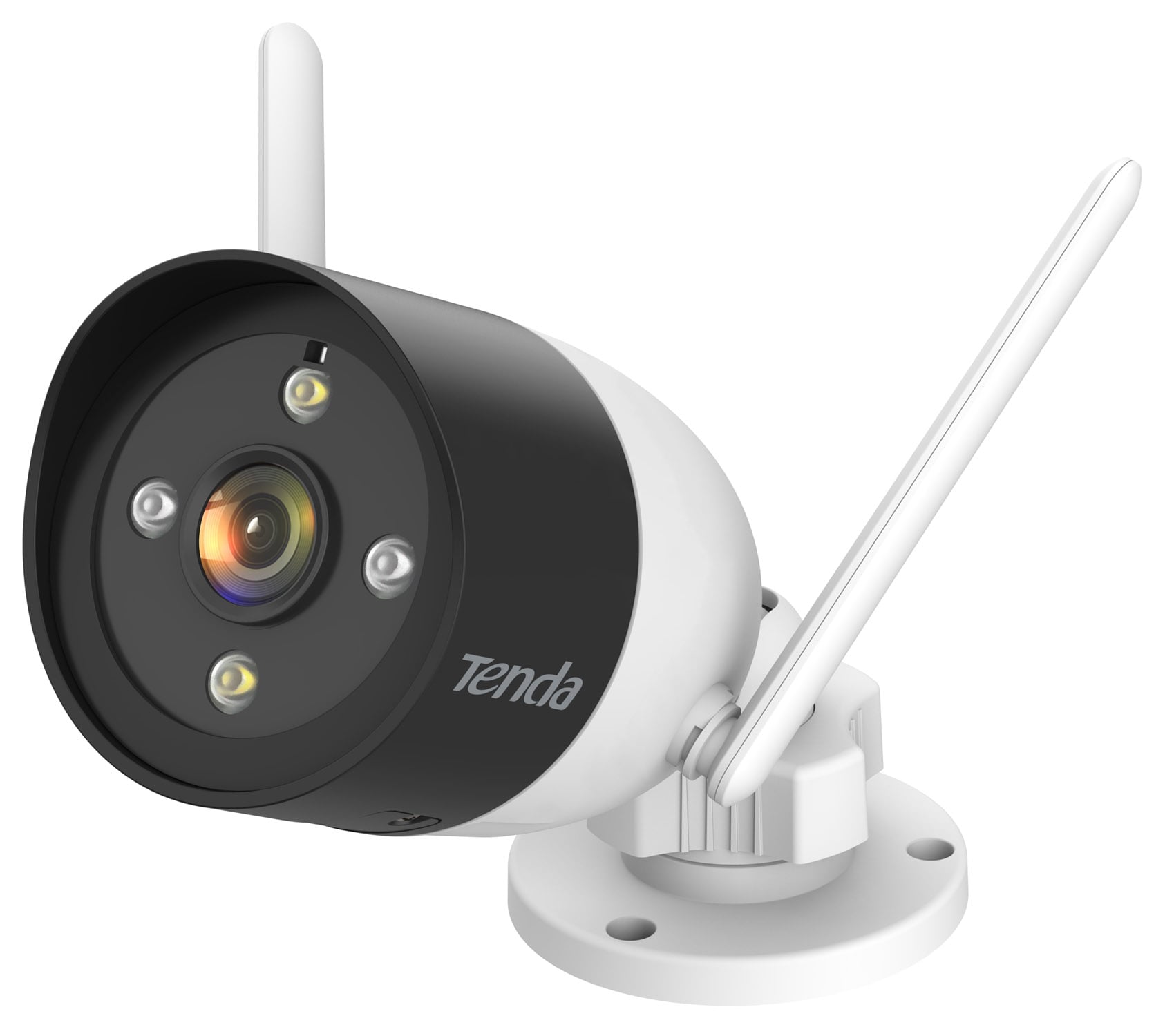

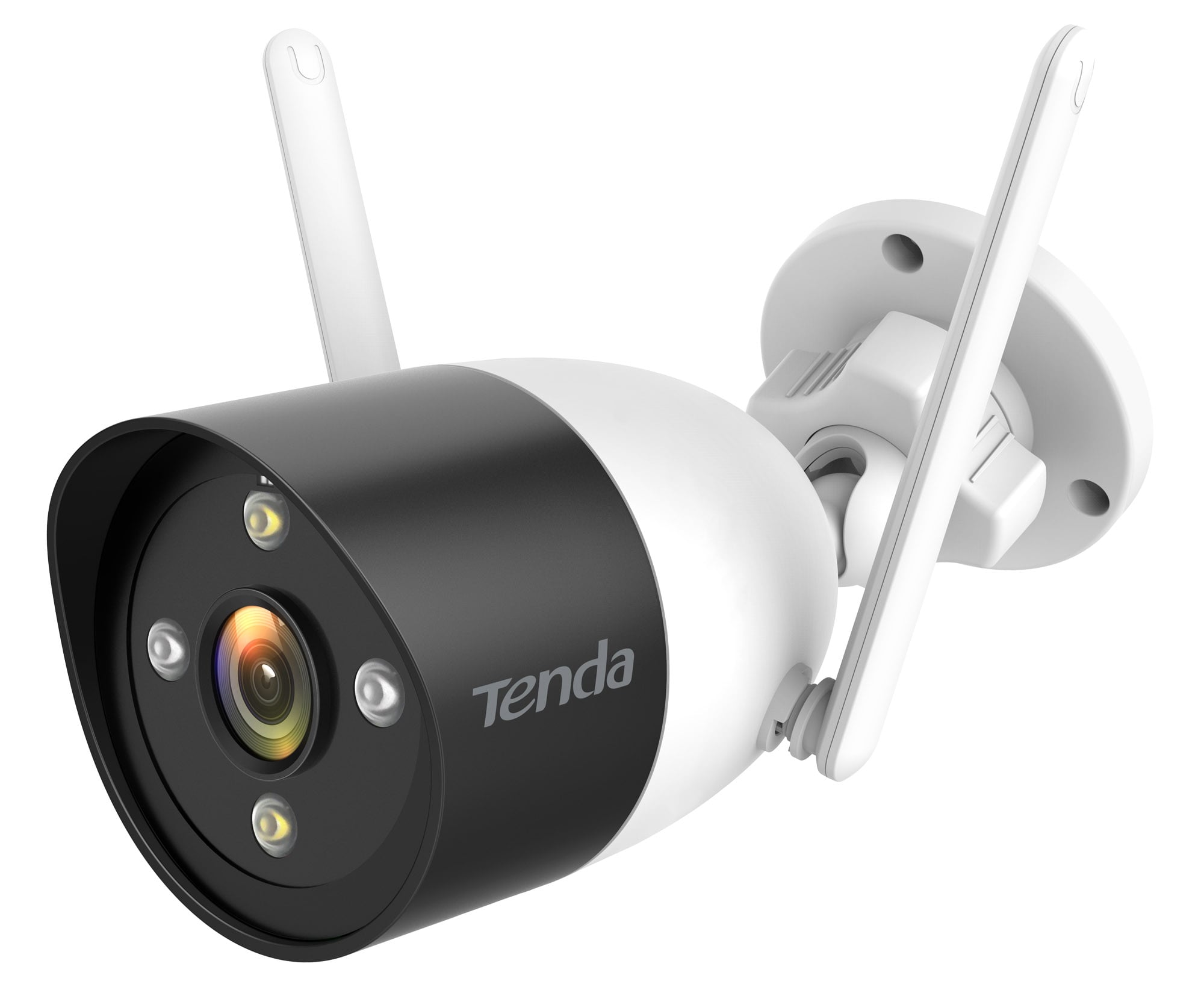

Wi Fi Room

• Image sensor: 1 / 2.7 CMOS


• Maximum resolution: 2304 x 1296


• Day & Night ICR


• 3 DNR


• DWDR


• Backlight compensation


• Additional light: 2 IR lights, 2 spotlights


• Distance supported by infrared: 30 m


• Night vision: Modelità Smart, Modelità colour, Modelità black and white


• Lenses: 4 mm@F 1.6


• H. 265 video encoding format


• Main current: 15 fps (2304 × 1296 , 1920 × 1080 , 1280 × 720 , 640 × 360


• Secondary flow: 15 fps (640 × 360 , 352 × 288 )



Wireless

• IEEE 802.11 standard b/g/n


• Frequency: 2.4 GHz


• Data transfer up to 144 Mbps


• Two external antennas



Dimensions

• Width: 72 mm


• Height: 72 mm


• Depthà: 175 mm



Certifications

• CE


• FCC


• RoHS



Package contents

• 1 x Wi-Fi network video recorder


• 1x Power supply 12V 2A


• 1 x Screw kit (NVR)


• 1 x Mouse


• 1 x Installation guide


• 4 x Camera


• 4 x Power supply 12 V 1 A


• 1 x Screw kit (room)


• 4 x Installation model


• 4 x Kit waterproof
