IP Motorized Bullet Camera IR H.265 8MP IP67 AI-Based Detection, DGM8707DGAT - Avtech IC-DGM8707

The AVPano series offers a panoramic view up to 180° thanks to the dual-lens or wide-angle design, ensuring complete coverage without blind spots. Equipped with AI detection, two-way audio and an advanced dual illumination system, it switches from IR mode to warm light when a suspect is detected, acting as an active deterrent.

Act instantly with the EagleEyes app and take your security to the next level!

•

• Starlight Visibility for clear and color images even at night

• AI-based detection of people and vehicles to avoid false alarms

• Dual sensors to offer a panoramic view and cover a wider area with a single camera

• Dual illumination mechanism (IR / warm light LED) to intelligently switch images from black and white to color even at night upon motion detection

• Siren that automatically activates upon detection of intruders to deter them

• MicroSD card support (up to 256 GB) for video storage

• Support for ONVIF standard to simplify system integration

• POE support (Power-over-Ethernet) to eliminate the use of power cables and reduce installation costs

• Built-in microphone and speaker for audio transmission

• DWDR to improve image recognition in overexposed and dark areas

• Remote surveillance

• Compatible with Internet Explorer 6 and later, Microsoft Edge and Google Chrome


Technical Specifications

•

• Image sensor: 2 CMOS unit, 1/2,7

• Maximum resolution: 4096 x 1944 (19:9)

• Lens: 2 unit f2,8 mm / f1,6

• Viewing angle: 180°

• Minimum illumination: 0,001 Lux (LED off), 0 Lux (LED on)

• Shutter speed: AUTO, 1/25 s ~ 1/100000 s

• LED: 3 IR units and 2 warm light LED units

• Effective distance: Up to 30 meters

• Day / Night

• WDR Mode: DWDR

• RTC (real-time clock)

• MicroSD card slot: up to 256 GB

• Video compression: H265/H264

• Video resolution:


•

• Main stream 8 MP (4096x1944P)

• Secondary stream 1024x480 / 768x360


•

• Frame rate 4K (8MP) at 20FPS

• Video profile: High profile / Main profile / Base profile

• Multiple video streaming: 2 streams

• Bitrate control: 512 Kbps - 12 Mbps, VBR/CBR

• Image enhancement: DWDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC

• Day/Night switching: Auto / Color / (B/W) / Timing

• Forced anti-flicker

• Defog

• White balance: Automatic / Manual

• Image orientation: Rotate / Mirror

• Privacy mask

• Text overlay

• OSD title position / font size / configurable text; text input (English and Chinese characters) and image upload (BMP) supported

• Built-in microphone

• Built-in speaker

• Encoding G.711-u / G.711-a

• Audio adjustment

• Detection mode: Motion detection / human presence / vehicle

• Detection program

• Motion detection area: 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18

• Detection alert: audio alert with custom mp3 audio files

• LAN port: RJ45 connector x 1 / 4KV surge protection

• LAN speed: 100 Mbps based on Ethernet T

• Supported protocols: HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP

• ONVIF compatible: compatible with Onvif 17.06

• Number of online users: 6

• Remote access: Internet Explorer 6 and later (recommended), Microsoft Edge and Google Chrome

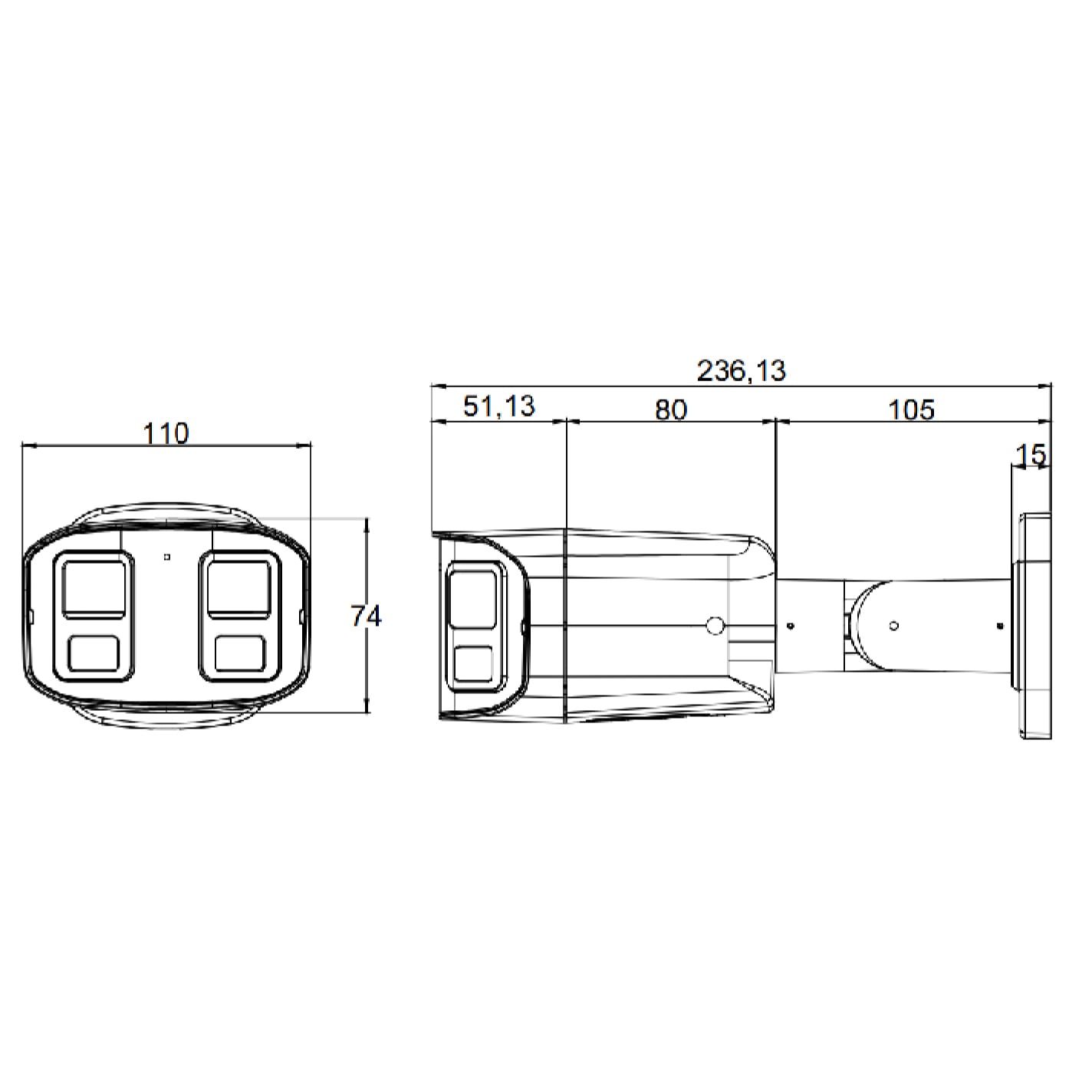

Dimensions

•

• Width: 110 mm

• Height: 74 mm

• Depth: 236,13 mm


Package contents

•

• Camera IC-DGM8707

• User manual
