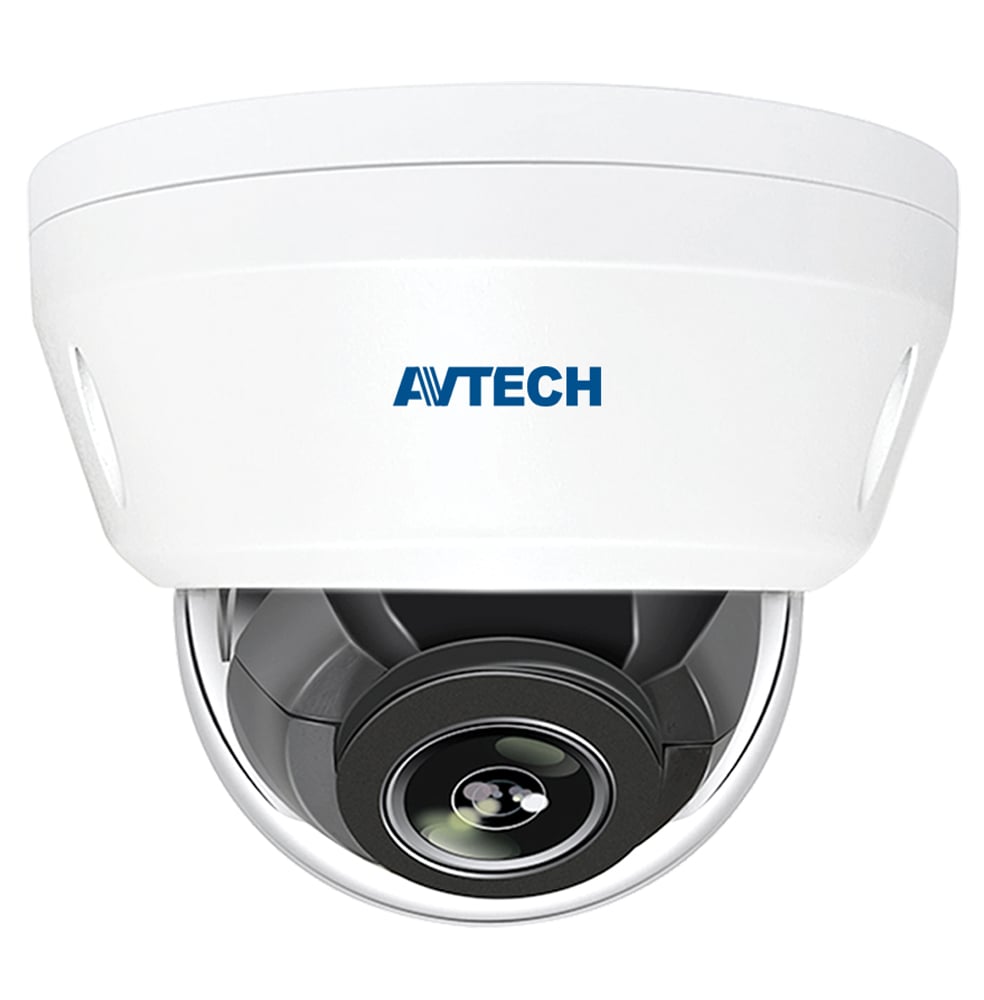

IP Dome Camera IR H.265 Motorized Lens 5MP AI Detection - Avtech IC-DGM5446

Name: IP Dome Camera IR H.265 Motorized Lens 5MP AI Detection - Avtech IC-DGM5446
Brand: AVTECH
SKU: IC-DGM5446
Price: 216.88 EUR
Availability: InStock

€216.88

Tax included

IP Dome Camera with 5MP sensor, motorized lens f2.8-12mm and Starlight vision. AI detection of people/vehicles, IR up to 40m, PoE, IK10 housing. Supports microSD up to 256 GB.

Return policy

Delivery policy

Direct contact for info

Secure Payment

Starlight visibility to provide clear and colorful images even at night
Equipped with a motorized lens from f2,8 ~ F12 mm
Support for AI-based person/vehicle detection to avoid false detection alarms
Support for MicroSD card (up to 256 GB) for video storage
Supported ONVIF standard to simplify system integration
POE support (Power-over-Ethernet) to eliminate the use of power cables and reduce installation costs
Built-in microphone for audio recording and line out support for audio transmission
External alarm I/O device connection
Effective IR range up to 40 meters for night surveillance
WDR to increase image recognizability in overexposed and dark areas
Vandal-resistant housing, rated IK10, to withstand attempts to open or damage the camera
Remote surveillance
Compatible with Internet Explorer 6 and later, Microsoft Edge and Google Chrome

Technical specifications

CMOS image sensor 1/2,8
Maximum resolution 2560 x 1944
Lens f2,8 ~ 12 mm / F1,6 ~ F2,2
Telephoto viewing angle 40˚ ~ Wide-angle 117˚ (diagonal)
Minimum illumination 0,001 Lux (LED IR off), 0 Lux (LED IR on)
Shutter speed AUTO, 1/25 ~ 1/100.000
IR LED: 4 units
Effective IR distance: up to 40 meters
Day/Night
WDR mode: yes (120 dB)
RTC (real-time clock)
MicroSD card slot (up to 256 GB)

Video

H265 / H.264 compression
Video resolution:

Main stream 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P

Secondary stream D1/VGA/640x360/480x360/CIF

Frame rate 5 MP at 25 FPS
Video profile High profile/Main profile/Baseline profile
Multiple video streaming 2 streams
Bitrate control 32Kbps - 8Mbps, VBR/CBR
Image enhancement WDR/BLC/HLC/2D DNR/3D DNR/AWB/MWB/AGC
Day/Night switching Auto/Color/(B/N)/Timer
Forced anti-flicker
Defogging
Auto/Manual white balance
Image Orientation: Rotate/Mirror
Privacy mask
Text overlay
Configurable OSD title position/font size/text; text input (English and Chinese characters) and image upload (BMP) supported

Audio

Built-in microphone
Line-out
Encoding G.711-U / G.711-A
Audio adjustment

Alarm and event

Alarm input
Alarm output
Detection modes: Motion/Human/Vehicle/Alarm detection
Detection program
Motion detection area 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18
Person/vehicle detection alert Audio alert with customized mp3 audio files

Memory

Built-in memory: built-in memory card slot, supports microSD/SDHC/SDXC cards up to 256 GB
Overwrite
Maximum re-encoding time per file 1, 2, 3, 5, 10, 20 and 30 configurable minutes
Recording schedule

Network

LAN port: RJ45 connector x 1/4KV lightning-proof
Ethernet LAN speed based on T from 100 Mbps
Supported protocols HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP
Compatible with ONVIF Compatible with Onvif 17.06
Number of online users 6
Remote access Internet Explorer 6 and later (recommended), Microsoft Edge and Google Chrome

General

Web interface language: English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean
Operating temperature -30°C ~ 60°C
Operating humidity 10%-90%RH
POE IEEE 802.3af
Power supply (±10%) PoE / DC12V
Power consumption (±10%) < 8 W
Net weight (g) 649,5
Housing IP66/IK10
Minimum Web browser requirements:

- Intel core i3 or higher, or equivalent AMD

- 2 GB of RAM

- AGP graphics card, Direct Draw, 32 MB of RAM

- Windows 10, Windows 8, Windows 7, DirectX 9.0 or later

- Internet Explorer 6 and later (recommended), Microsoft Edge and Google Chrome

Package contents
