Switch Desktop Fast Ethernet 8 Doors 10 / 100 Mbps - Edimax ICE-ES 3308 P

ICE-ES 3308 P è an Ethernet desktop switch not managed by 10 / 100 Mbps designed to optimize network performance. Its compact and slim design offers superb performance and high efficiency, using the switching technology of store and forward packages to provide a reliable data transfer ideal for network connectivityà in small office or home environments.



To extend domestic networks or meet online gaming, transfer or media transmission requirements, the ES- 3308 P is a competitively cost-effective Fast Ethernet solution. The plug-and-play design ensures users can easily connect network devices such as PCs, network storage devices and print servers to the home network without the need for any manual configuration.



Features

• Compact and thin desktop design: ideal for small office or home office environments


• Easy to use: Plug and Play Installation


• High efficiency: Packet filter and speed à wired forwarding frequency


• Reliable data transfer: Fragment of store-and-forward architecture filters & CRC error packages

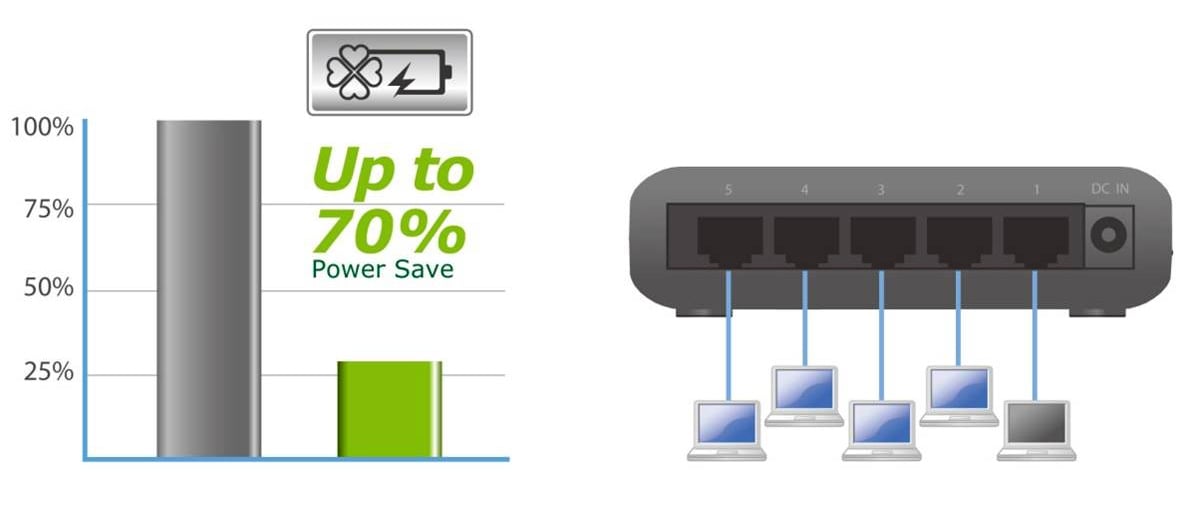

• Up to 70 % energy saving: Supports the high-efficiency Ethernet IEEE 802.3 az function



Supports automatic trading

Each of the ES- 3308 P ports automatically detects whether the connected network devices work at 10 Mbps or 100 Mbps and in modeà half-duplex or full-duplex, and adjusts the speedà and modalità accordingly to ensure simple operation and no hassle.



Supports non-locking wired speed à

ICE-ES 3308 P receives and forwards traffic without a solution of continuityà with its non-locking wired speedà Each port of the ES- 3308 P simultaneously supports speedà up to 200 Mbps, providing maximum speedà wired to connected devices and allowing the uniform operation of a high speed networkà.



Technical specifications

• Standard:



- IEEE 802.3 10 BASE-T

- IEEE 802.3 u 100 BASE-TX

- IEEE 802.3 x Flow control

- IEEE 802.3 az Energy Efficient Ethernet

• RJ- 45 port: 8


• MAC address: 1 K


• Memory buffer: 56 K


• Transmission method: Store and Forward


• LED indicators:



- For door: Link/Act

- For unità: Feeding

• Power supply CC 5 V 0,6 A



Dimensions

• Width: 137 mm


• Depthà: 76 mm


• Height: 25,5 mm



Environmental features

• Temperature:



- Operational: 32 ~ 104 °F (0 ~ 40 °C)

- Storage: - 40 ~ 158 °F (- 20 ~ 70 °C)

• Umidità: (without condensation)



- Operational: 10 ~ 90 %

- Storage: 5 ~ 90 %



Certifications

• CE


• Class B FCC



Package contents

• ICE-ES 3308 P desktop switch


• Power supply


• User manual
