Switch HDMI 4 K 4 ports - Aten IDATA VS- 481 B

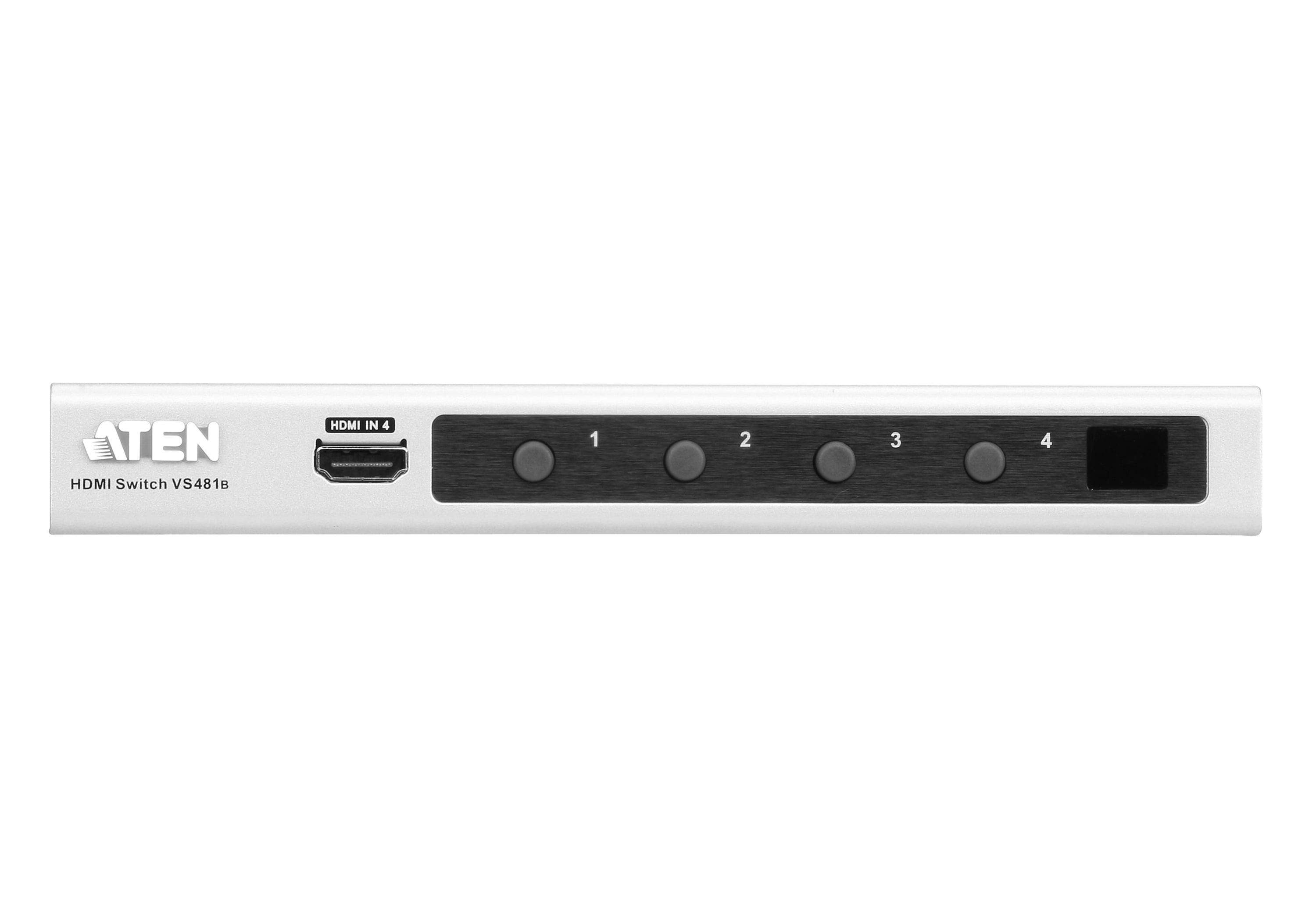

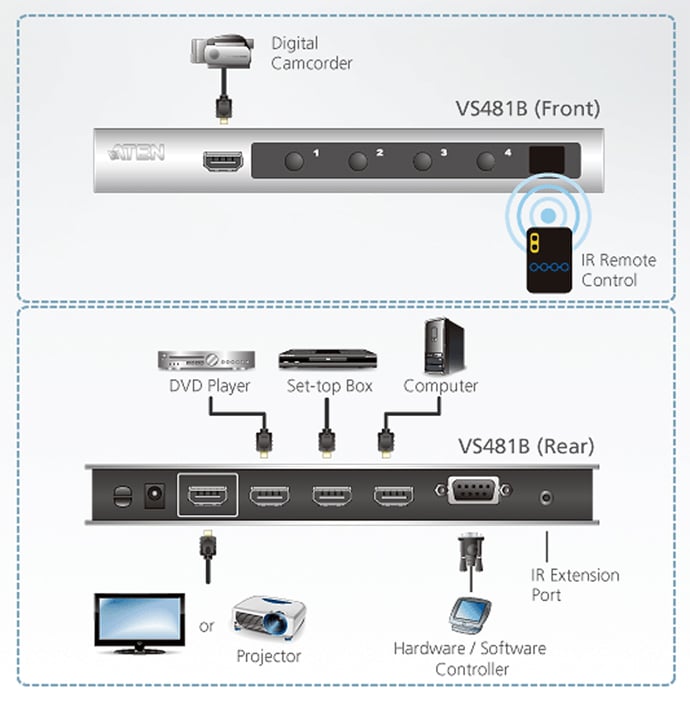

The HDMI 4 port switch VS 481 B allows you to quickly connect 4 HDMI sources to an HDMI screen and easily switch from one to the other via the push buttons on the front panel, RS- 232 or IR remote control. The LEDs on the front panel indicate the source device selected for viewing.



The VS 481 B supports Ultra HD 4 Kx 2 K, the new resolution for high-definition screens; the automatic switching mode for automatic door selection; immediate switching for seamless video transmission between HDMI ports by increasing efficiency; it also features an integrated RS- 232 bidirectional serial port that allows the control of switching through a high-end controller, PC and/or software packages for home automation/home theater.



Features

• Allows up to four HDMI A/V sources to be connected to a single HDMI screen


• Quick and easy switching between HDMI sources via front panel push buttons, RS- 232 or IR remote control


• Supports 300 MHz bandwidth for ultrahigh video 4 kx 2 k


• HDMI (3 D, Deep color, 4 kx 2 k); HDCP compatible


• Automatic switching mode for automatic door selection


• Long distance transmission, up to 15 m (24 AWG)


• Support for Consumer Electronics Control (CEC)


• Supports Dolby True HD and DTS HD Master audio

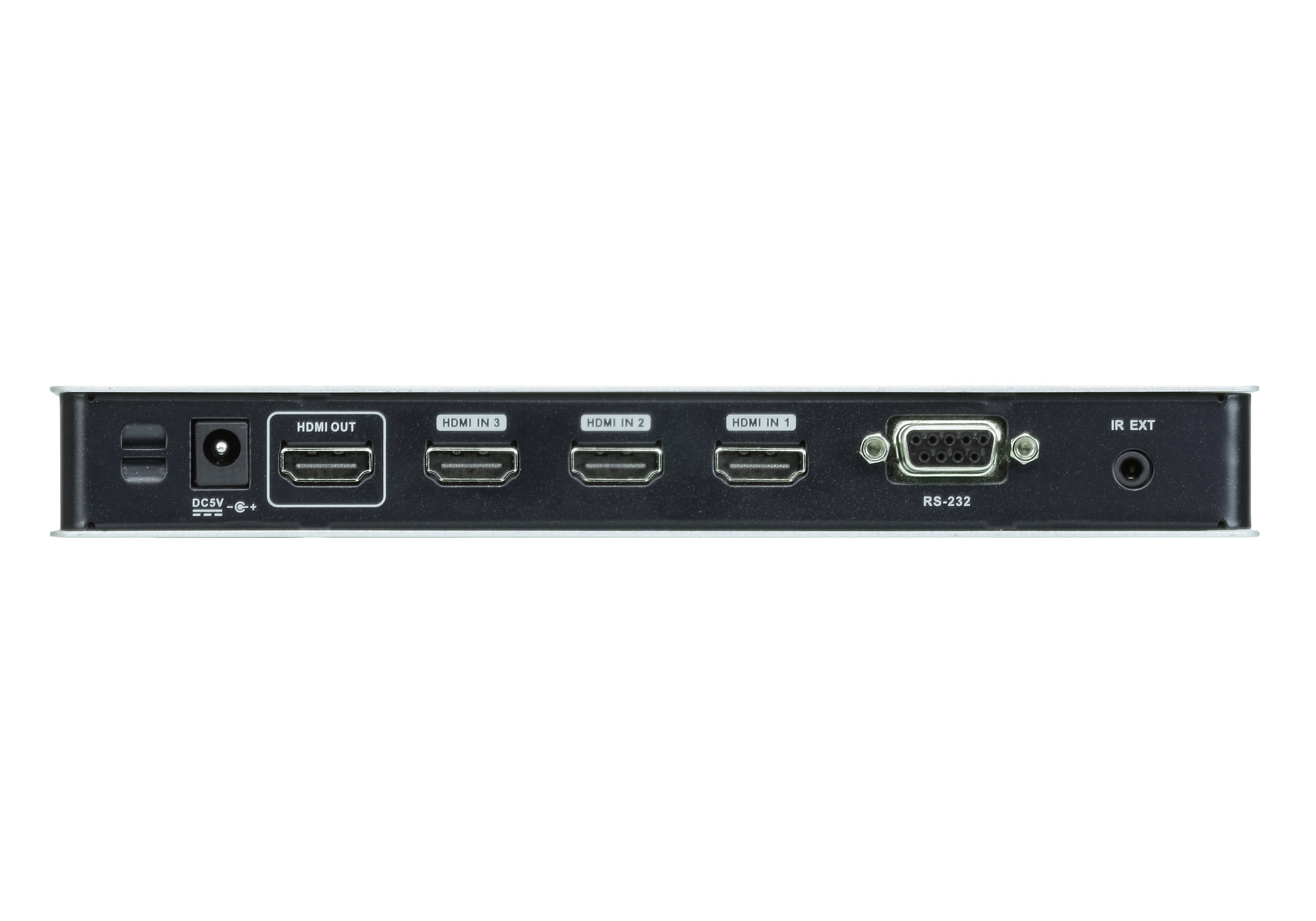

• Remote RS- 232 bidirectional integrated serial port for high-end system control


• Immediate switching between HDMI input sources


• Supports IR extension cable via an IR extension cable *


• LED indicator for video source devices



Video Input

• Interfaces: 4 x HDMI Type A female (Black)


• Impedance: 100 Ω


• Max. distance 3 m to 3840 x 2160 to 30 (4 : 4 : 4 )



Video output

• Interfaces: 1 x HDMI Type A female (Black)


• Impedance: 100 Ω


• Max. distance 15 m to 3840 x 2160 to 30 (4 : 4 : 4 )



Video

• Max. frequency data  10,2 Gbps (3,4 Gbps per line)


• Pixel clock max. 340 MHz


• Conformityà HDMI (3 D, Deep Color, 4 K)


• HDCP compatible


• Consumer Electronics Control (CEC)


• Maximum resolution up to 4096 x 2160 / 3840 x 2160 a 60 Hz (4 : 2 : 0 ); 4096 x 2160 / 3840 x 2160 a 30 Hz (4 : 4 : 4 )


• Max. distance to 15 m



Audio

• Input: 4 x HDMI type A female (black)


• Output: 1 x HDMI type A female (black)



Environmental features

• Operating temperature 0 - 50 °C


• Storage temperature - 20 - 60 °C


• Humidità 0 - 80 % relative humidity, without condensation



Dimensions

• Width: 20,00 cm


• Depthà: 8,25 cm


• Height: 2,50 cm



Package contents

• 1 x VS 481 B HDMI switch to 4 ports


• 1 x 2 L- 7 D 02 H HDMI cable


• 1 x 2 XRT- 0101 G IR remote control


• 1 x 0 AD 6 - 1005 - 10 AG power supply


• 1x User instructions
