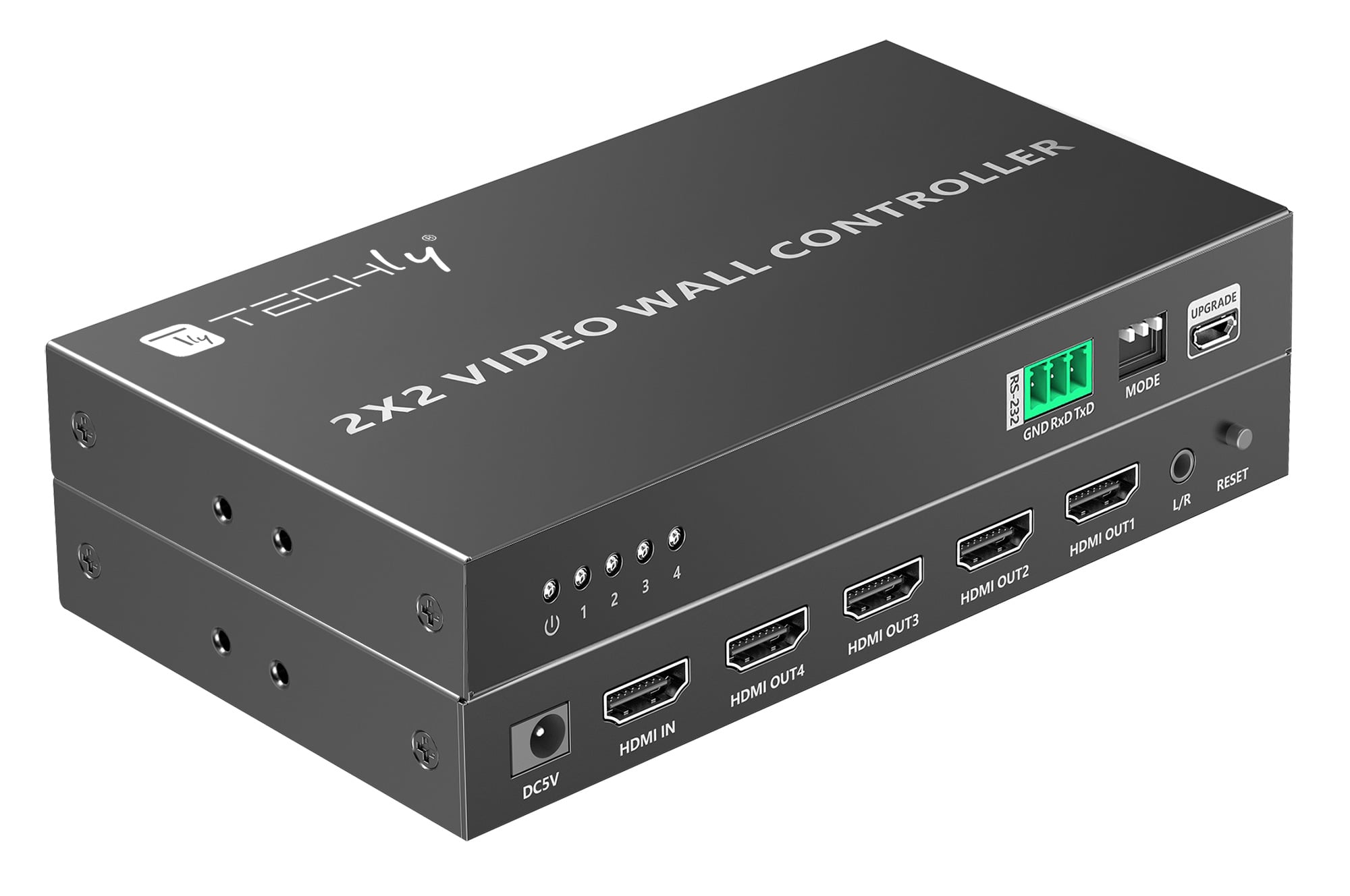

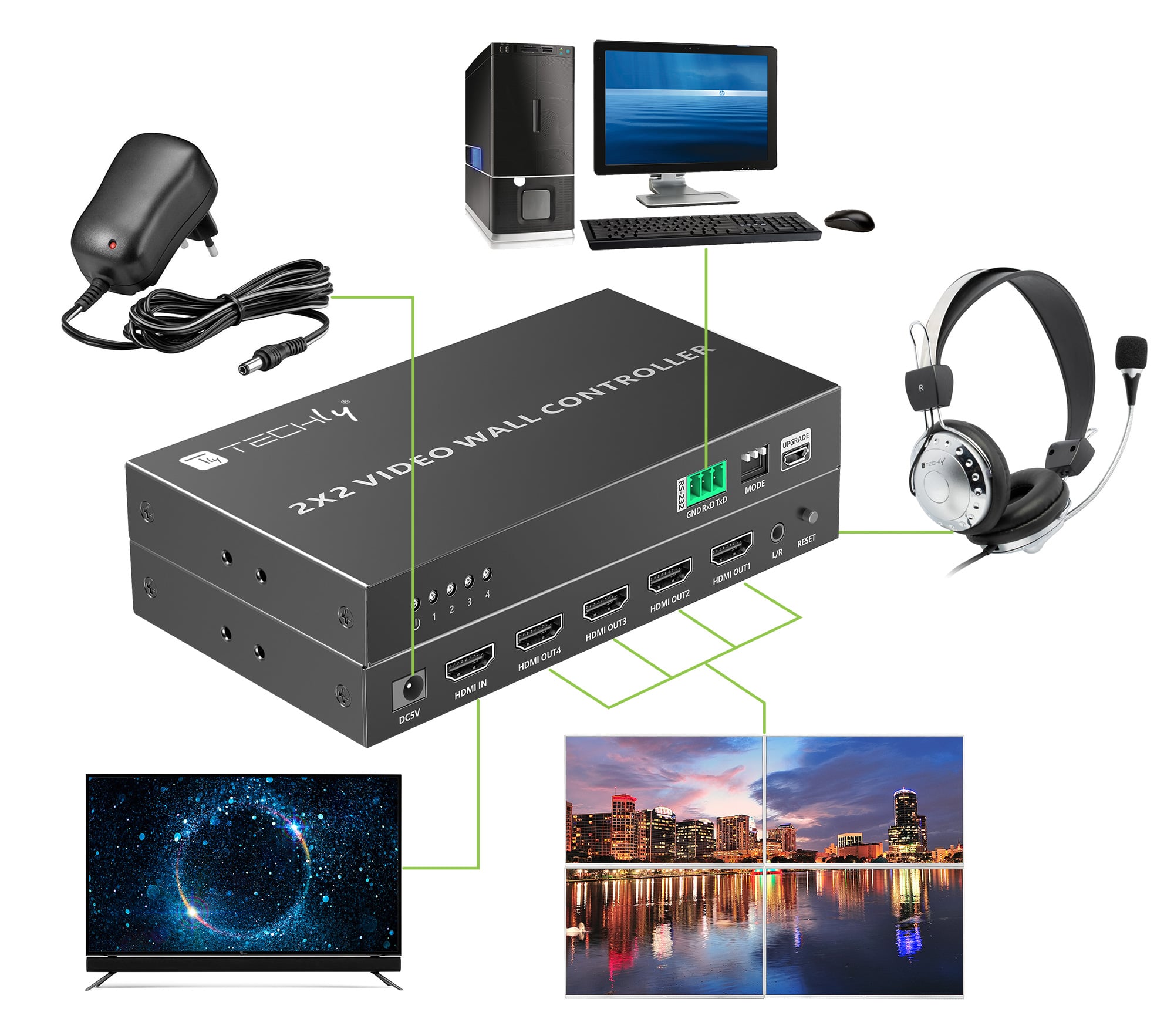

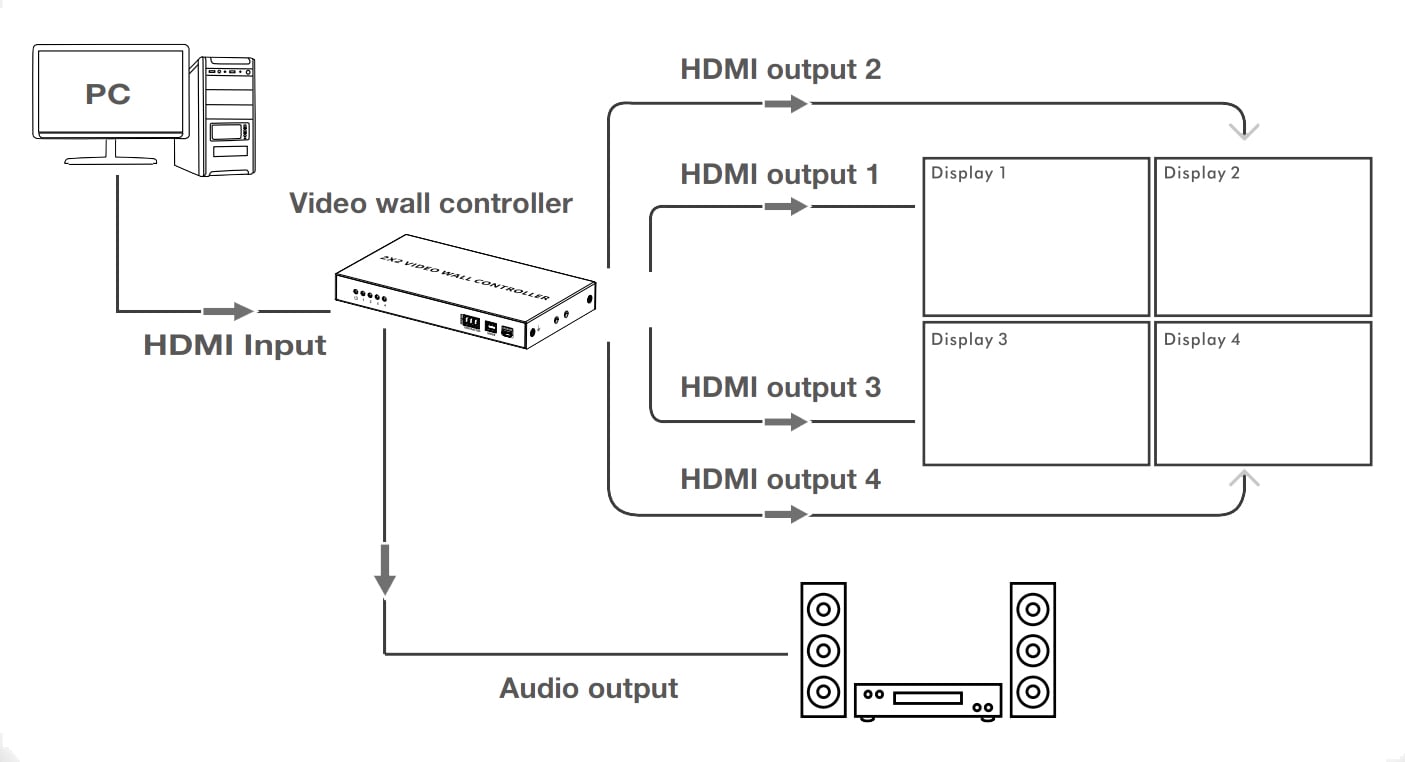

Video wall controller 1 -in- 4 -out: supports an input HDMI source and four HDMI outputs.
Supports the 1 x 1 / 2 x 1 / 1 x 2 / 2 x 2 / 3 x 1 / 1 x 3 / 4 x 1 / 1 x 4 , which can be set via RS- 232 or dip switch.
It can be adapted flexibly to the different installation needs, which can be widely used in safety monitoring, rail transport, television, advertising, home theatre, training and other fields.
Features- Supports 1 HDMI signal input and 4 HDMI outputs
- Supports resolution up to 1920 x 1200 @ 60 Hz, compatible with lower resolutions
- Supports a variety of modes à display such as 1 x 1 / 2 x 1 / 1 x 2 / 2 x 2 / 3 x 1 / 1 x 3 / 4 x 1 / 1 x 4

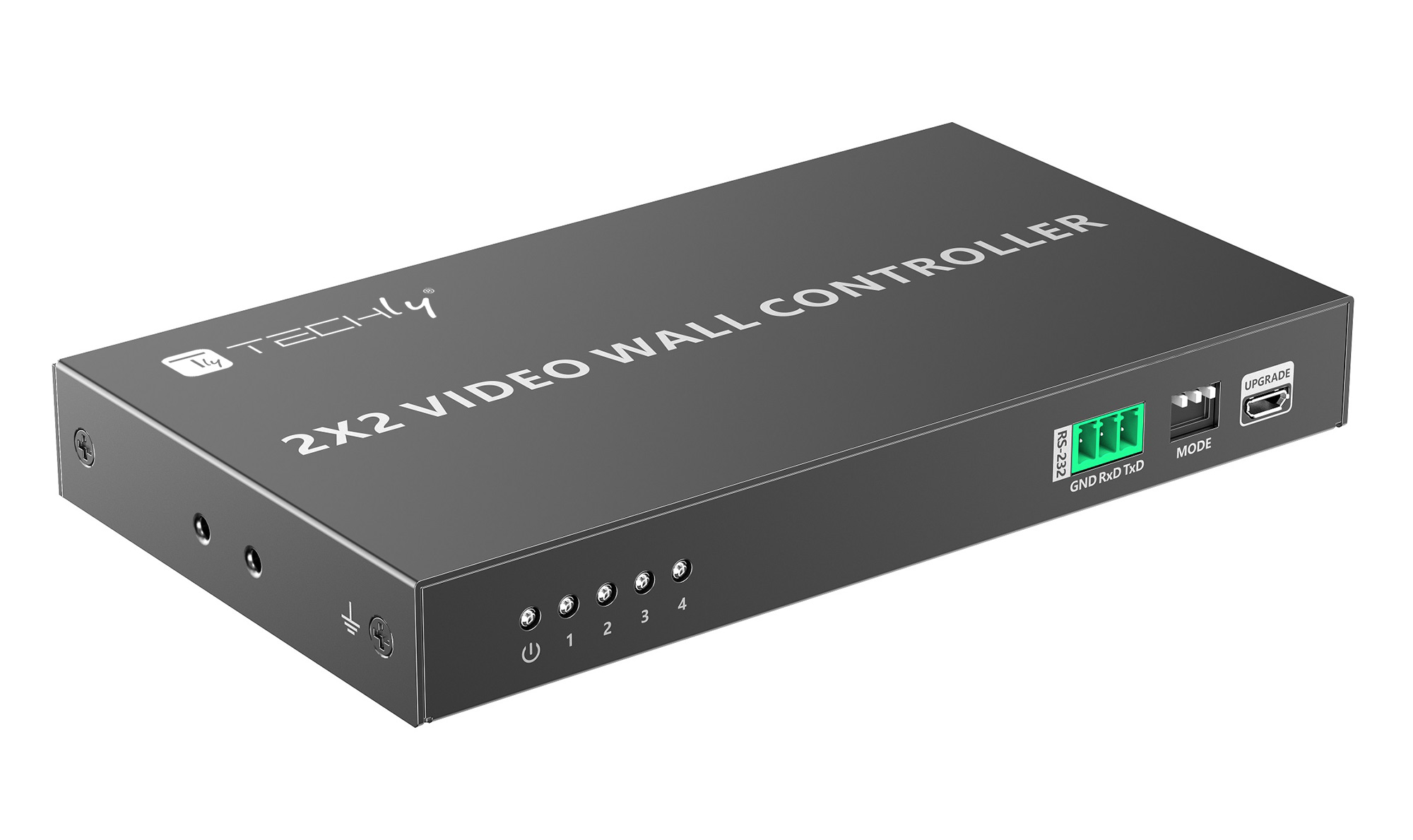

- Supports mode à switching via dip switch
- Supports RS- 232 control to set the mode à display
- Supports audio output 3,5 mm left/right channel

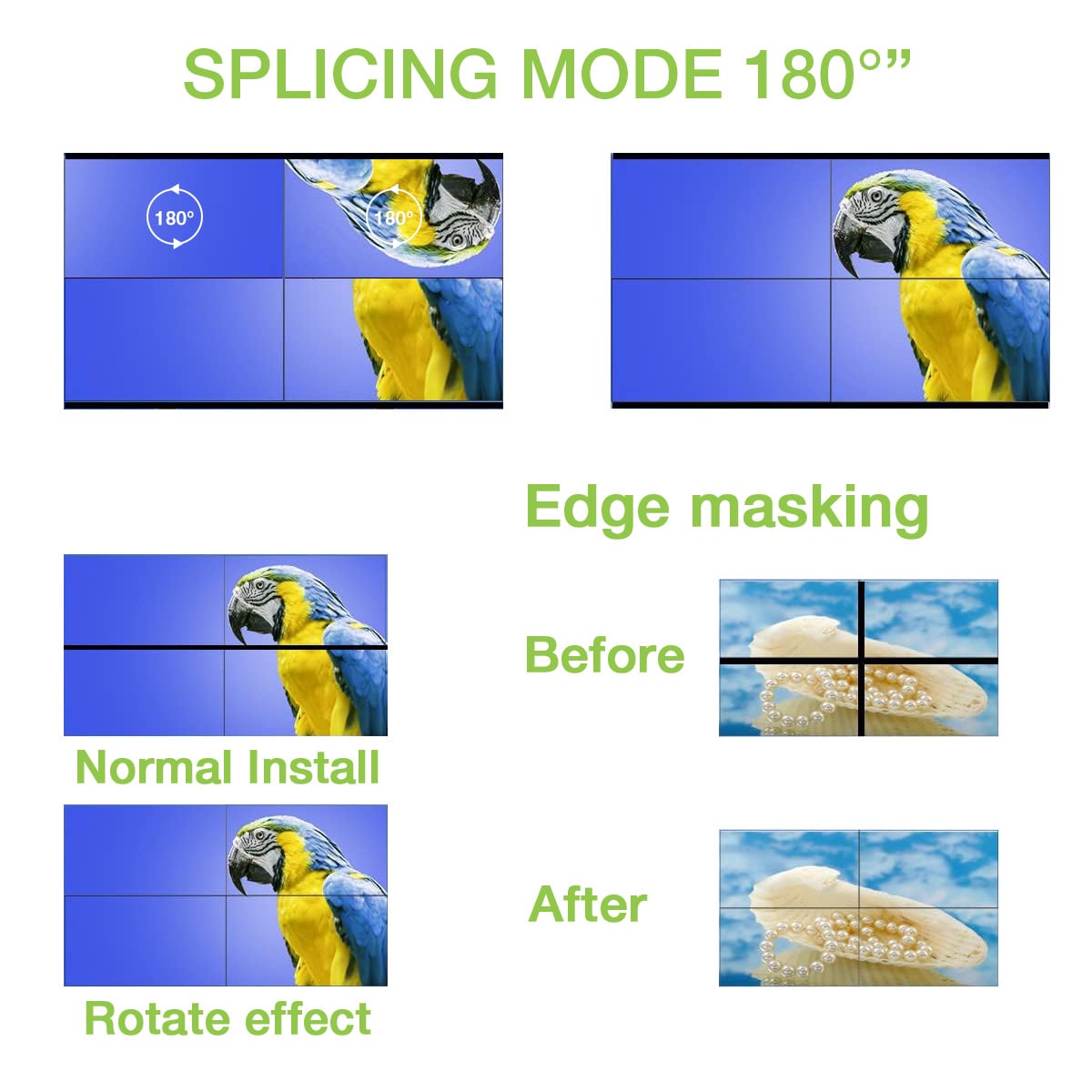

- Supports 180 ° Screen Image Rotation HDMI 1 / 2 Modalità 2 x 2 (when top displays are installed upside down)
- Updated firmware via Micro USB port
- Plug and play, no driver installation required

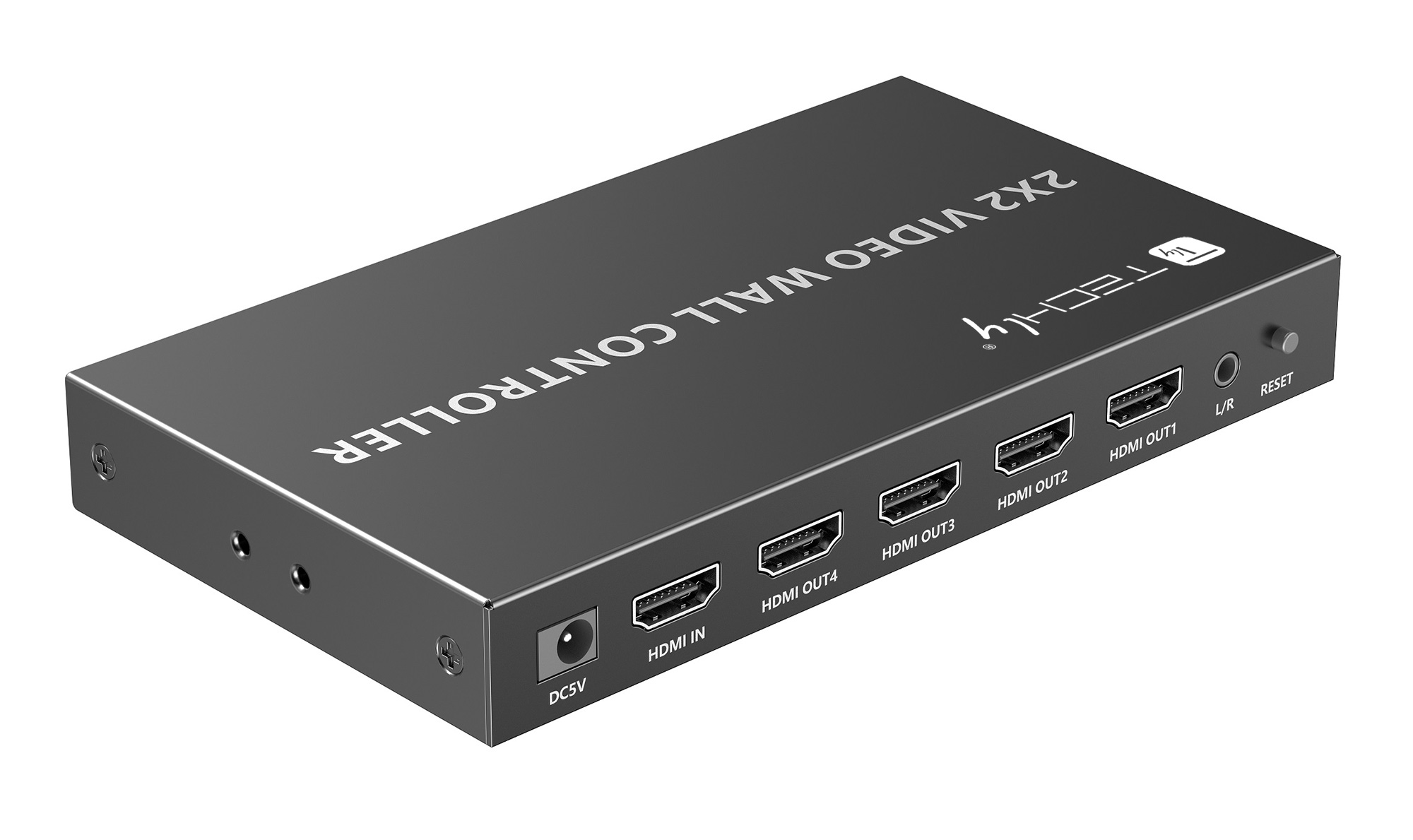

Technical specifications- Input: 1 x HDMI
- Outputs: 4 x HDMI
- HDMI 1.4 compatible
- HDCP 1.4 compatible
- Supported maximum resolution: 1920 x 1200 @ 60 Hz
Protection- Lightning protection
- Overvoltage protection
- ESD protection
Dimensions - Depthà: 160 mm
- Width: 90 mm
- Height: 20.6 mm
Environmental features- Operating temperature - 20 °C~ 60 °C
- Storage temperature - 30 °C~ 70 °C
- Humidità 0 ~ 90 % RH (without condensation)

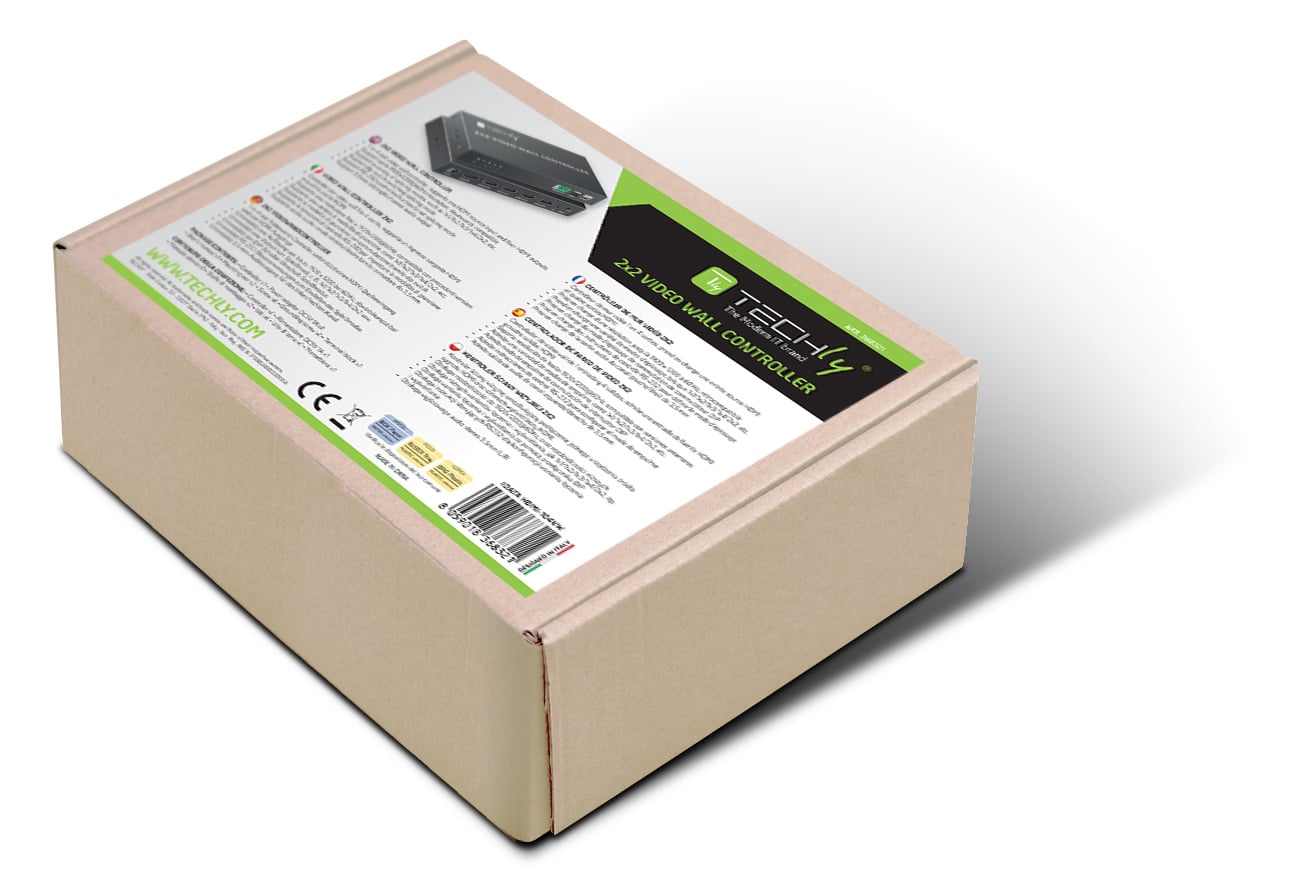

Package contents- 1 x Controller
- 1 x DC power supply 5 V 1 A
- 1x User manual
- 2 x Mounting brackets
- 6 x Screws
- 1 x Ground lives
- 1 x Clamper
