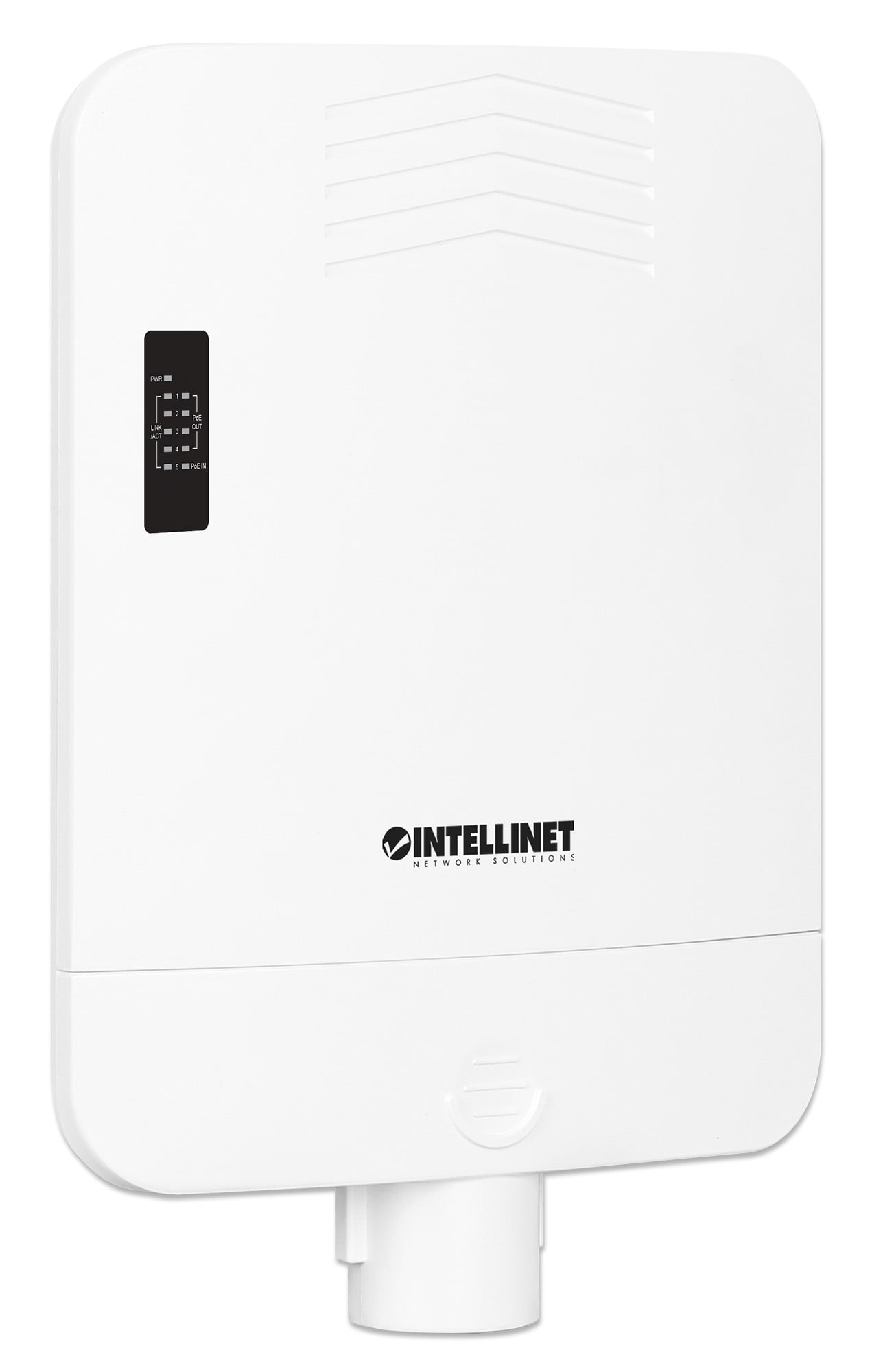

Gigabit 5 Port PoE Passthrough / Extender 4 Port PoE+ for Outdoor - Intellinet I-SWHUB POE-OUT220

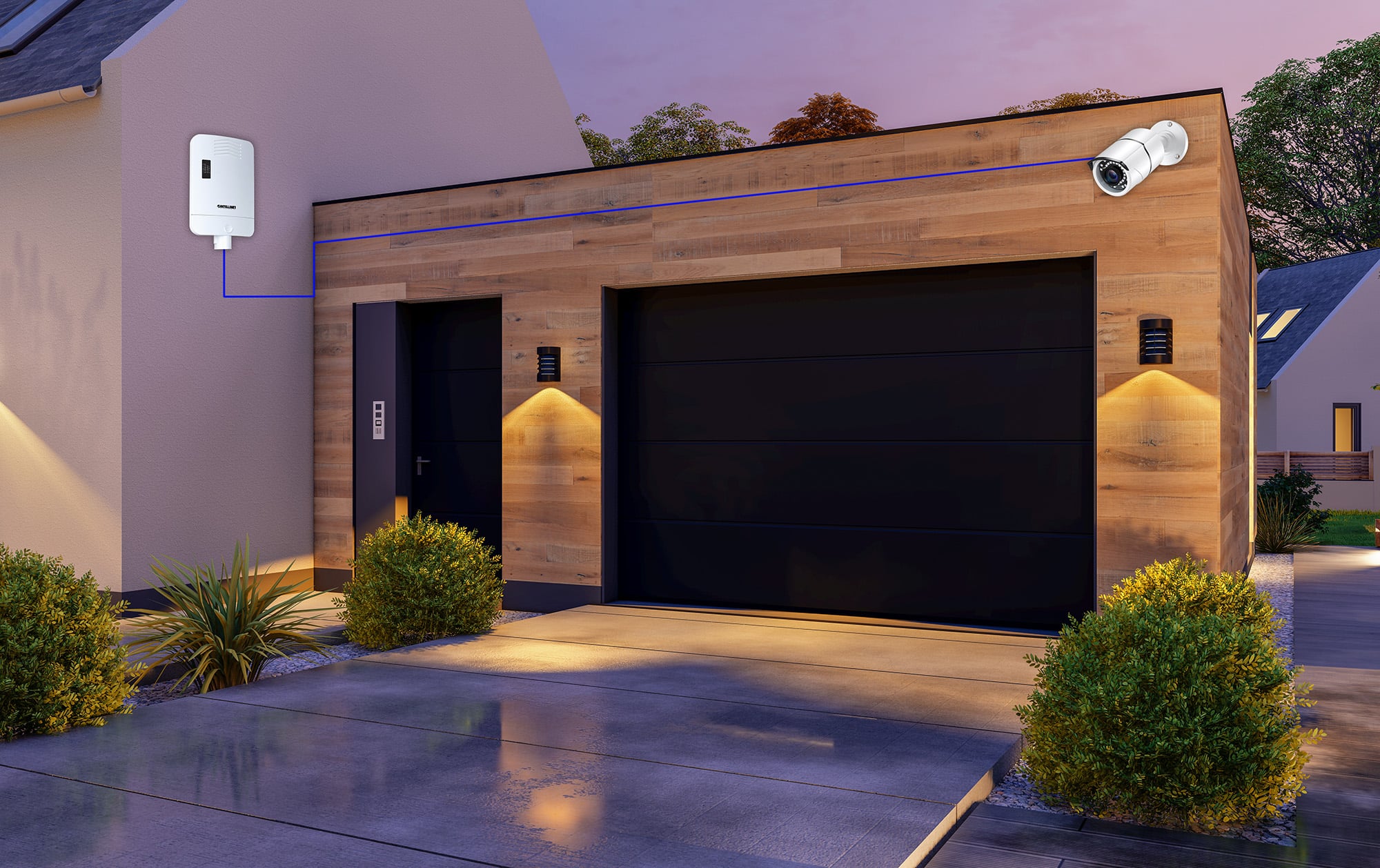

• PoE-powered switch in a waterproof housing, ideal for IP camera installations and other outdoor PoE applications


• Supports up to 90W input power from a PoE++ IEEE 802.3bt injector or a switch for a PoE power budget up to 85 W

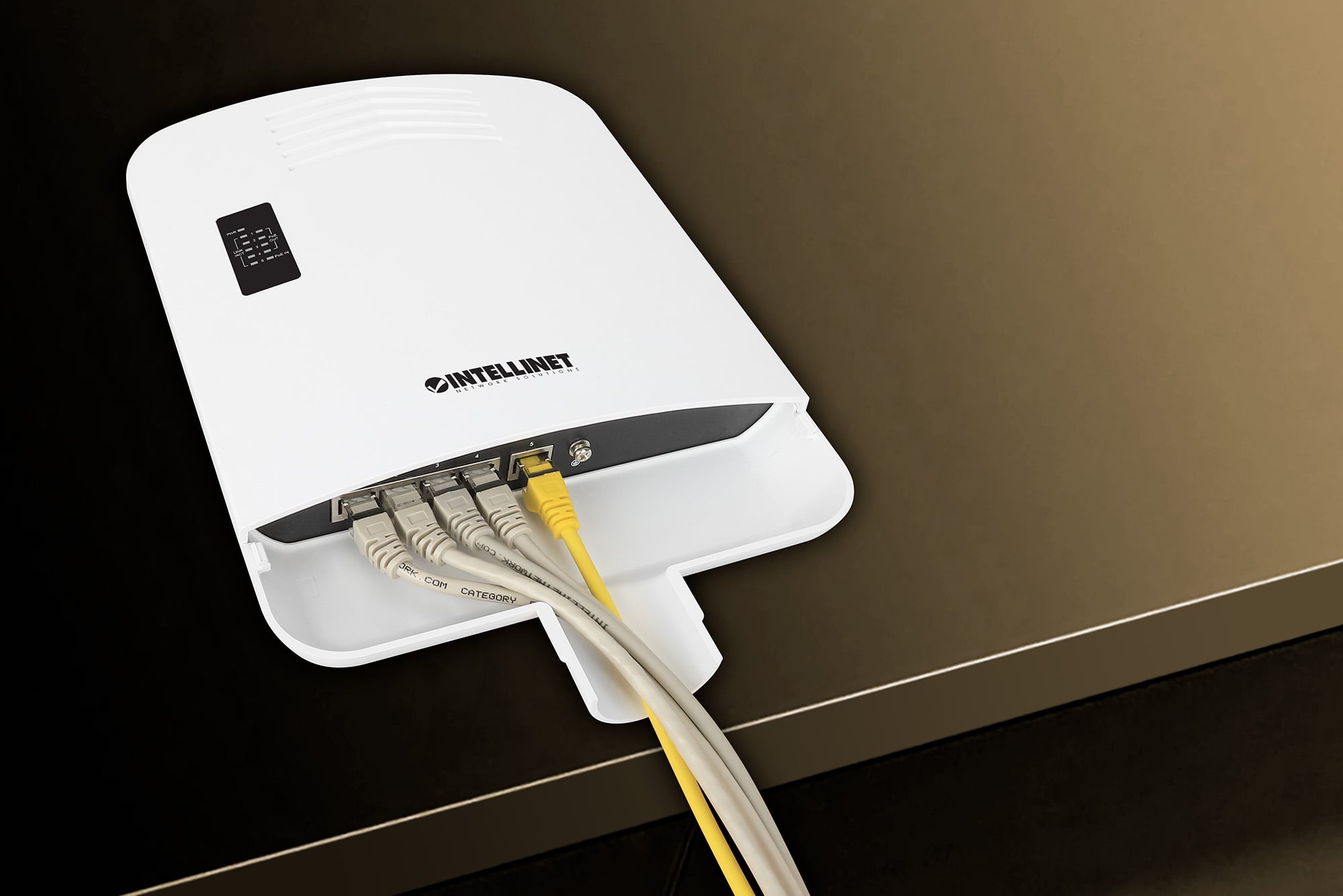

• Connects up to four PoE network devices with power and data

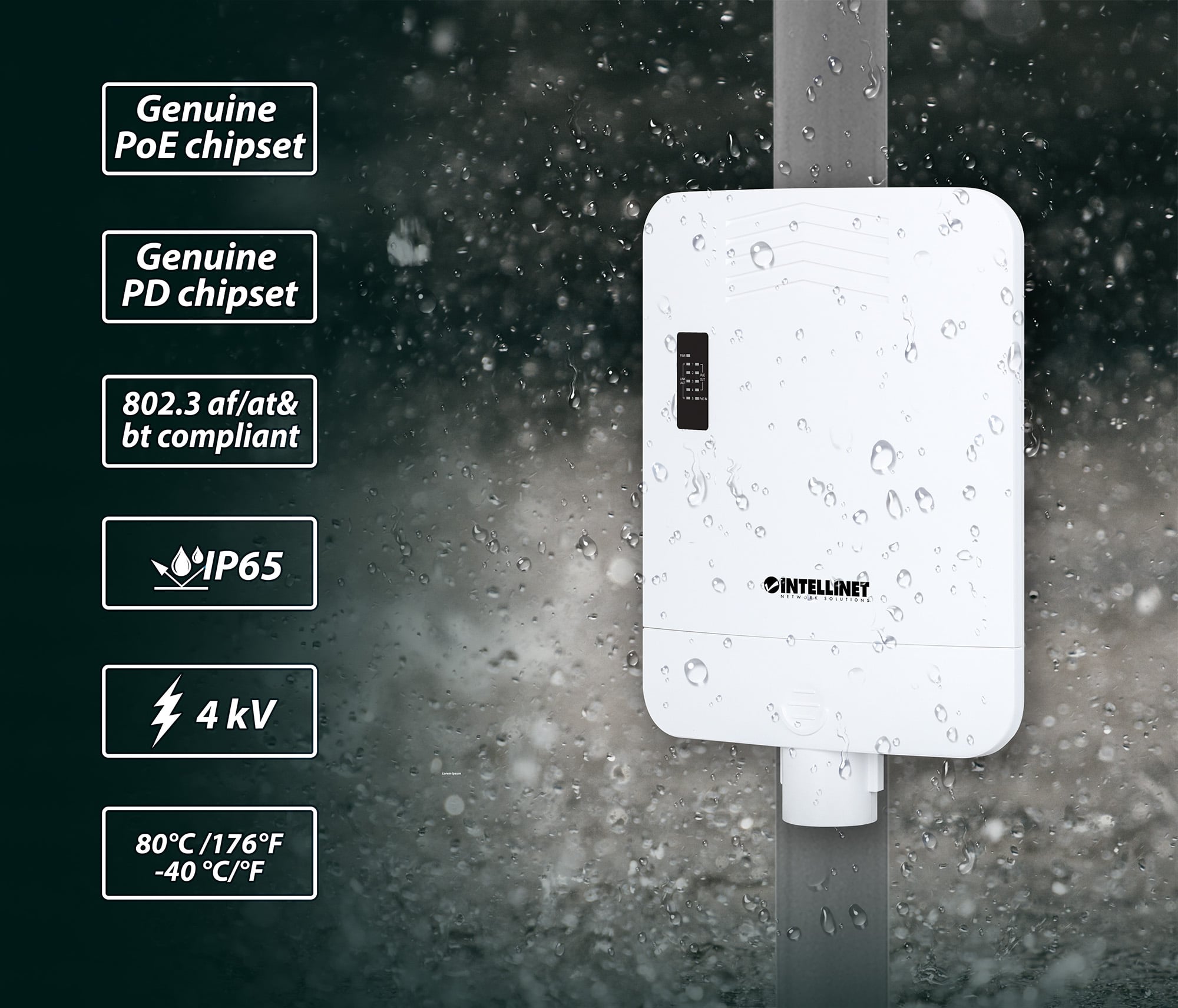

• Protection rating IP65, dust-resistant and waterproof


• Suitable for extreme operating temperatures from -40 to 75ºC


• Doubles the connection distance between the PoE source and the device from 100 m to 200 m


• Output power up to 30 watts per port


• Supports PoE devices compatible with IEEE 802.3at and IEEE 802.3af (wireless access points, VoIP phones, IP cameras)


• Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection


• PoE power budget of 25 W via IEEE 802.3at connection and 10.4W via IEEE 802.3af connection


• Switch fabric / switching capacity 10 Gbps


• Automatic speed detection of ports 10/100/1000 Mbps


• All RJ45 ports have Auto-MDIX and NWay auto-negotiation support


• Supports jumbo frames up to 9216 Bytes


• Store and forward switching architecture


• Supports 802.3x flow control for full duplex mode and backpressure collision-based for half duplex mode


• Supports 2k MAC address entries with Auto-Learning and Auto-Aging


• Buffer memory of 2 Mbits


• Grounding point to protect the equipment from external electrical surges


• PoE surge protection up to 4 kV in common mode and 2 kV in differential mode for all RJ45 ports


• Bracket with installation holes on the back, suitable for wall and pole mounting


• Fanless design


• Plug-and-play installation; no configuration required


• Fully NDAA compliant



Standard

• IEEE 802.3 (Ethernet 10Base-T)


• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)


• IEEE 802.3af (Power over Ethernet 802.3at type 1)


• IEEE 802.3at (Power over Ethernet 802.3at type 2)


• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)


• IEEE 802.3u (100Base-TX Fast Ethernet)


• IEEE 802.3x (flow control, for full duplex mode)



General information

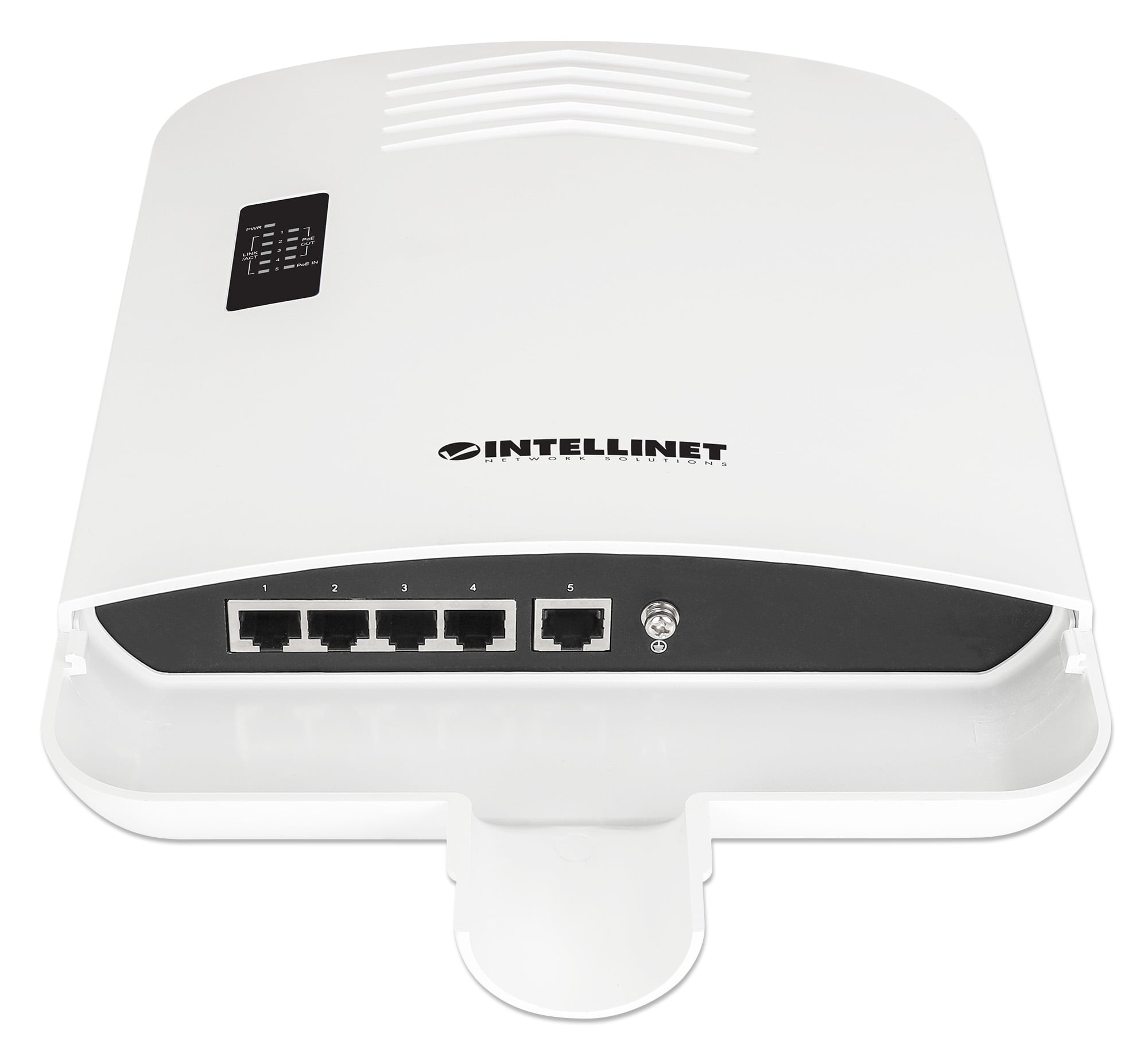

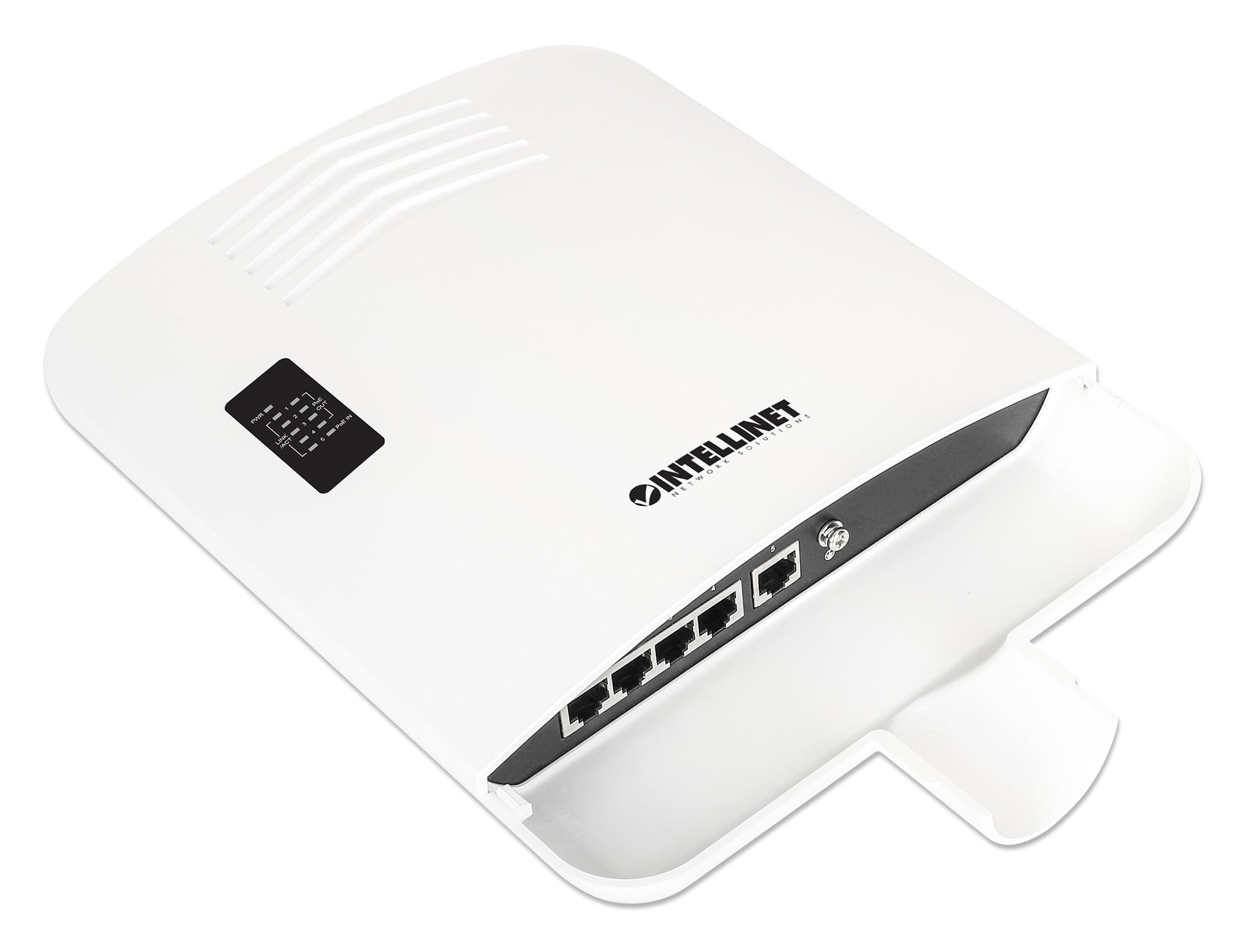

• Ports



- Four 10/100/1000 Mbps RJ45 PoE+ PSE output ports

- One 10/100/1000 Mbps RJ45 uplink port that can be used as PoE+ PD input port

- One 10/100/1000 Mbps RJ45 uplink port

• Supports



- 10Base-T Cat5e/6/6a/8.1 UTP/STP RJ45, 8 pin

- 100Base-TX Cat5e/6/6a/8.1 UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e/6/6a/8.1 UTP/STP RJ45, 8 pin

• MAC address table: 2k


• Buffer memory: 2 Mbits


• Forwarding rate: 7.44 Mpps


• MTBF: >50k hours


• Backplane / switch fabric speed: 10 Gbps


• Switching architecture: store and forward



Certifications

• FCC


• CE


• RoHS


• UKCA


• NDAA

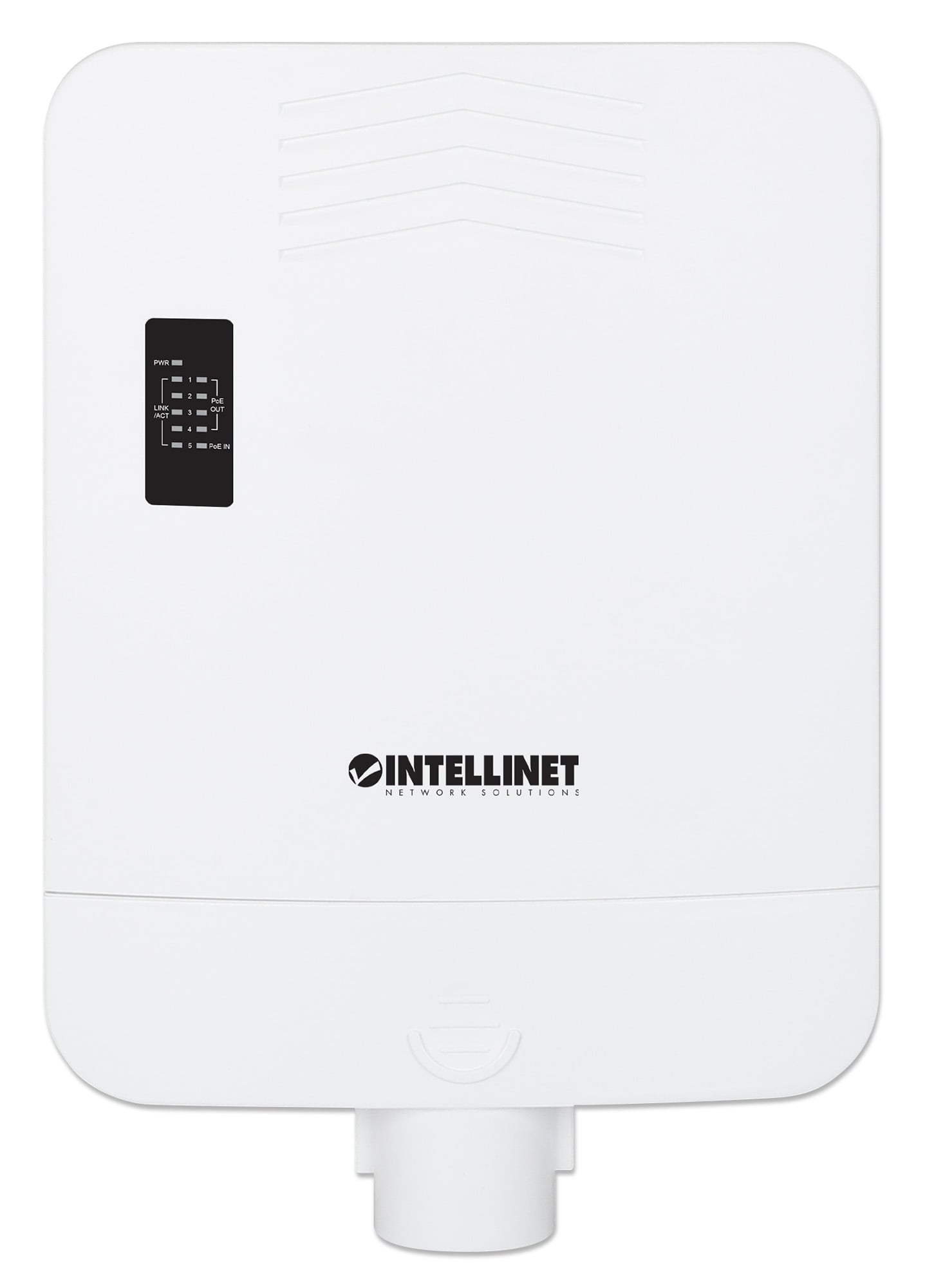

LED

• PoE IN


• PoE OUT


• Activity


• Power



Input port pinout RJ45:

- Pin 1: DC (-)

- Pin 2: DC (-)

- Pin 3: DC (+)

- Pin 4: CC (+)

- Pin 5: CC (+)

- Pin 6: DC (+)

- Pin 7: CC (-)

- Pin 8: CC (-)



Output RJ45 port pinout:

- Pin 1: DC (-)

- Pin 2: DC (-)

- Pin 3: DC (+)

- Pin 6: DC (+)



Power supply:

• Input PoE voltage: 50.0 - 57.0 V DC


• PD input and PoE power budget



- input 90.0 W (IEEE 802.3bt): total output 85.0 W

- input 30.0 W (IEEE 802.3at): total output 20.0 W

- input 15.4 W (IEEE 802.3af): total output 10.4 W



Physical information

• Plastic housing with IP65 protection rating (waterproof)

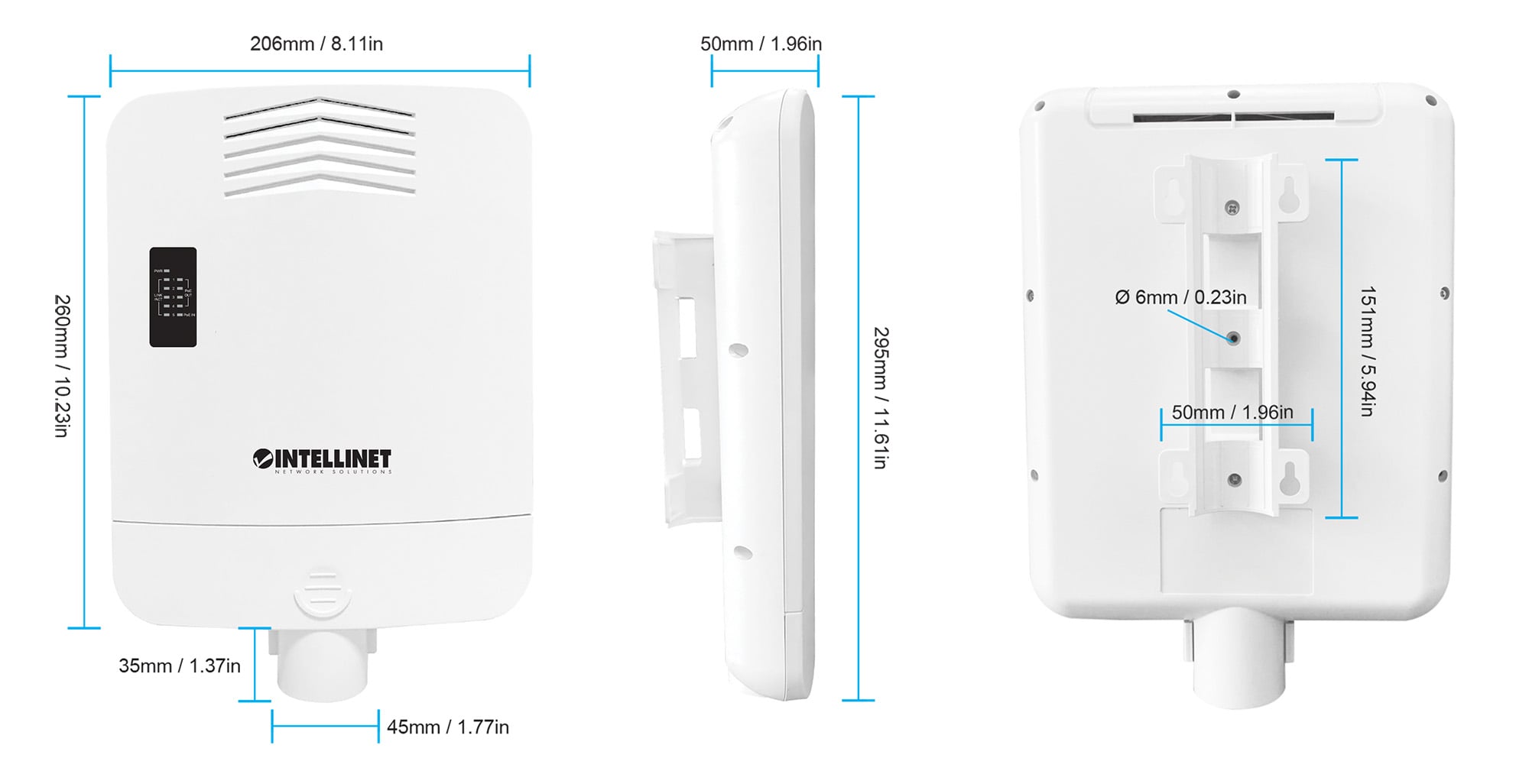

• Dimensions (D x W x H): 295 x 206 x 50 mm


• Net weight: 1 kg


• Gross weight: 1.3 kg



Environmental features

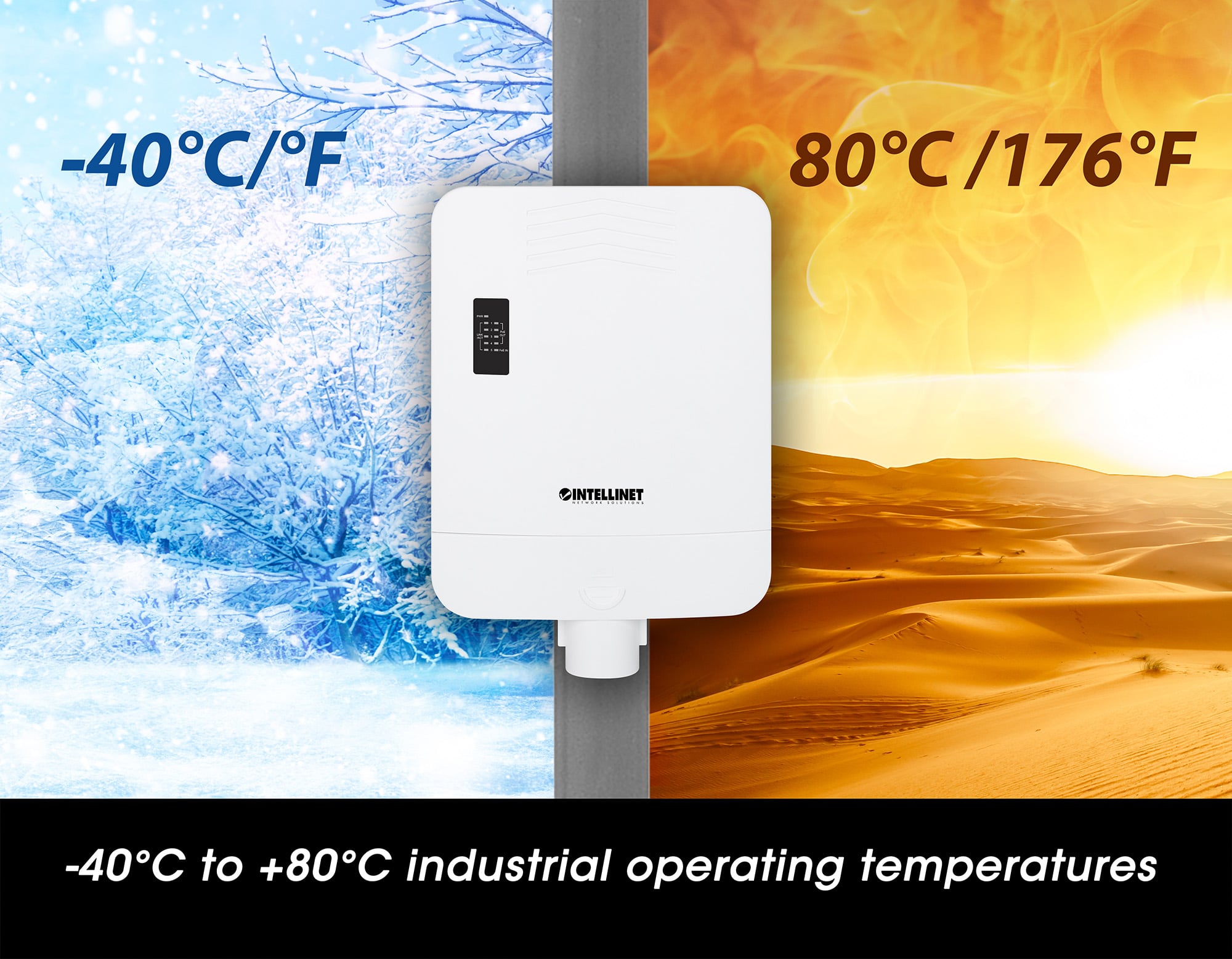

• Operating temperature: -40 to 75°C


• Storage temperature: -40 to 80°C


• Operating humidity: up to 90%, non-condensing


• Storage humidity: up to 90%, non-condensing



Package contents

• PoE-powered Gigabit switch with 5 ports with PoE passthrough / Extender 4 PoE+ ports for outdoor


• User manual
