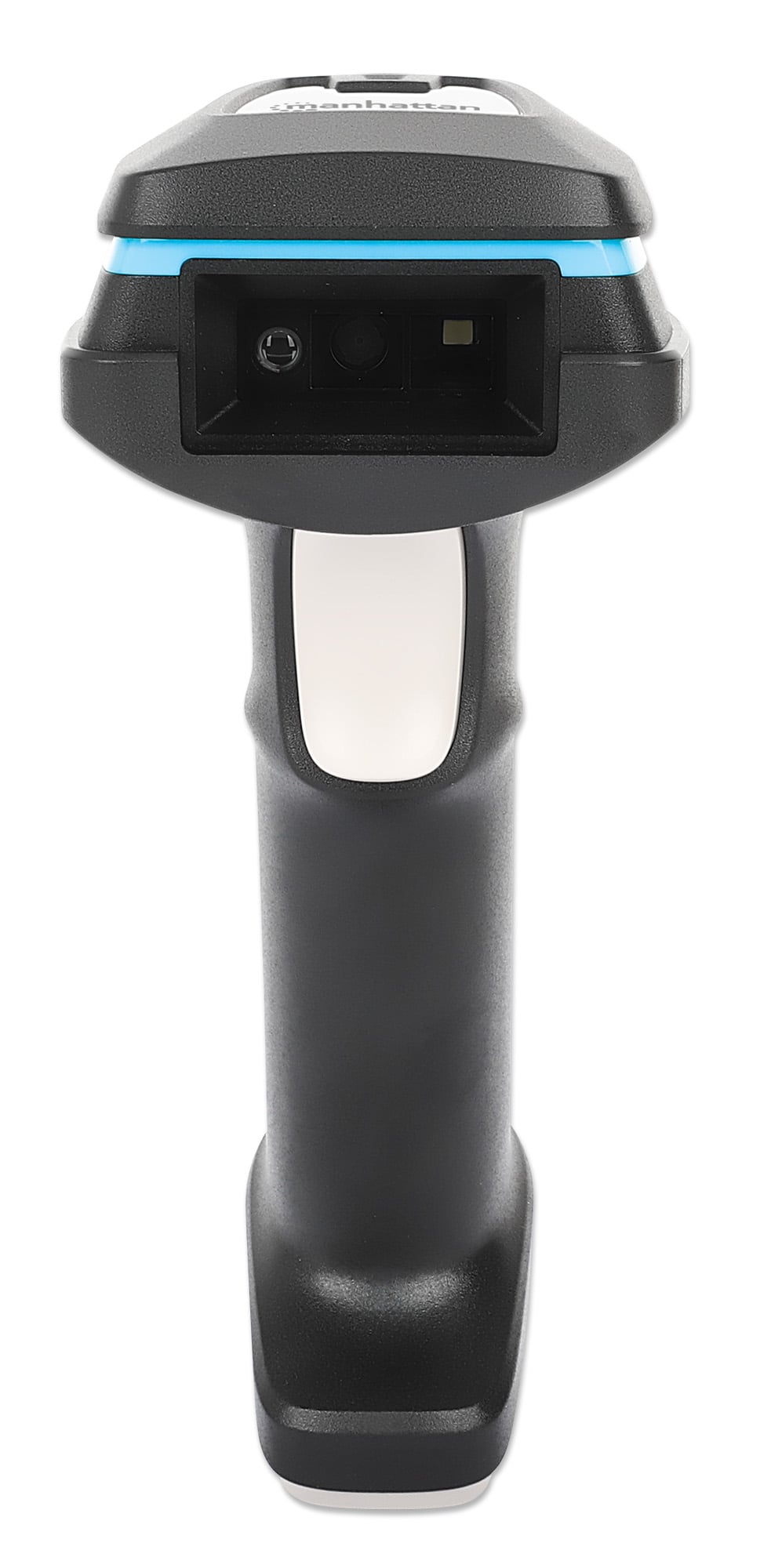

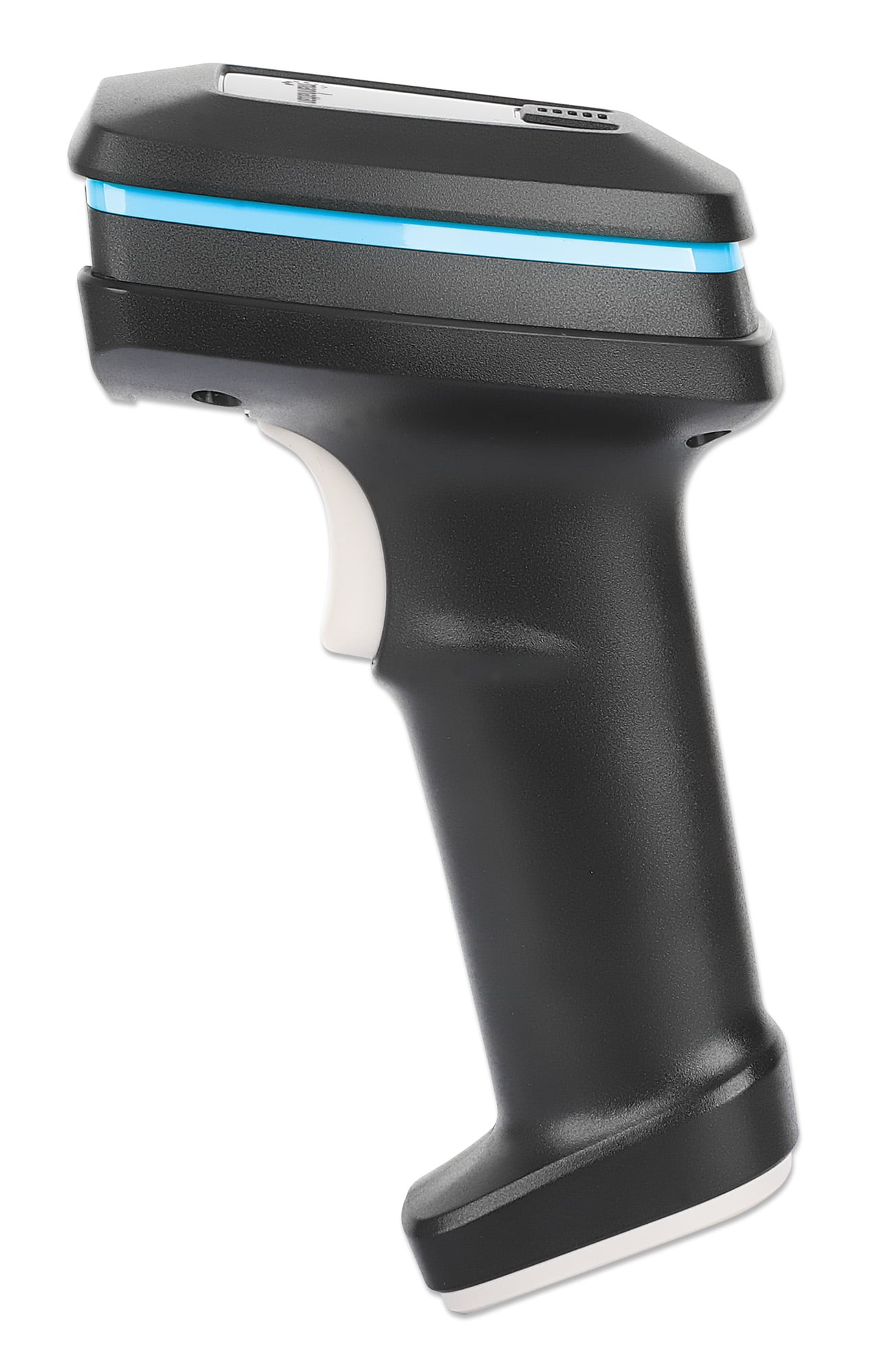

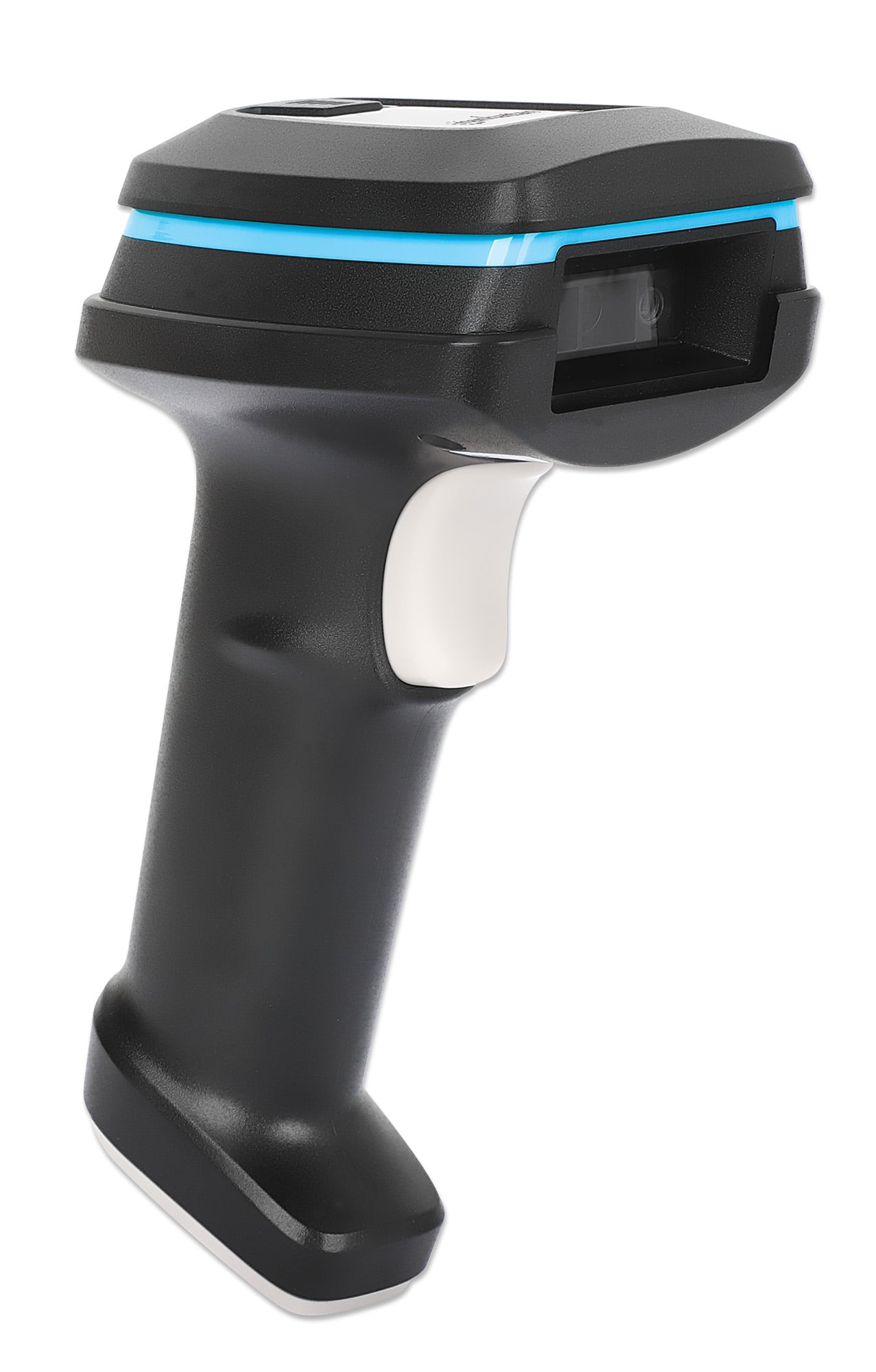

Long Radius 2 D Wireless LED Bar Code Reader - Manhattan IDATA CCD- 2 D-WL

Long Radius 2 D Wireless LED Bar Code Reader - Manhattan IDATA CCD- 2 D-WL

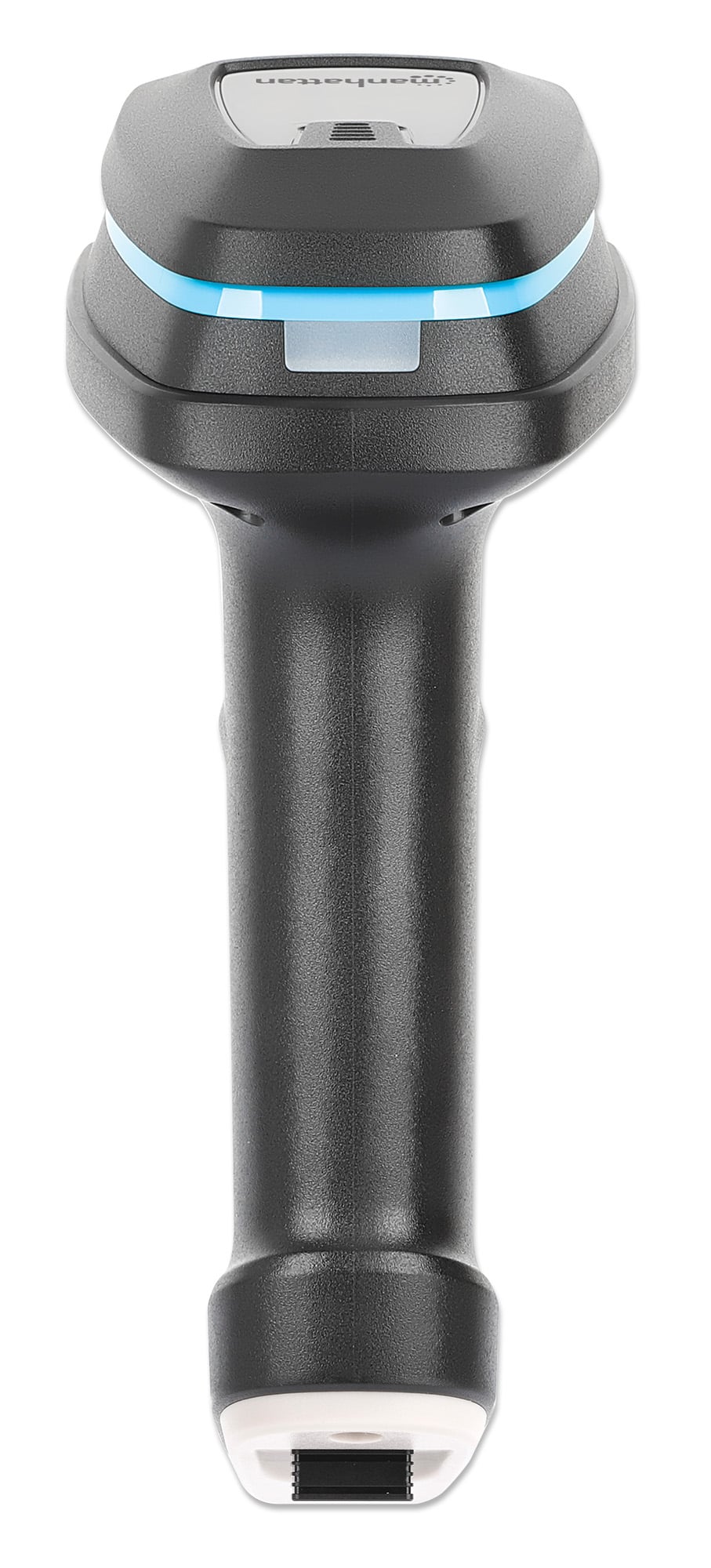

Name: Long Radius 2 D Wireless LED Bar Code Reader - Manhattan IDATA CCD- 2 D-WL
Brand: MANHATTAN
SKU: IDATA CCD-2D-WL
Price: 144.35 EUR
Availability: InStock

€144.35

Tax included

Barcode reader 2 D wireless Manhattan with flow rate up to 100 m (RF 2,4 GHz) or 50 m (Bluetooth 4.2). Li-Ion battery for 80.000 readings, IP grade 52 , depth scanning 450 mm.

Return policy

Delivery policy

Direct contact for info

Secure Payment

It helps to speed up data input, reduce errors and improve efficiency: ideal for retail transactions and automated processes
Wide scan field that provides fast and accurate readings with a depth à scanning range up to 450 mm
It detects many popular 1 D and 2 D symbols including UPC, EAN, QR Code, Data Matrix, PDF 417 and many more
Case with IP protection 52 for protection against dust and water in difficult environments
Maximum environmental light tolerance of 100.000 lux for reliable readings even in direct sunlight conditions
Keyboard wedge decoder that allows you to view the captured data as if they had been entered directly from the keyboard
Wireless operating range up to 100 m in line visual from the host device with RF dongle from 2,4 GHz or up to 50 m with Wireless 4.2
Easy plug-and-play installation; no drivers or other required software
Compatible with Windows®, Android™, iOS®, Chrome OS™, iPadOS®, Linux®
High-capacity lithium ion battery; integrated for 80.000 readings with one charge only

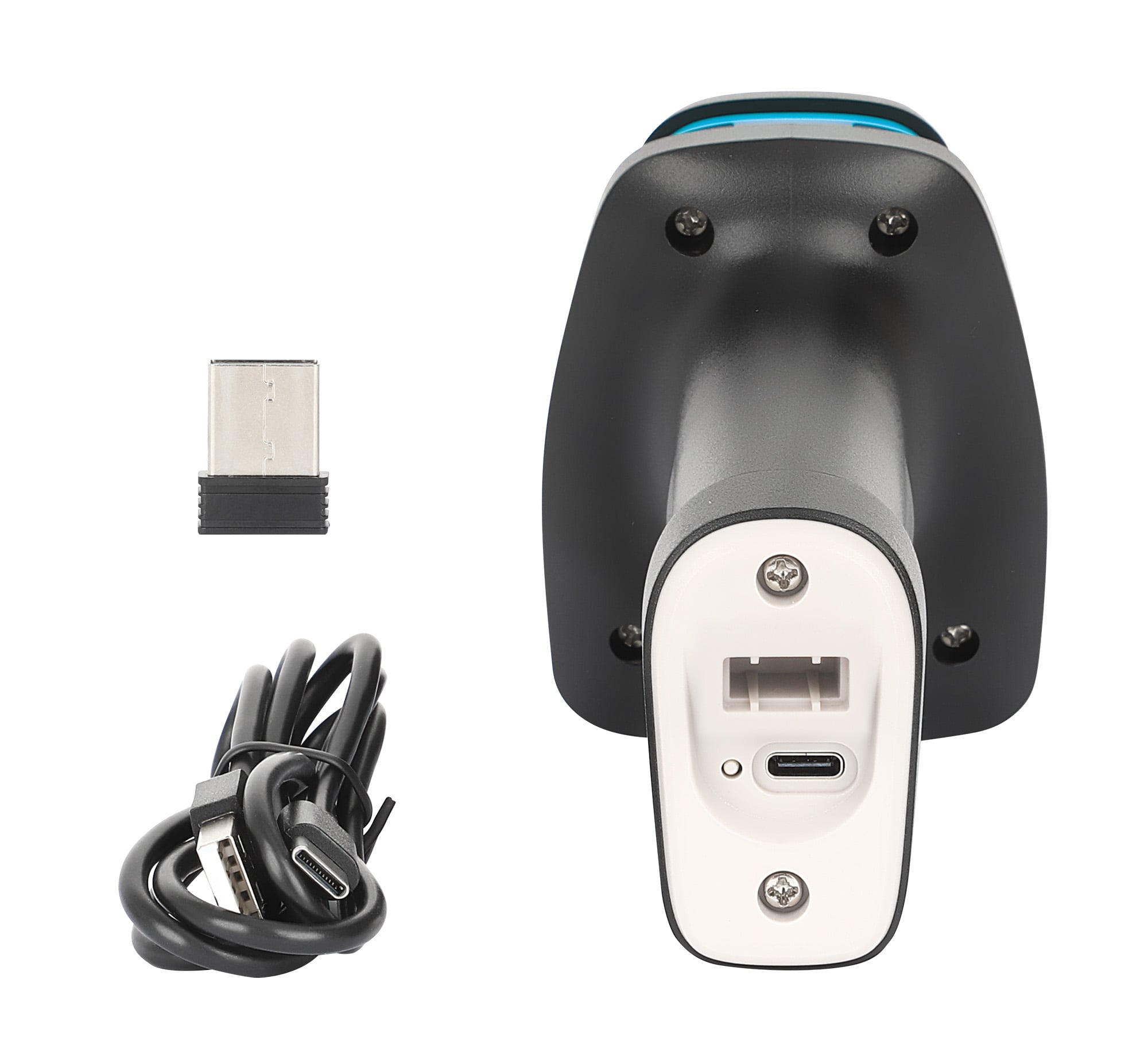

USB-A to USB-C&trade charging cable; from 1 m included

Standards and certifications

CE
RoHS
REACH
UKCA
FCC

General information

Supports barcode 1 D and 2 D
Scanning light: LED
Scan interval (deepestà): 450 mm
Velocità scanning: 60 scans per second
Resolution

- 1 D: 3 mil/ 0,076 mm

- 2 D: 7 mil/ 0,18 mm

Sensor size: 1280 (O) x 800 (V) pixel
Field of view (FoV): Horizontal - 45 °, vertical - 36 °
Print contrast ratio (PCR): 20 %
Reading confirmation: beep and LED
Environmental light: 100.000 lux max. (sunlight)
Fall resistance: 1,2 m on a concrete surface
MTBF (average time between faults): 50,000 hours
Battery type: Li-Ion 3,7 V / 2000 mA (integrated)
Charging port: USB-C™
Battery charging time: approx. 5 hours
Switch: trigger

Supported Codes

Symbols 1 D: UPC-A, UPC-E, EAN- 8 /JAN- 8 , EAN- 13 /JAN- 13 , ISSN, UCC/EAN- 128 , Code 39 , Code 39 Full ASCII , Code 128 , Interleaved 25 , Industrial 25 , Matrix 25 , Codabar/NW 7 , Code 93 , Code 11 , China Post, MSI, Telepen, GS 1 Databar Omni-directional, GS 1 Databar Limited, GS 1 Databar Extended
Symbols 2 D: Aztec, Data Matrix, MaxiCode, QR Code, PDF 417 , Micro PDF, HANXIN, MicroQR Code, Dotcode, GridMatrix
Supports OCR-B fonts

Physical information
