Extender HDMI kit in Optic Fiber True 4 K Up to 10 km - Aten IDATA VE- 883 AK 2

IDATA VE- 883 AK 1 è an optical extender HDMI 4 K which consists of a transmitter VE 883 AT and a receiver VE 883 AR to transmit signal 4096 x 2160 / 3840 x 2160 @ 60 Hz (4 : 4 : 4 ) signals HDMI, audio, USB 2.0 , IR, RS- 232 and Gigabit Ethernet up to 10 km on a single optical fibre duplex cable without leaks. In addition to avoiding the installation of bulky cables, the optical cables are electrically isolated and therefore immune from RFI and EMI. Thanks to the exclusive FarSmooth technology of ATEN, the VE 883 A prevents delay and freezing by matching the fastness; of output and thus guaranteeing a stable screen, which are identical to the same range of videos in particular, in the same range as long range.

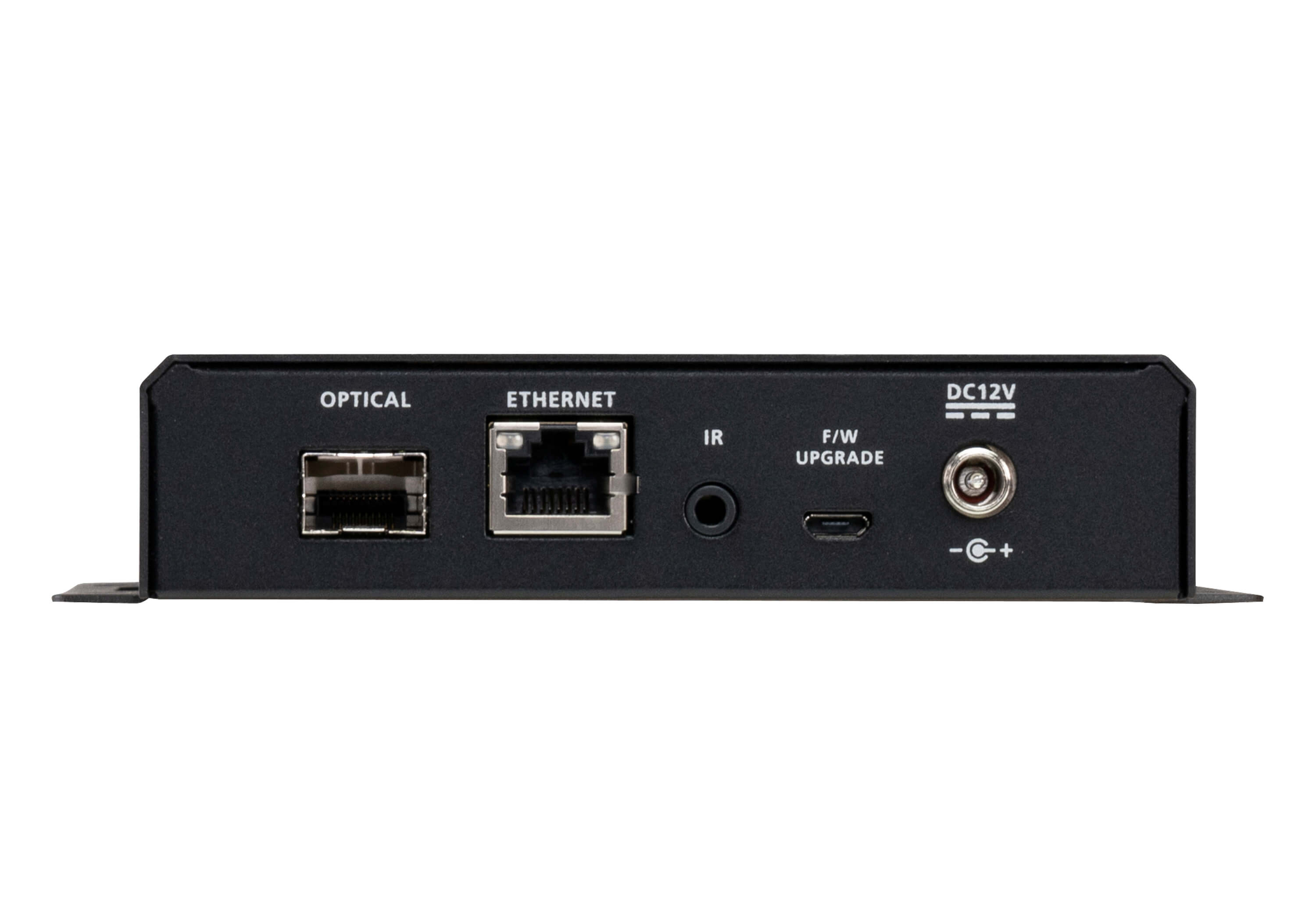

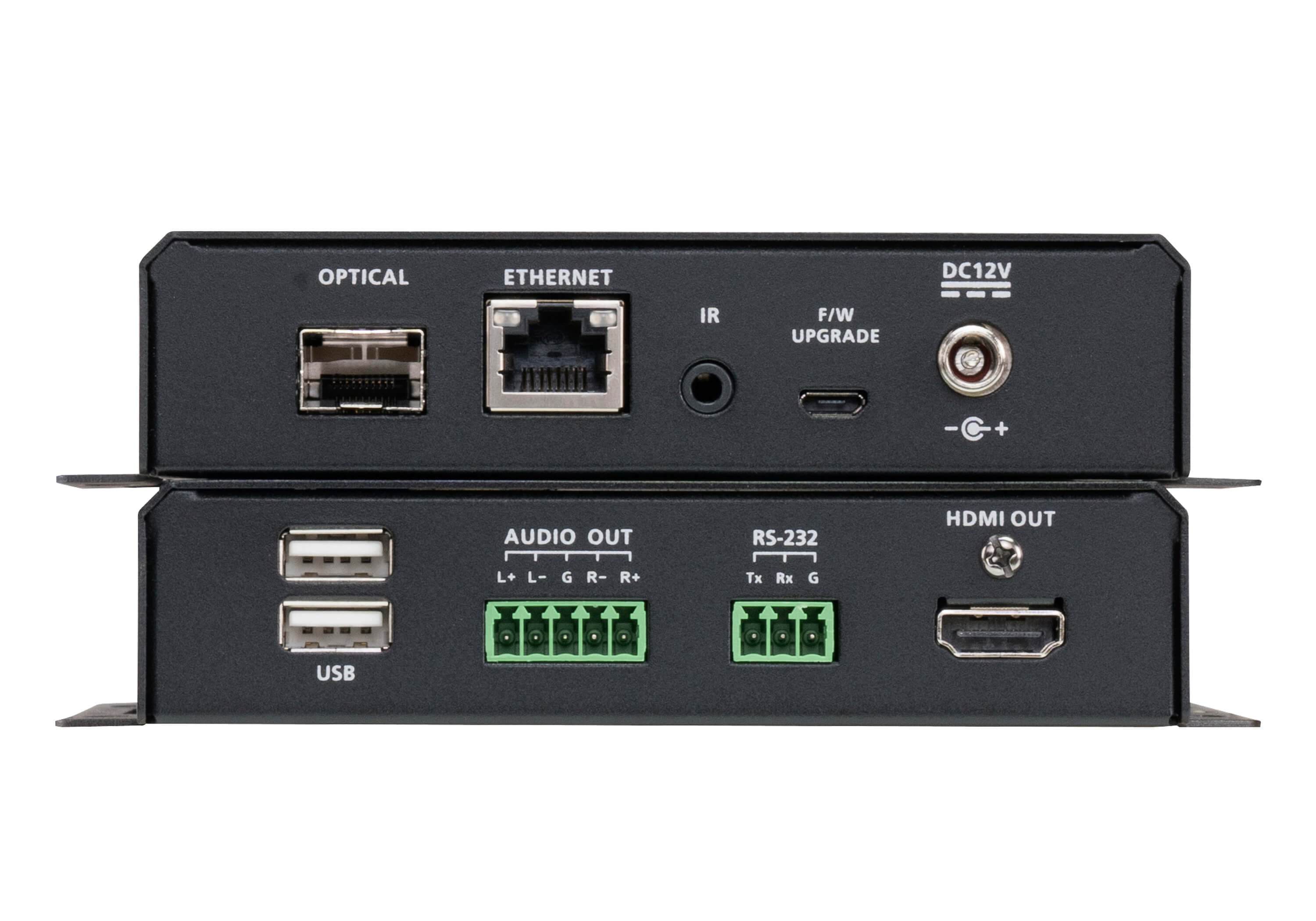

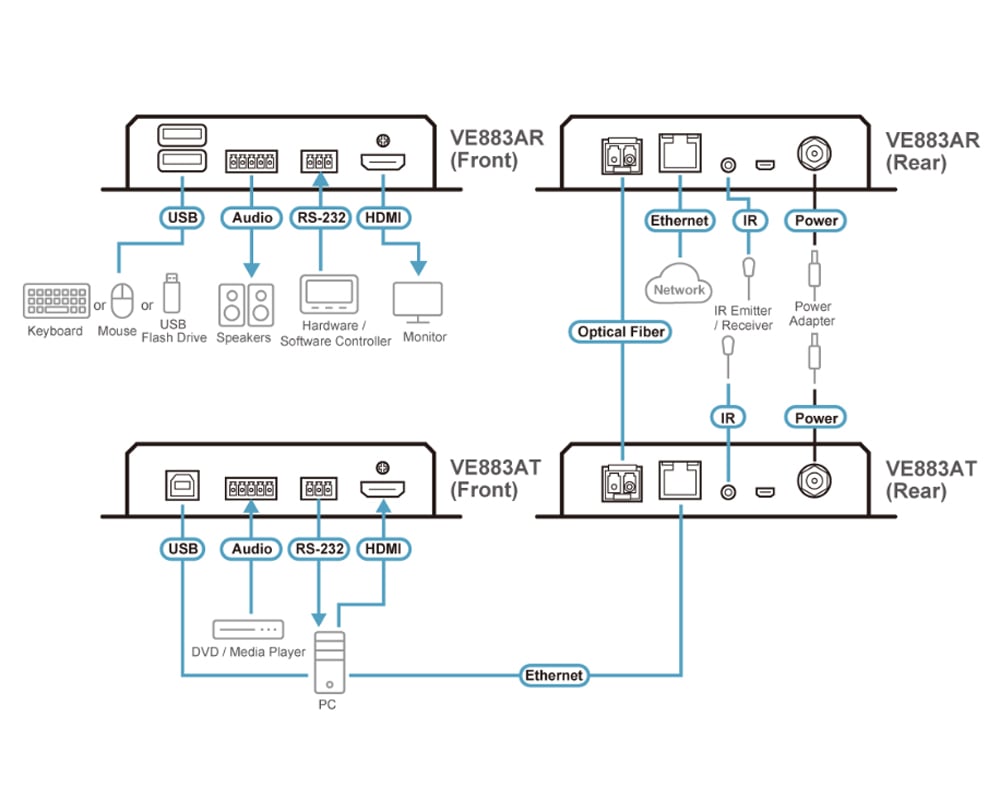

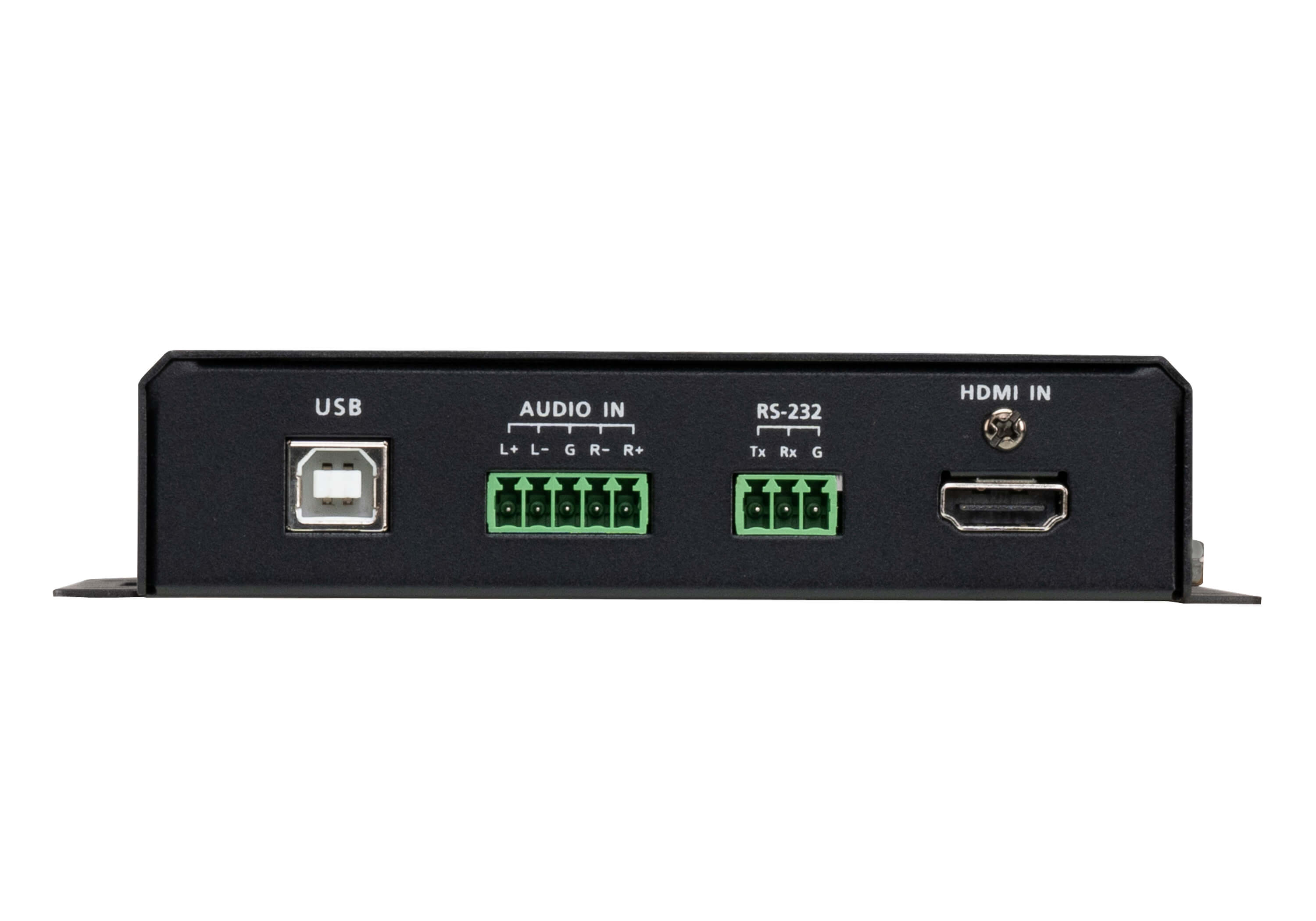

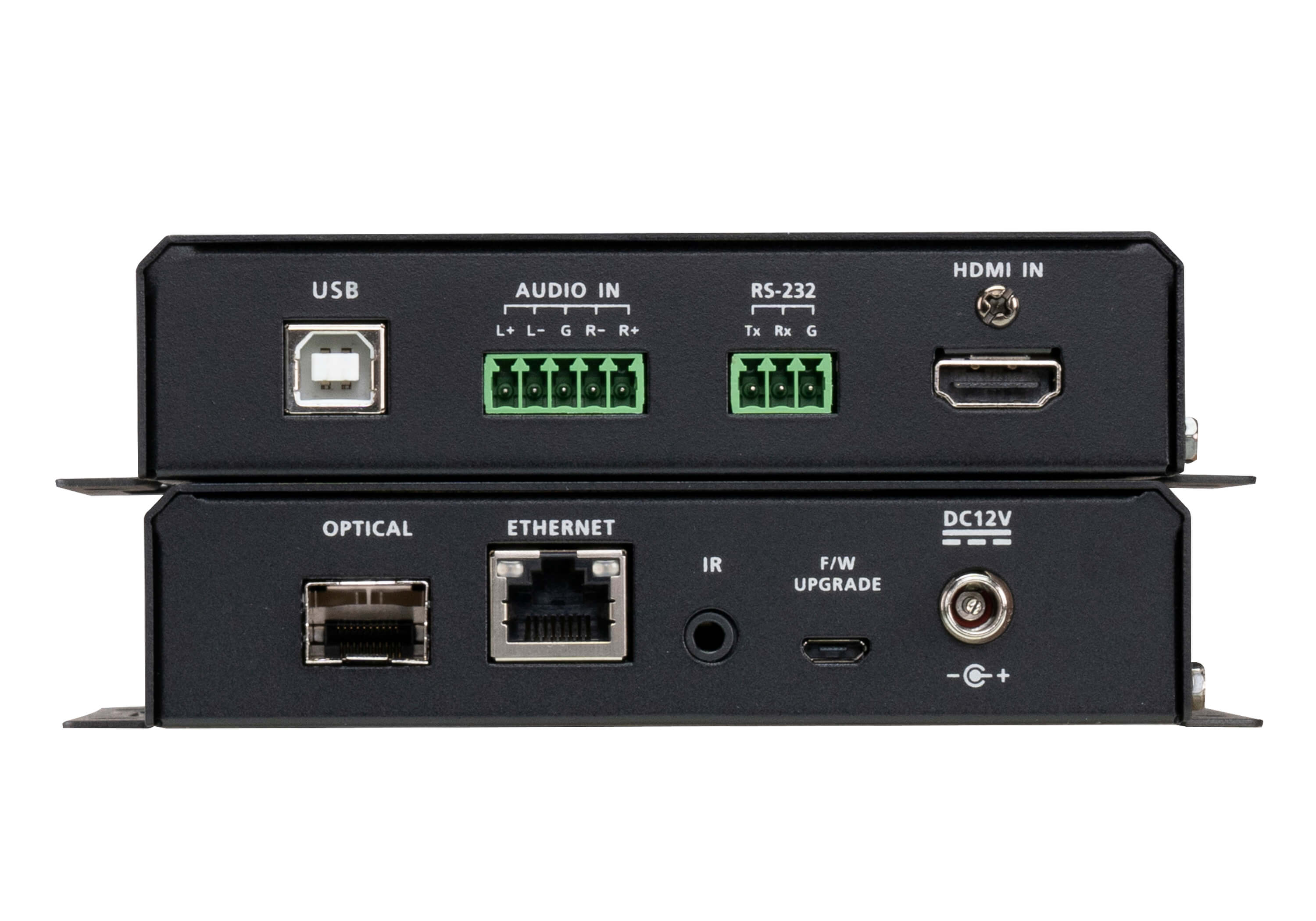

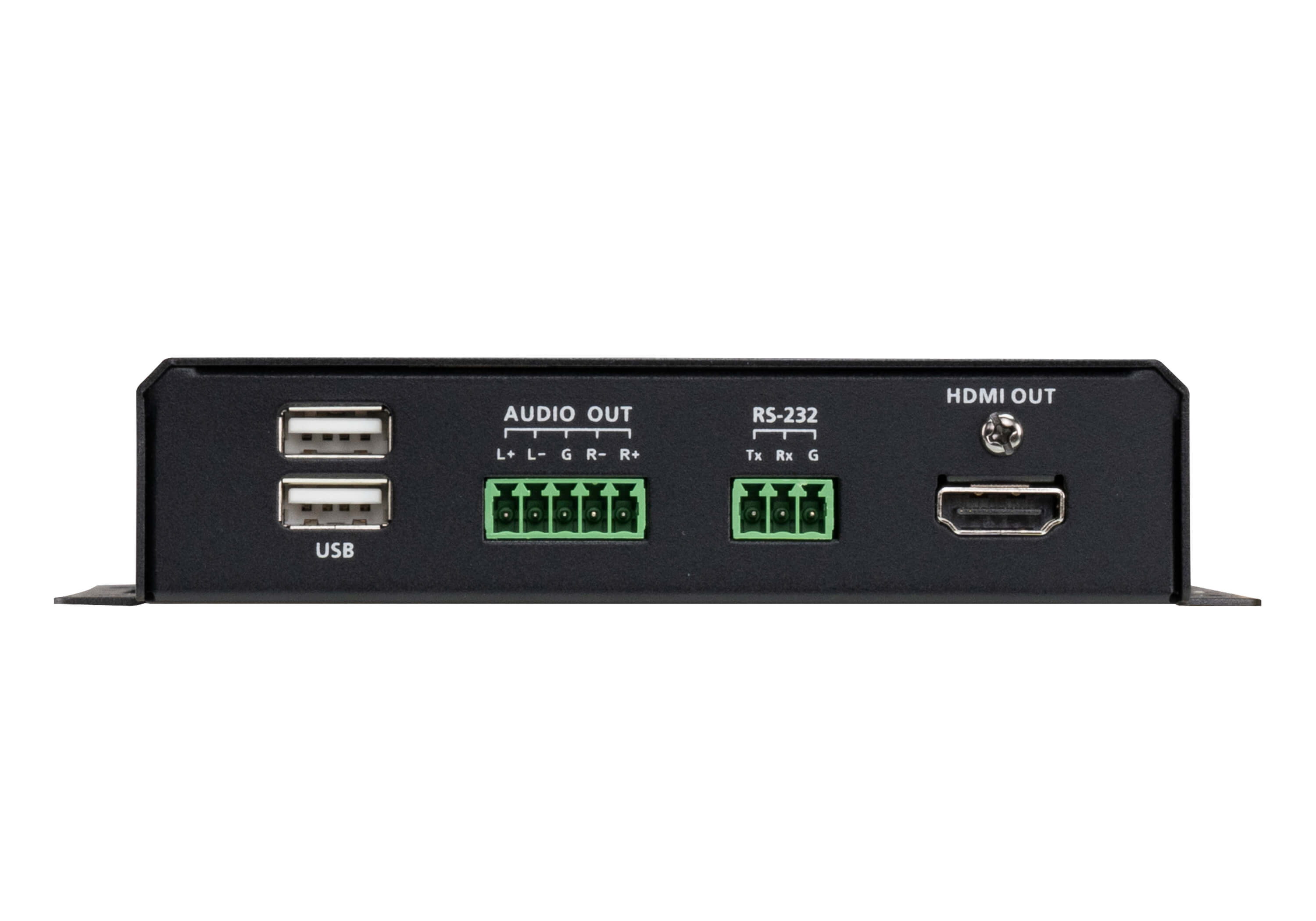

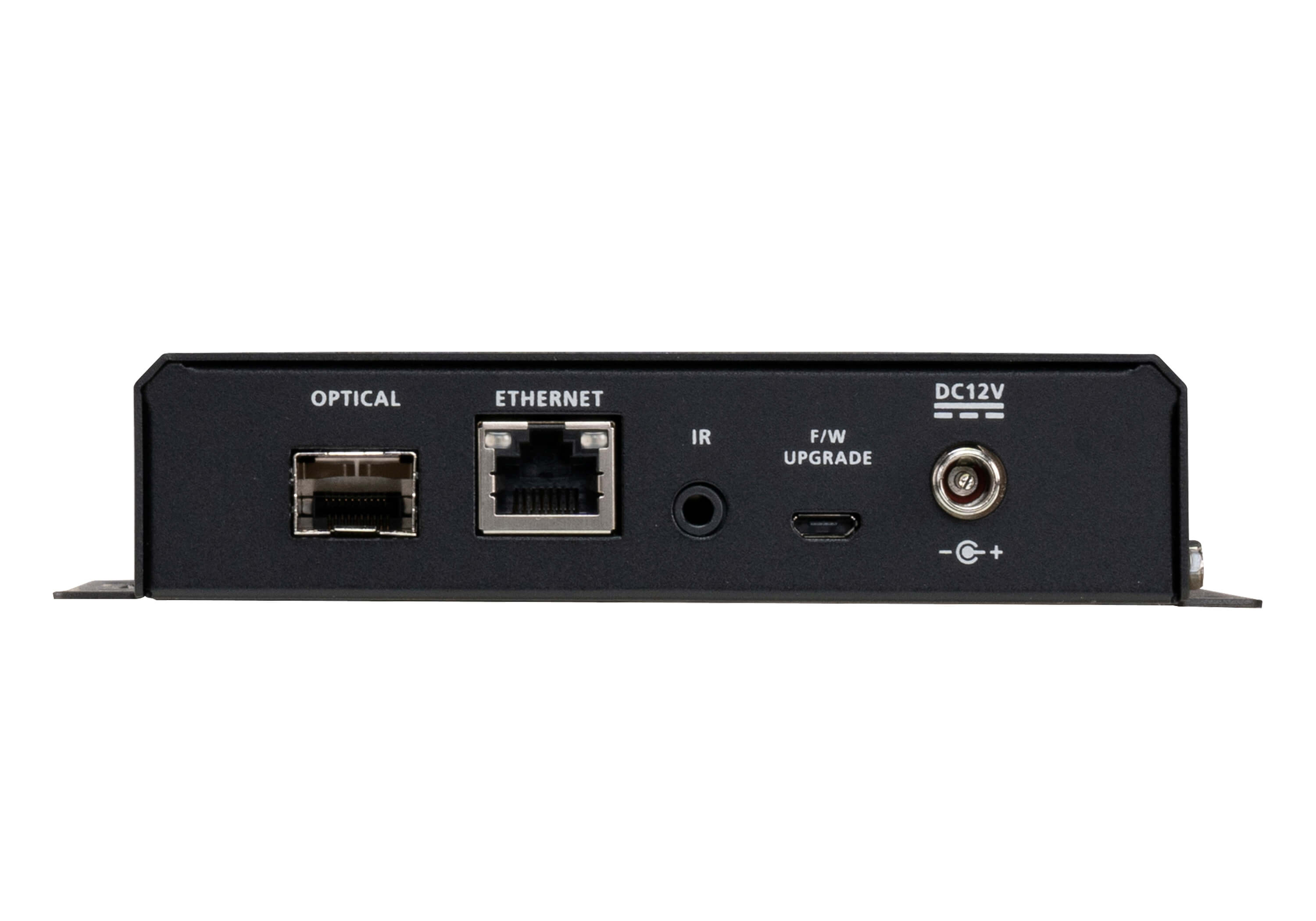

The VE 883 A è equipped with HDMI input/output interfaces, analog audio input/output, USB 2.0 , IR, RS- 232 and Gigabit ethernets. Connectivity à with the USB è extended peripherals thanks to the double USB Type-A ports of the VE 883 A&rsquo. For point-to-point extension, SFP+ modules are included that can be connected for optical connection. In addition, the VE 883 A è compatible with the VM 7584 /VM 8584 optical input/output card installed in ATEN's modular matrix to expand applications. It is suitable for installations where the True 4 K video transmission over long distance and electrical isolation are essential, such as control rooms, factories and hospitals.



Features

• HDMI video, audio, IR, RS- 232 control and Ethernet signals on a fiber optic duplex cable up to 10 km


• Transmission without loss of signals up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4: 4: 4 )


• HDMI (3 D, Deep Color, True 4 K); compatible with HDCP 2.2


• The exclusive ATEN FarSmooth – technology prevents delay and freezing by matching the output speeds à to the input speeds and guarantees a stable, fluid and source-identified 4 K@ 60 Hz video screen thanks to the bandwidth of 10 Gbps


• Supports transparent 2.0 USB signals for greater connectivity à with USB peripherals at a speed à maximum transfer of 25 MB/s


• Two-way IR signal transmission; IR transmission is processed in one direction at a time, with a range from 30 kHz to 56 kHz


• It has a RS- 232 serial port for connecting peripherals such as touch screens and barcode scanners


• Support batch updates using firmware update utility


• ESD protection integrated by 8 kV / 15 kV


• Plug and Play


• Hot Connectable


• Installable on rack



Note:

• The maximum transmission distance can be different depending on the type of fibre, bandwidth, connectors junction, leaks, model, color dispersion, environmental factor and bending.


• ATEN recommends using single mode fibres that comply with IEC 11801 (OS 1 , OS 1 a, OS 2) and multimodal fibres that comply with IEC 11801 (OM 3 , OM 4) specifications.


• The device è a 1 class laser product. It complies with the safety standards IT 60825 - 1 , 21 CFR 1040.10 and 1040.11 , except for the derogations provided for in the Laser Notice No 50 of 24 June 2007 .



Connections

• TX 1 x HDMI type A female (Black)


• RX 1 x HDMI type A female (Black)



Video

• Maximum frequency data  10,2 Gbps (3,4 Gbps per lane)


• Pixel clock max. 594 MHz


• Conformityà HDMI (3 D, Deep Color, 4 K)


• Compatible with HDCP 2.2 / 2.3


• Maximum resolution 4096 x 2160 @ 60 Hz (4: 4: 4 ) / 3840 x 2160 @ 60 Hz (4: 4: 4 )


• Distance max. 1 module SFP



VE 883 AK 2 : 4 Kx 2 K/ 60 Hz 4 : 4 : 4 up to 10 km (SM, blue)



Audio

• TX: 1 x terminal block, 5 poles (Green)


• RX: 1 x terminal block, 5 poles (Green)



Optical fibre

• Velocità data: 10.3 Gbps


• Wave length: 850 nm


• Fiber Type: Multimodal (MM), OM 3 , type LC duplex



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % RH, Non-condensing



Dimensions

• With bracket: 16,94 x 14,69 x 3,00 cm


• Without bracket: 16,60 x 12,49 x 2,90 cm



Package contents

• 1 x Optical transmitter HDMI True 4 K VE 883 AT

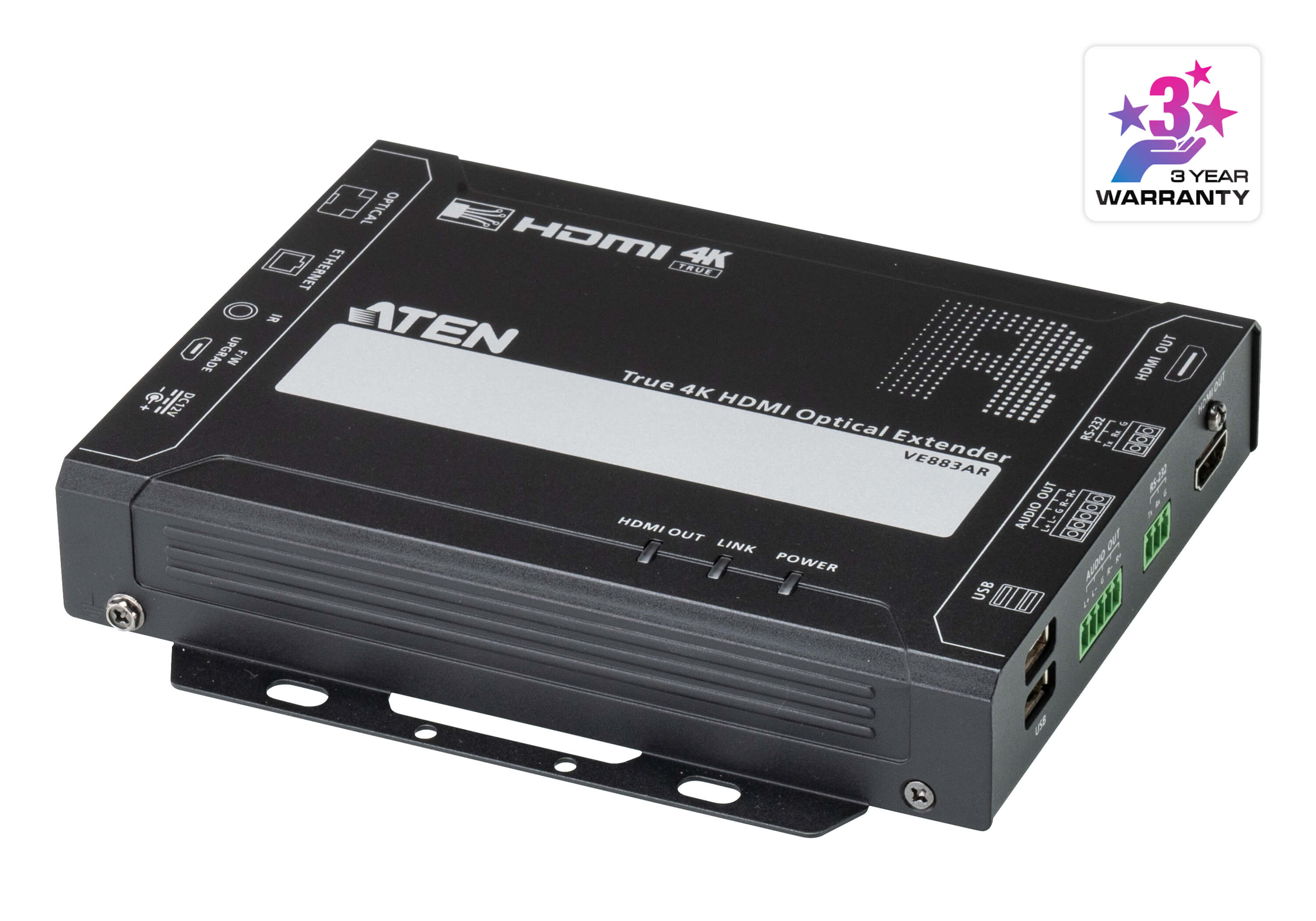

• 1 x HDMI True 4 K VE 883 AR optical receiver


• 2 x Power supply and power cables


• 2 x 3 pole clamper


• 2 x 5 pole clamper


• 1 x IR Receiver


• 1 x IR emitter


• 1 x Type-B USB to Type-A USB cable


• 2 x LockPro HDMI


• 2 x SFP modules


• 1 x Instructions for use
