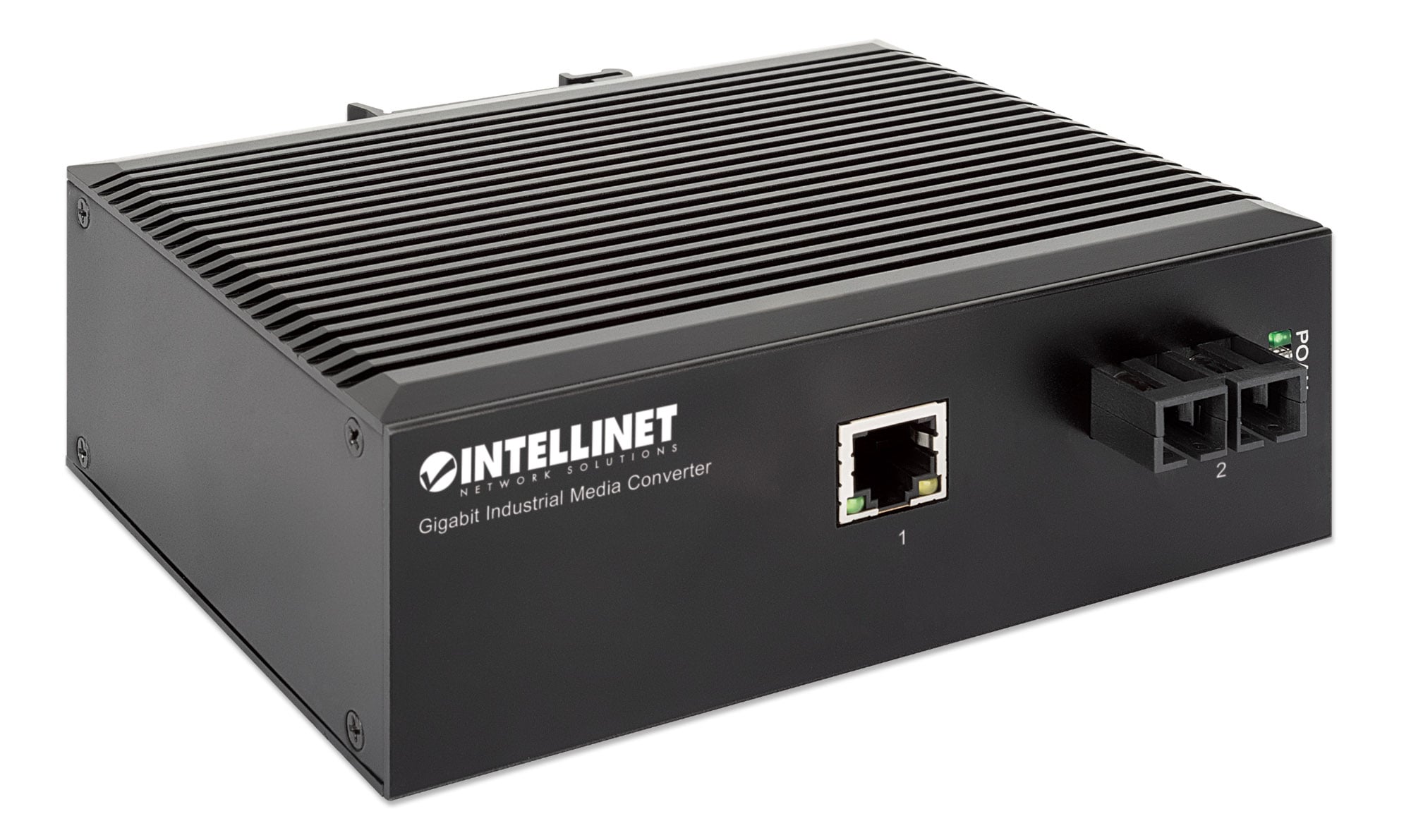

- One RJ45 10/100/1000 port supports maximum distance of 100 m
- One single-mode fiber optic 1000Base-SX port supporting a maximum distance of 20 km (12,4 mi.)
- Compact metal housing IP40 to withstand harsh industrial conditions

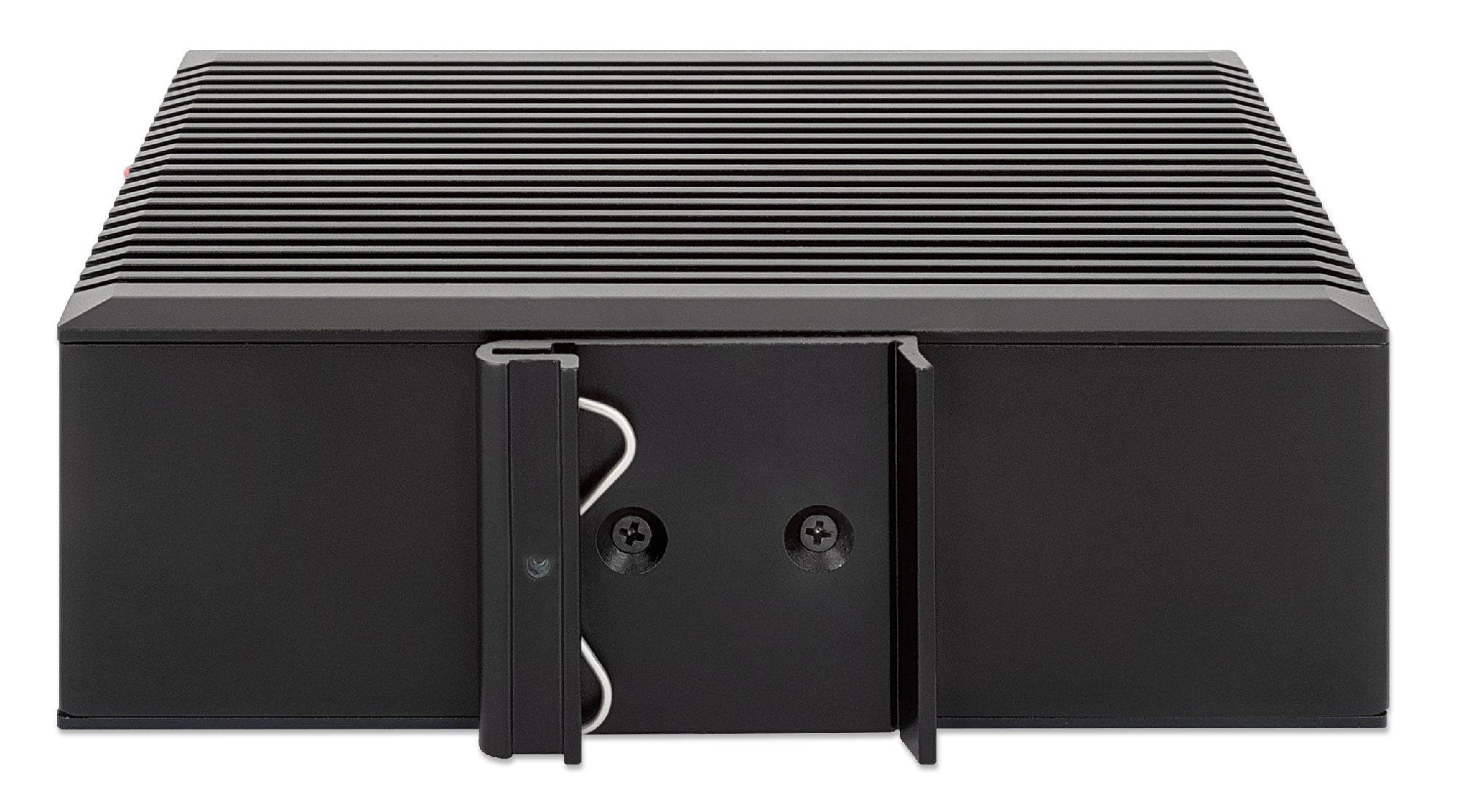

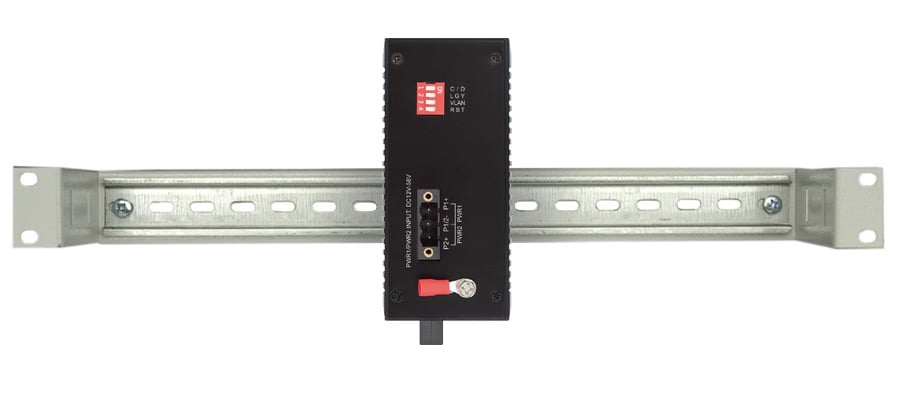

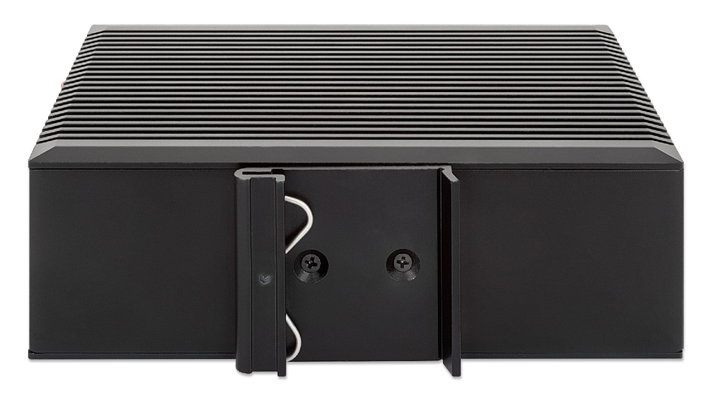

- Optional DIN rail mounting
- Link Fault Pass Through (LFP) function to simplify network maintenance
- Two redundant DC inputs (12 - 58 V) with I/O terminal block

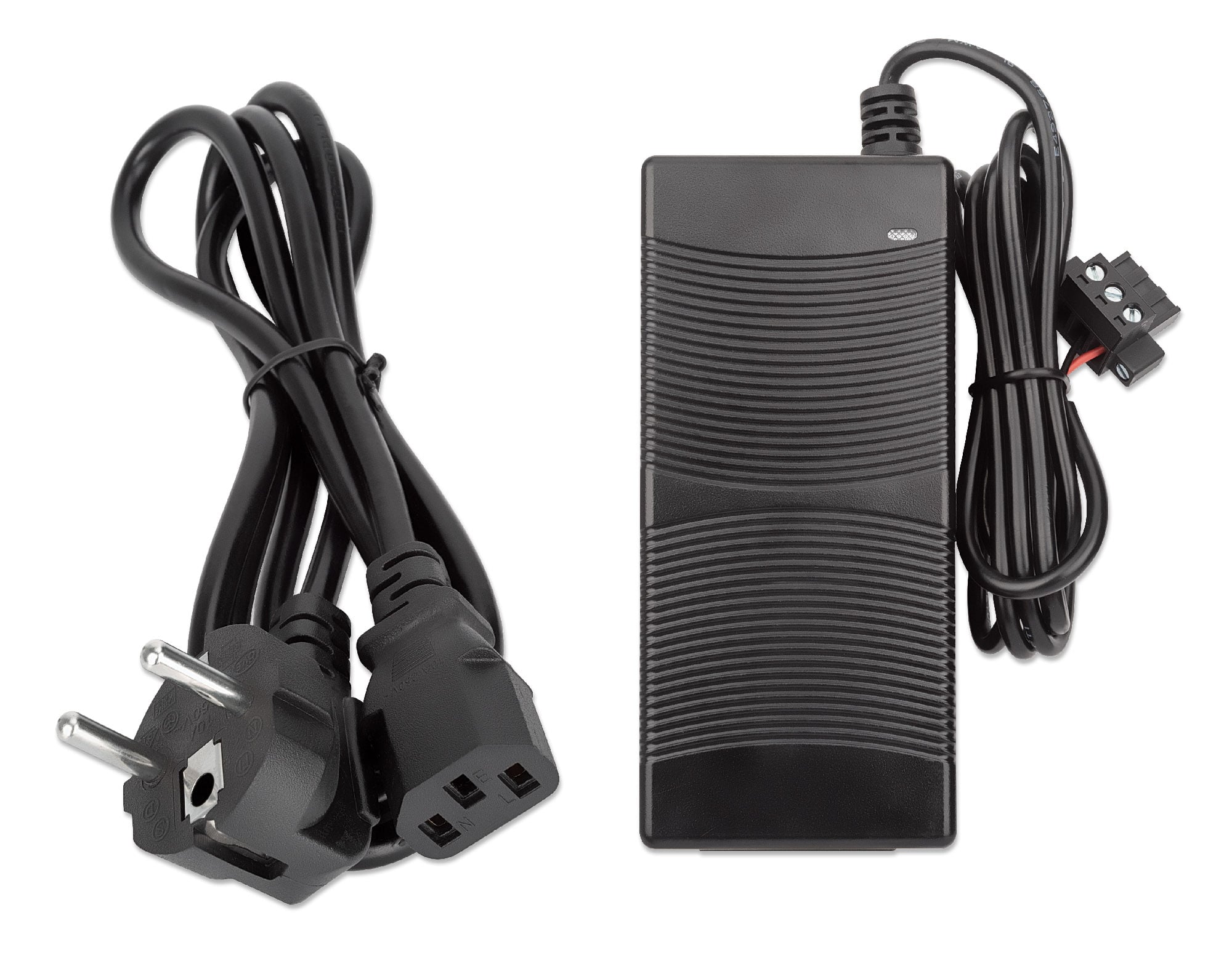

- Requires industrial power supply (not included)
- Port with surge protection up to 6kV
- Rated for shock (IEC 60068-2-27), drop (IEC 60068-2-32), and vibration (IEC 60068-2-6)
- Supports full-duplex and half-duplex modes with auto-negotiation
- Wide operating temperature: -40 - 75 ℃ (-40 - 167 ° F)
- Supports 8k MAC addresses with Auto-learning and Auto-aging
- Buffer memory of 1 MByte
- Supports jumbo frames up to 10 kbytes
- Fanless design for silent operation
Standards- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3z (1000BASE-X Gigabit Ethernet)
General Information- 10/100/1000Base-TX Cat5e or higher UTP/STP RJ45
- 1000Base-LX single-mode 8,3/125 µm, 8,7/125 µm, 8/125 µm or 10/125 µm
- Fiber cable: 20 km (12,4 mi.)
- RJ45 cable: 100 m (300 feet)
- Wavelength: 1310 nm
- Min. TX Power: -9 dBm
- Max. TX Power: -3 dBm
- Certifications: FCC Class B, CE, RoHS

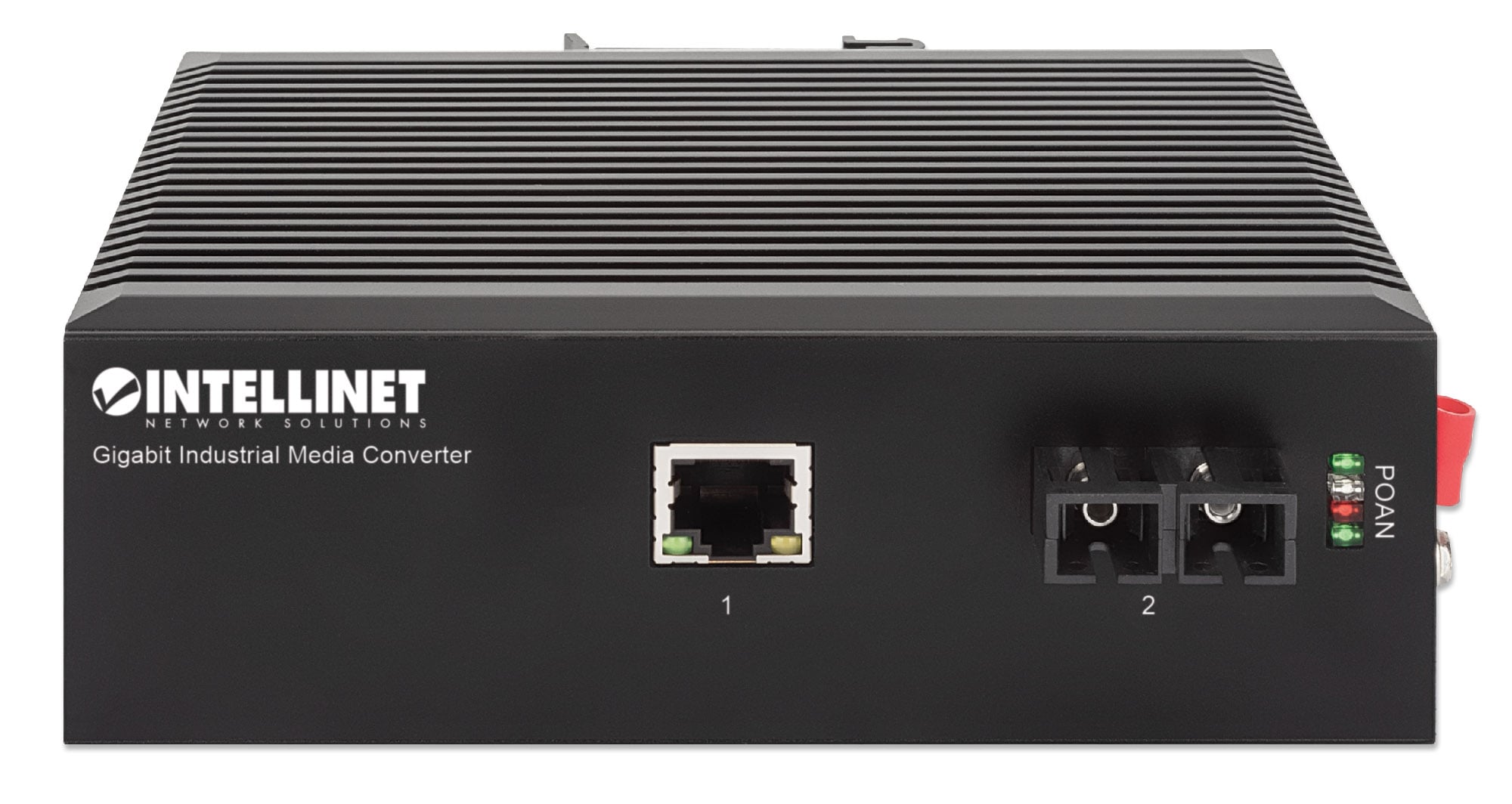

LED- P for Power
- O for fiber optic port
- N for NMC
- A for alarm (voltage)
Power- DC input voltage: 12 - 58 V
Physical information- Metal housing

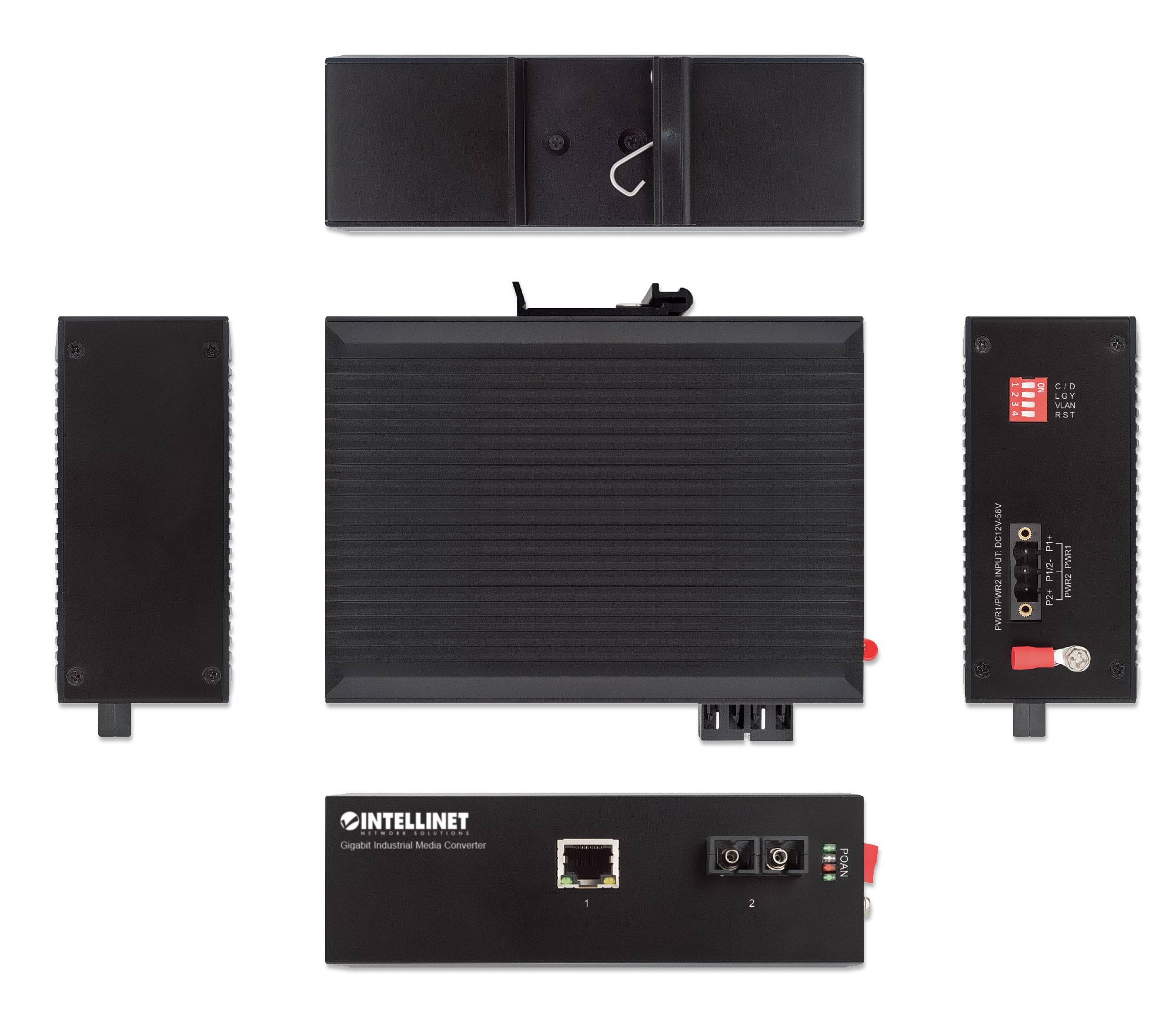

- Dimensions: 143 x 104 x 48 mm (5,63 x 4,09 x 1,89 inches)
- Weight: 600 g (21,16 oz)
- Operating temperature: -40 - 75 ° C (-40 - 167 ° F)
- Storage temperature: -40 - 85 ° C (-40 - 185 ° F)
- Relative humidity: 5 - 90% RH, non-condensing

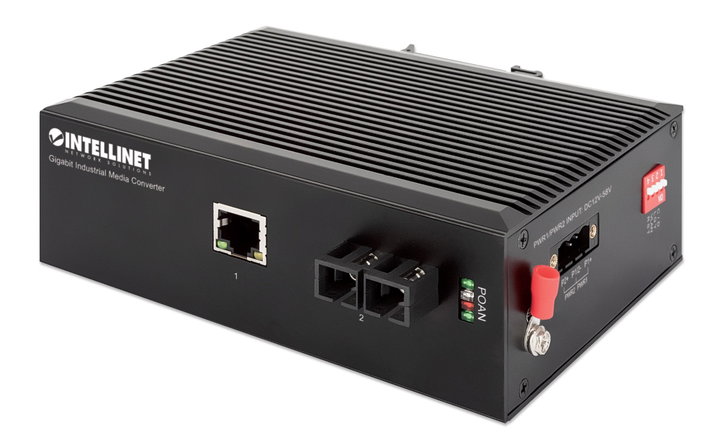

Package contents- Industrial Gigabit Media Converter
- Instructions
