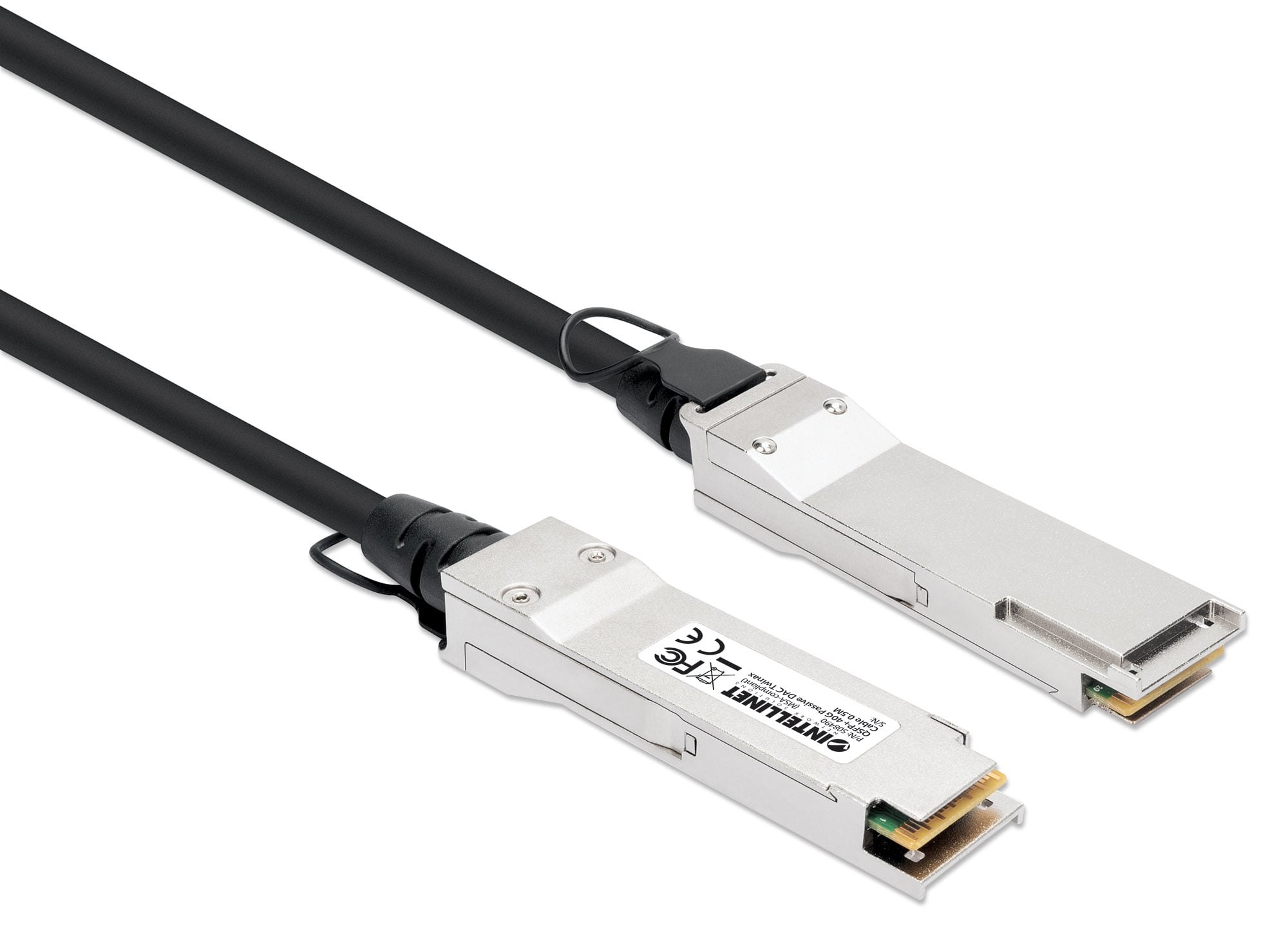

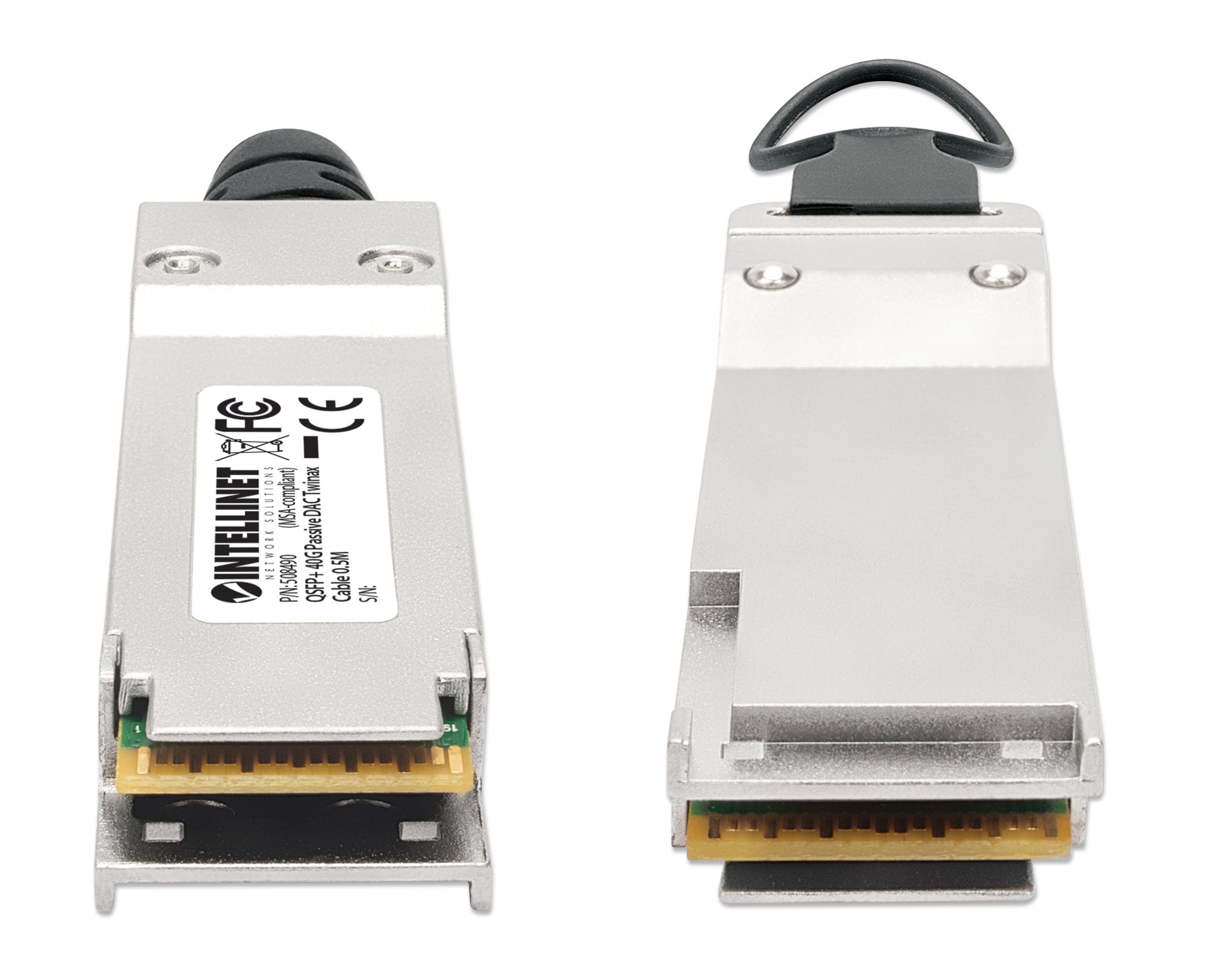

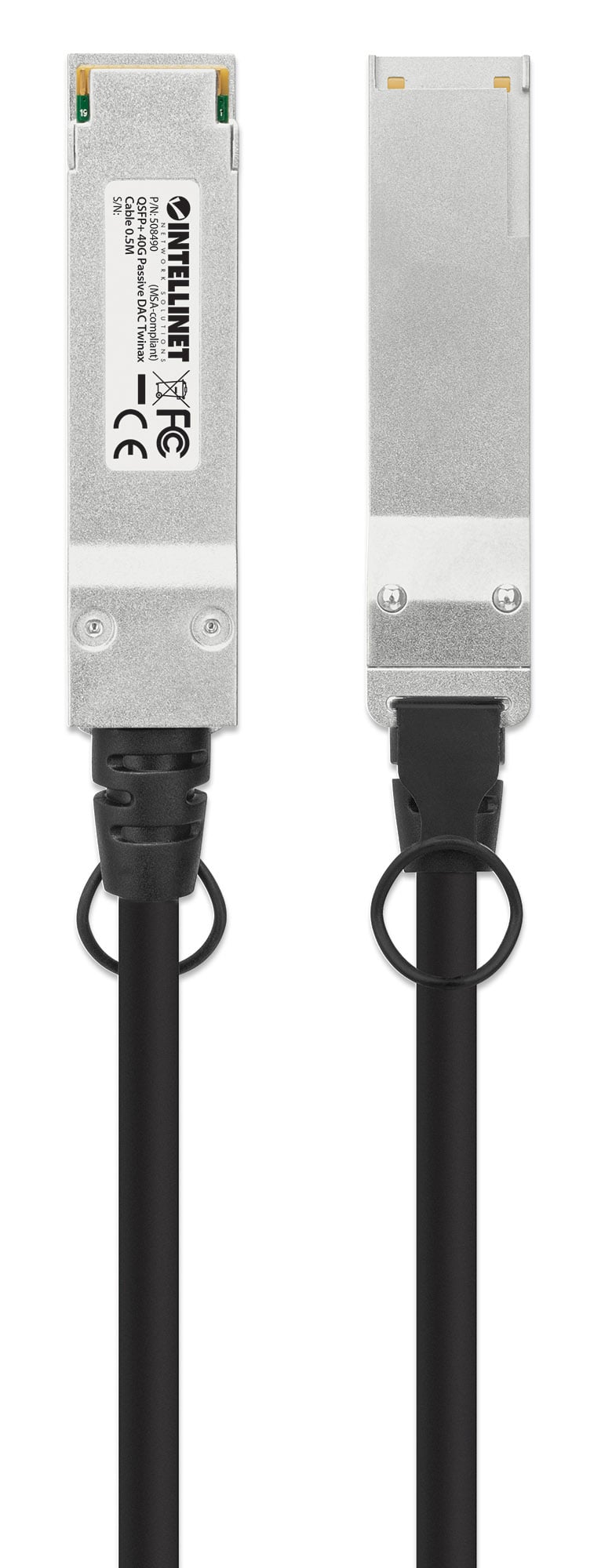

Twinax DAC cable Liabilities QSFP+ 40 G 3 m - Intellinet ICOC QSFP- 030

· Direct Attack Copper passive biaxial cable (DAC) for economical, low latency and energy saving connections
· MSA-compliant for compatibility à with major switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and others (see specifications)
· Two QSFP + connectors for data transfer speeds à up to 40 Gbps
· Energy consumption and price significantly lower than optical fibre cables
· Lower signal latency compared to RJ 45 connections
· Simpler ù Cable Implementation in Optical Transmitters with Less Components That Have To Match
· Passive DAC as an ideal option in structured wiring for many applications within short distance up to 7 m
· Does not produce heat and can be used at high operating temperatures up to 70 °C
· Hot-swap for updates or network replacements without interruption

Standards and certifications
· RoHS
· EC
· FCC

General information
· Power consumption: < 0,1 W (for extremeà)
· Applications: 40 Gigabit Ethernet
· Maximum data transfer speed à: 40 Gbps
· Minimum curvature radius: 33 mm
· Impedance: 100 Ohm
· Length: 3 m
· Weight: 240 g

Compatible marks
· Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tent, Trendnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force 10 , Riverstone, Fortinet and more

Connections:
· Two QSFP + male

Cable:
· AWG 30 drivers
· Type: passive copper, biaxial
· Coating material: PVC

Environmental features
· Operating temperature: 0 - 70 °C
· Storage temperature: - 40 - 80 °C

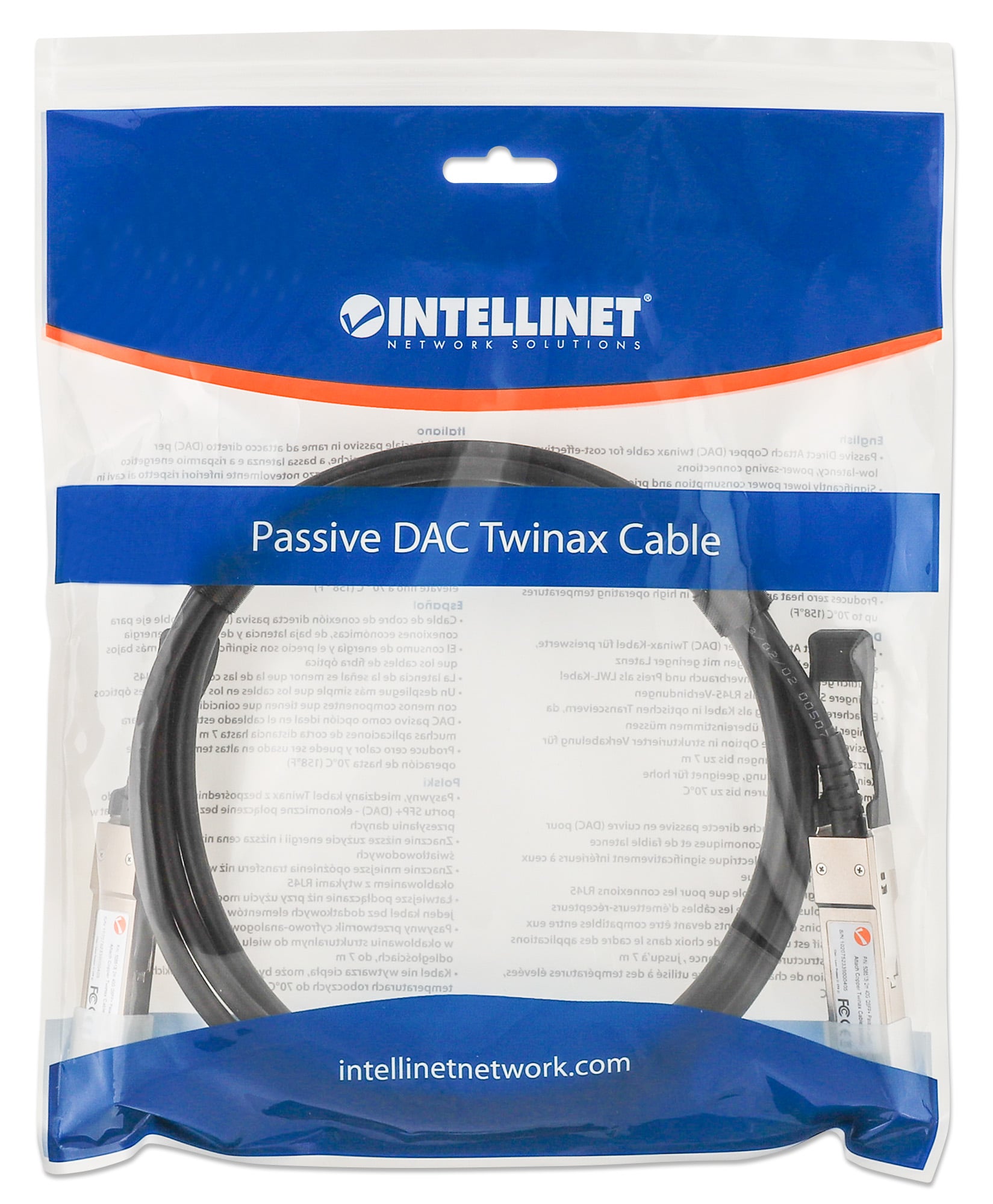

Package contents
· Passive Twinax DAC cable
