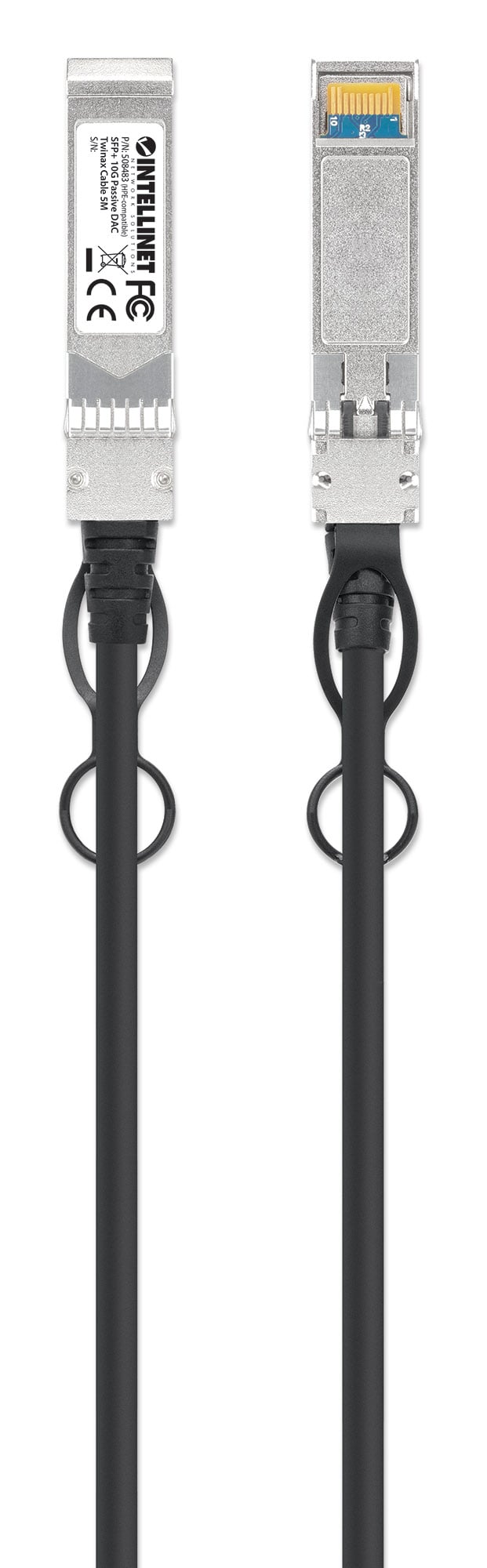

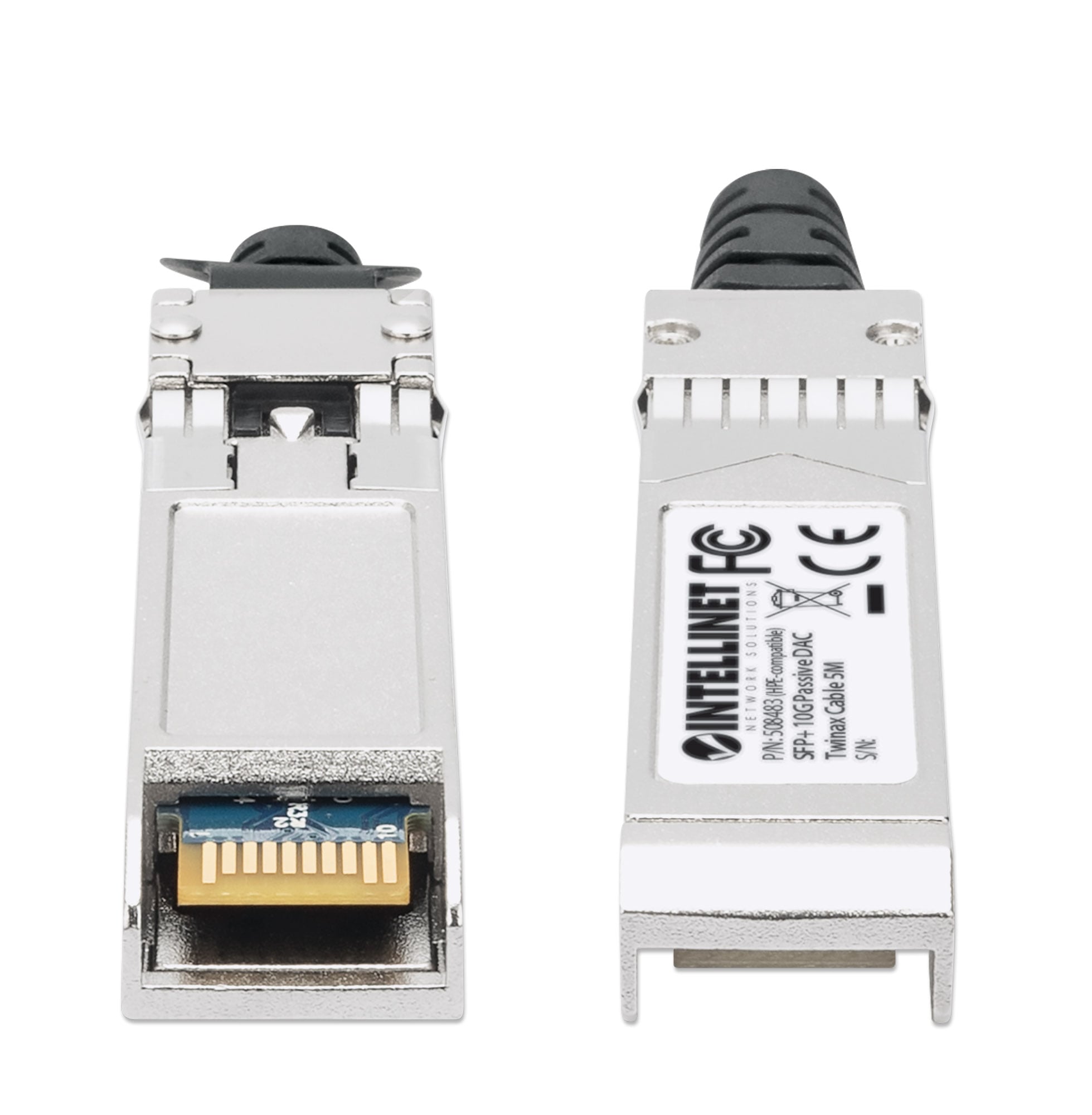

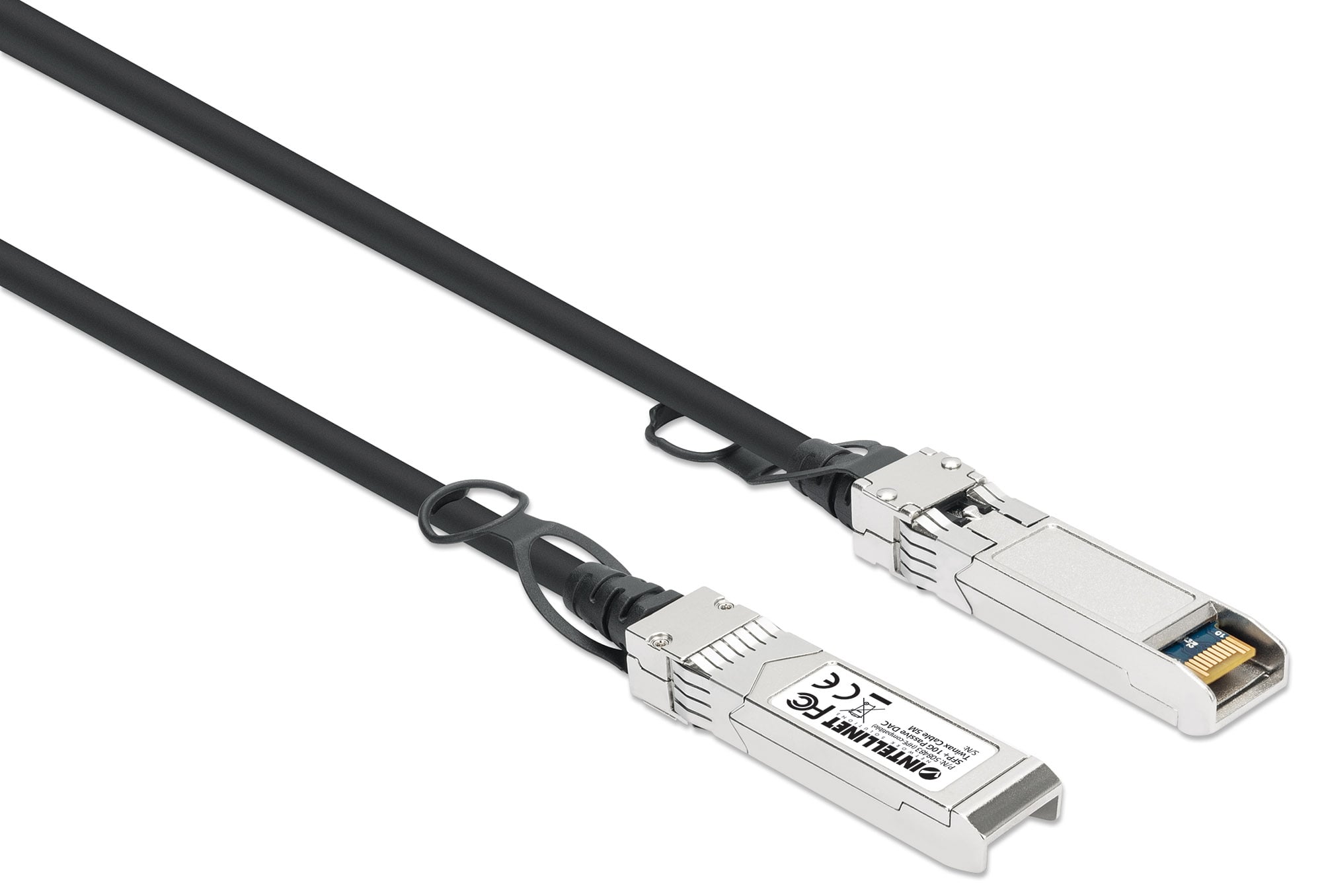

Twinax DAC cable SFP+ 10 G 0,5 m for HPE - Intellinet ICOC SFP- 005 HP

· Two-axis passive copper cable with direct connection (DAC) for economic, low latency and energy saving connections

· Compatible with HPE Switch and Router (Hewlett Packard Enterprise)

· Two SFP + connectors for data transfer speeds à up to 10 Gbps

· Equivalent to HPE X 242 DAC cable series

· Energy consumption and price significantly lower than optical fibre cables

· Lower signal latency compared to RJ 45 connections

· Simpler ù Cable Implementation in Optical Transmitters with Less Components That Have To Match

· Passive DAC as an ideal option in structured wiring for many applications within short distance up to 7 m

· Does not produce heat and can be used at high operating temperatures up to 70 °C

· Hot-swap for updates or network replacements without interruption


Standards and certifications

· RoHS

· EC

· FCC



General information

· Power consumption: < 0,1 W (for extremeà)

· Applications: 10 Gigabit Ethernet

· Maximum data transfer speed à: 10 Gbps

· Minimum curvature radius: 30 mm (1,18 inch)

· Impedance: 100 Ohm

· Length: 0,5 m

· Weight: 57 g



Compatible marks

· HPE

· Tested to work with the HPE Aruba switch series, J 9145 , J 9150 , J 9151 , J 9281 , J 9283 and JG 326



Connections:

· Two SFP + males



Cable:

· 30 AWG

· Type: passive copper, biaxial

· Coating material: PVC



Environmental features

· Operating temperature: 0 - 70 °C

· Storage temperature: - 40 - 80 °C



Package contents

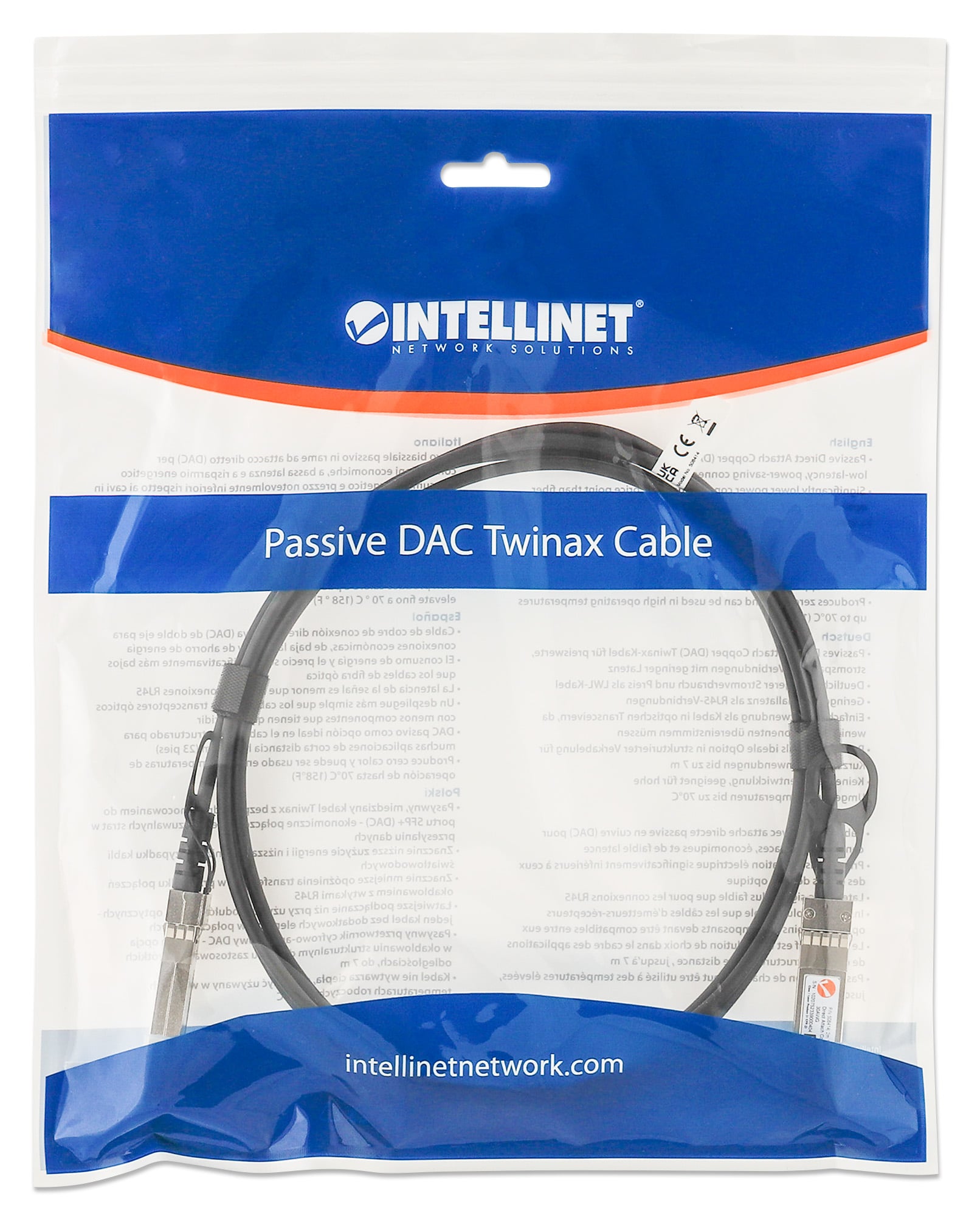

· Passive Twinax DAC cable
